1756-TBCH New Sealed 1756TBCH 36 Pin Screw Terminal Block
PRODUCT DETAILS

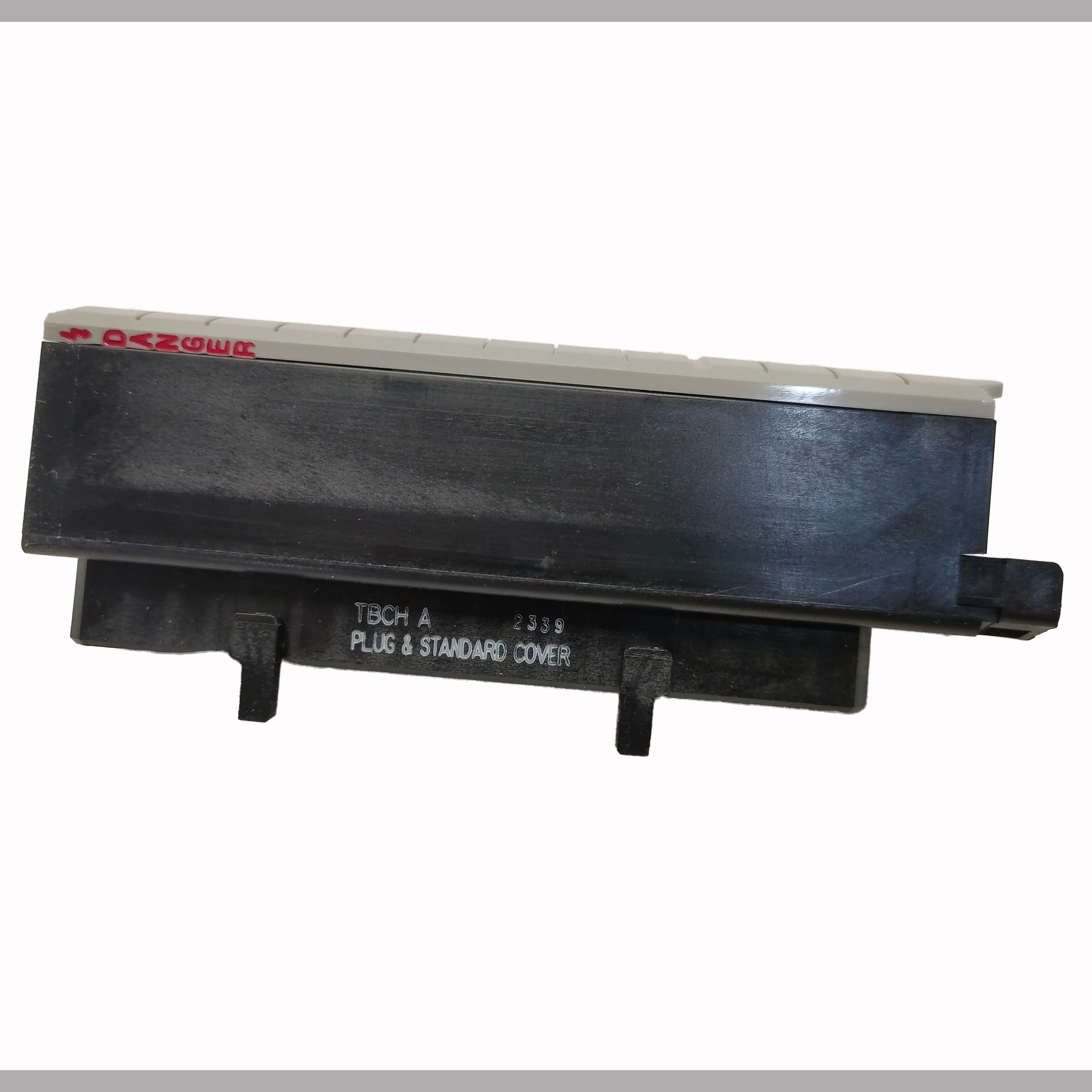

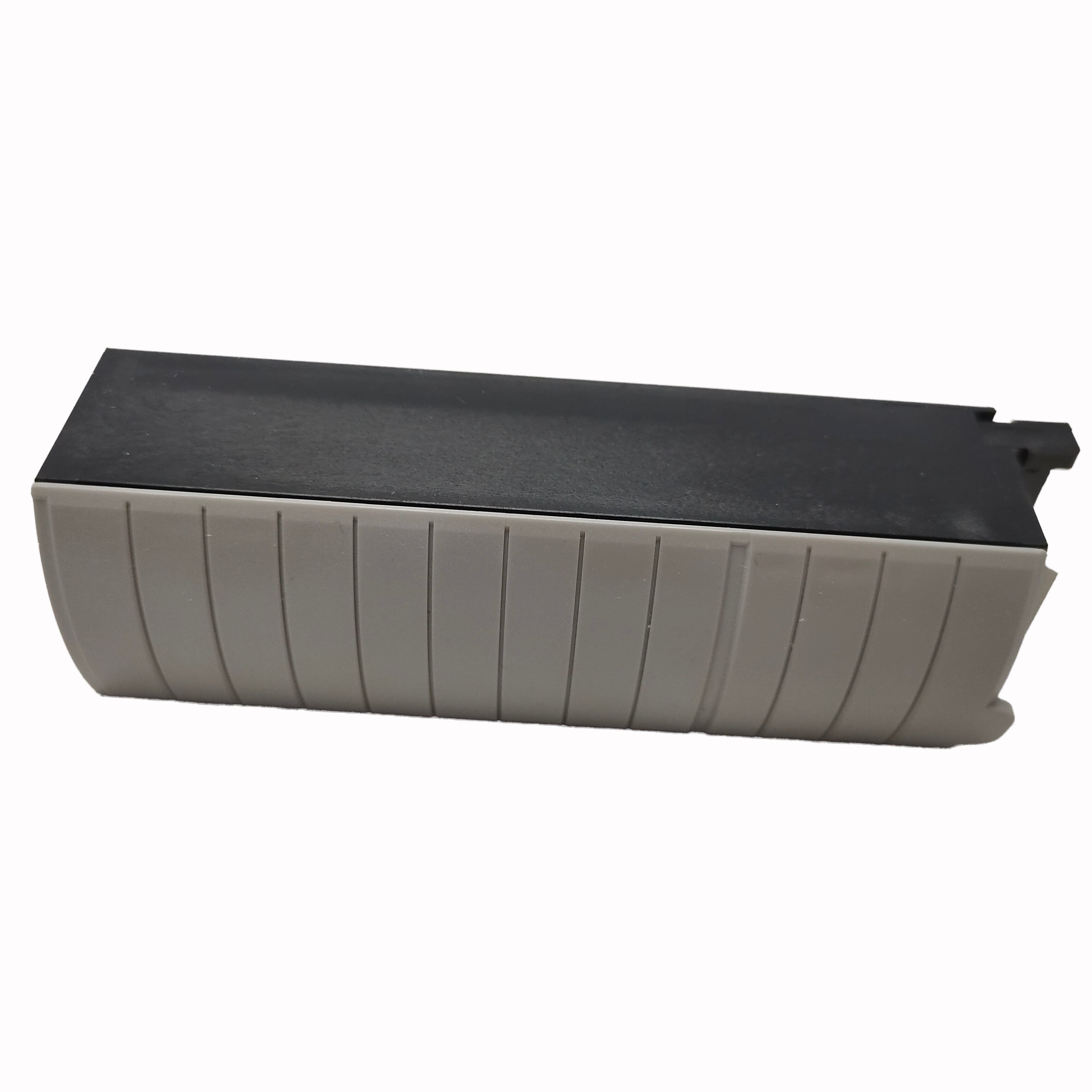

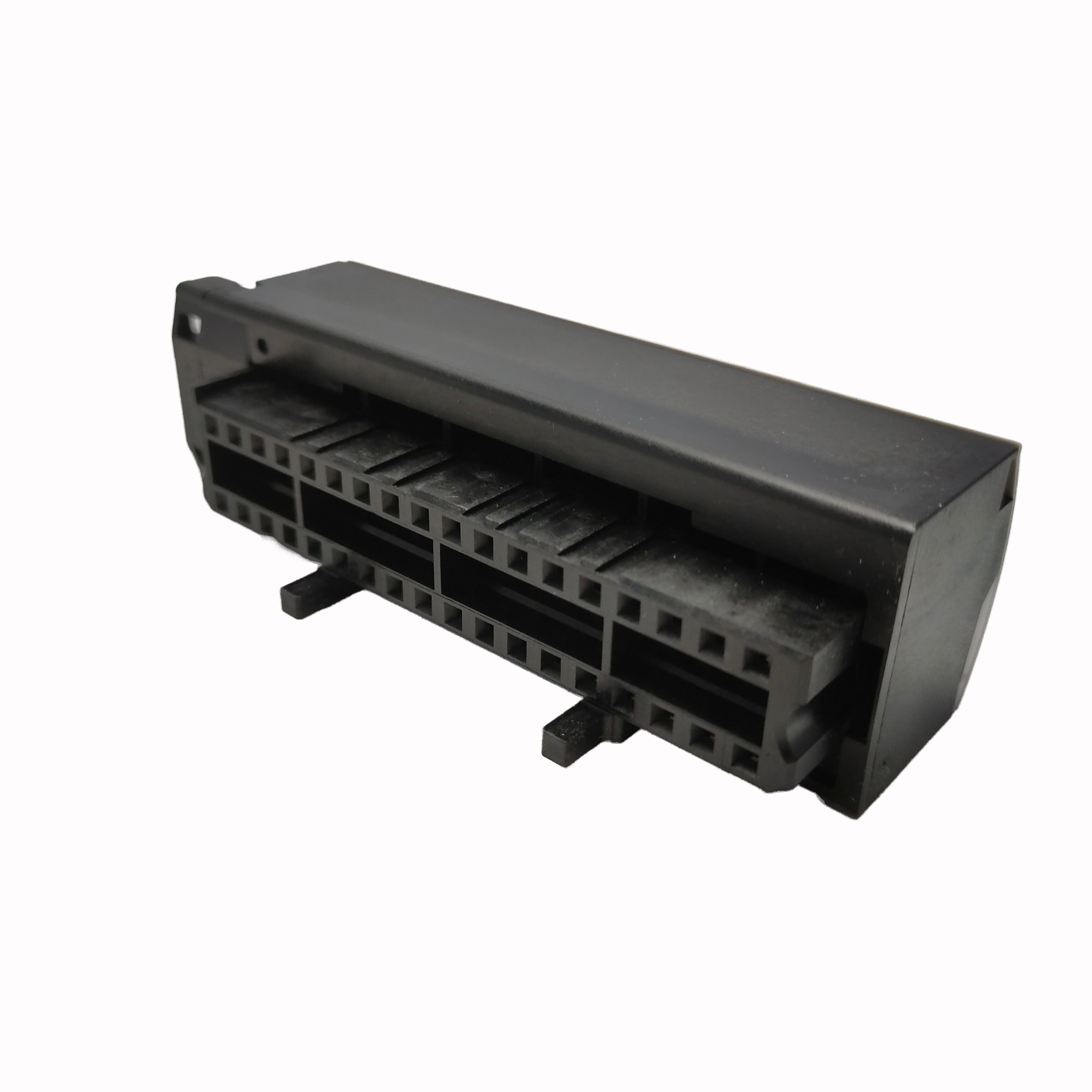

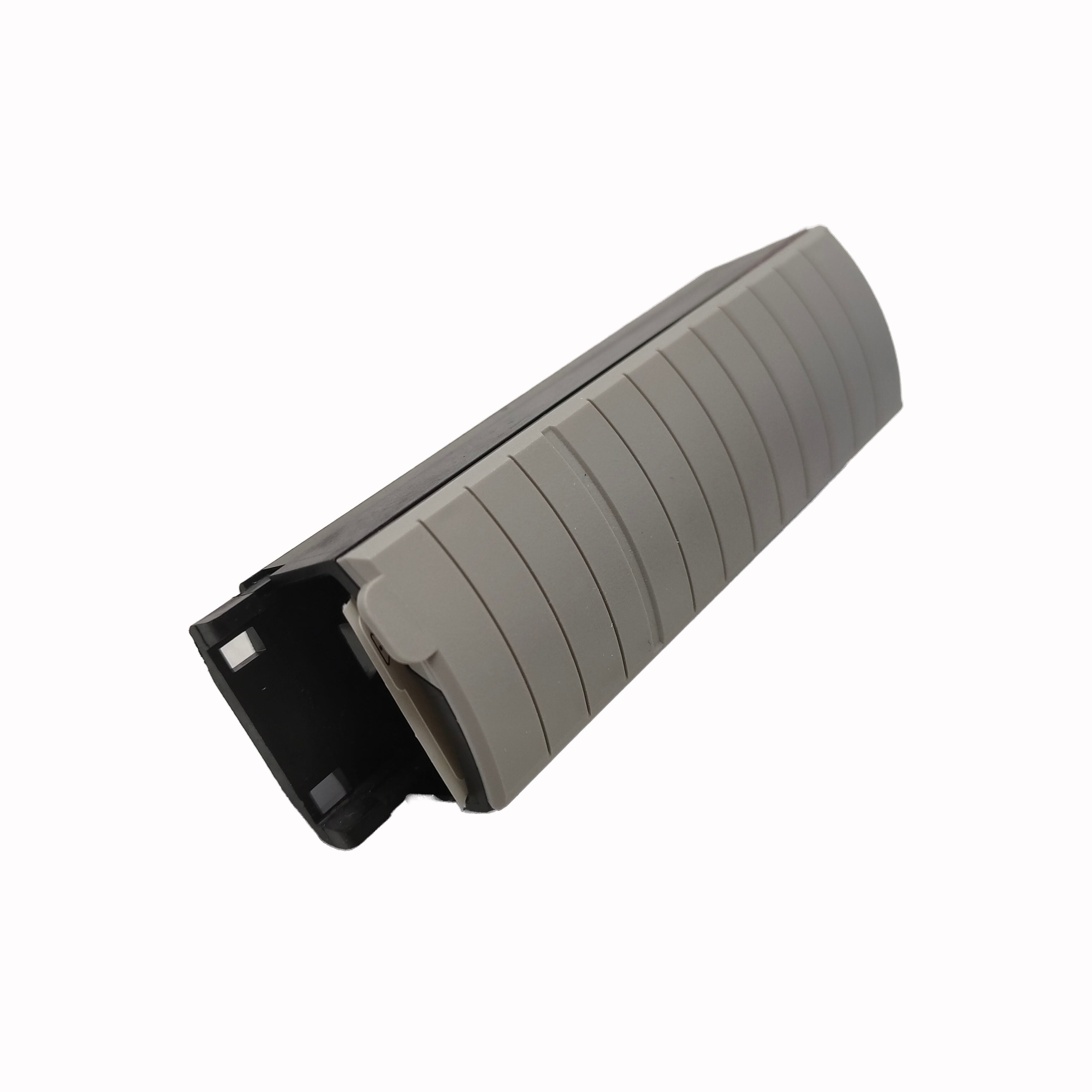

1756-TBCH Removable Terminal Block for Industrial Control Wiring
The 1756-TBCH is a removable terminal block designed to provide secure field wiring connections for industrial I/O modules. Its robust construction simplifies installation, maintenance, and module replacement while ensuring dependable electrical connections in automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Removable Terminal Block |
| Connection Type | Screw Clamp |
| Mounting | Module Interface |
| Wiring Method | Field Wiring |
| Construction | Industrial Grade |
| Application | Control System Wiring |
Installation Guide
- Disconnect system power before installation.
- Insert the terminal block fully into the module connector.
- Tighten wiring terminals to the recommended torque.
- Label field wiring for easier maintenance.
- Confirm all connections before energizing the system.
Typical Applications
- PLC control cabinets
- Machine automation
- Manufacturing equipment
- Process control systems
- Factory wiring upgrades
- Industrial I/O installations
FAQ
Q1: What is the function of this terminal block?
A: It provides reliable field wiring connections for I/O modules.
Q2: Is it removable?
A: Yes, it allows quick installation and maintenance.
Q3: Where is it commonly used?
A: Industrial control cabinets and automation equipment.
Q4: Why should wiring be labeled?
A: It simplifies troubleshooting and future maintenance.
Q5: Should power be disconnected before installation?
A: Yes, always install with power removed.
