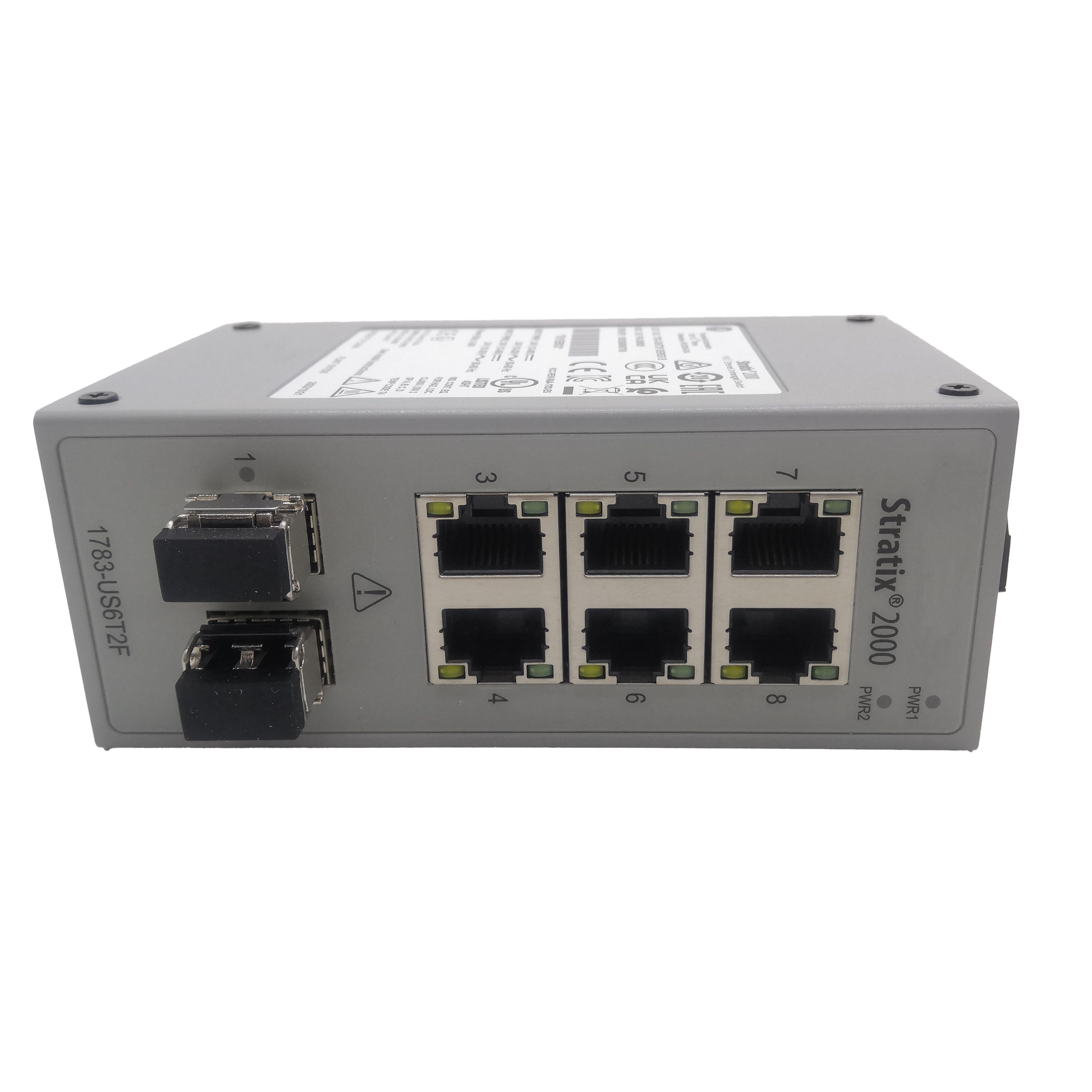

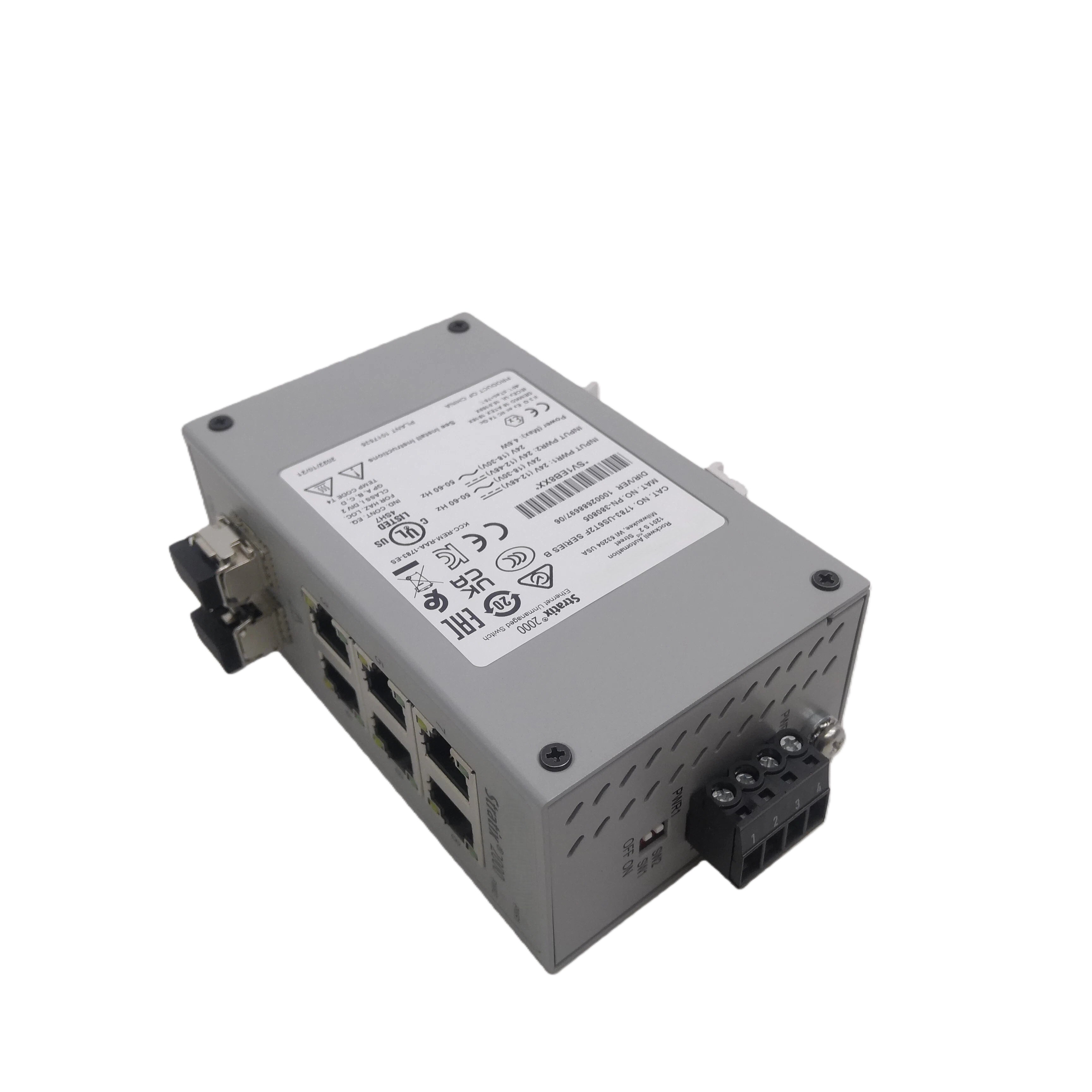

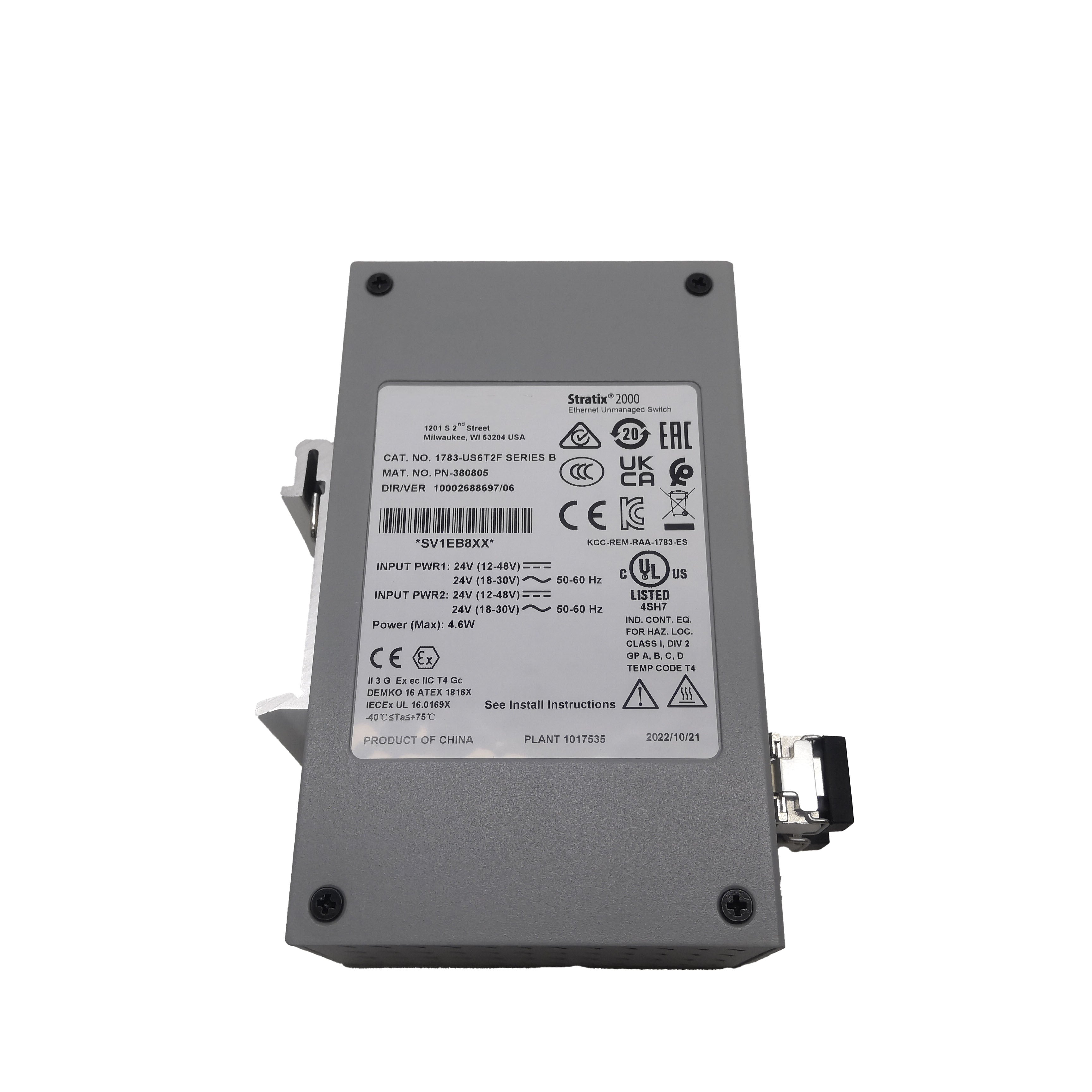

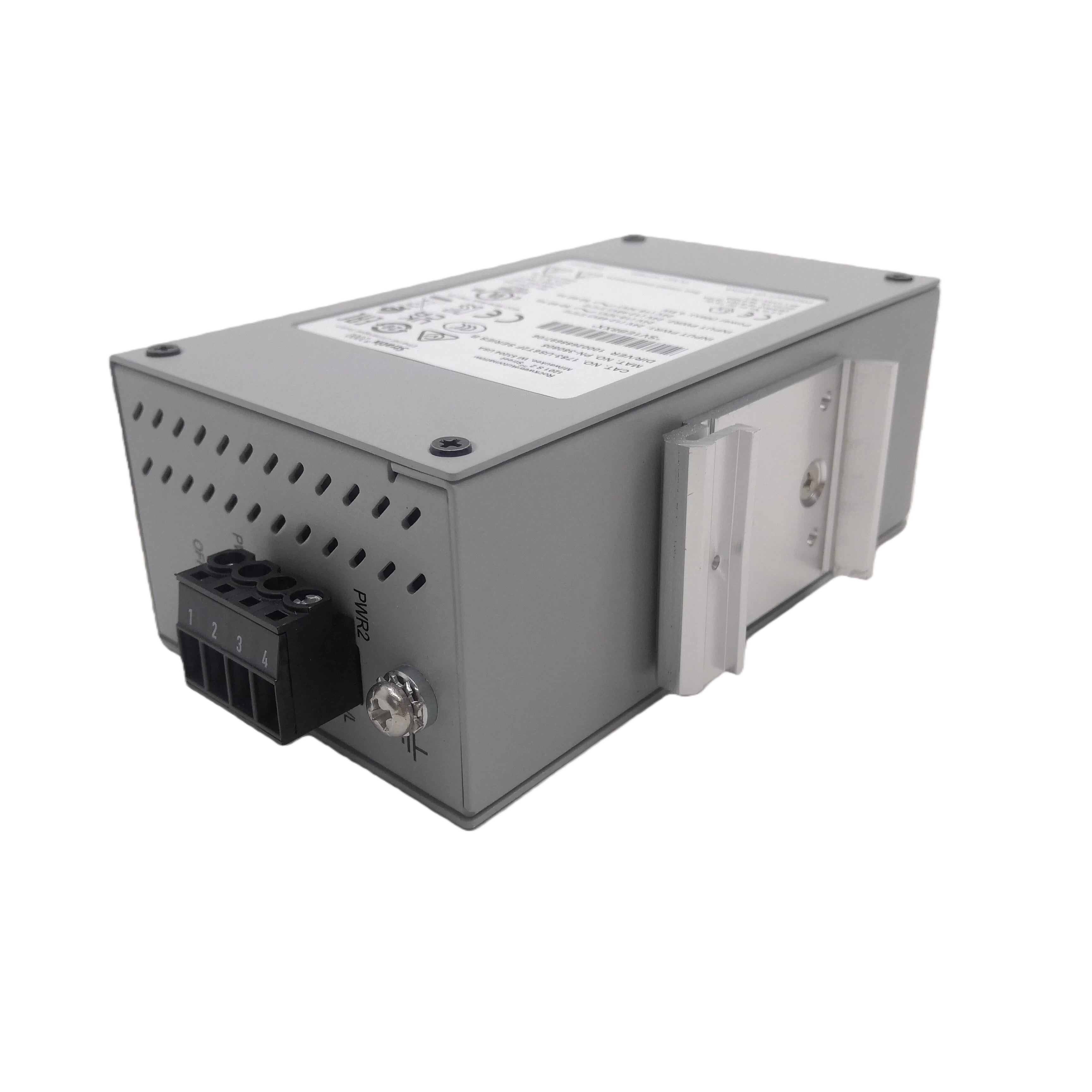

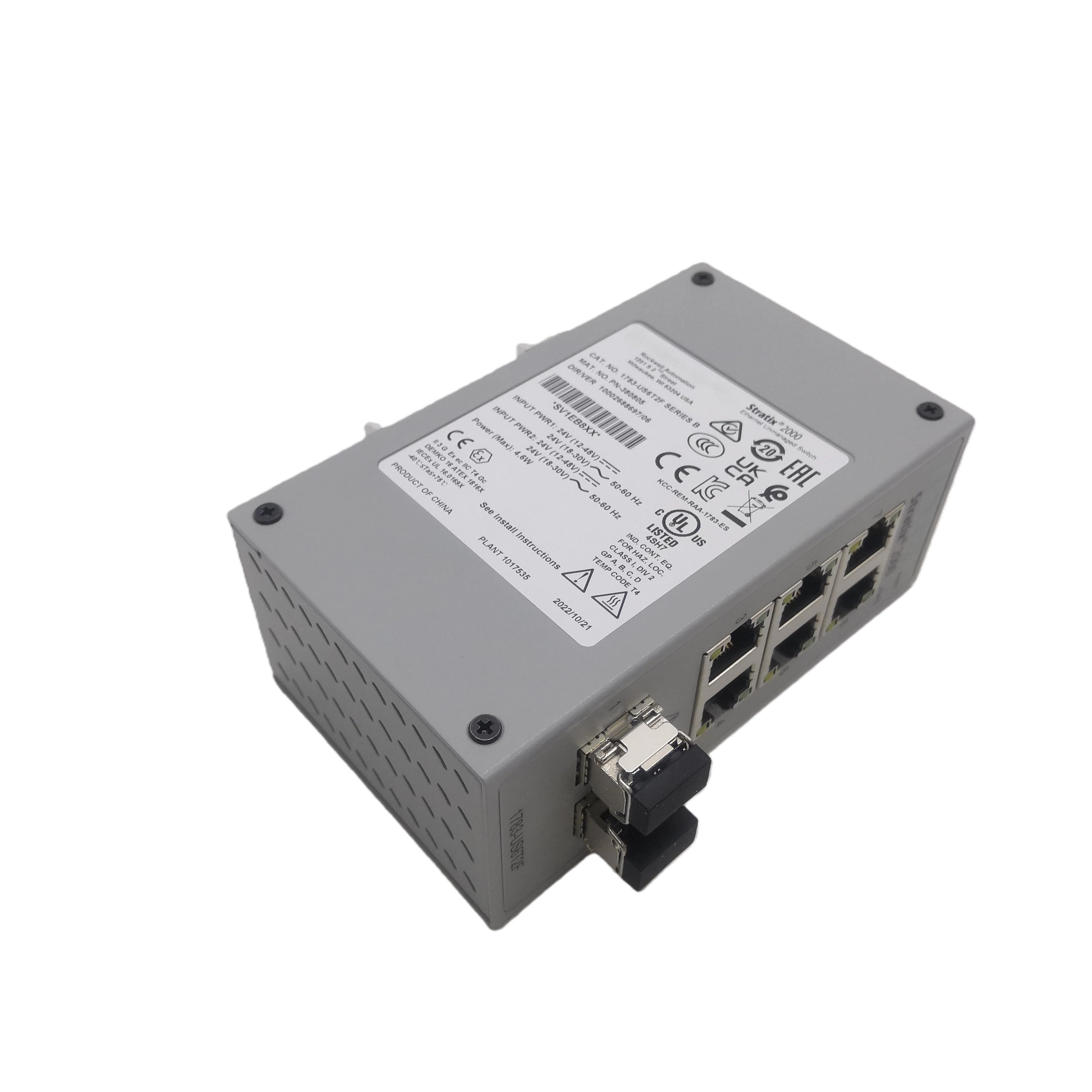

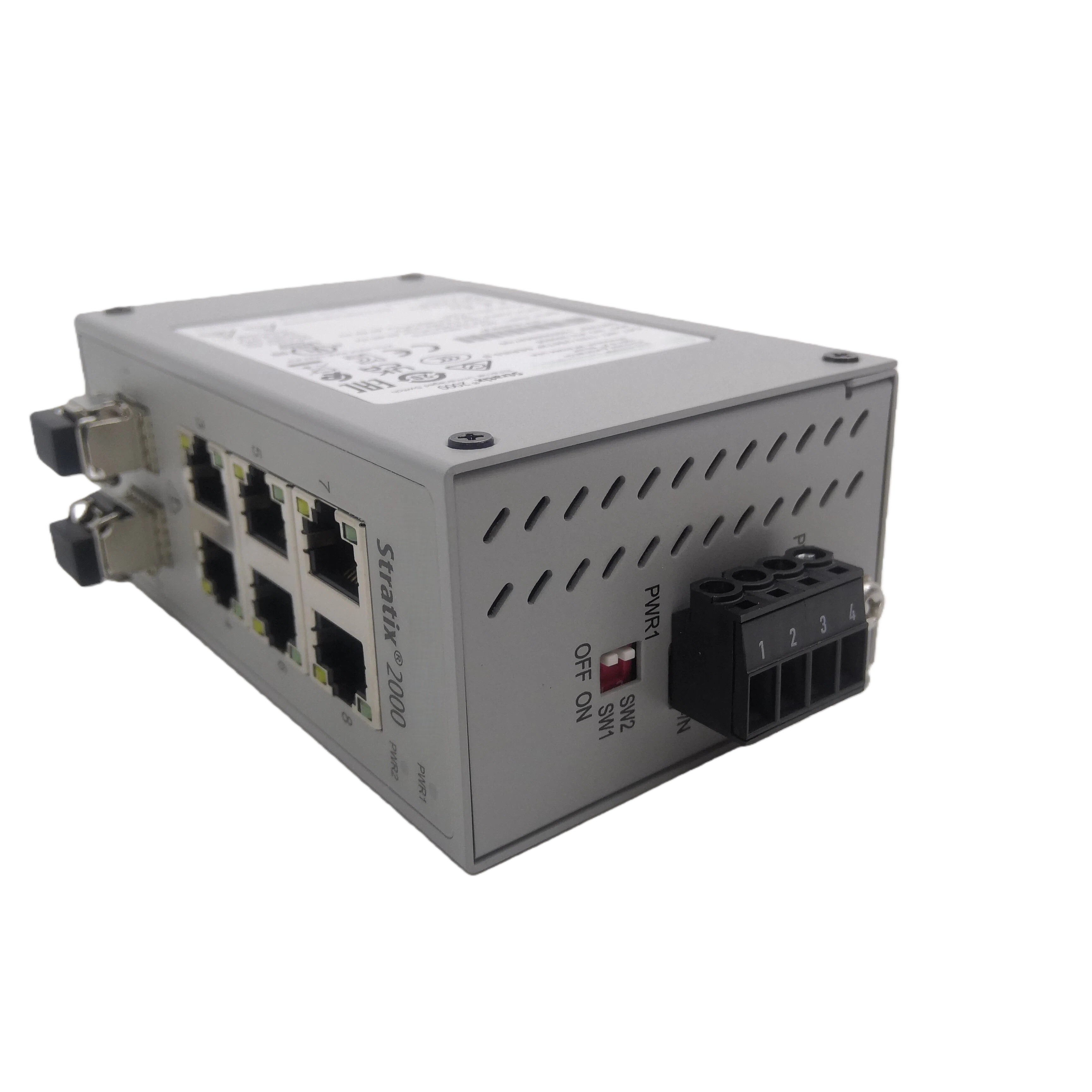

1783-US6T2F New Original EtherNet Unmanaged Switch 1783US6T2F
PRODUCT DETAILS
1783-US6T2F Industrial Unmanaged Ethernet Switch for Field Network Communication
The 1783-US6T2F is an industrial unmanaged Ethernet switch designed to support stable and reliable network communication in automation systems. It enables efficient data exchange between controllers, drives, and distributed devices in harsh industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Unmanaged Ethernet Switch |
| Ports | 6 Ethernet Ports |
| Port Type | RJ45 |
| Network Speed | 10/100 Mbps |
| Mounting Type | DIN Rail Mount |
| Power Supply | 24 VDC |
| Application | Industrial Ethernet Networking |
Installation Guide
- Mount the device on a standard DIN rail
- Connect 24 VDC power supply securely
- Plug Ethernet cables into RJ45 ports
- Ensure proper grounding for noise protection
- Verify link status LEDs after startup
FAQ
Q1: What is the main function of this device?
A: It distributes Ethernet communication across industrial devices.
Q2: Is configuration required?
A: No, it is an unmanaged plug-and-play switch.
Q3: How many ports are available?
A: Six Ethernet ports.
Q4: What type of mounting is used?
A: DIN rail mounting.
Q5: Where is it commonly used?
A: Industrial automation and control networks.
