20-HIM-A6 New Original 20HIMA6 Architecture Class HIM
PRODUCT DETAILS

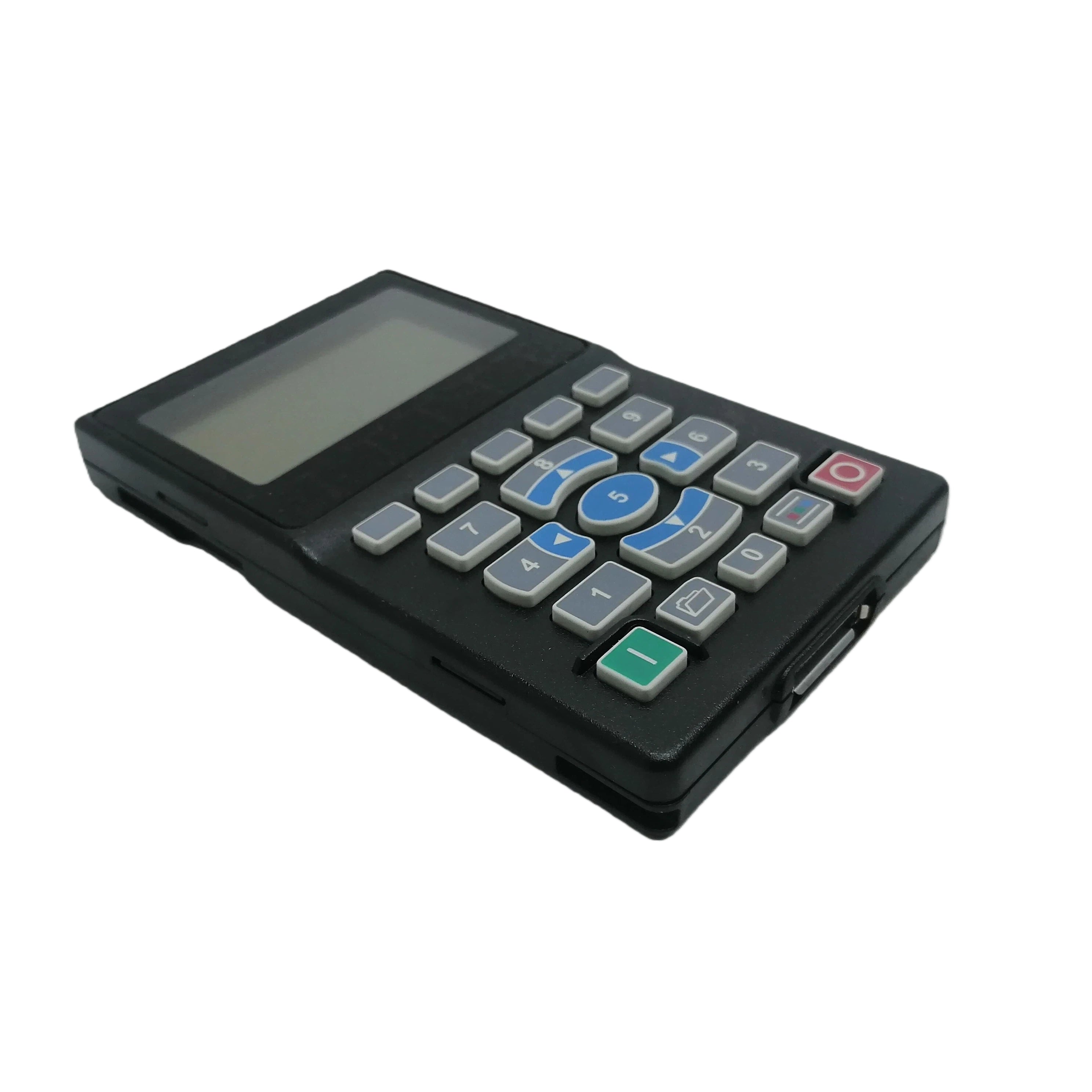

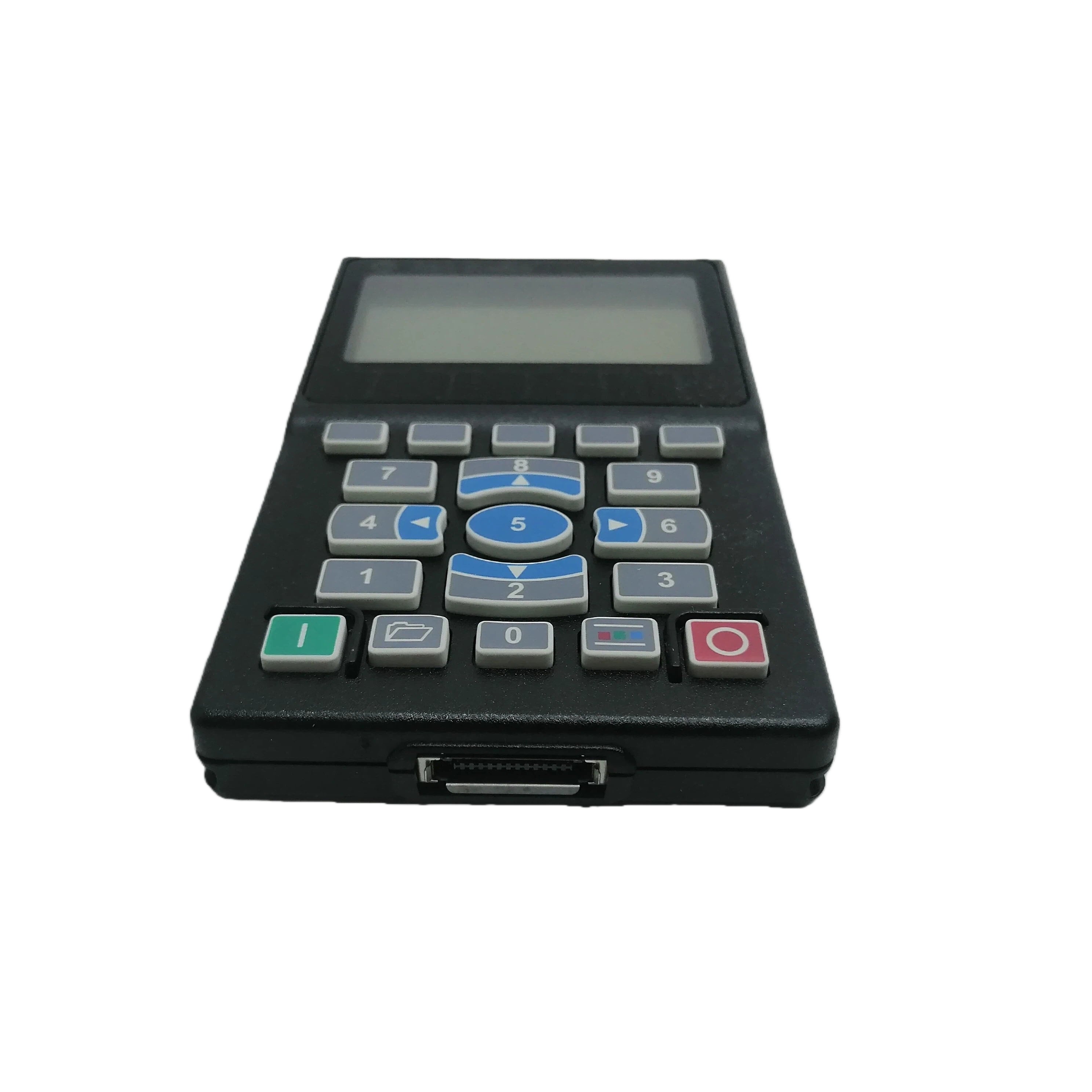

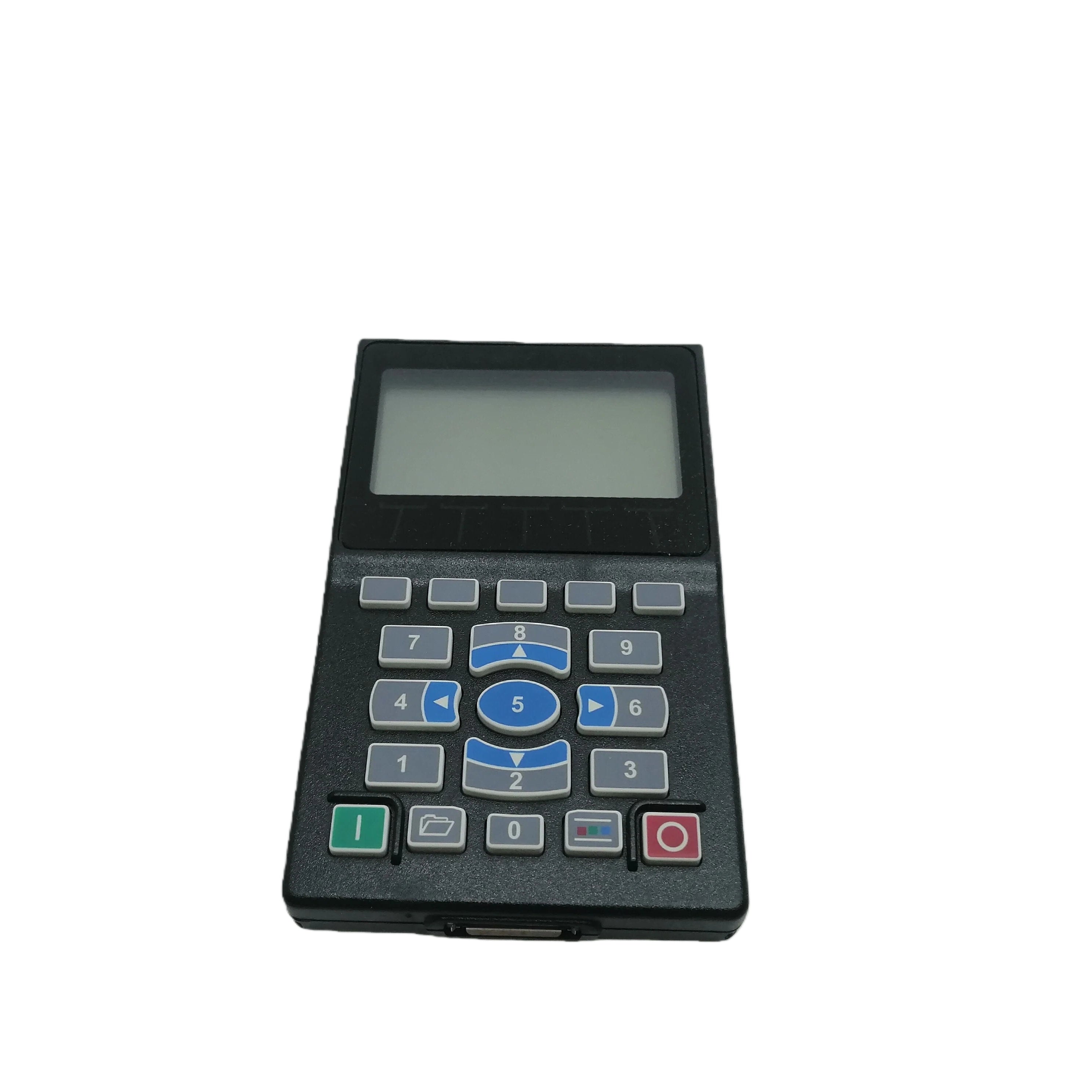

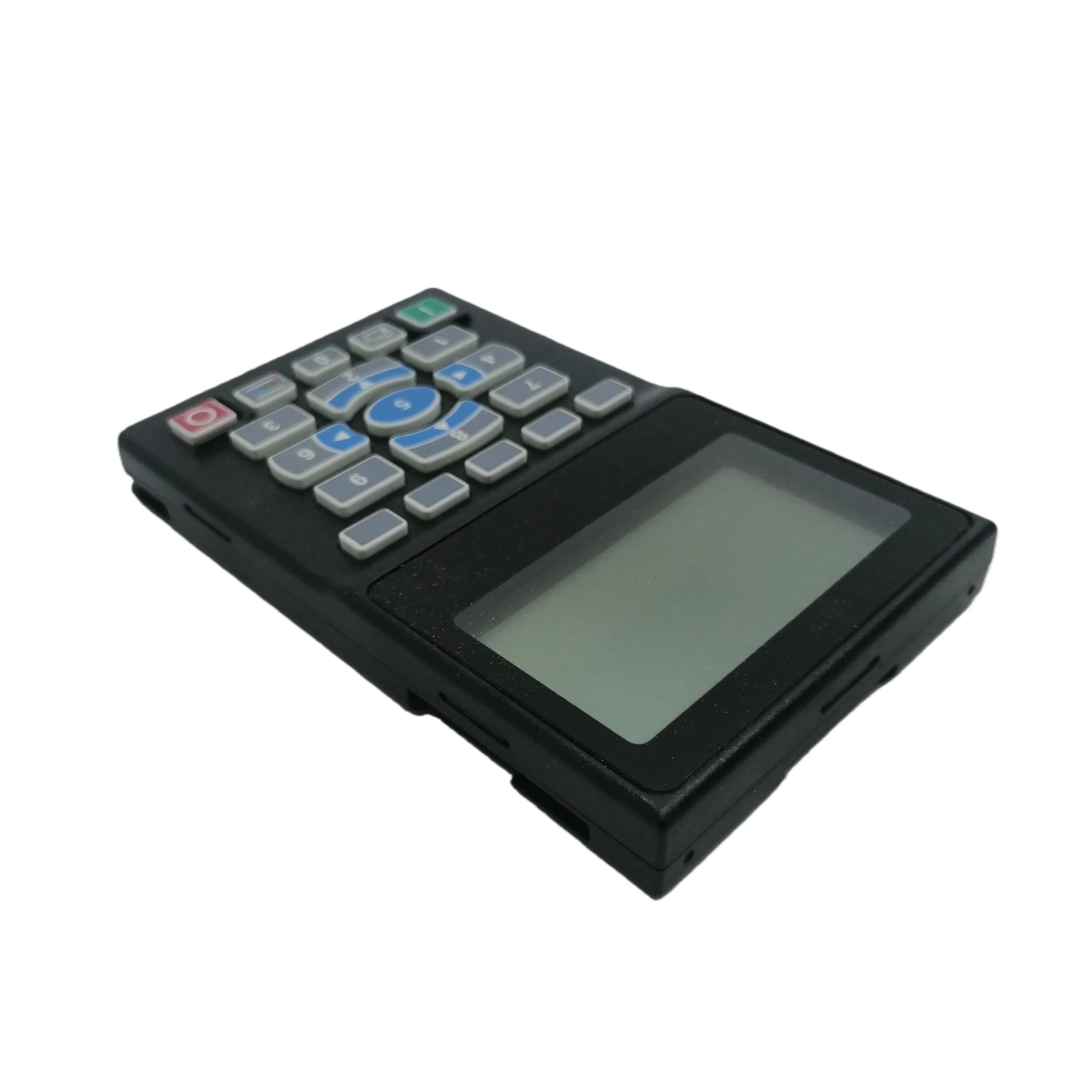

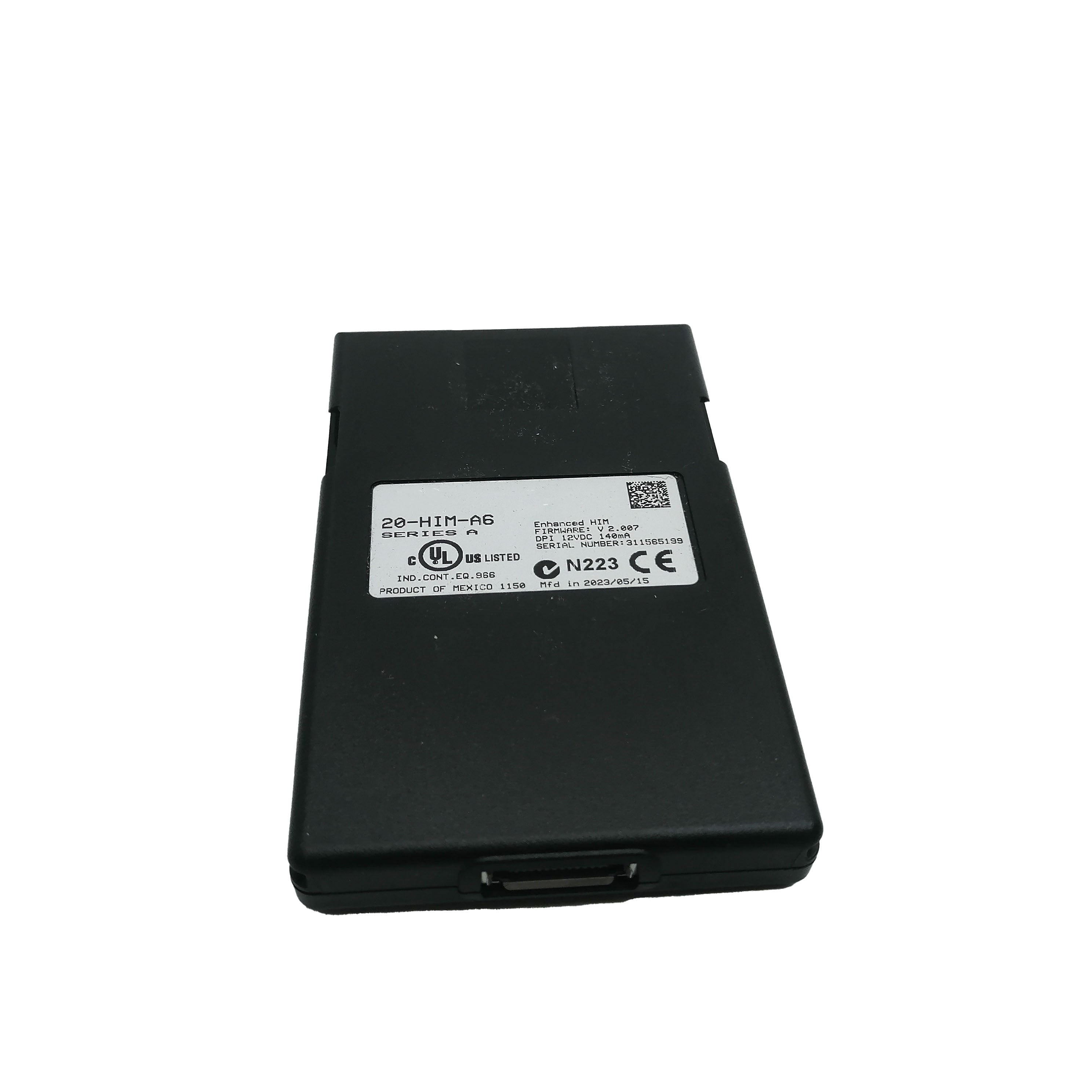

20-HIM-A6 Human Interface Module for Drive Configuration and Monitoring
The 20-HIM-A6 is a graphical human interface module designed to simplify drive setup, monitoring, and diagnostics. Its intuitive keypad and display provide convenient access to operating parameters, status information, and maintenance functions, improving commissioning and routine operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Human Interface Module |
| Display Type | LCD Graphic Display |
| Interface | Keypad Navigation |
| Functions | Parameter Configuration, Monitoring, Diagnostics |
| Mounting Type | Handheld / Door Mount Compatible |
| Communication | Drive Communication Interface |
| Application | Drive Setup and Maintenance |
Product Features
- Clear graphical display
- Simple menu-driven navigation
- Fast parameter editing
- Real-time drive monitoring
- Convenient diagnostics and fault viewing
Typical Applications
- Variable frequency drive commissioning
- Motor control systems
- Industrial control panels
- Equipment maintenance
- Manufacturing automation
- Process control systems
FAQ
Q1: What is the primary function of this module?
A: It is used to configure, monitor, and diagnose compatible drives.
Q2: Does it display operating status?
A: Yes, it provides real-time status and fault information.
Q3: Can parameters be modified through the interface?
A: Yes, operating parameters can be viewed and adjusted.
Q4: Is it suitable for maintenance work?
A: Yes, it simplifies troubleshooting and commissioning.
Q5: Where is it commonly used?
A: Industrial motor control and automation systems.
