2090-CSBM1DF-18AF05 New In Stock 2090CSBM1DF18AF05 Cable
PRODUCT DETAILS

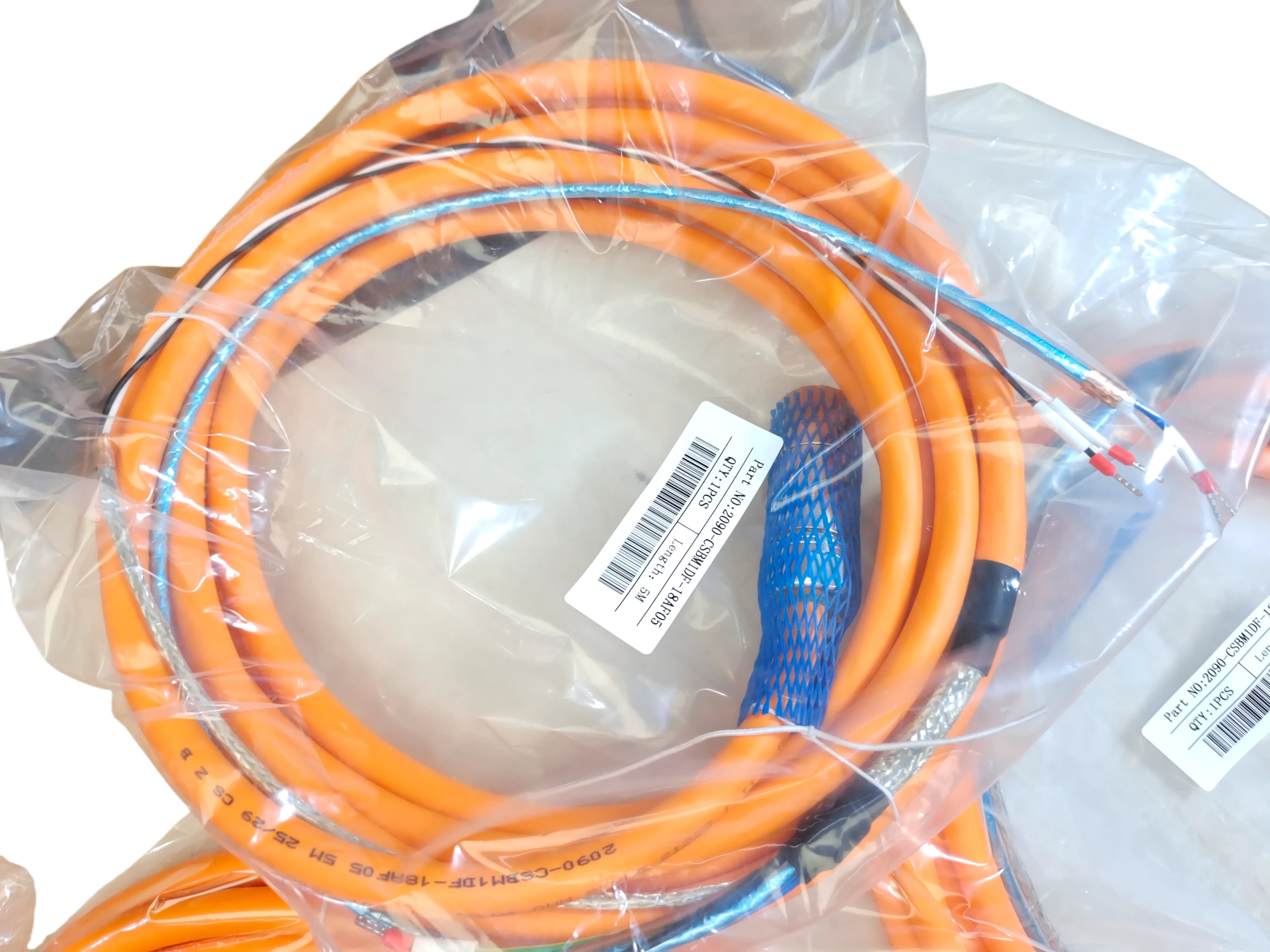

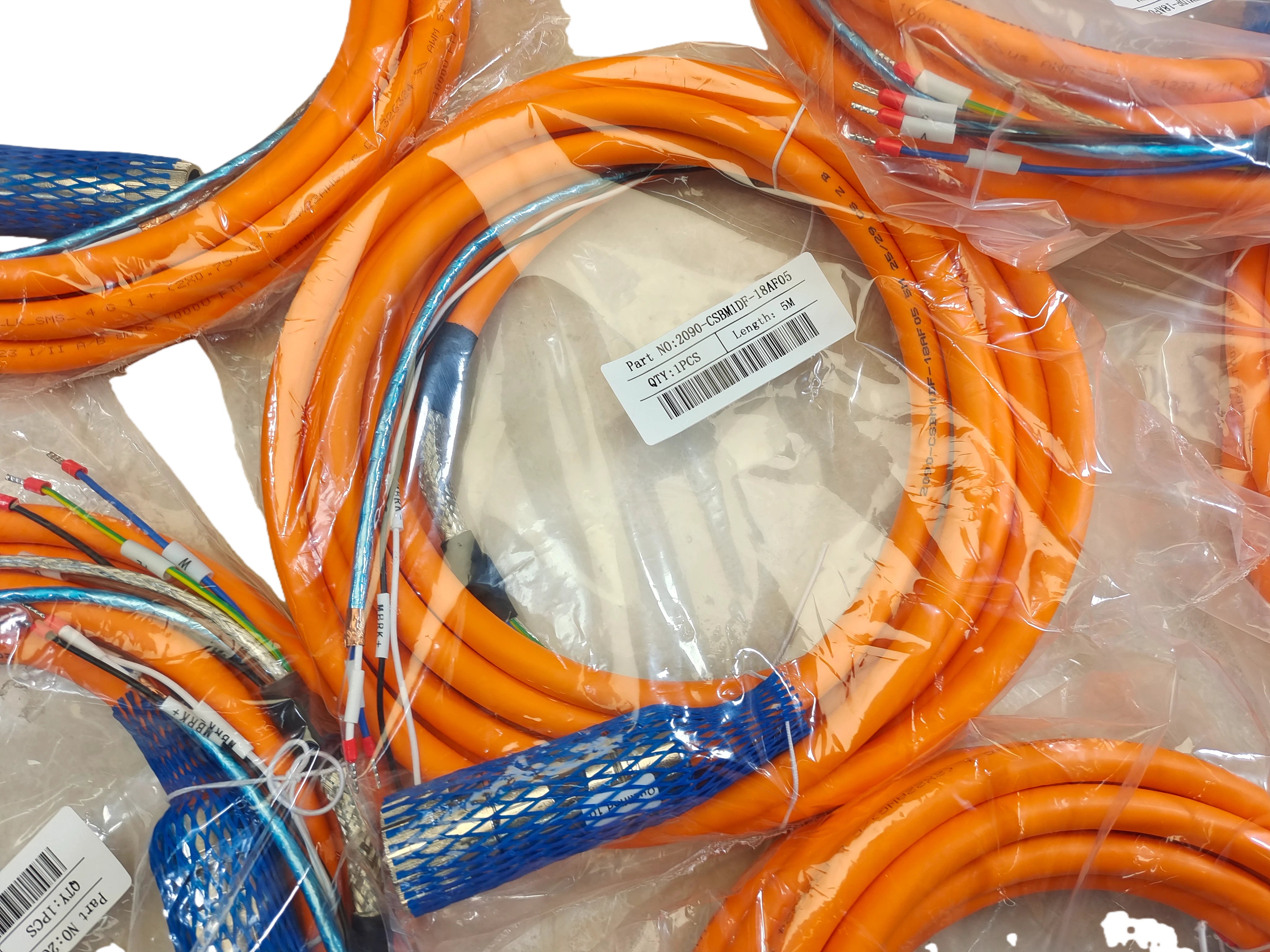

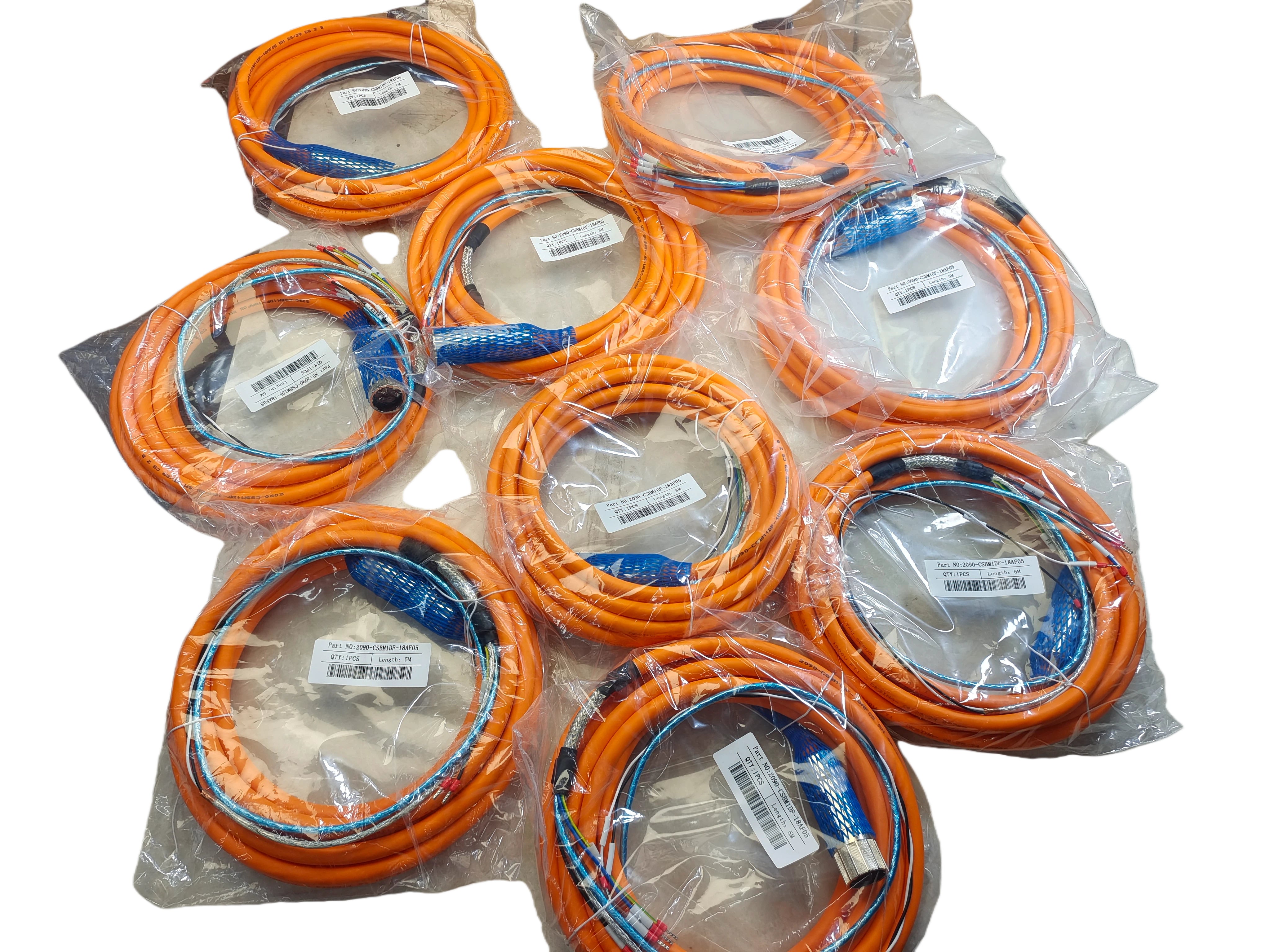

2090-CSBM1DF-18AF05 Feedback Cable
The 2090-CSBM1DF-18AF05 feedback cable is designed for industrial motion control systems that require reliable encoder signal transmission between servo motors and drive equipment. Its shielded construction helps maintain signal integrity in electrically noisy environments while supporting stable machine operation and accurate position feedback.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Servo Feedback Cable |
| Cable Length | 5 m |
| Signal Type | Encoder / Feedback Signal |
| Connector Type | Factory-Assembled Connectors |
| Shielding | Industrial Shielded Cable |
| Installation | Fixed Industrial Wiring |
| Jacket Material | Industrial Grade PVC |
| Application | Motion Control Systems |
Installation Guide
- Disconnect system power before connecting the cable.
- Verify connector orientation before installation.
- Secure both cable ends to prevent movement during operation.
- Route the cable separately from high-voltage power cables whenever possible.
- Check connector locking and feedback communication before machine startup.
Typical Applications
- Servo motor feedback connections
- CNC machining centers
- Packaging machinery
- Automated assembly equipment
- Robotics and motion systems
- Material handling machines
- Precision positioning equipment
- Industrial production lines
FAQ
Q1: What is the primary function of this cable?
A: It transmits encoder and motor feedback signals between motion devices.
Q2: Is the cable shielded?
A: Yes, it uses industrial shielding to reduce electrical interference.
Q3: Can it be used in factory automation systems?
A: Yes, it is suitable for a wide range of industrial motion applications.
Q4: Why should feedback cables be routed separately from power cables?
A: Separate routing helps minimize electrical noise and improves signal stability.
Q5: What should be checked after installation?
A: Verify connector locking, cable routing, and normal feedback communication before operation.
