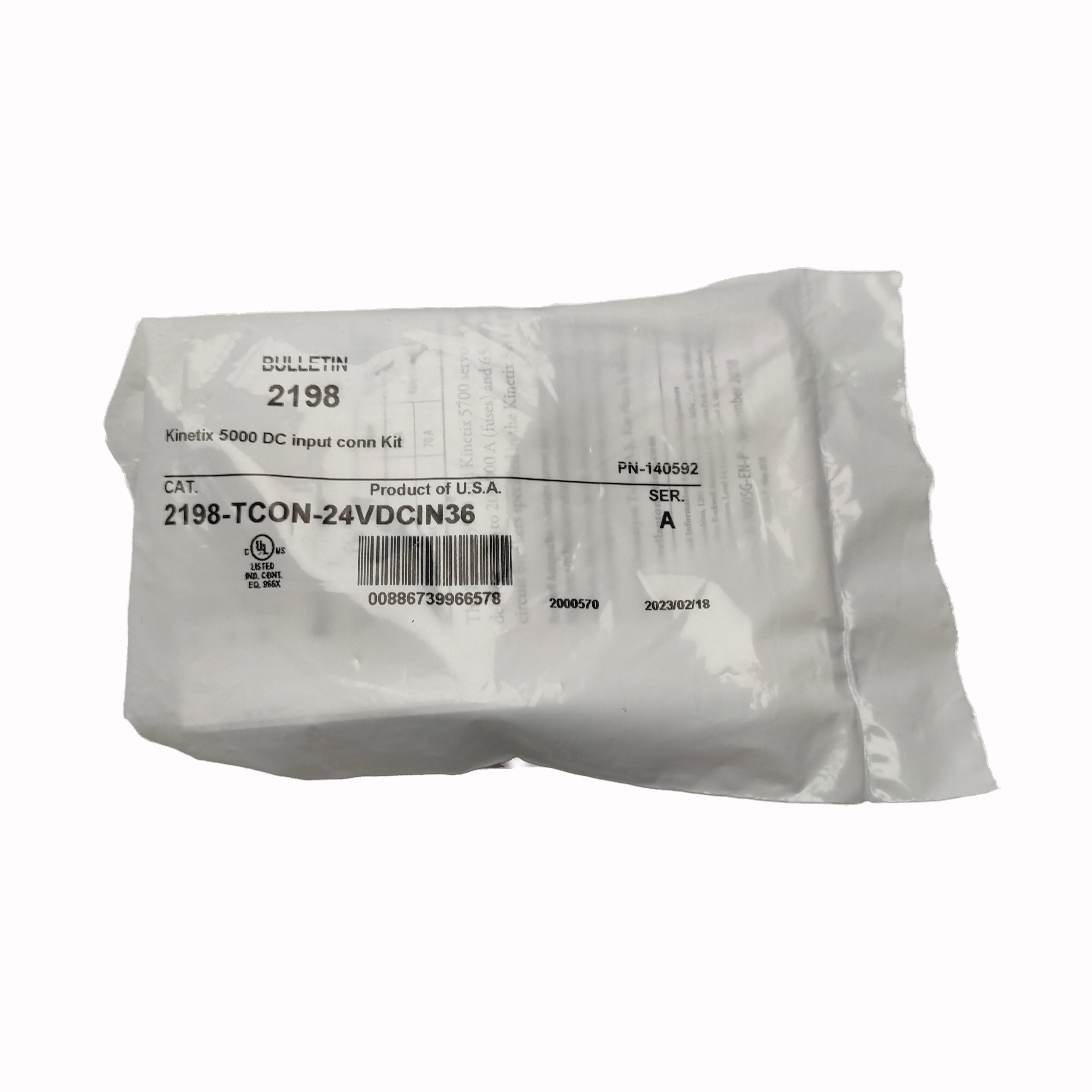

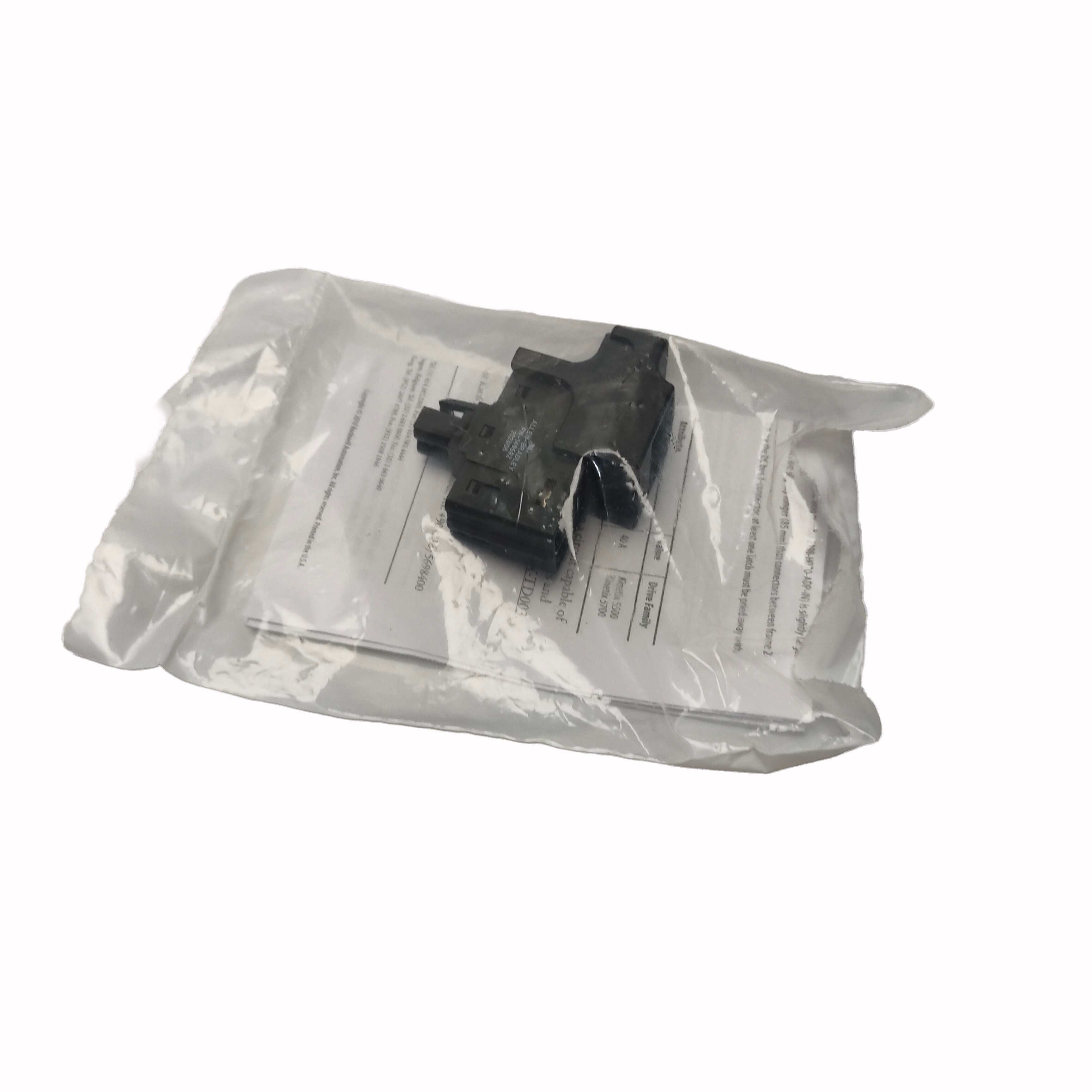

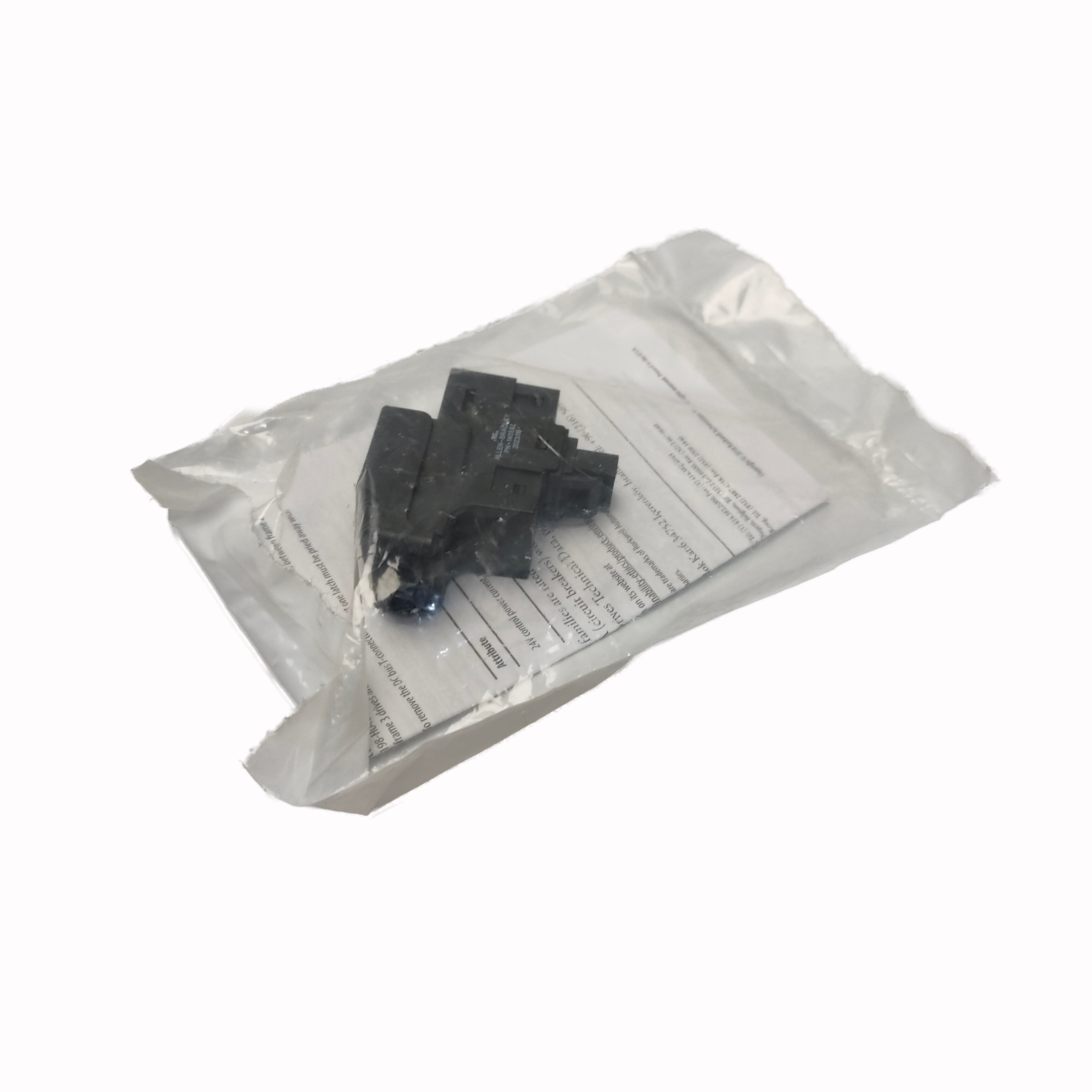

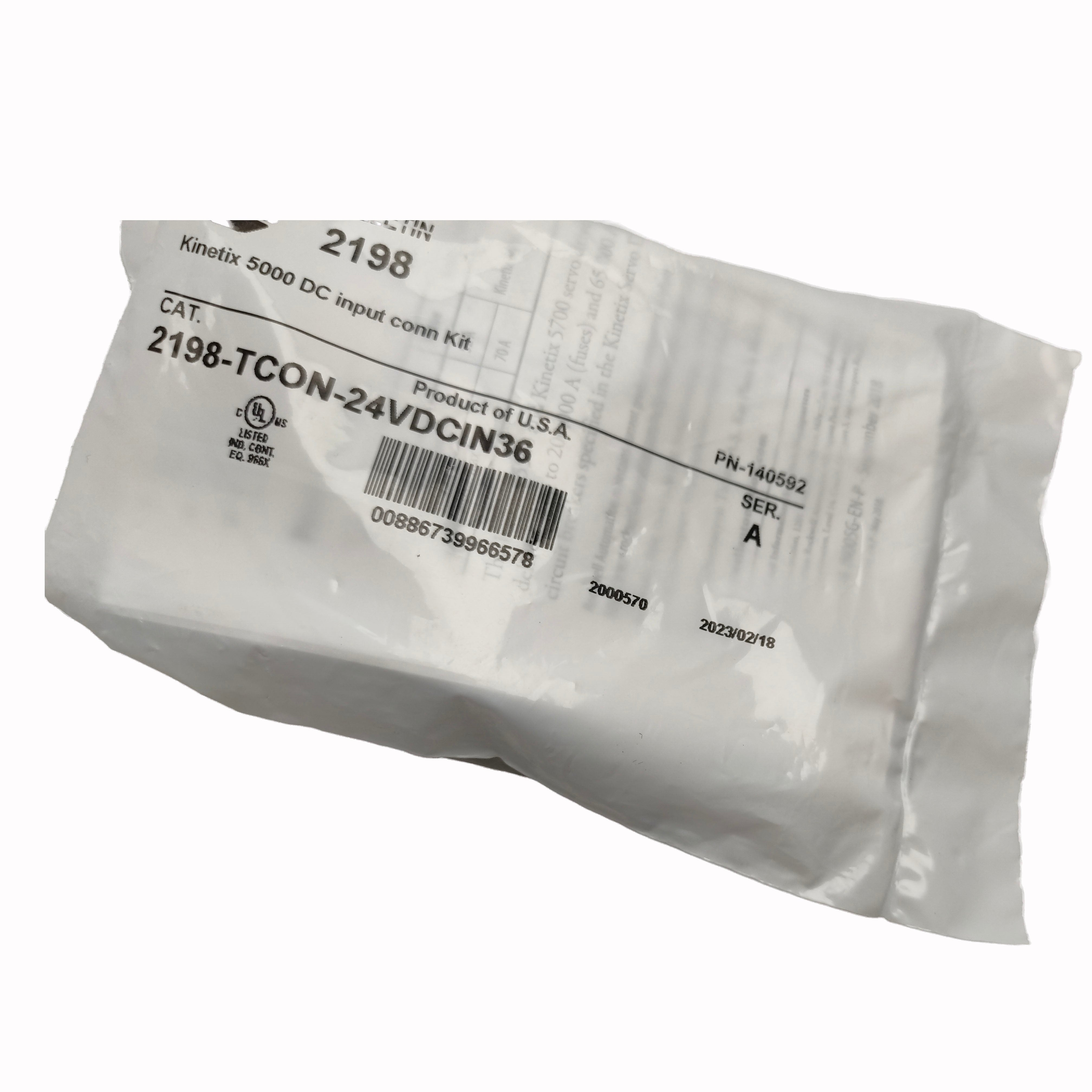

2198-TCON-24VDCIN36 Kinetix 5500/5700 DC Input Connector New 2198TCON24VDCIN36
PRODUCT DETAILS
2198-TCON-24VDCIN36 Industrial Power Connection Interface Module
This interface module is used to provide stable 24VDC control power connections in servo and motion systems. It improves wiring organization and ensures consistent power distribution to connected components.
Technical Specifications
| Parameter | Specification |
| Product Type | Power Connection Module |
| Input Voltage | 24V DC |
| Function | Power Distribution Interface |
| Mounting | Panel / Drive System |
| Wiring Type | Plug-in Terminal |
| Application | Servo System Integration |
Installation Guide
- Disconnect power before installation
- Align module correctly with drive interface
- Secure all terminals firmly
- Verify 24V supply stability
- Test connection before system start
Applications
- Servo drive systems
- Motion control cabinets
- Industrial robotics
- Multi-axis automation
- Packaging machines
FAQ
Q1: What is its role?
A: It distributes 24VDC control power.
Q2: Is it used alone?
A: No, it works within drive or motion systems.
Q3: Is wiring complex?
A: No, it uses simplified terminal connections.
Q4: What voltage does it support?
A: Standard 24V DC control power.
Q5: Where is it installed?
A: Inside motion or servo control cabinets.
