6DL1193-6AR00-0AA0 Siemens 6DL11936AR000AA0 BusAdapter for Distributed I/O New

Siemens 6DL1193-6AR00-0AA0 — SIMATIC ET 200SP HA BusAdapter BA 2xRJ45 | PROFINET 2-Port Switch | –40°C to +70°C | New Original

There's a component in every ET 200SP HA interface module installation that often gets overlooked at the procurement stage: the BusAdapter. The interface module itself ships without a PROFINET connection — the physical network port is deliberately separated from the IM hardware, installed as a plug-in module that snaps onto the front of the interface module. This design choice gives engineers the flexibility to select the physical PROFINET connection technology at installation time, and to replace it in the field without swapping the entire interface module.

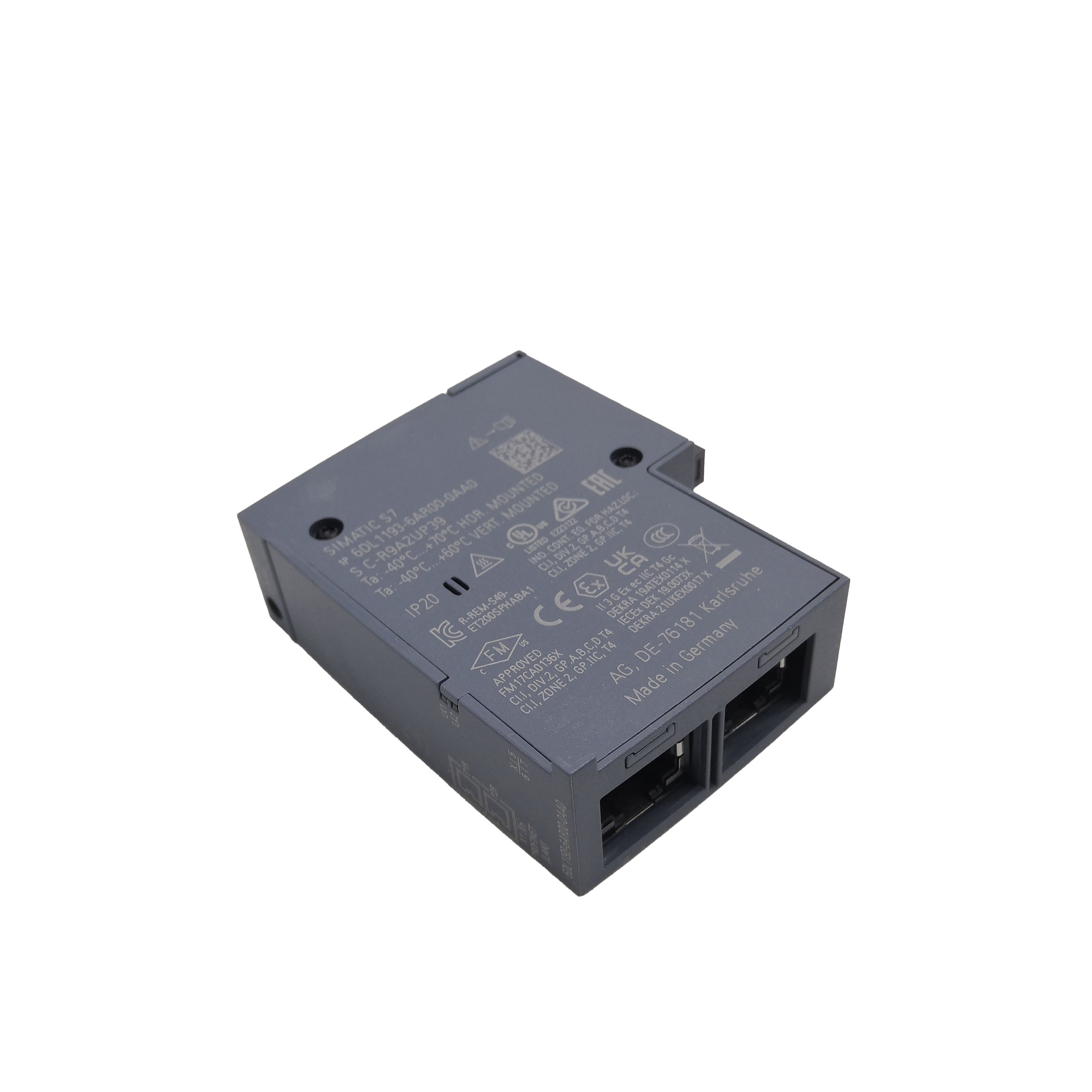

The 6DL1193-6AR00-0AA0 is the BA 2xRJ45 BusAdapter for the ET 200SP HA series — the standard copper Ethernet version, providing two RJ45 ports through a built-in 2-port PROFINET switch. It's the most commonly specified BusAdapter variant because most process plant PROFINET installations use standard CAT5/6 copper cable infrastructure, and the RJ45 connection type is universally familiar to both instrumentation and IT teams responsible for the network.

✅ Genuine Siemens. New original, factory sealed. Country of origin: Germany.

Order Number Decoded — 6DL1193-6AR00-0AA0

6DL — SIMATIC ET 200SP HA product family. The "6DL" prefix exclusively identifies components belonging to the ET 200SP HA (High Availability) series — the process automation variant designed for extended temperature, hazardous area, and high-availability applications. This is a fundamentally different product family from standard ET 200SP, which uses a "6ES7" prefix. The two series use physically compatible BusAdapter form factors, but cross-compatibility should not be assumed without confirming against Siemens' hardware compatibility documentation.

1193 — Passive infrastructure and accessory sub-family within ET 200SP HA. Components in the "1193" group are non-I/O hardware items: carrier modules, terminal blocks, bus adapters, and bus covers. This distinguishes them from active I/O modules (6DL1131, 6DL1134, etc.).

6A — BusAdapter category and connection type family. "6A" designates BusAdapter components within the 1193 infrastructure group.

R — Physical interface type: RJ45 copper Ethernet. Within the BusAdapter family, the interface letter specifies the physical connection technology: R = RJ45 (this unit); F = FastConnect (FC) push-in termination for direct wire connection without pre-made cables; G = fiber optic LC connectors; and variants combining two different interface types (e.g., AG20 = LC + RJ45 hybrid). The "R" designation means this adapter requires standard pre-assembled RJ45-terminated PROFINET cables — the most common and cost-effective choice for copper-cabled process plants.

00 — Standard variant, no additional options.

0AA0 — Regional and certification version, standard international.

Technical Specifications

What a BusAdapter Actually Does — and Why It's a Separate Component

The ET 200SP and ET 200SP HA interface module design separates the PROFINET physical connection from the IM electronics. On the front face of the interface module, there's a rectangular receptacle into which the BusAdapter clips and screws. The BusAdapter provides the actual network port — the physical connector, the transceiver circuitry, and in the case of BA 2xRJ45, a 2-port built-in switch.

This separation exists for two practical reasons.

First, network topology flexibility at design or retrofit time. A copper RJ45 installation can be converted to fiber optic — for electrical isolation between stations with large ground potential differences, or for runs exceeding 100m — by simply swapping the BusAdapter without replacing the interface module. The decision between copper and fiber, or between different fiber connector types, is made at the BusAdapter level, not at the (much more expensive) interface module level.

Second, field replacement without disrupting I/O. The BusAdapter can be exchanged in the field without removing the interface module from the carrier, and in many ET 200SP HA configurations, without shutting down the I/O station. This matters in process plants where scheduled maintenance windows are rare and an unexpected BusAdapter failure — from physical damage to the RJ45 port, connector wear, or transceiver failure — needs to be resolved quickly without a full station replacement.

The 2-Port Switch Inside — How PROFINET Topology Works

The BA 2xRJ45's two RJ45 ports aren't simply two independent connections to the same network interface. They form a 2-port integrated switch, and this architecture is what enables two fundamental PROFINET topology options for ET 200SP HA stations:

Linear (daisy-chain) topology: In this configuration, one RJ45 port connects to the upstream device (the PROFINET controller or the previous station in the chain), and the second port connects to the downstream device (the next I/O station). The PROFINET frames pass through the integrated switch from port to port, traversing the entire chain of stations. This topology minimizes Ethernet infrastructure — no external switches are needed between stations, reducing hardware cost and cabinet space. The tradeoff is that a cable or station failure in the middle of the chain can isolate all downstream stations.

Star topology: Both ports connect to an external managed Ethernet switch (such as a Siemens SCALANCE), and that switch connects to the controller and other devices. This topology is more resilient — the switch provides independent paths to each station — but requires switch infrastructure at each junction point.

Ring topology with MRP (Media Redundancy Protocol): With MRP, the end of the daisy-chain loops back to the beginning, creating a physical ring. The PROFINET controller manages MRP operation. If a cable break occurs anywhere in the ring, traffic automatically reroutes in the opposite direction around the ring, restoring full communication — typically within 200ms for standard MRP or 30ms for fast MRP. This topology is common in ET 200SP HA installations where network availability is a system requirement, because it eliminates the single cable break as a cause of station communication loss.

The BA 2xRJ45's integrated switch handles frame forwarding between its two ports transparently — no PROFINET configuration is needed specifically for the switch ports themselves. The topology is determined at the PROFINET network planning level, and the BusAdapter simply connects the physical cables.

BA 2xRJ45 vs Other ET 200SP HA BusAdapter Variants

The ET 200SP HA BusAdapter family offers four physical interface technologies. Choosing the right one depends on the cable infrastructure, distance requirements, and environmental conditions at the installation site.

For most process plant automation with existing copper Ethernet infrastructure and station-to-station distances under 100m, the BA 2xRJ45 is the appropriate choice. The decision to use fiber (LC or FC variants) is driven by three conditions: distances exceeding 100m between stations; significant ground potential differences between stations (common in large industrial sites where long cable runs create ground loops); or high-intensity EMC environments such as large motor drives, arc furnaces, or high-voltage switching equipment located near the PROFINET cable runs.

The FastConnect (FC) variant eliminates the need for pre-terminated RJ45 cables — useful in remote field locations where cable assembly tools aren't available, or when the exact required cable length is determined on-site rather than in advance. FC uses a push-in termination directly on the raw Ethernet wire.

6DL1193-6AR00-0AA0 vs 6ES7193-6AR00-0AA0 — Critical Ordering Distinction

This is the most important product confusion issue to address for anyone sourcing ET 200SP BusAdapters. The two part numbers look nearly identical:

• 6DL1193-6AR00-0AA0 — BA 2xRJ45 for ET 200SP HA (this product, 6DL prefix)
• 6ES7193-6AR00-0AA0 — BA 2xRJ45 for standard ET 200SP (6ES7 prefix)

Both BusAdapters use the same physical form factor and the same RJ45 PROFINET interface. They are physically interchangeable in terms of mounting — the BA will mechanically fit on either series' interface module. However, Siemens specifies each BusAdapter for use with its corresponding IM series, and the extended temperature certification (–40°C to +70°C for the HA version vs –30°C to +60°C for the standard version) is the most significant functional difference. In hazardous area installations, the 6DL version's hazardous locations approval is also series-specific.

For ET 200SP HA interface modules (6DL1155 series), always order the 6DL1193-6AR00-0AA0. For standard ET 200SP interface modules (6ES7 155 series), order the 6ES7193-6AR00-0AA0. Using the wrong variant won't prevent the station from communicating under normal conditions, but it compromises the temperature certification and hazardous area approval validity of the installation.

Typical Applications

Offshore oil and gas platforms — ET 200SP HA I/O stations in Zone 2 classified process areas, where the BusAdapter's hazardous locations certification is part of the complete station's area classification approval. Cable runs between I/O drops on a platform often stay well within the 100m copper limit, making the RJ45 variant the natural choice.

Onshore refineries and chemical plants — PROFINET I/O drops in process units for PCS 7 or TIA Portal-based S7-1500 HA control systems. Process plant instrument cable infrastructure is predominantly copper for distances typical of unit-level I/O distribution (individual drops serving a few dozen field devices).

LNG and gas processing terminals — control system I/O in non-classified or Zone 2 areas where the extended low-temperature capability (–40°C) is relevant for cold-climate outdoor cabinet installations, and the BusAdapter forms part of the certified cold-climate station assembly.

Maritime vessel automation — the NK and CCS class society certifications on this BusAdapter, confirmed in the official Siemens datasheet, make it suitable for marine applications requiring class society approval of automation equipment.

Power generation plants — distributed I/O for turbine control, boiler instrumentation, and balance-of-plant systems using S7-1500 HA controllers, where the PROFINET network is built on copper plant Ethernet infrastructure.
