3C-D Z73L SMC Magnetic Switch – New In Stock

Precision Position Detection for Pneumatic Automation Systems

In modern pneumatic automation, accurate cylinder position feedback is critical for system stability and cycle efficiency. The SMC 3C-D Z73L magnetic switch is designed to provide reliable, non-contact position detection for air cylinders, ensuring consistent signal output even in high-frequency industrial environments.

Product Overview

The 3C-D Z73L is a compact reed-type magnetic switch developed by SMC for direct mounting on compatible pneumatic cylinders. It detects piston movement through an internal magnet and delivers fast, stable switching signals to PLCs, controllers, and I/O modules. Its slim profile and standardized wiring make it ideal for both new installations and replacement applications.

Key Technical Specifications

• Model: 3C-D Z73L

• Type: Magnetic Reed Switch

• Switching Output: Normally Open (NO)

• Operating Voltage: 5–240 VAC / 5–30 VDC

• Maximum Load Current: 100 mA

• Maximum Switching Power: 10 W

• Indicator: Red LED operation indicator

• Cable Length: Approx. 0.5 m (standard)

• Mounting Style: Direct cylinder mounting (SMC compatible)

• Protection Rating: IP67

• Operating Temperature: –10°C to +60°C

• Condition: New Original, Factory Sealed, In Stock

Functional Advantages

• Non-contact detection
  Eliminates mechanical wear, improving service life and signal reliability.

• Wide voltage compatibility
  Supports both AC and DC control systems without additional converters.

• High visibility LED indicator
  Allows quick on-site diagnostics and easier commissioning.

• Compact & lightweight design
  Ideal for tight installation spaces on pneumatic actuators.

• Industrial-grade durability
  IP67-rated housing resists dust, moisture, and oil mist.

Typical Applications

• Pneumatic cylinders (SMC and compatible series)

• Automated assembly lines

• Packaging machinery

• Pick-and-place systems

• Industrial PLC input monitoring

• Factory automation and motion control systems

Packaging & Supply

• Condition: Brand New, Original

• Stock Status: In Stock, Ready to Ship

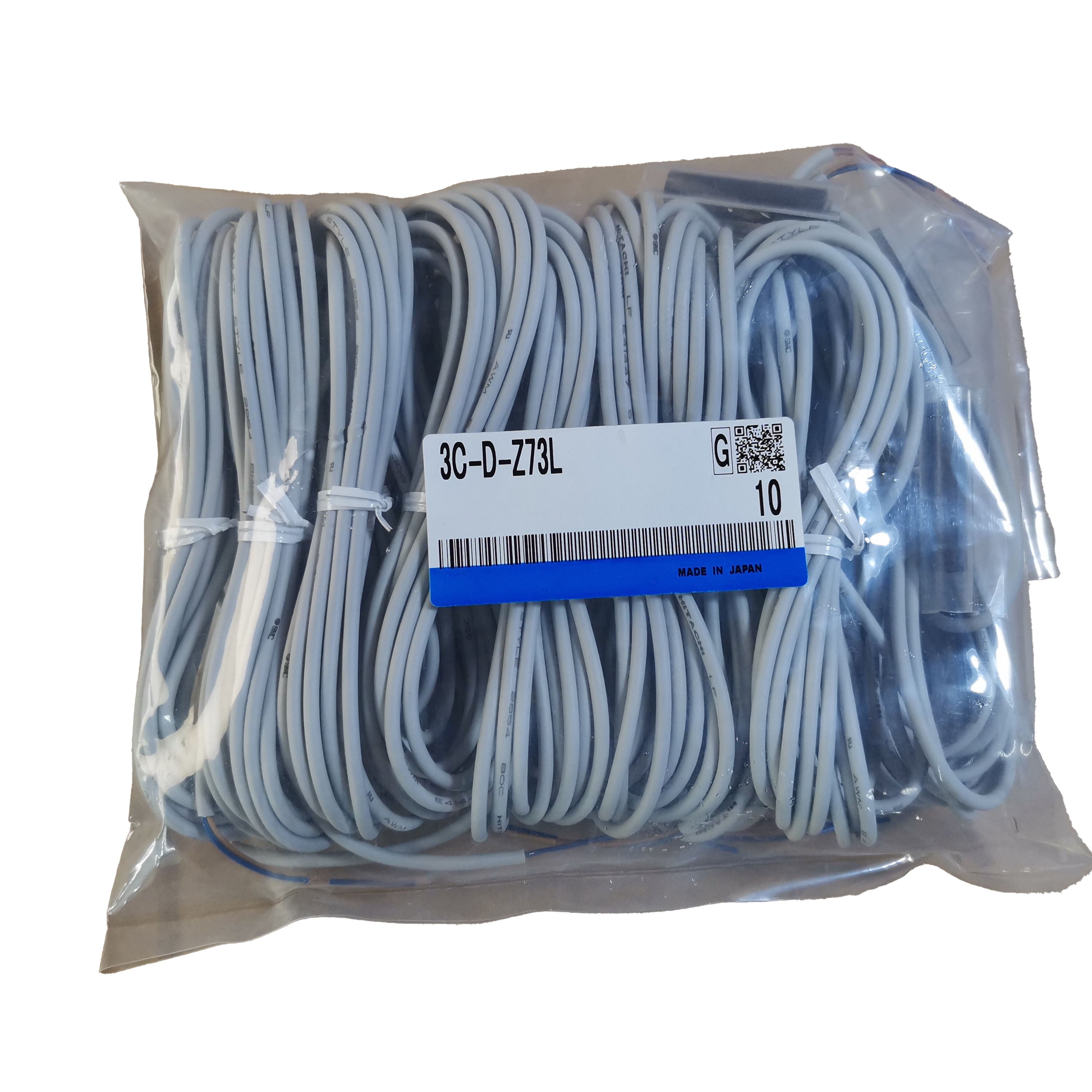

• Packaging: Original SMC factory packaging
