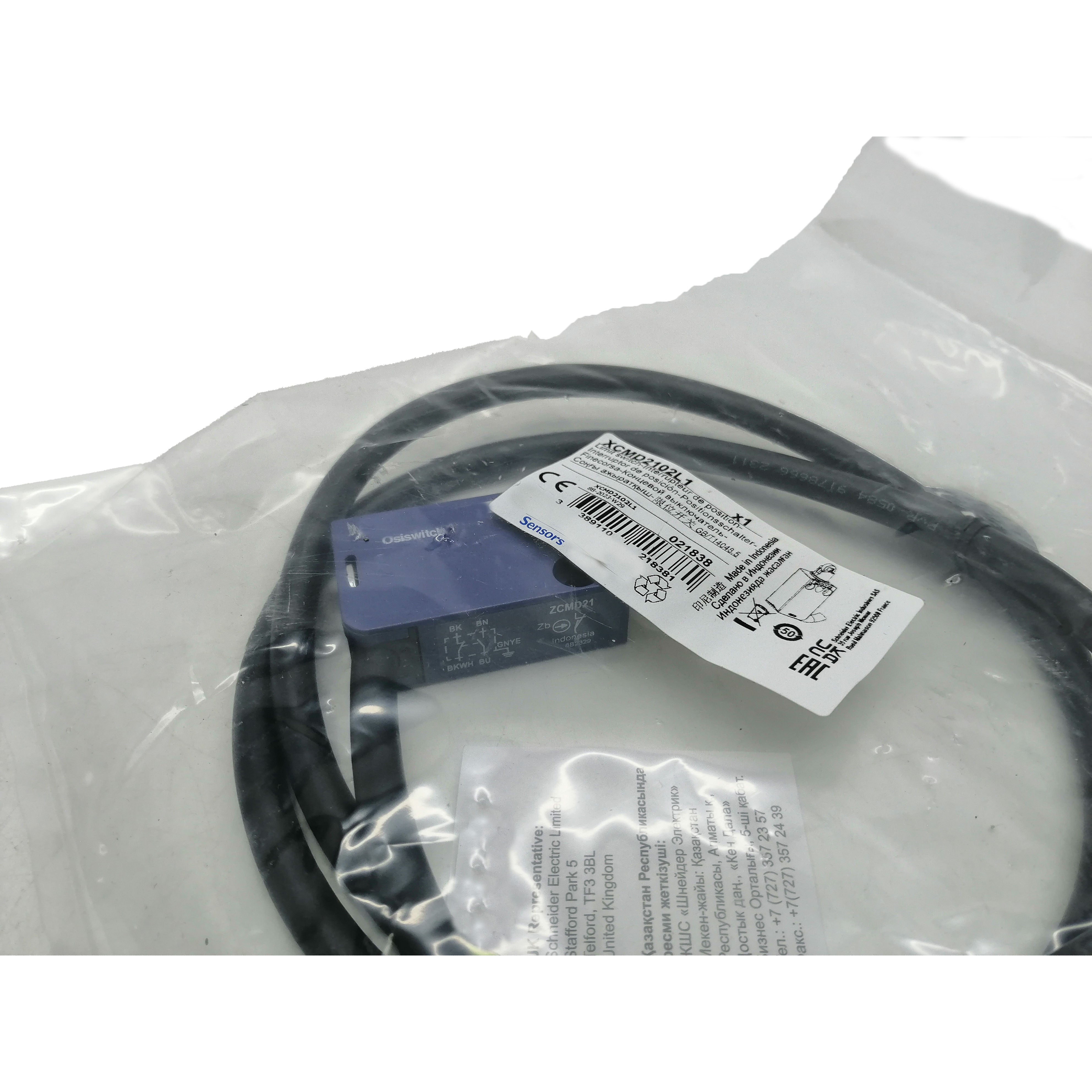

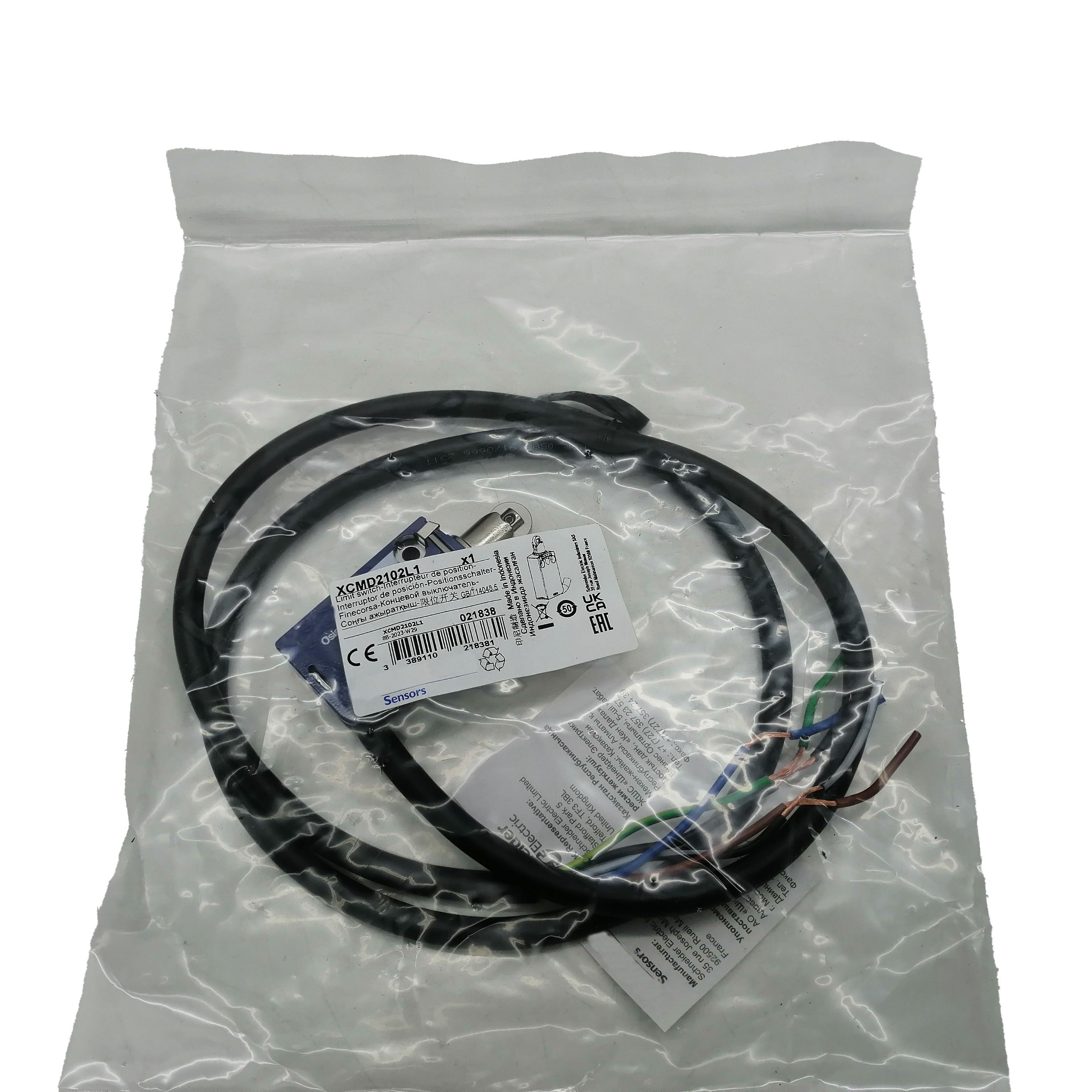

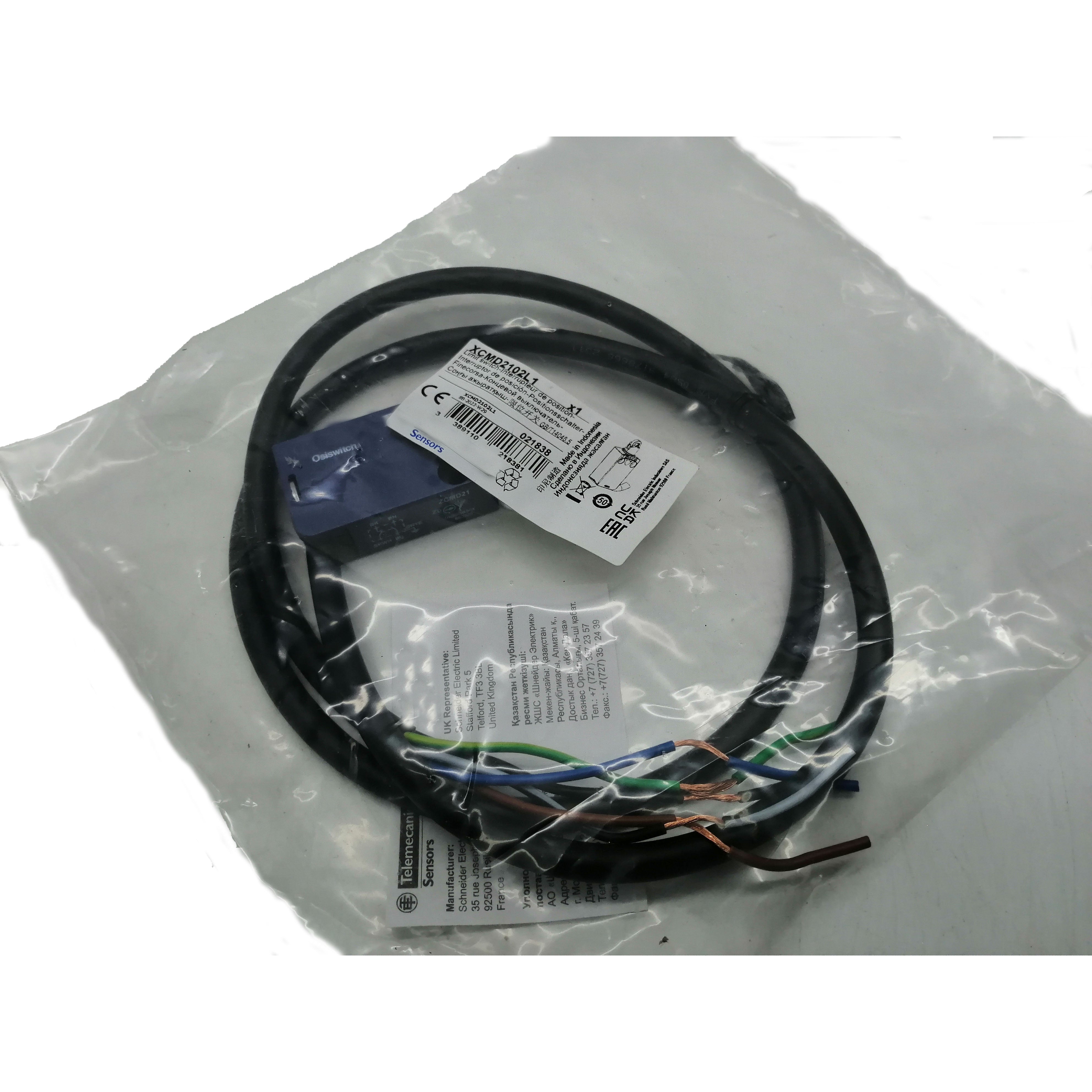

XCMD2102L1 Schneider Limit Switch New Original XCMD2102L1

Part Number: XCMD2102L1 | Brand: Schneider Electric | Condition: New, Original OEM

What Is the XCMD2102L1?

The Schneider Electric XCMD2102L1 is a heavy-duty roller plunger limit switch from the XCM series, designed for precise end-of-travel detection, position control, and safety interlock functions in industrial machinery. It combines a positive-opening snap-action contact block with a robust die-cast metal body — rated IP66 for operation in wet, dusty, and chemically aggressive environments.

This is a genuine new original Schneider Electric unit, supplied in OEM packaging. It is not a copy, not refurbished, and not a third-party compatible substitute.

At a Glance — Key Specifications

How It Works — Mechanism Explained

Not all limit switches are equal. Understanding the mechanism helps you specify the right part.

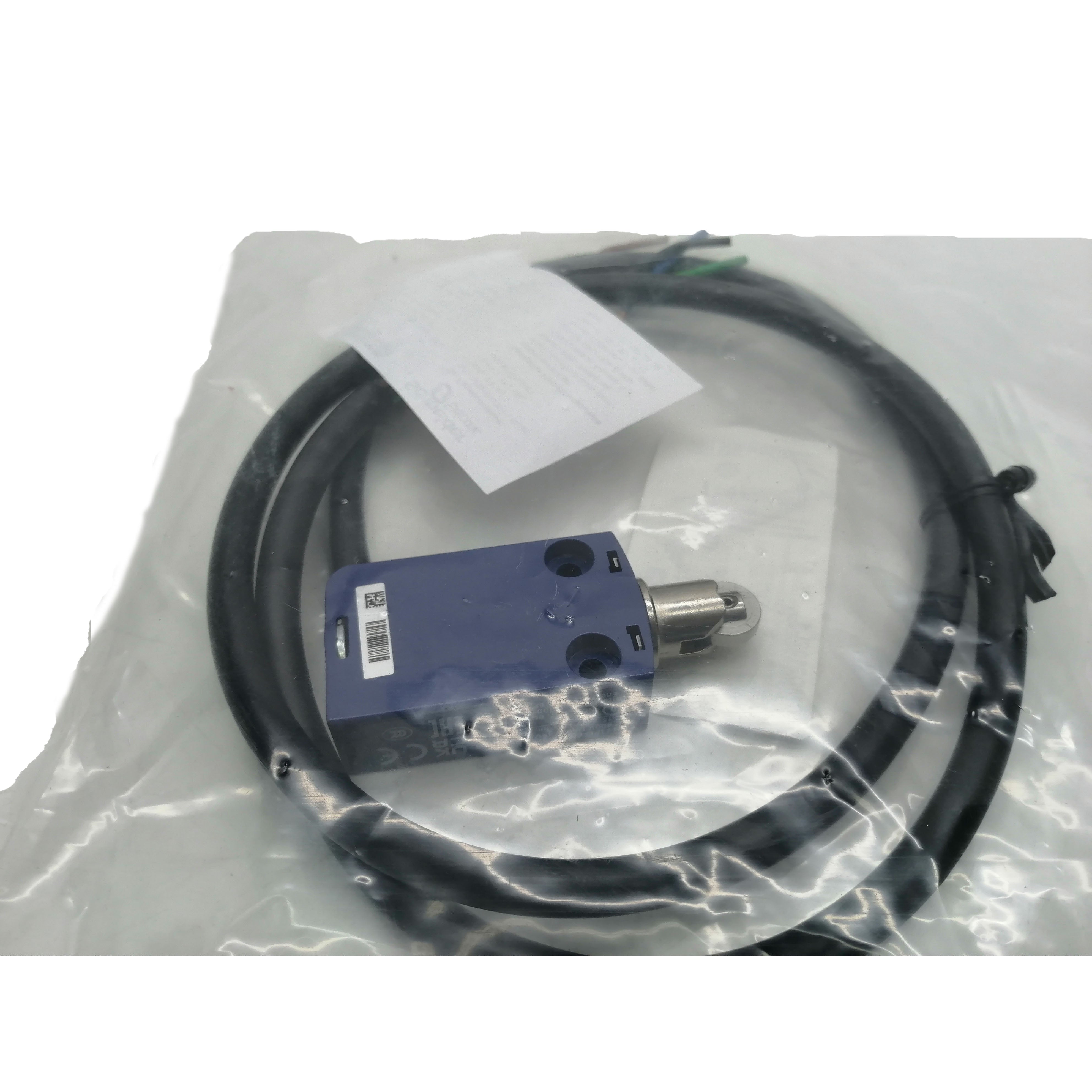

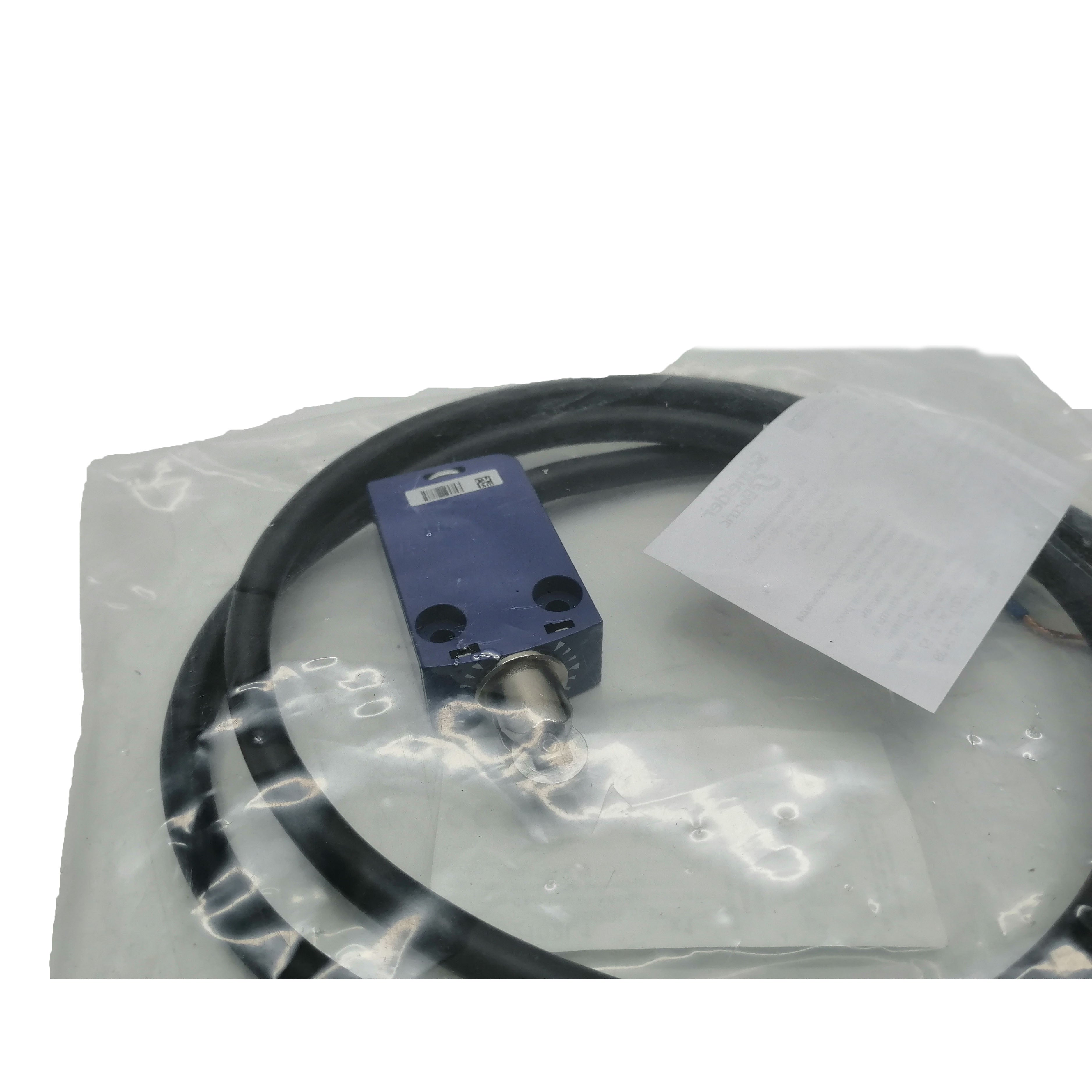

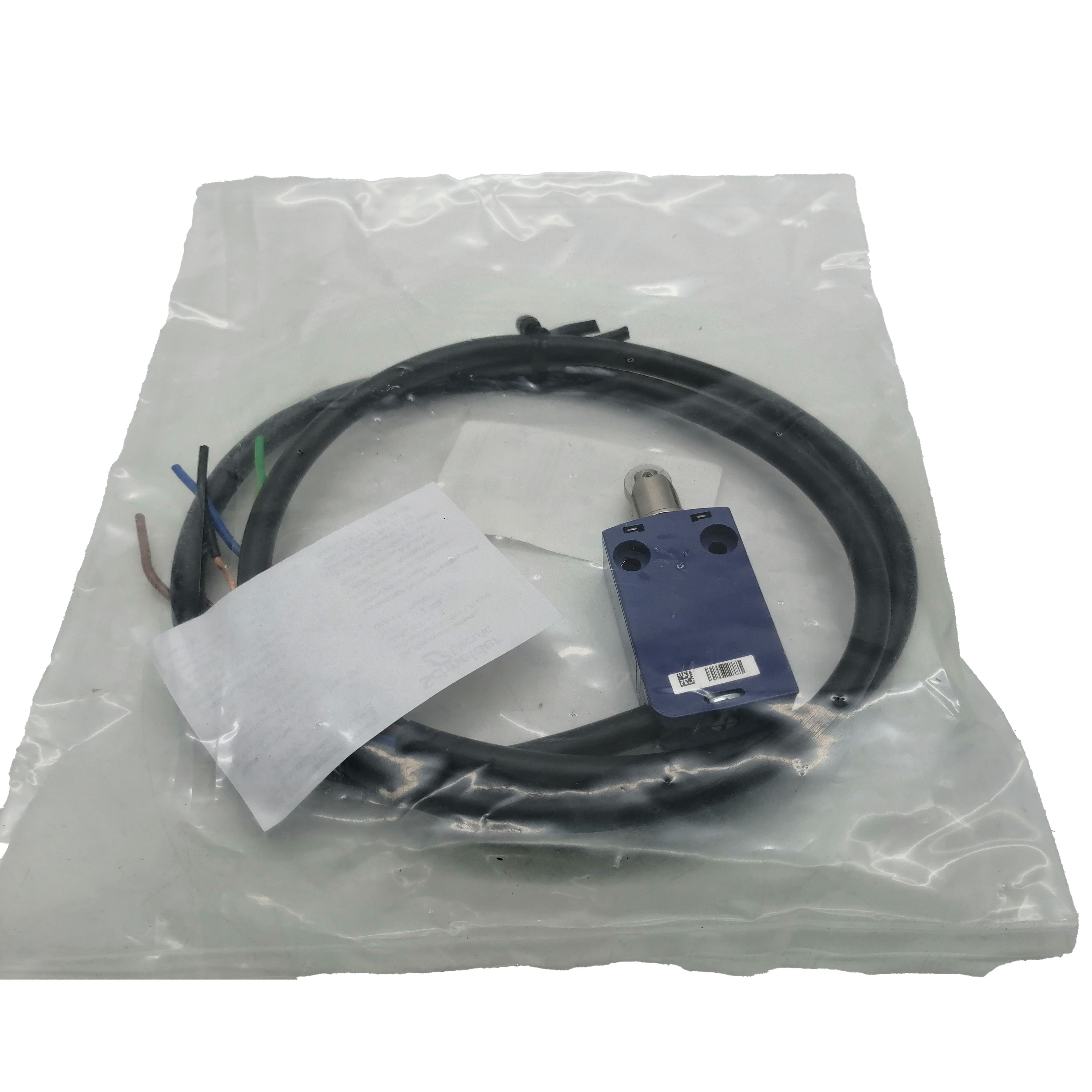

The XCMD2102L1 uses a spring-loaded roller plunger actuator. When a machine component — a cam, a dog, a carriage — contacts the roller, the plunger is depressed, triggering the internal snap-action mechanism. This produces a fast, clean contact transition regardless of how slowly the actuating cam approaches, eliminating contact bounce and signal flutter.

Critically, the contact block uses positive-opening (direct opening) action, meaning the NC contact is physically forced open by the actuator mechanism — it cannot remain closed due to contact welding or spring failure. This is a mandatory requirement for safety circuits under IEC 60947-5-1 Annex K and is what distinguishes industrial safety-grade limit switches from standard snap-action switches.

Part Number Decoder

Understanding what each segment of XCMD2102L1 means:

Where Is This Switch Used?

The XCMD2102L1 is a versatile industrial component found across a wide range of machine types and industries:

Machine Tools & Press Lines Detecting slide and ram positions, confirming tool-change completion, monitoring door guard closure on machining centres and transfer lines.

Conveyor & Material Handling Systems End-of-travel detection for shuttle conveyors, confirming pallet presence at workstations, triggering accumulation logic on roller conveyors.

Packaging & Bottling Lines Product presence detection, carton flap confirmation, and jam detection on high-speed filling and sealing equipment.

Automotive Assembly Fixture closed/open confirmation, robot cell gate interlocks, and transfer bar position monitoring in body-in-white and powertrain assembly.

Food & Beverage Processing IP66 protection makes it suitable for washdown environments — confirming conveyor gate position, monitoring hopper door status, detecting fill levels.

Safety Guard Interlocks Used as a non-safety-rated position confirmation switch in guard monitoring circuits (note: for SIL/PLd safety applications, evaluate your full safety chain per IEC 62061 / ISO 13849).

XCM Series — Model Comparison

Schneider's XCM series covers a range of body styles and actuator types. The table below positions the XCMD2102L1 within the series:

If you need a 2NC contact block for a safety circuit, consider the XCMD2145L1. If you need an adjustable lever rather than a plunger, look at the XCMN series. Contact us if you need help selecting the correct variant.

Genuine OEM vs Non-OEM — Why It Matters for Limit Switches

Limit switches are often treated as low-value commodity parts — until one fails in a safety interlock and a machine injures an operator, or a non-OEM contact welds closed and disables an end-of-travel stop.

For safety interlocks, CE-marked machines, and systems requiring documented component traceability, only OEM-certified components should be specified.

Ordering & Delivery

• ✅ New Original Schneider Electric — factory-sealed OEM unit
• ✅ In Stock — dispatches within 1–3 working days
• ✅ Global Shipping — DHL / FedEx / UPS with full tracking
• ✅ ESD & impact-protective packaging for safe transit
• ✅ Volume pricing available — contact us for multi-unit orders
• ✅ 15+ years industrial automation supply experience

Frequently Asked Questions

Q1: What does the "positive-opening" contact action mean, and why is it important? Positive-opening (also called direct-opening or forced-opening) means the NC contact is mechanically forced open by the actuator linkage — it cannot remain closed if the actuator is depressed, even if the contact has welded shut due to overcurrent. This is a safety requirement under IEC 60947-5-1 Annex K. Standard snap-action switches rely on a spring to open the NC contact; if the spring fails or the contact welds, the NC contact stays closed and the switch gives a false "safe" signal. Positive-opening eliminates this failure mode, which is why it is required for machine safety guard monitoring and emergency stop circuits.

Q2: What is the contact configuration of the XCMD2102L1? The XCMD2102L1 has a 1 NO + 1 NC contact block with snap-action, positive-opening operation. The NO contact closes and the NC contact opens simultaneously when the roller plunger is depressed. The contacts return to their normal state when the actuating force is removed and the plunger retracts under spring pressure.

Q3: What does "L1" mean in the part number XCMD2102L1? The "L1" suffix indicates the cable entry configuration: a single PG13.5 threaded conduit entry on the switch body. This accepts a PG13.5 cable gland, suitable for cable diameters of approximately 6–12 mm. If your installation uses M20 metric conduit, a PG13.5-to-M20 adapter can be used, or an alternative body variant with M20 entry should be specified.

Q4: Is the XCMD2102L1 suitable for use in a safety circuit (e.g., SIL 2, PLd)? The XCMD2102L1 has a positive-opening contact block, which is a necessary condition for use in safety circuits. However, the suitability of this specific switch for a target Safety Integrity Level (SIL) or Performance Level (PL) depends on your complete safety system architecture, including redundancy, diagnostic coverage, and the switch's published MTTF_d (Mean Time to Dangerous Failure) data from Schneider Electric's functional safety documentation. Consult Schneider's SISTEMA library data or IEC 62061 / ISO 13849 assessment for your application before specifying this switch in a certified safety function.

Q5: Can the XCMD2102L1 be used with a DC power supply and DC loads? Yes. The switch is rated for 240 V DC at 6 A in addition to its 600 V AC / 10 A AC rating. For DC loads, note that DC arcing during contact opening is more severe than AC arcing (AC current crosses zero each half-cycle, which extinguishes the arc naturally; DC does not). Ensure your DC load is within the published DC rating and consider using a snubber circuit if switching inductive DC loads.

Q6: What is the difference between the XCMD and XCMN series? Both use the same metal body (XCM) but differ in actuator type. The XCMD series uses a roller plunger — the actuating force must be applied along the plunger axis, directly compressing it. The XCMN series uses a roller lever arm, which is actuated by a cam approaching from the side at an angle. The lever arm is adjustable in most XCMN variants. XCMD is the correct choice when the actuating cam travels parallel to the switch mounting face; XCMN is preferable when the cam approaches at an angle.

Q7: How should the XCMD2102L1 be mounted and wired? The XCM body mounts via two M4 fixing screws through the front face of the body. The cable gland entry (PG13.5) accepts the supply cable. Terminals are accessible by removing the body cover. Wire the NO terminal to your control circuit input (e.g., PLC digital input) and the NC terminal to your safety monitoring circuit, or vice versa according to your application logic. Refer to Schneider Electric's XCM installation instruction sheet (document reference available on schneider-electric.com) for torque values and wiring diagrams.

Q8: What is the expected service life of the XCMD2102L1? The switch is rated for 10 million mechanical operations and 1 million electrical operations at rated load (600 V AC, 10 A). In practice, if the switch is used well within its rated voltage and current (for example, switching a 24 V DC PLC input at less than 100 mA), the electrical life will significantly exceed the 1 million cycle figure. The limiting factor at low loads is typically the mechanical life of the actuator and body mechanism.

Q9: Is this a new unit or refurbished stock? This is a 100% new, original Schneider Electric unit in factory OEM packaging. It has never been installed, energised, or returned for service. We do not sell refurbished or remanufactured limit switches.

Q10: Can I order multiple units, and do you offer volume pricing? Yes, we regularly supply multiple units for spare parts kits, new machine builds, and maintenance stock. Volume pricing is available for orders of 5 units or more. Contact us via email or WhatsApp with your required quantity and delivery location for a prompt quotation.

Q11: What if I need a different actuator type or contact configuration? The XCM series from Schneider Electric covers plunger, roller plunger, lever, adjustable lever, and coil spring actuator types, combined with various contact configurations including 1NO+1NC, 2NC, and others. We stock a range of XCM variants. If the XCMD2102L1 is not the correct variant for your application, contact us with your actuator type and contact requirement and we will identify the correct part number.
