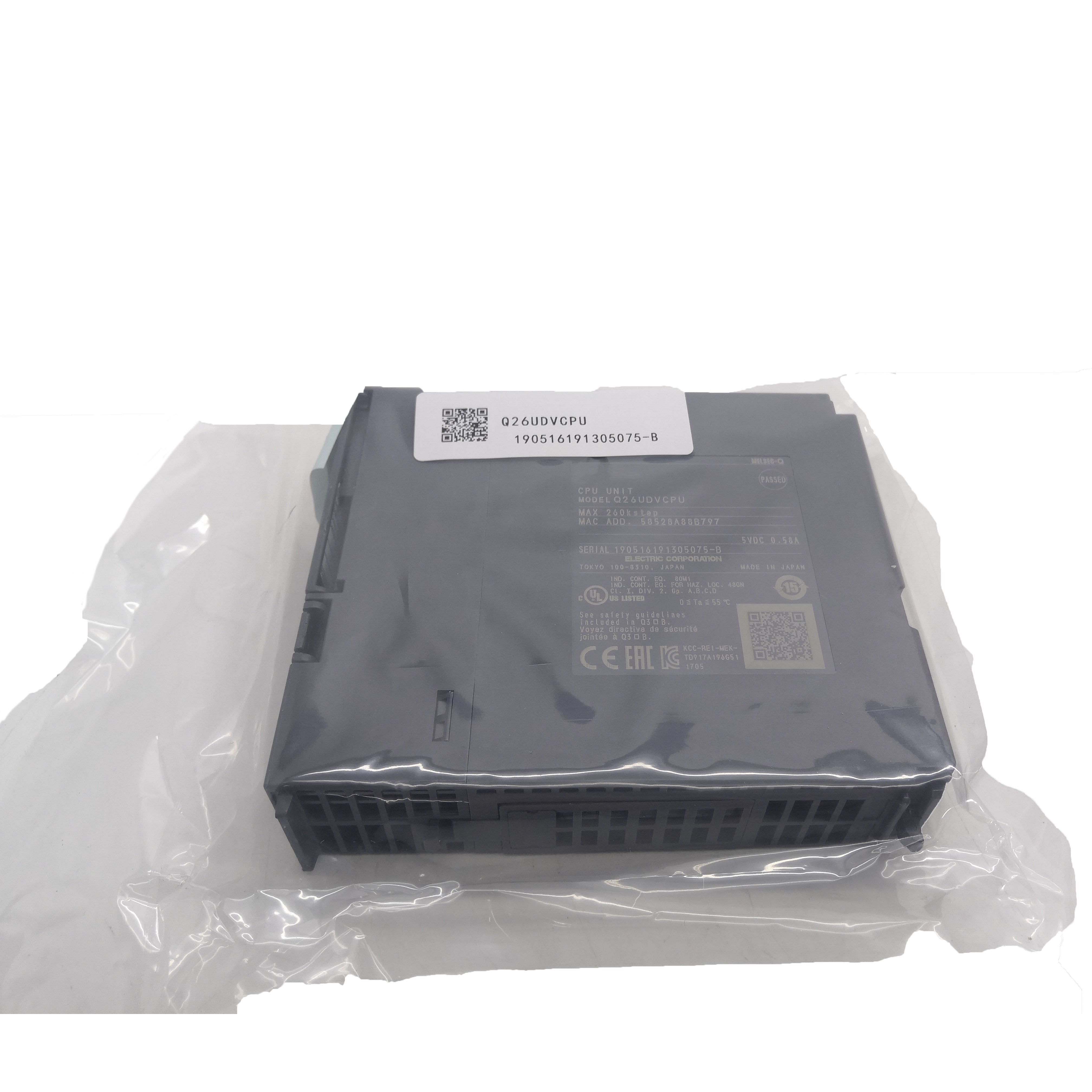

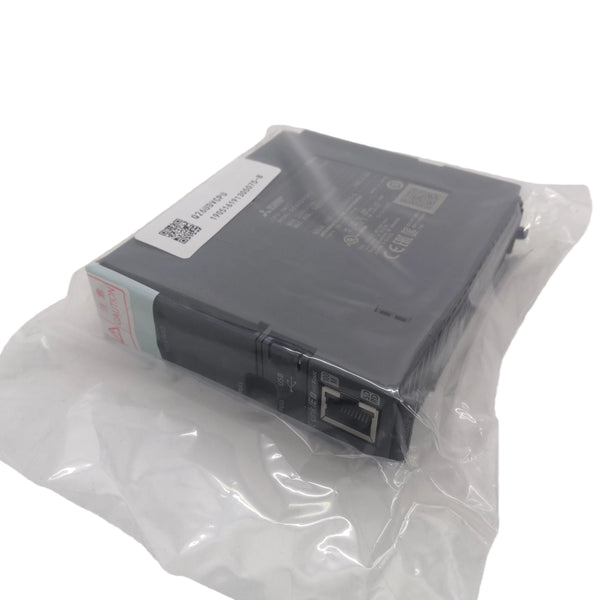

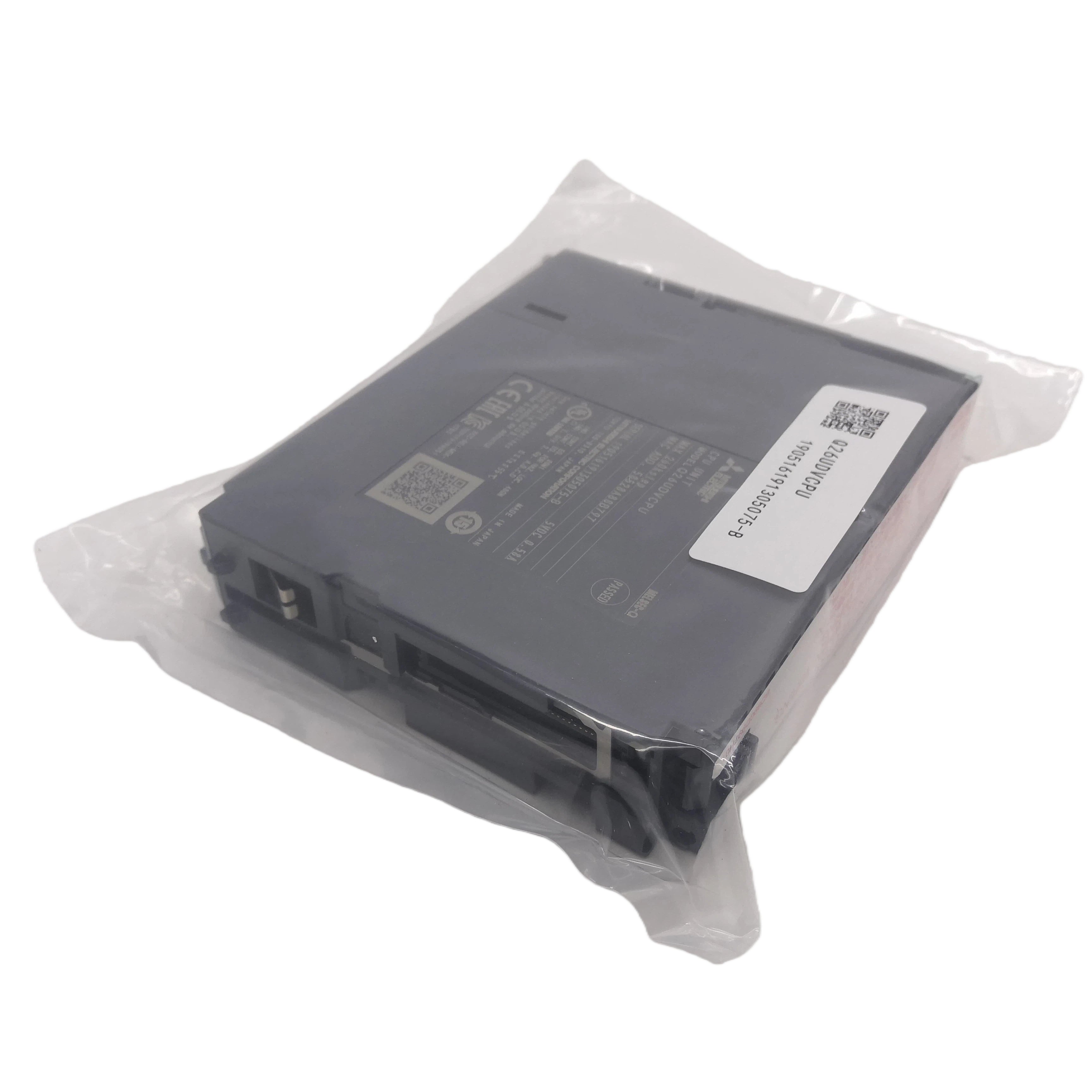

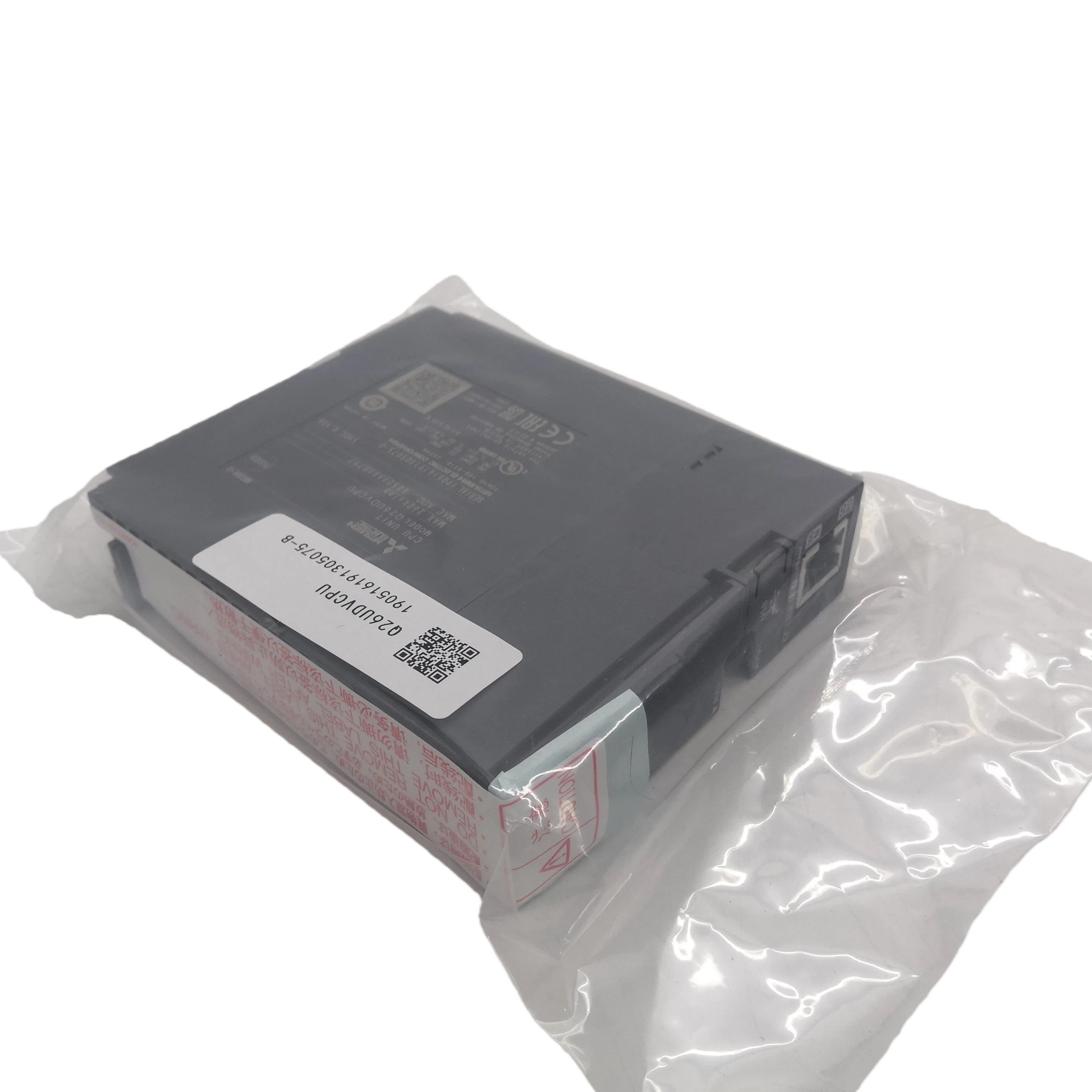

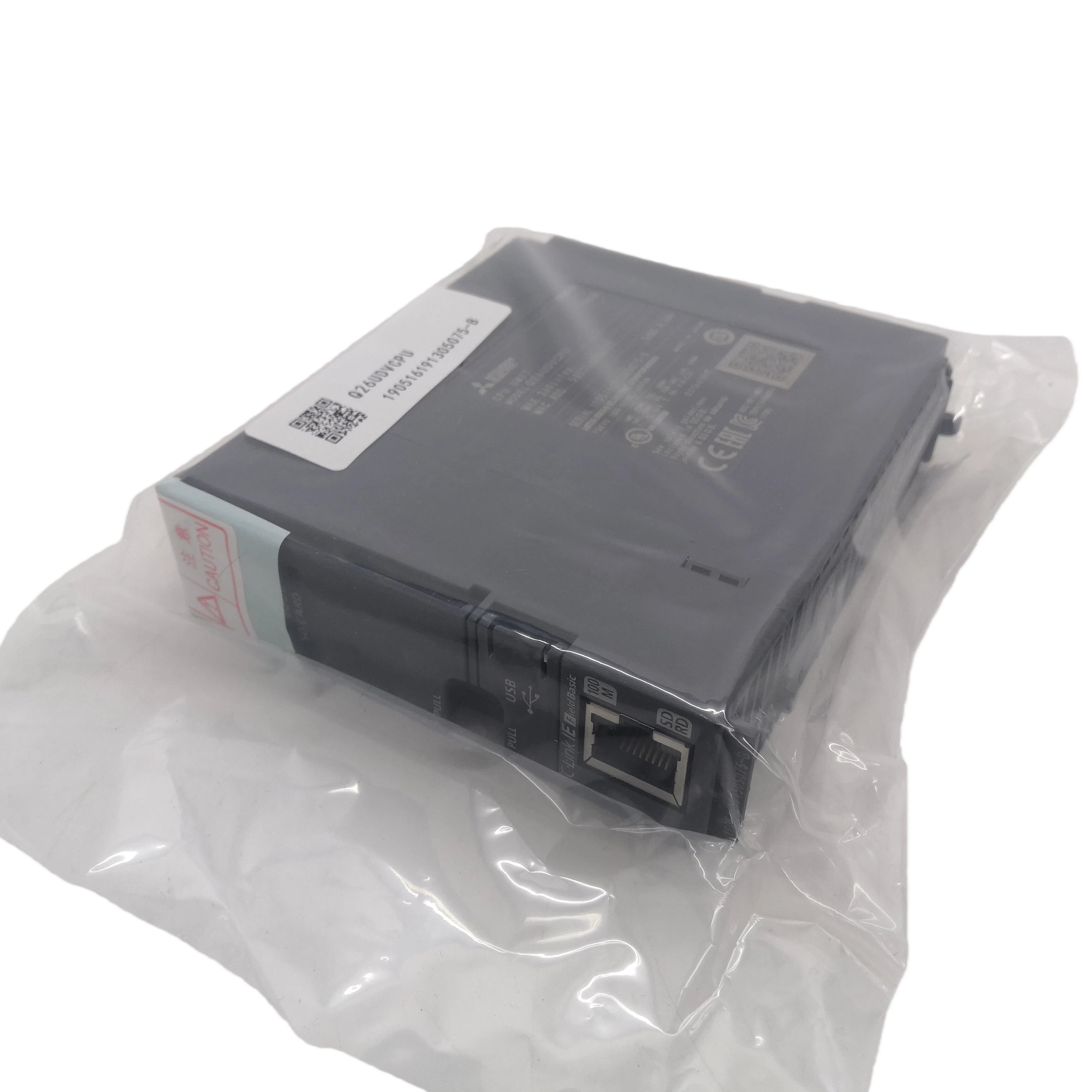

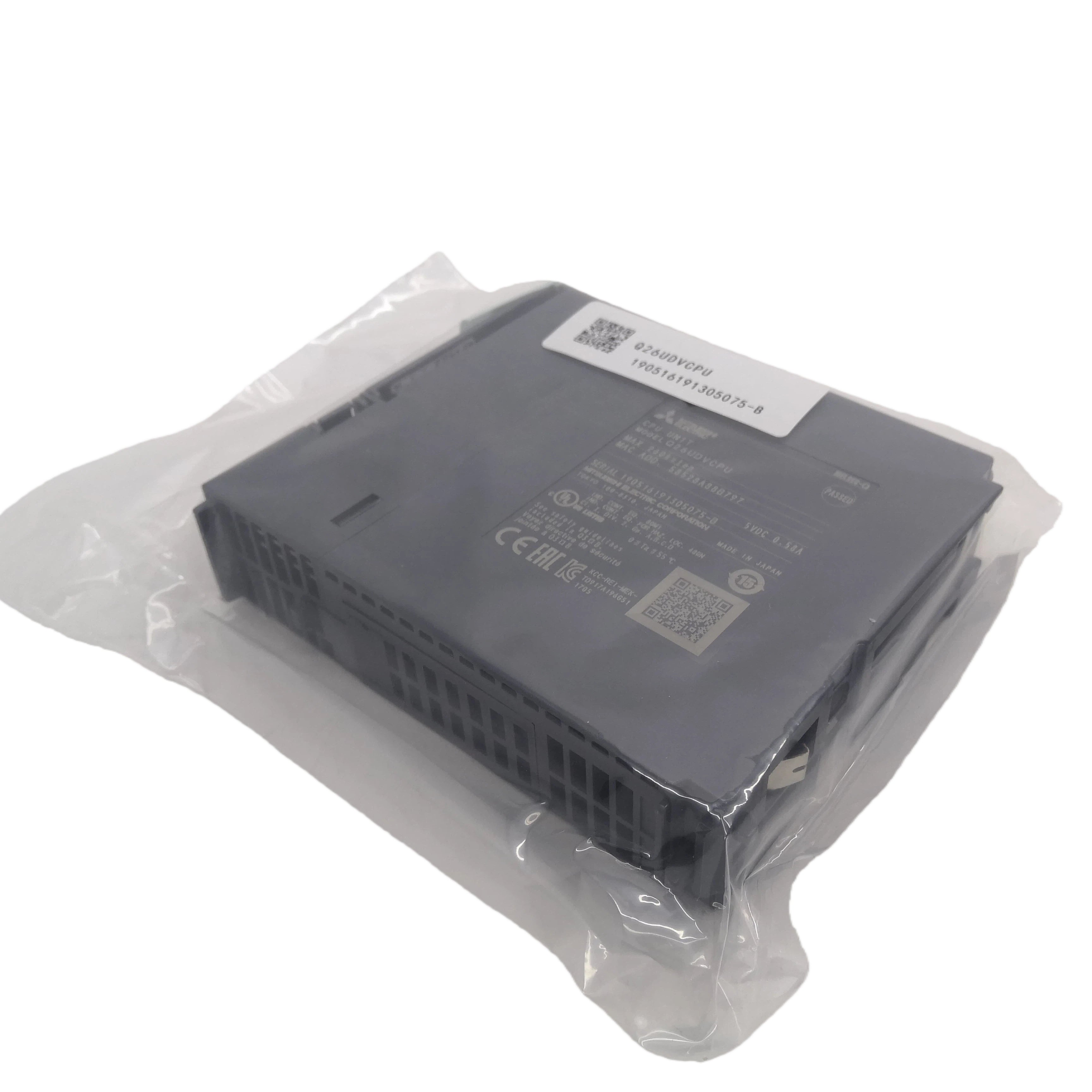

Q26UDVCPU Mitsubishi CPU Unit PLC | Brand New

Industrial Automation Intelligence at the Heart of Your System

In automated manufacturing, the CPU unit is the brain of the system, coordinating processes, inputs, and outputs with precision. The Mitsubishi Q26UDVCPU provides high-speed processing, reliable I/O management, and robust program execution, making it ideal for controlling complex industrial operations. Engineered for SIMATIC-class industrial environments, this CPU unit ensures stability and consistent performance, even under heavy computational loads or continuous operation.

Key Features

• Mitsubishi Q-series PLC CPU unit, designed for industrial automation

• High-speed program execution for complex control processes

• Built-in memory and I/O management for seamless system integration

• Robust industrial construction with protection against vibration and environmental factors

• Compatible with Mitsubishi Q-series PLC modules, supporting flexible expansion

• Supports real-time process monitoring, data logging, and networked communication

Technical Specifications

Typical Applications

• Factory automation PLC systems

• Complex manufacturing lines with multi-axis control

• Process monitoring and data logging

• Integration with HMIs and SCADA systems

• Any industrial setup requiring centralized programmable control

🔷 Mitsubishi Q-Series PLC CPU Units Technical Comparison

🔎 Technical Insight

1. Program Capacity (Step Memory)

• Q26UDVCPU supports 260K steps, roughly double that of the Q13UDVCPU and significantly more than smaller models, making it more suitable for complex logic and larger control programs.

• Q04UDVCPU and lower‑end CPUs offer smaller memory footprint for compact systems.

2. I/O Capacity & Expansion

• Q26UDVCPU supports a larger number of I/O points (4,096 basic) and can be expanded up to 8,192 via CC‑Link, ideal for large distributed systems.

• Smaller models offer proportionally fewer I/O points, fitting smaller automation tasks.

3. Communication Interfaces

• All compared units provide USB and Ethernet ports for programming and network connectivity — important for integration with control software and HMI/SCADA systems.

• Memory card support (SD/SDHC) on all models allows easy system backup and firmware/data management.

4. Processing Speed & Efficiency

• All Universal QCPU models (Q04 to Q26) share the same 1.9 ns basic processing speed, ensuring responsive real‑time control and efficient execution of ladder logic. This consistency simplifies selection based on memory and I/O needs rather than instruction speed.

🧠 How to Use This Table

• Choose Q26UDVCPU when your application needs larger program memory and higher I/O count (e.g., multi‑axis control, extensive sensor arrays).

• Select Q13UDVCPU or smaller for medium to small systems with moderate complexity and fewer I/O requirements.

• All models support standard communication and memory card features, making them compatible with Mitsubishi’s GX Works2 programming environment and industrial automation workflows.

Advantages for Engineers

• Reliable performance: Handles continuous operation in industrial environments

• Flexible expansion: Supports modular Q-series I/O and peripheral devices

• High-speed processing: Enables real-time control for complex systems

• Easy maintenance: Standardized architecture allows quick troubleshooting and replacement
