20BD014A0AYNANC0 New Original AB PowerFlex 700 AC Drive 20BD014A0AYNANC0
PRODUCT DETAILS

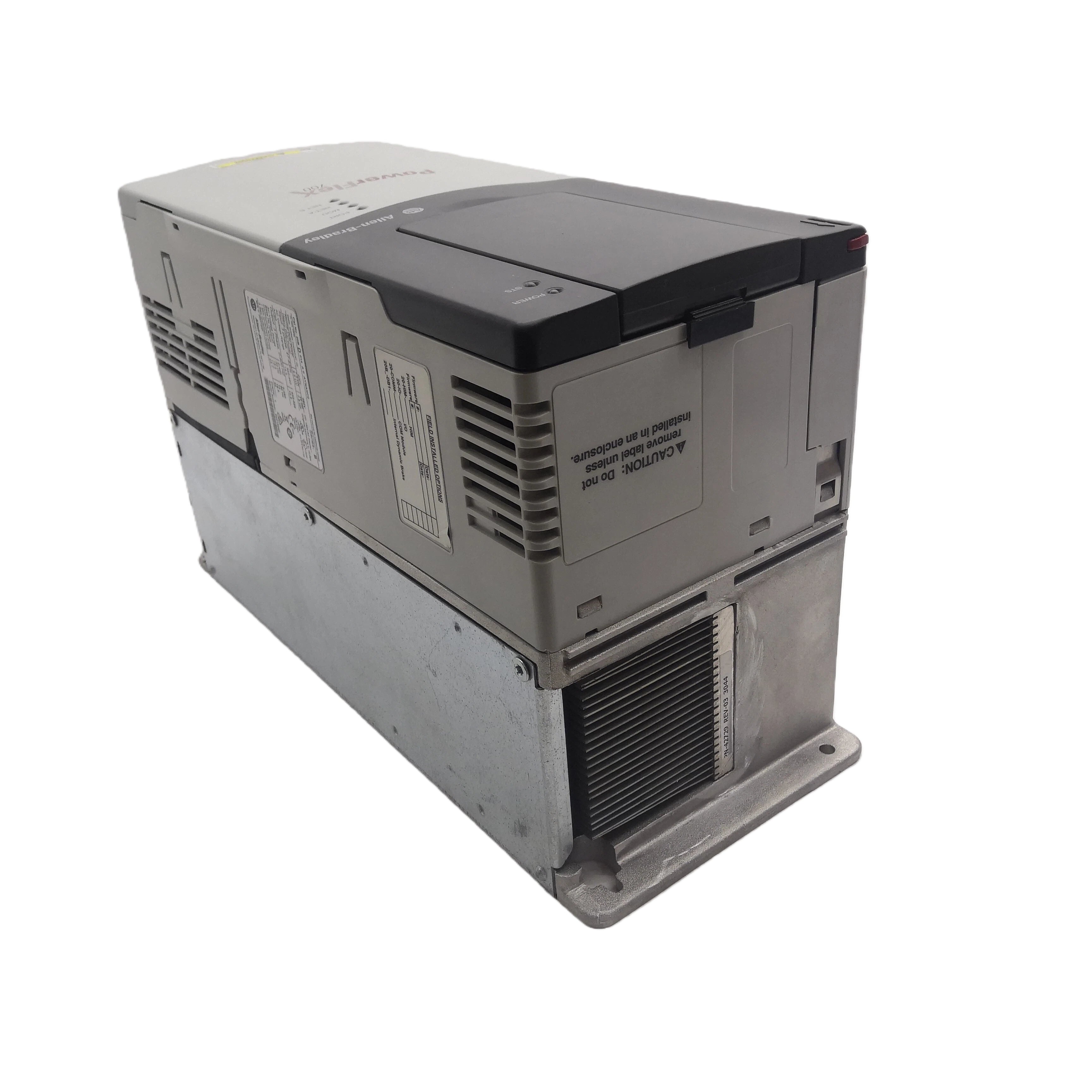

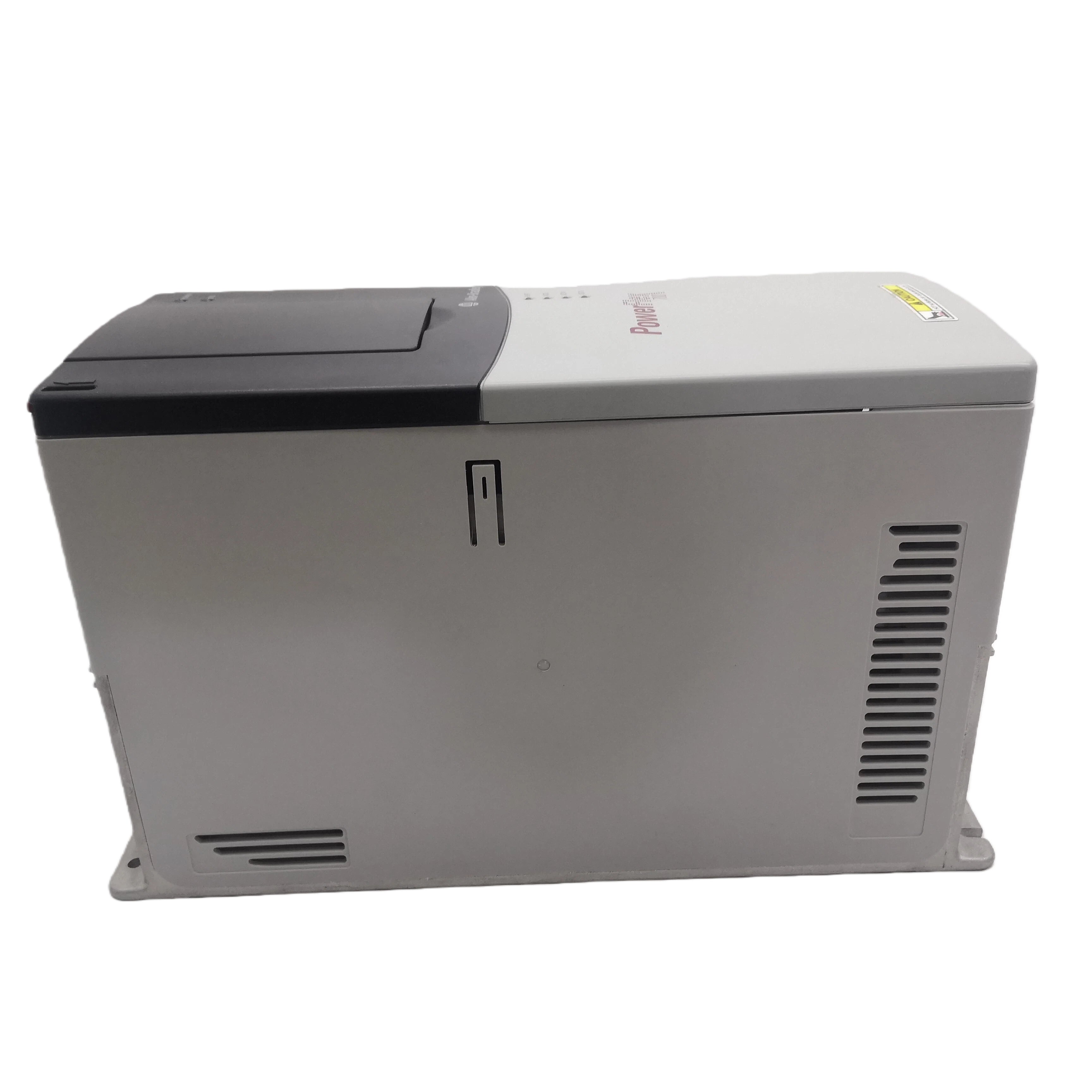

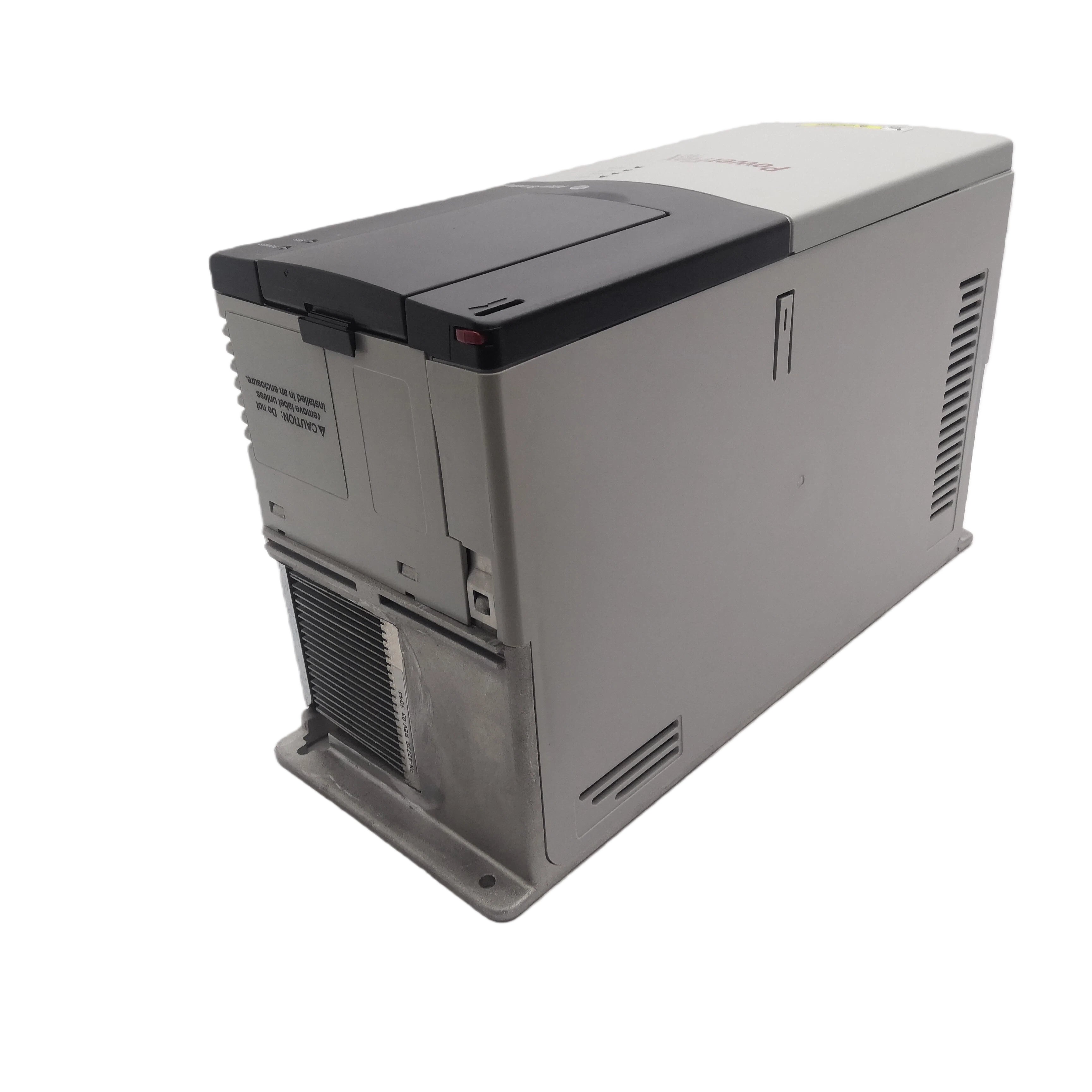

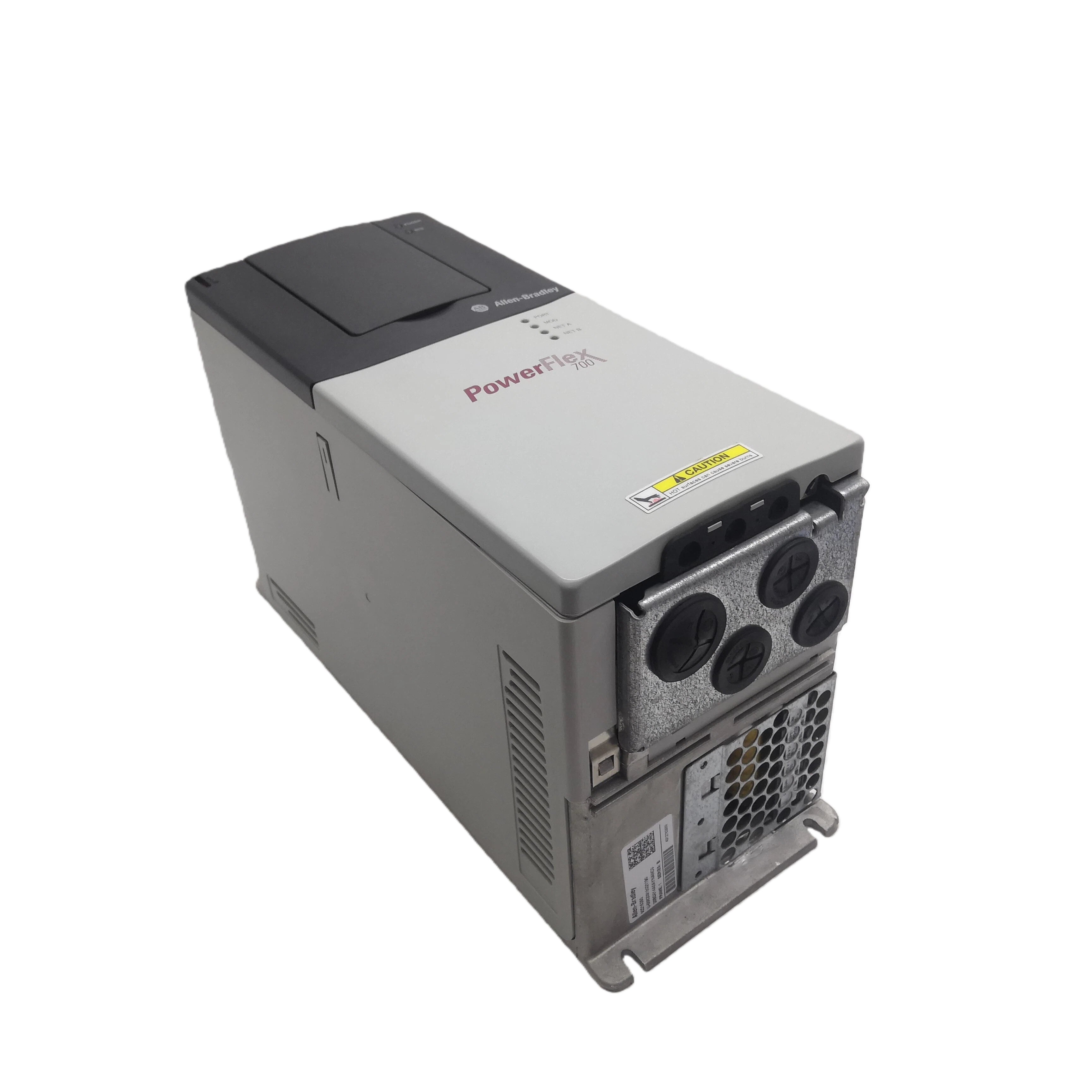

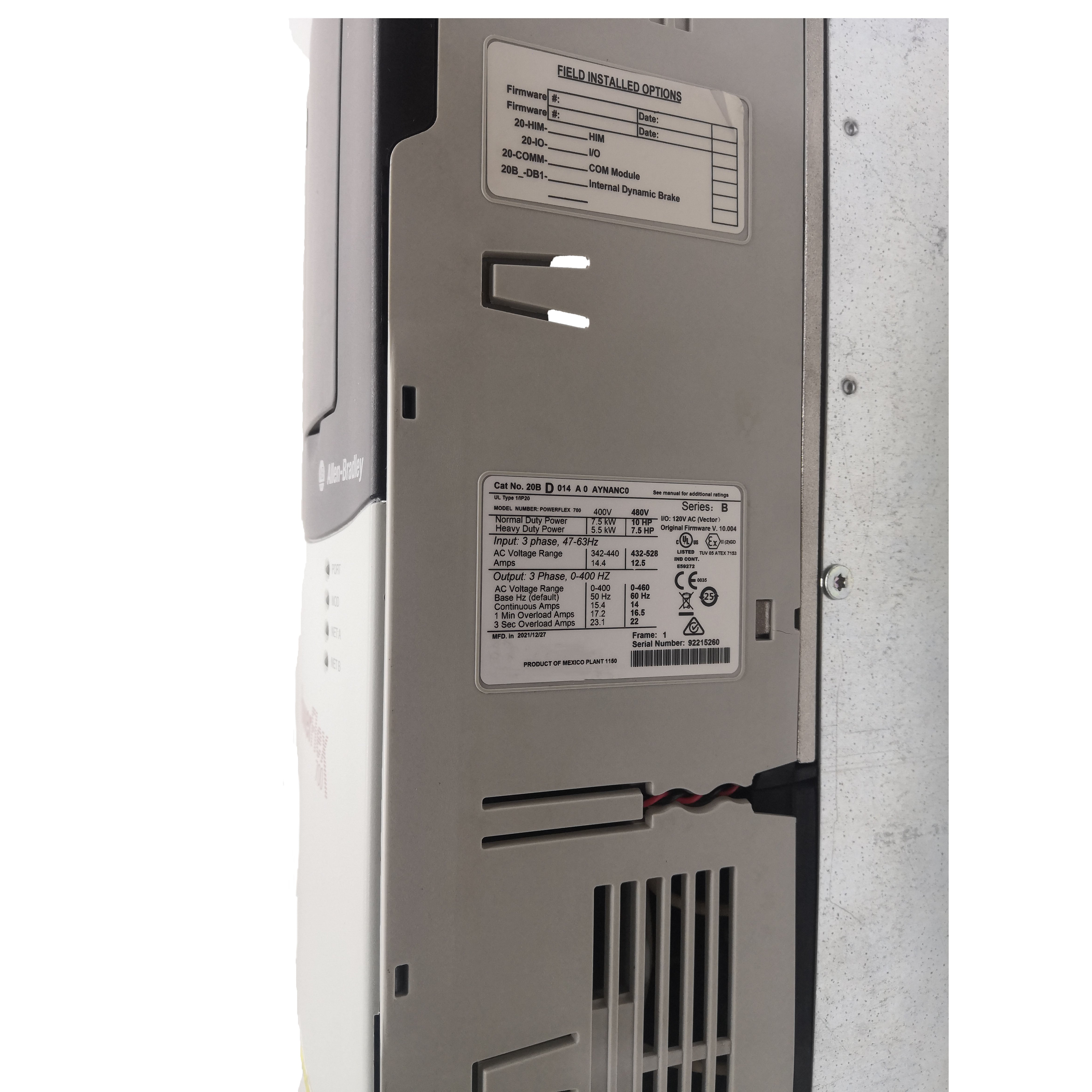

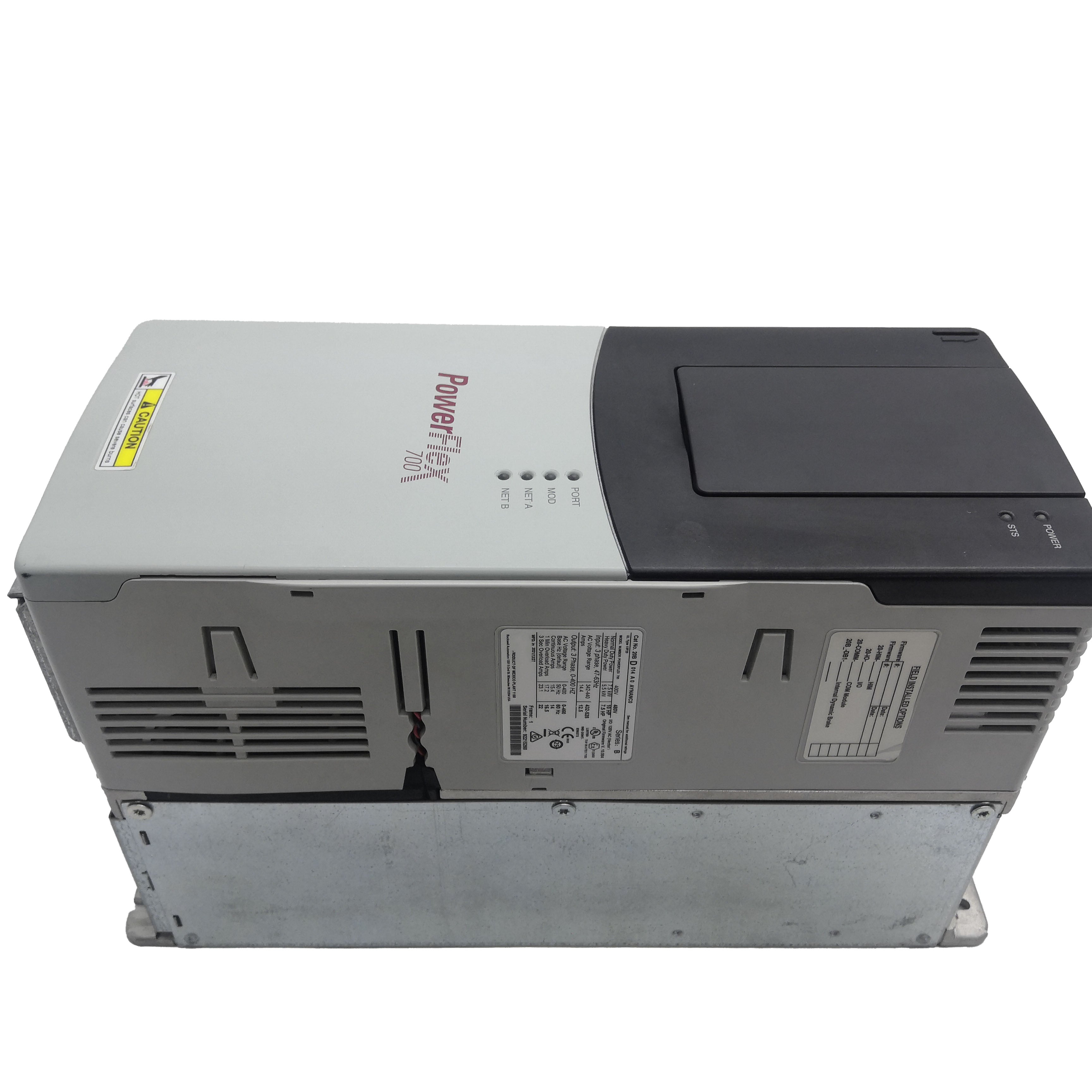

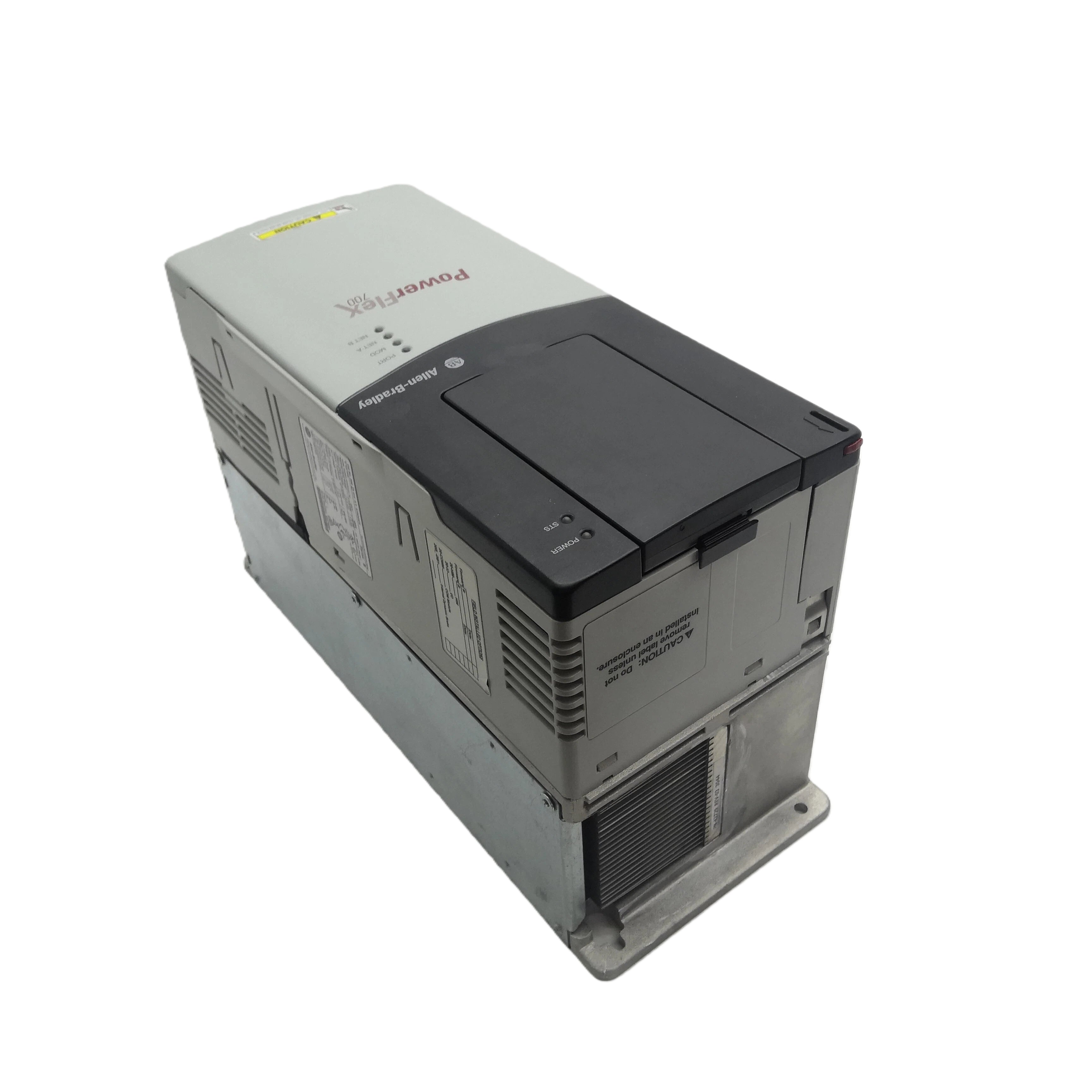

20BD014A0AYNANC0 AC Drive
PowerFlex 700 Variable Frequency Drive | 480VAC | 10 HP | Frame 1
Product Description
The 20BD014A0AYNANC0 PowerFlex 700 AC Drive is a high-performance variable frequency drive designed for precise motor speed and torque control in industrial automation applications. Operating on 480VAC, 60Hz, three-phase power, this drive delivers reliable 10 HP output with advanced vector control for demanding motion and process control systems.
Note: This model has been discontinued by the manufacturer. Factory warranty no longer applies; however, it is fully covered by a Radwell 2-Year Warranty for added assurance.
Key Features
-
480VAC, 3-Phase Industrial AC Drive
-
10 HP / 14 Amp Normal Duty Rating
-
Advanced Vector Control (VCTR CTRL)
-
Integrated Brake IGBT
-
Built-in CE Filter with Common Mode Choke
-
RS-485 Communication Interface
-
24 VDC Control & I/O
-
Compact Frame 1 Design
-
IP20 / NEMA Type 1 Enclosure
-
HIM Blank Cover (HIM not included)
Technical Specifications
| Item | Specification |
|---|---|
| Part Number | 20BD014A0AYNANC0 |
| Series | PowerFlex 700 |
| Product Type | AC Drive / VFD |
| Input Voltage | 480 VAC |
| Frequency | 60 Hz |
| Phase | 3 Phase |
| Output Current | 14 Amps |
| Output Power | 10 HP |
| Frame Size | Frame 1 |
| Control Mode | Vector Control |
| Control Voltage | 24 VDC I/O |
| Communication | RS-485 |
| Braking | Built-in Brake IGBT |
| EMC / Emission | CE Filter / CM Choke |
| Enclosure Rating | IP20 / NEMA Type 1 |
| HIM Interface | Blank cover |
| Documentation | Manual included |
| Product Status | Discontinued by manufacturer |
| Warranty | Radwell 2-Year Warranty (Factory warranty does not apply) |
Product Identification
-
Part Number: 20BD014A0AYNANC0
-
Category: Drives
-
Subcategory: AC Drive / Variable Frequency Drive (VFD)
Electrical Ratings
-
Input Voltage: 480 VAC
-
Frequency: 60 Hz
-
Phase: Three-phase (3 PH)
Performance Ratings
-
Normal Duty (ND) Current: 14 A
-
Normal Duty Power: 10 HP
-
Frame Size: Frame 1
Mechanical & Environmental
-
Enclosure Rating: IP20
-
Net Weight: 14.0 lbs
Control & Interface
-
Control Mode: Vector Control
-
Control Power Supply: 24 VDC I/O
-
HIM Interface: Blank cover (HIM not included)
Braking & EMC
-
Brake Type: Built-in brake IGBT
-
EMC / Emission: CE Filter with Common Mode Choke (CM Choke)
Typical Applications
-
Industrial motor control systems
-
Conveyor and material handling equipment
-
Pumps, fans, and compressors
-
Machine automation and OEM installations
