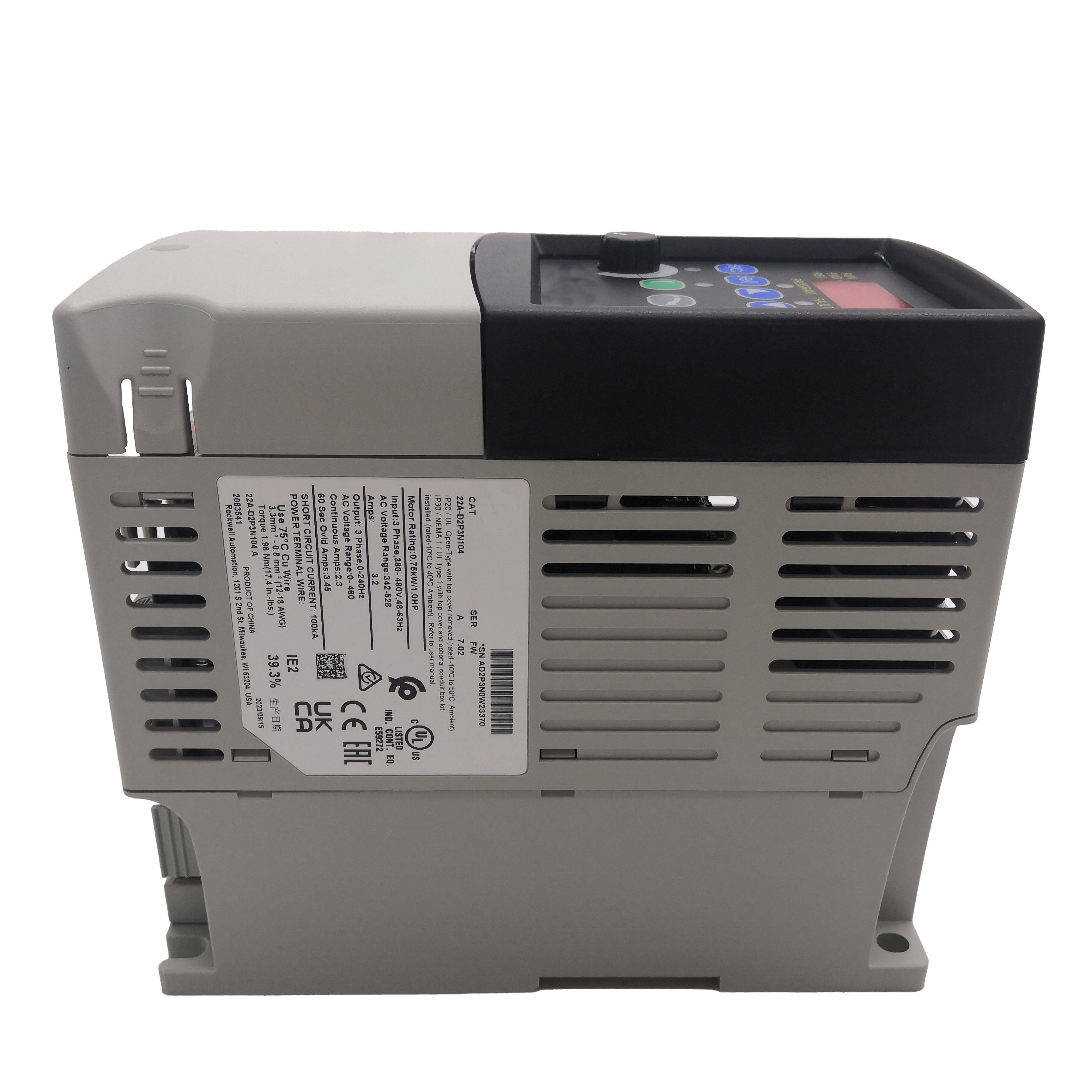

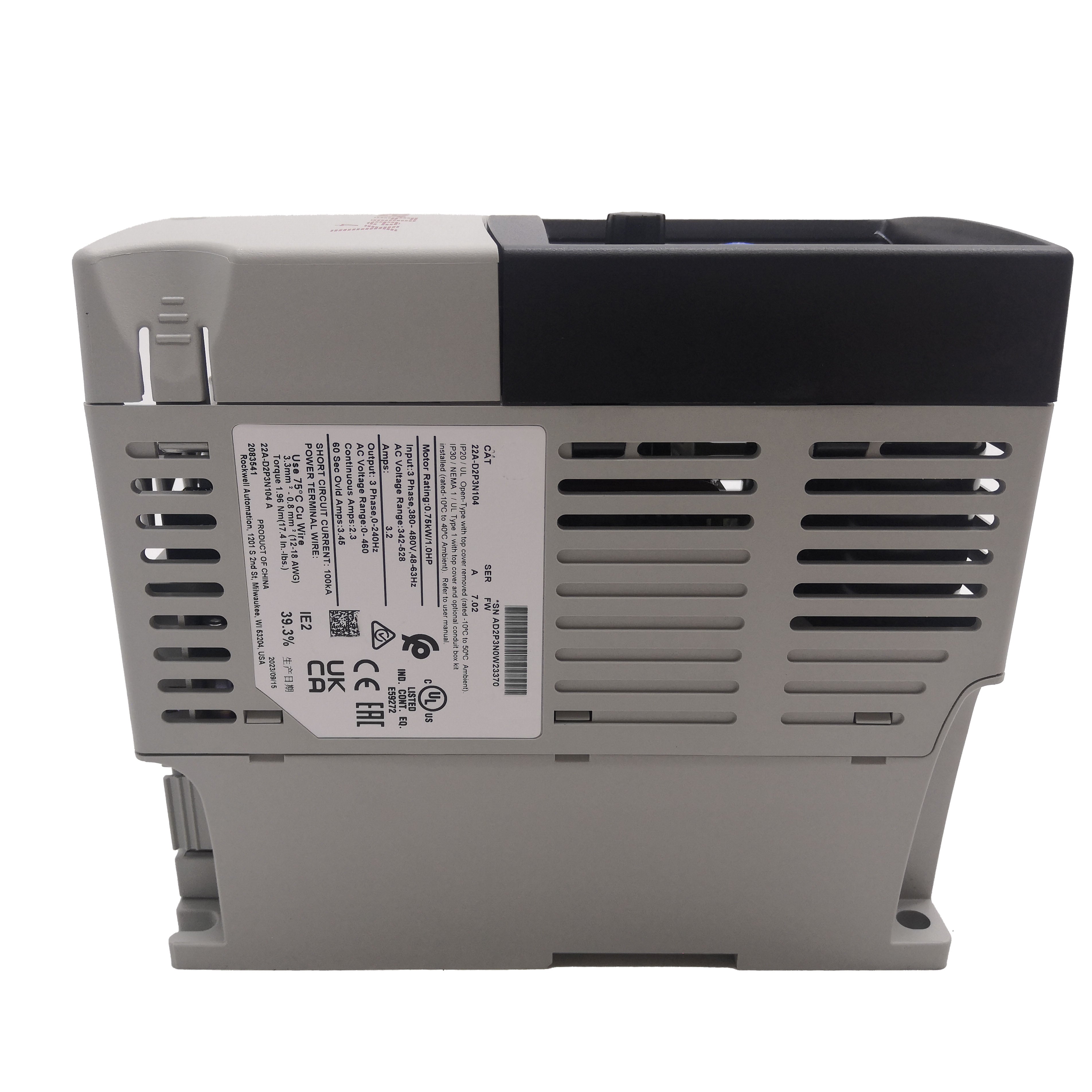

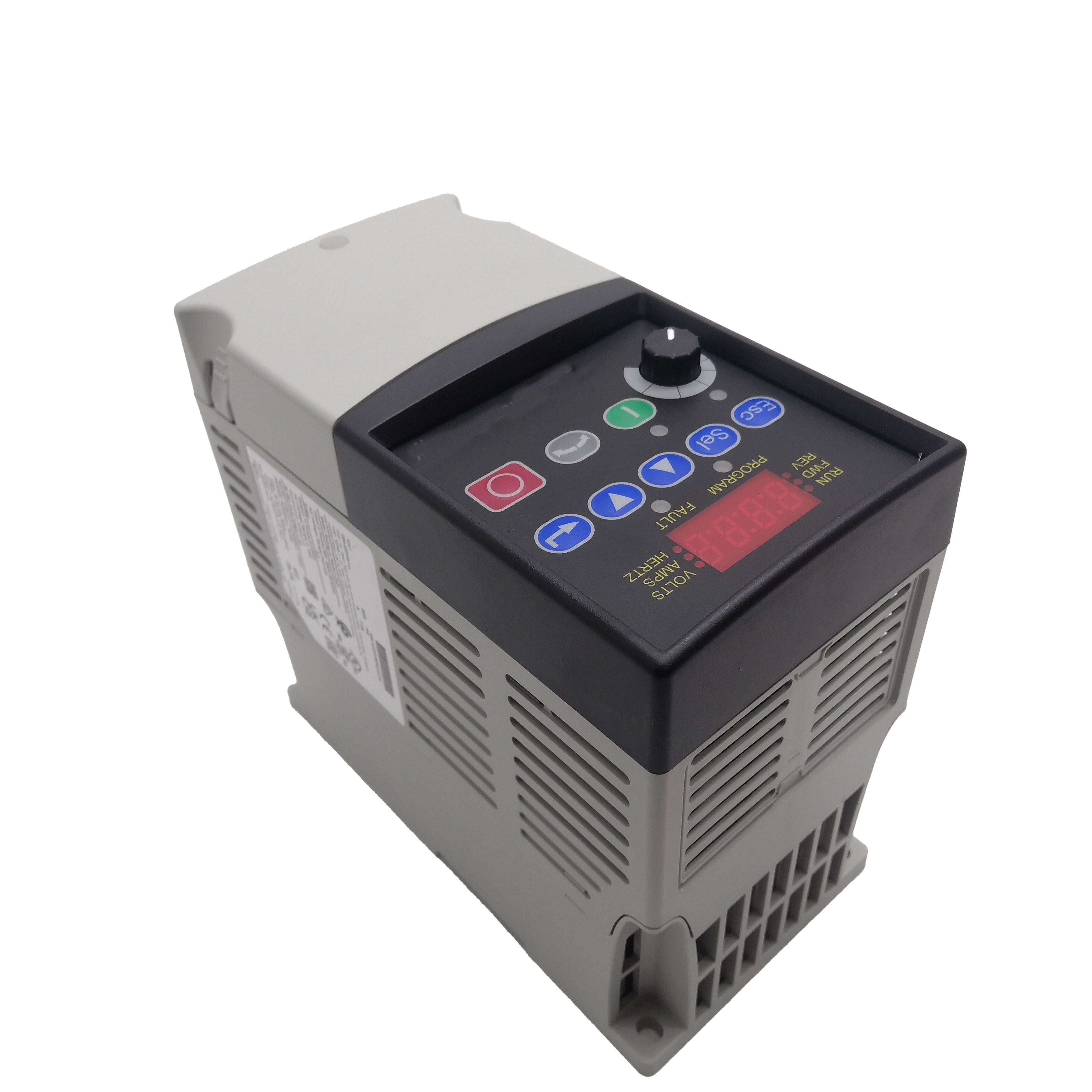

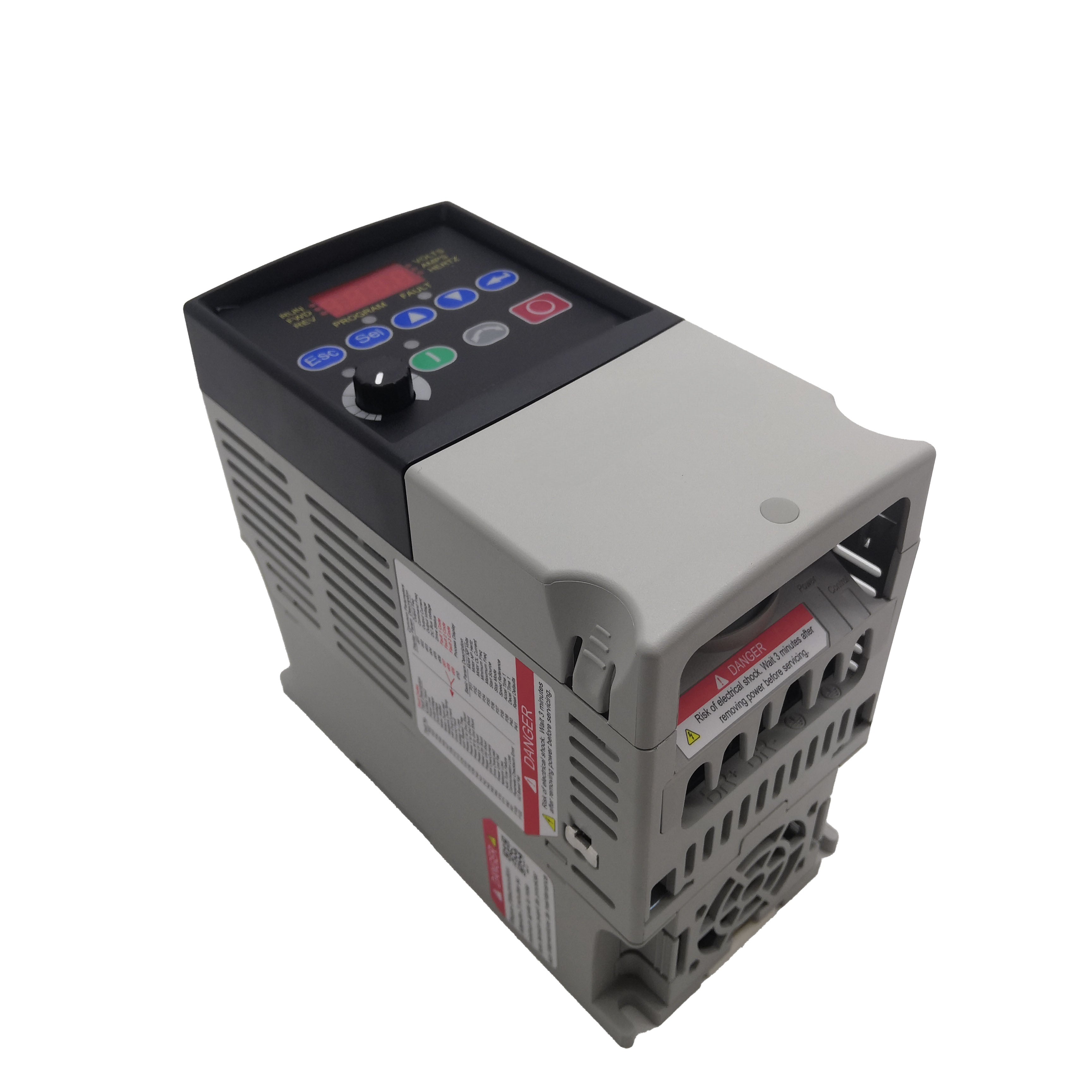

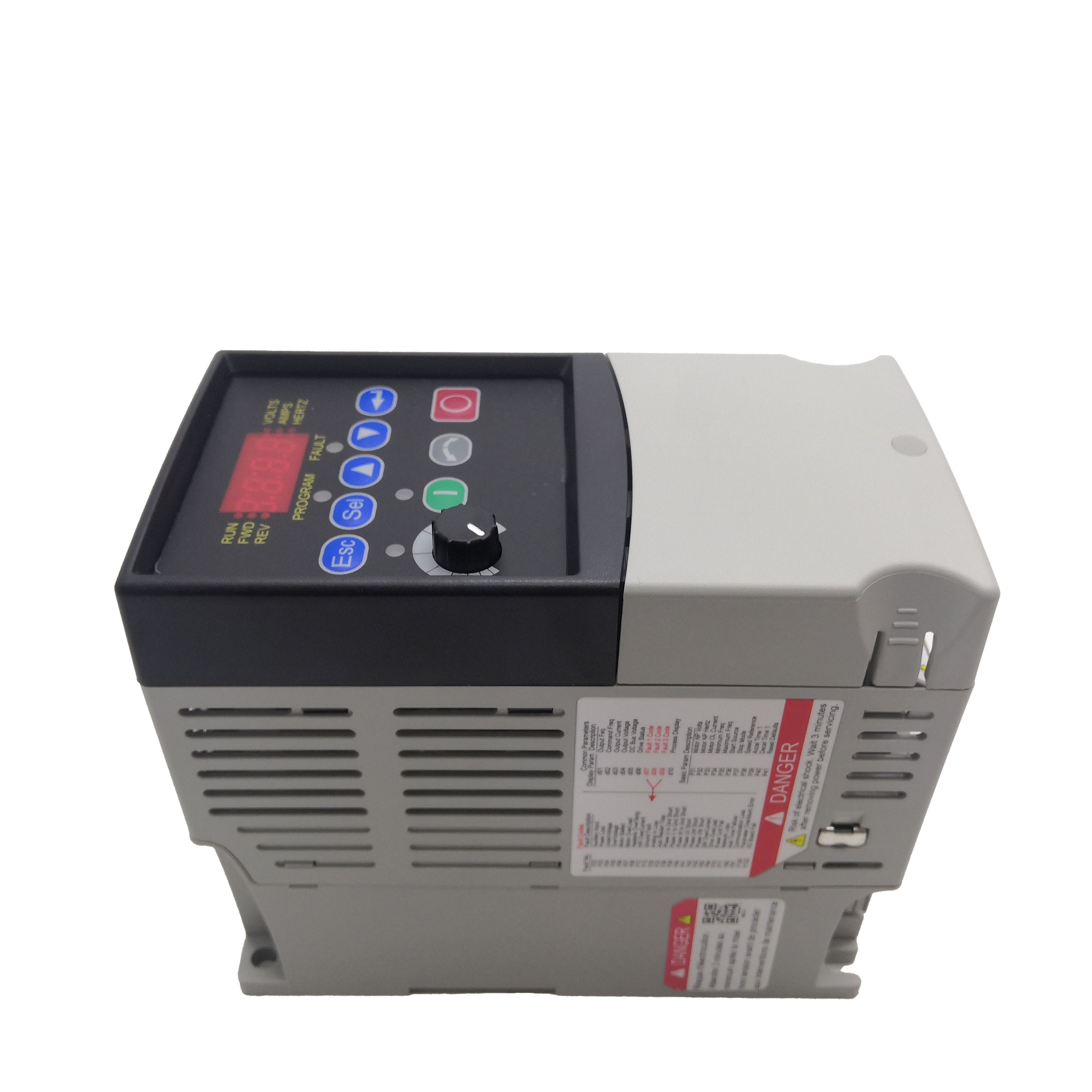

22A-D2P3N104 New Sealed 22AD2P3N104 0.75 kW 1 HP AC Drive
PRODUCT DETAILS
22A-D2P3N104 Variable Frequency Drive for Compact Motor Control Applications
The 22A-D2P3N104 is a compact variable frequency drive designed to provide efficient speed regulation for three-phase AC motors. It delivers stable motor control, smooth acceleration, and dependable operation, making it suitable for a wide range of industrial automation equipment.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Variable Frequency Drive |
| Input Voltage | 380–480 VAC, 3 Phase |
| Rated Output Current | 2.3 A |
| Control Method | V/Hz Control |
| Output Frequency | 0–500 Hz |
| Enclosure Rating | IP20 |
| Mounting Type | Panel Mount |
Installation Guide
- Mount the drive vertically inside a control cabinet.
- Maintain adequate clearance for ventilation.
- Connect input power and motor wiring correctly.
- Verify protective grounding before startup.
- Configure motor parameters before operation.
- Perform a no-load test before full-load use.
Typical Applications
- Conveyor systems
- Pumps
- Fans and blowers
- Packaging equipment
- Small production machines
- Material handling systems
FAQ
Q1: What is the primary function of this drive?
A: It controls the speed of AC motors.
Q2: What installation method is recommended?
A: Panel mounting inside a control cabinet.
Q3: Is it suitable for continuous operation?
A: Yes, it is designed for industrial duty.
Q4: What type of motor can it control?
A: Compatible three-phase AC motors.
Q5: Where is it commonly used?
A: In compact industrial automation equipment.
