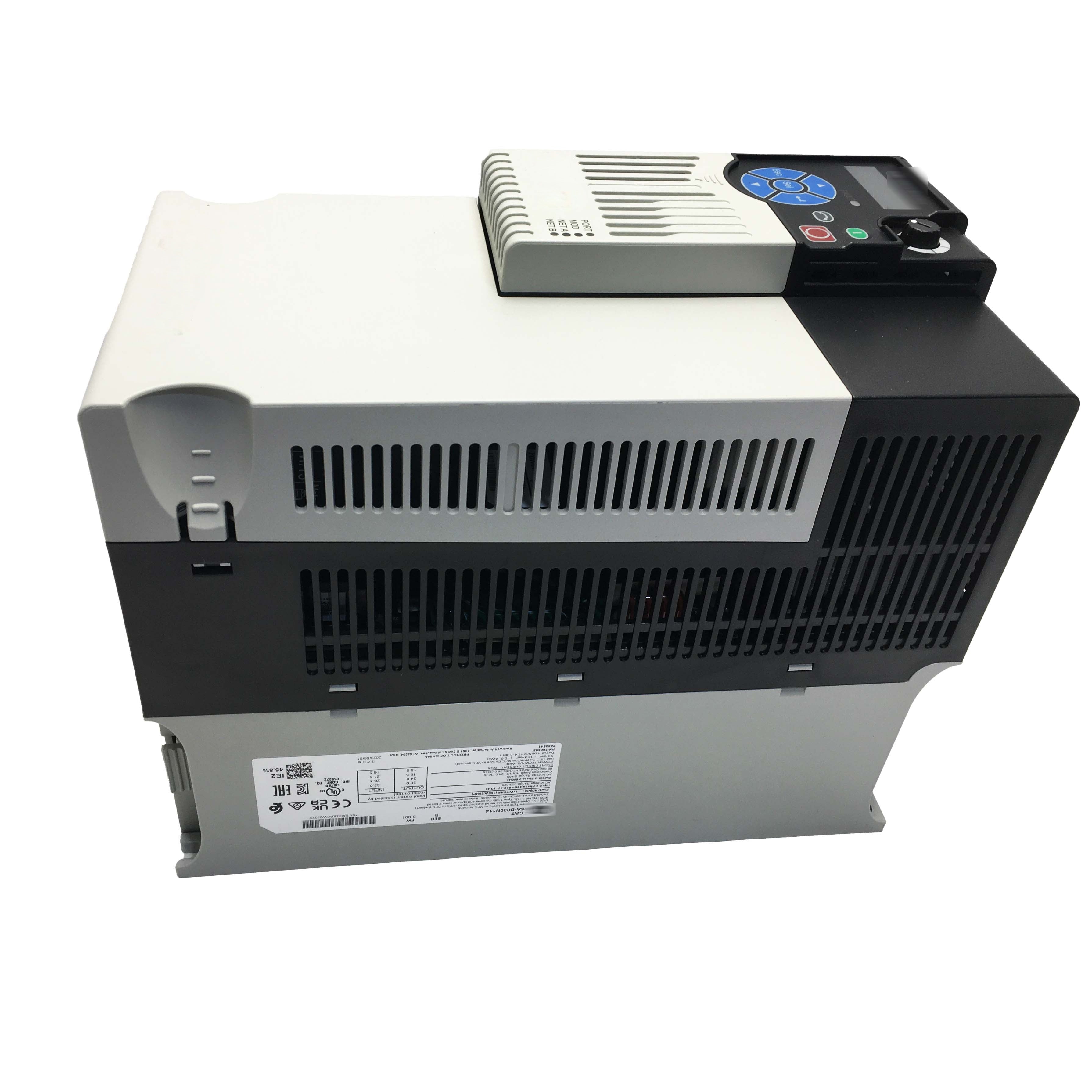

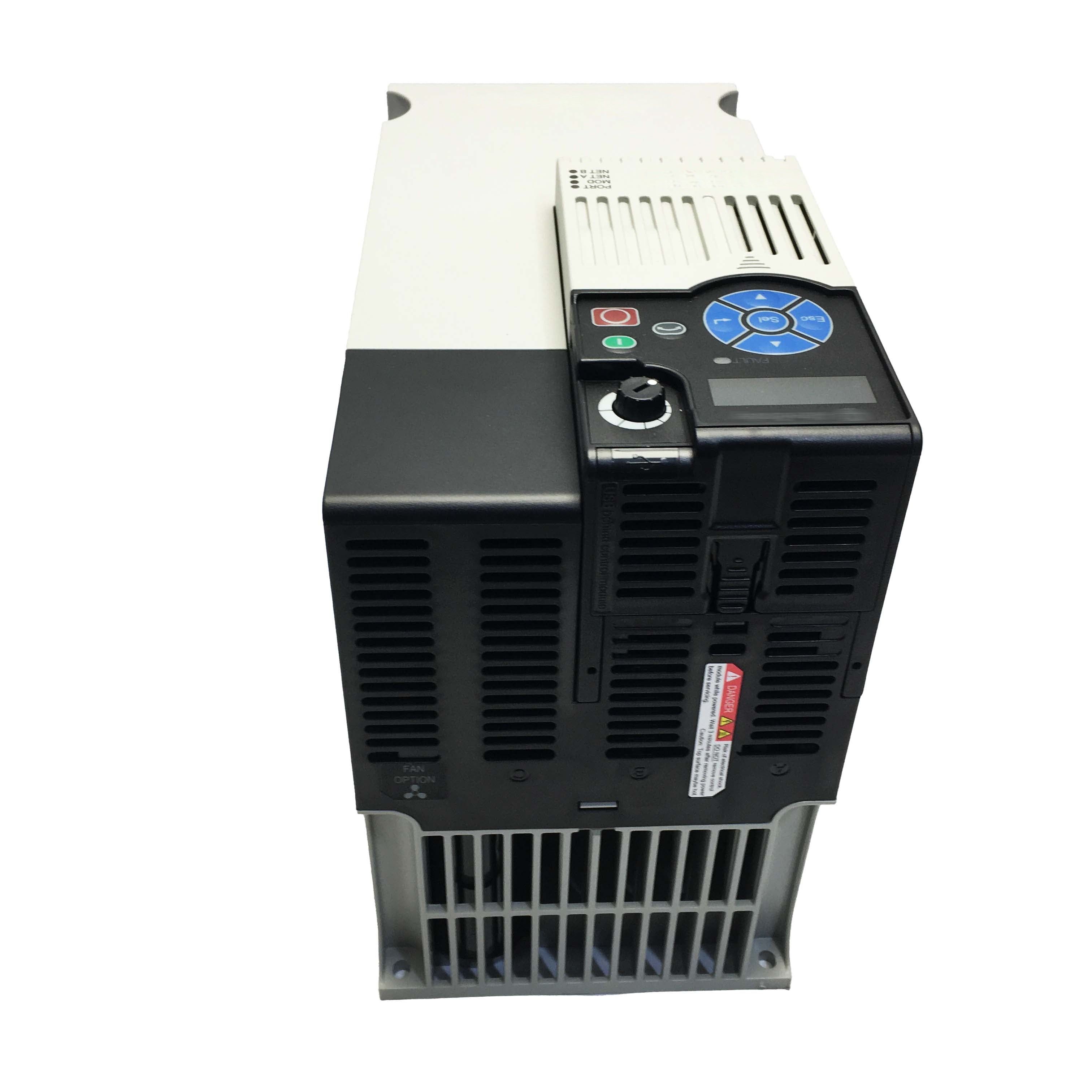

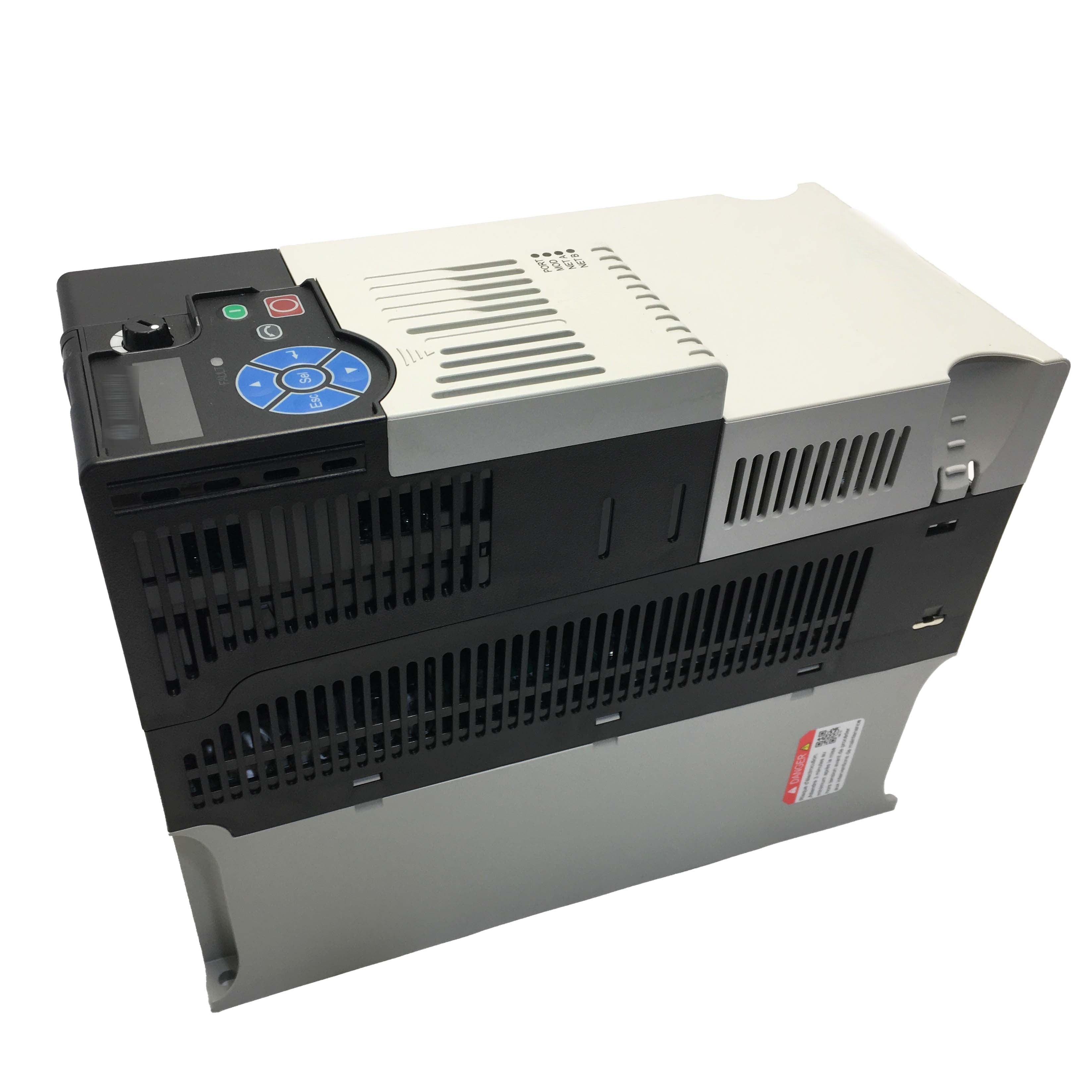

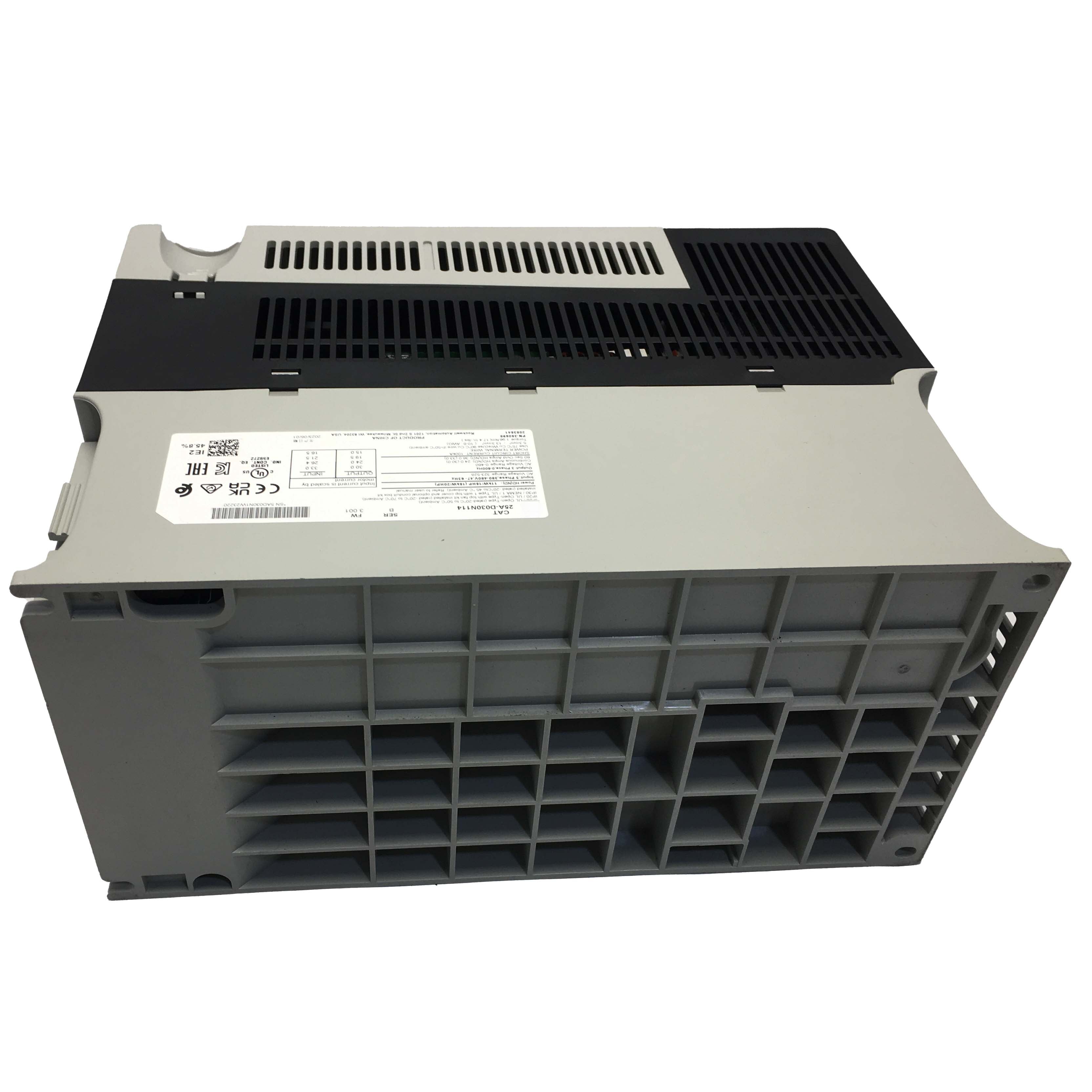

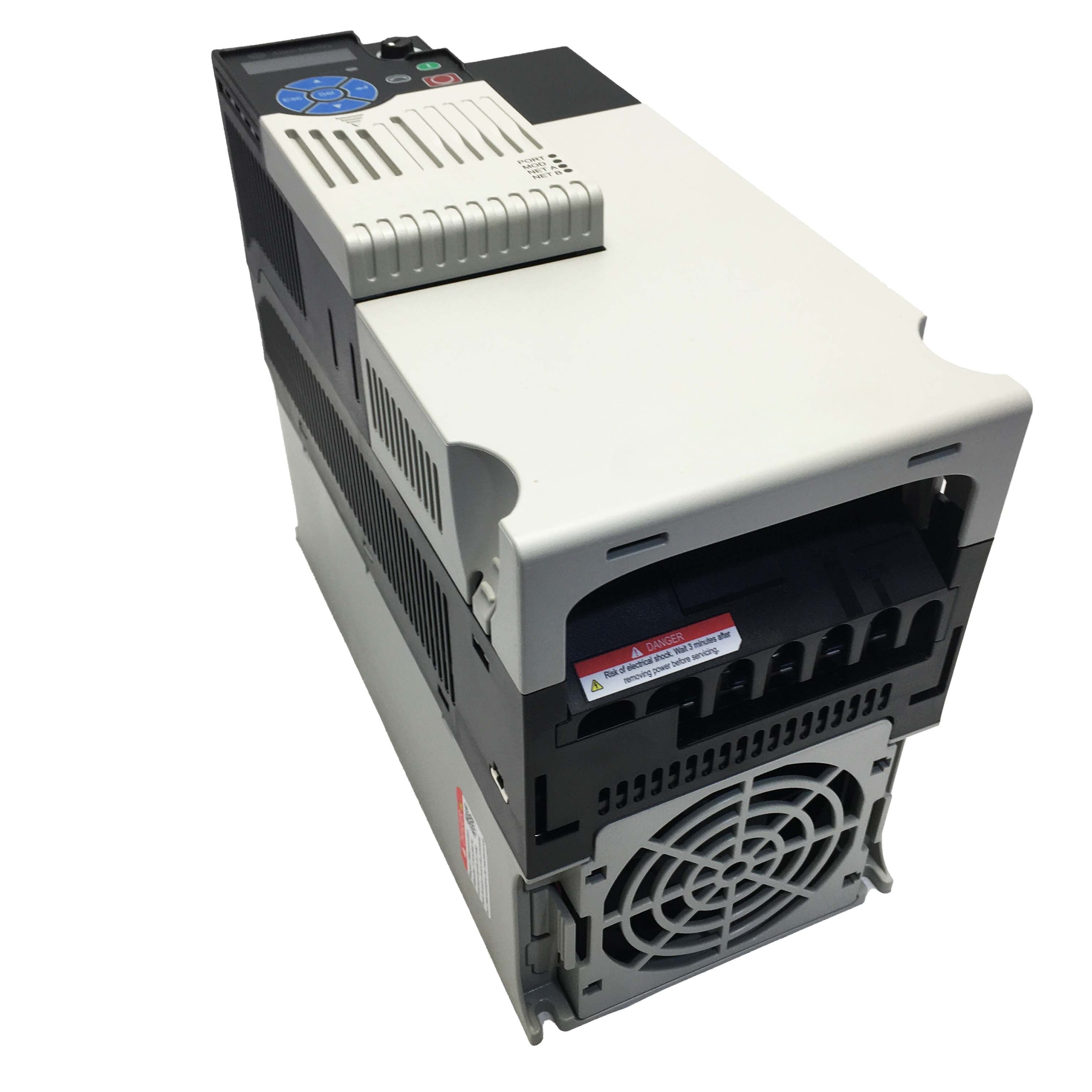

25A-D030N114 — AC Drive, 480V Three-Phase, 20 HP / 15 kW, 30A, Frame D
The 25A-D030N114 is a 20 HP / 15 kW AC drive, accepting 380–480V AC three-phase input (323–528V rated range) and delivering 30A output current in a Frame D housing with an integral EMC filter. It supports V/Hz and sensorless vector control, includes hardwired Safe Torque Off meeting PLd Category 3 / SIL 2, and provides a single built-in PID loop alongside DSI/RS-485 serial communication for basic network integration.
Specifications
| Parameter | Value |
|---|---|
| Part Number | 25A-D030N114 |
| Power Rating | 20 HP / 15 kW |
| Input Voltage | 380–480V AC, Three-Phase (323–528V rated range) |
| Output Current | 30 A |
| Control Modes | V/Hz, Sensorless Vector |
| Safe Torque Off | Hardwired, PLd Category 3 / SIL 2 |
| PID Loops | 1 (built-in) |
| Communication | DSI / RS-485 (native) |
| EMC Filter | Integral |
| Frame Size | D |
| Mounting | Panel mount, zero-stacking compatible |
A 30A Drive at the Top of Its Power Range
At 20 HP, this drive sits near the upper end of its specific platform's catalog range — the general-purpose tier that covers a broad swath of common industrial motor loads without the dual-PID-loop or higher-tier safety features found on the more fully-featured drive in the same broader product family. One built-in PID loop is sufficient for single-variable process control — a pump maintaining pressure, a fan maintaining flow — but applications needing two independent process loops from the drive itself should look to the higher-tier model instead, since this configuration provides only one.
The detachable control module shared across this drive family's frame sizes means the same basic commissioning workflow — connect the control module to a PC over USB, upload or download settings — applies whether working with a small Frame A unit or this Frame D drive, simplifying technician training across a fleet of different drive sizes from the same platform.
FAQ
Q: How many PID loops does this drive provide?
One built-in PID loop. For applications needing two independent process control loops from the drive itself, the higher-tier model in the same platform family supports that capability instead.
Q: Does this drive include embedded EtherNet/IP?
Not on this base configuration — native communication is DSI/RS-485. EtherNet/IP connectivity requires adding a compatible communication option card to the drive's accessory port.
Q: Is the EMC filter on this drive removable for ungrounded supply systems?
Filter and jumper configuration should be verified against the drive's installation documentation for the specific supply grounding scheme — ungrounded or high-resistance grounded systems typically require adjustment from the standard grounded-supply configuration.
Q: What motor protection does this drive provide per NEC requirements?
Class 10 motor overload protection per NEC article 430, plus motor over-temperature protection per NEC article 430.126(A)(2), are provided as standard on this drive tier.
