2MBI200U4B-120-50 New Original Fanuc IGBT Module 2MBI200U4B12050
PRODUCT DETAILS

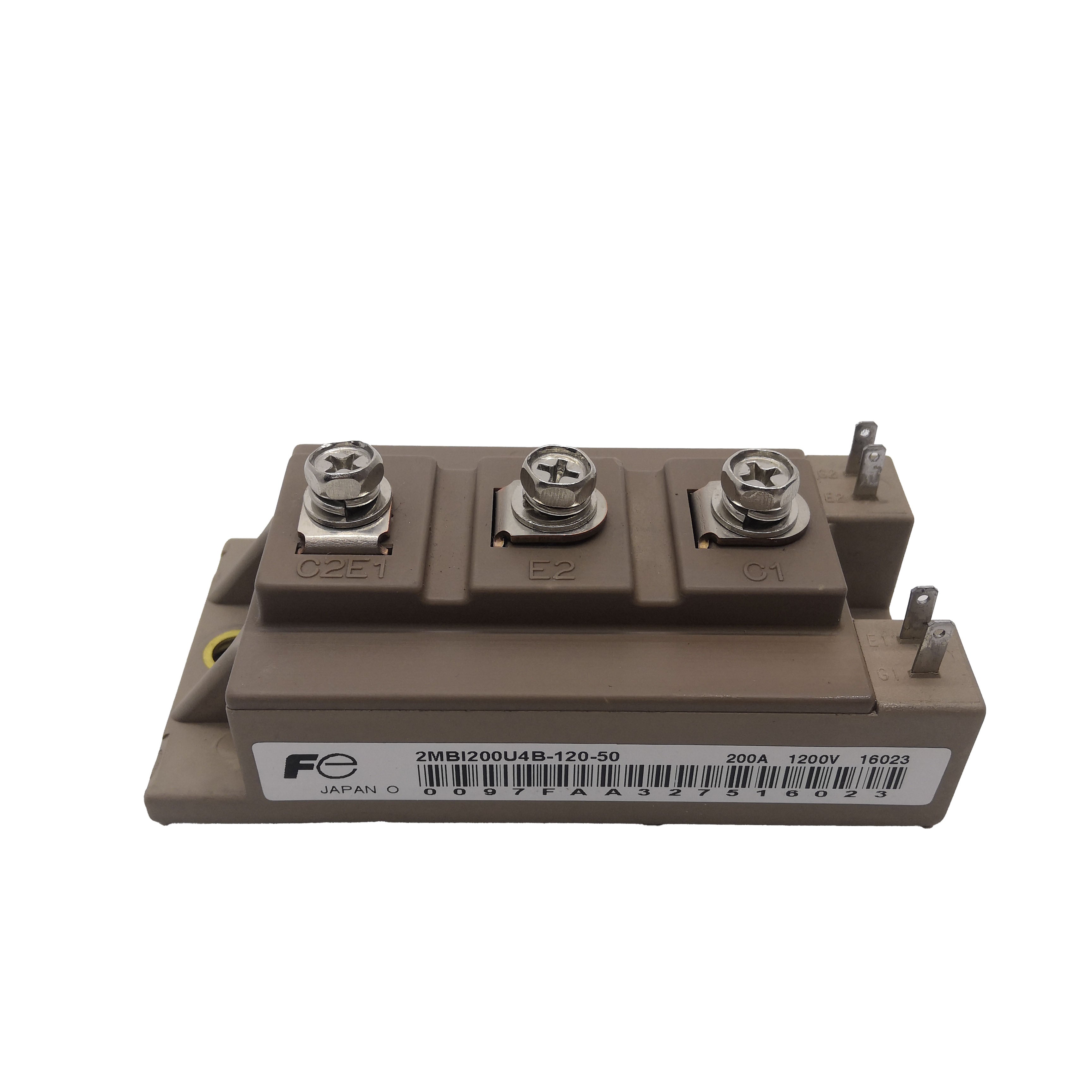

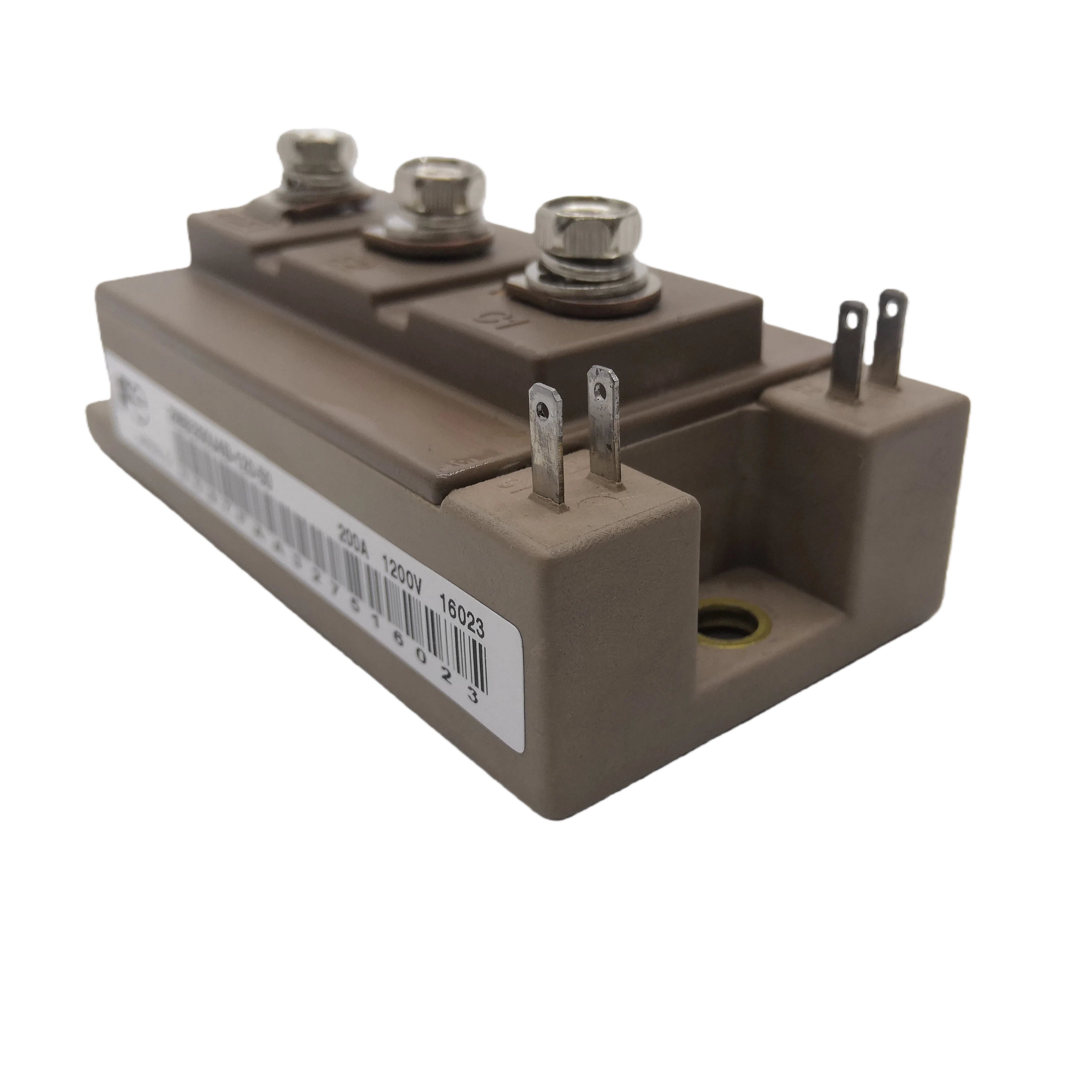

Mitsubishi 2MBI200U4B-120-50 IGBT Module – High Performance & Reliability
Product Overview:
The Mitsubishi 2MBI200U4B-120-50 is a premium IGBT (Insulated Gate Bipolar Transistor) module engineered for high-power industrial applications. Designed to deliver exceptional efficiency, reliability, and durability, this module is ideal for motor drives, inverters, and other power electronics systems requiring precise and stable performance.
2MBI200U4B-120-50
Fuji Electric U4-Series Dual IGBT Module
1200V | 200A | Trench Gate Field-Stop Technology
Dual-Pack Half-Bridge Topology
Baseplate: Copper alloy with direct bonded copper (DBC) substrate
Isolation: 2500Vrms ceramic insulation (EN 50178 compliant)
Isolation: 2500Vrms ceramic insulation (EN 50178 compliant)
4th Generation Trench-Gate Structure
-
📉 Ultra-Low Saturation: 1.70V typical VCE(sat) @ 200A
-
🌡️ Enhanced Thermal Path: Rth(j-c) = 0.14°C/W per chip
-
⚡ Fast Turn-Off: Optimized carrier lifetime control minimizes tail current
📊 Performance Characteristics
Power Loss Efficiency Chart
Lower is Better — Comparison vs Previous Generation
| Operating Condition | 2MBI200U4B-120-50 (U4) | 3rd Gen Planar | Savings |
|---|---|---|---|
| Conduction Loss @ 150A | 255W | 285W | -10.5% |
| Switching Loss (Eon+Eoff) | 12mJ | 15mJ | -20% |
| Total Dissipation @ 10kHz | 375W | 435W | -13.8% |
Results in 15-20°C lower operating temperature under identical load conditions
| Parameter | Specification |
|---|---|
| Rated Current | 200A |
| Collector-Emitter Voltage | 1200V |
| Gate Threshold Voltage | 4.0 ~ 6.0V |
| Isolation Voltage | 2500V AC |
| Module Type | 2MBI Series IGBT |
| Applications | Motor drives, inverters, industrial automation |
Package Outline: M233
Pin Configuration:
-
G1 — Upper Gate
-
E1 — Upper Emitter
-
C1/C2 — Common Collector (DC+)
-
E2 — Lower Emitter
-
G2 — Lower Gate
✅ Quality & Compliance
| Certification | Status | Details |
|---|---|---|
| CE | ✓ Compliant | Low Voltage Directive 2014/35/EU |
| RoHS | ✓ Compliant | Lead-free terminals, halogen-free |
| UL | ✓ Recognized | File E80271 |
| ISO | Facility | Manufactured under ISO 9001/14001 |
📦 Packaging & Handling
-
Primary: Anti-static aluminum laminated bag with desiccant
-
Secondary: Shock-absorbing foam insert in corrugated carton
-
Labeling: Moisture sensitivity level 3 (MSL3), ESD warning symbols
-
Storage: <30°C / <60% RH recommended (shelf life 24 months sealed)
🔗 Compatibility & Cross-Reference
| Compatible Series | Notes |
|---|---|
| 2MBI200U4B-120 (non-50) | Direct mechanical/electrical substitute |
| CM200DY-24A (Mitsubishi) | Verify gate charge characteristics |
| FS200R12KE3 (Infineon) | Similar thermal performance, different pinout |
Suitable for maintenance of Fanuc servo amplifiers, Yasker inverters, and Mitsubishi CNC power sections
🛒 Order Information
| SKU | Condition | Warranty | Lead Time |
|---|---|---|---|
| 2MBI200U4B-120-50 | New, Original Factory Packaging | 12 Months | Ships within 24hrs |
Related Products:
2MBI150U4B-120-50 (150A variant) | 2MBI300U4H-120-50 (300A upgrade path)💡 Installation Tip
Apply thermal interface material (TIM) with 100μm thickness evenly across baseplate. Torque mounting screws to 2.0-2.5 N·m in diagonal sequence to ensure optimal thermal contact pressure.
