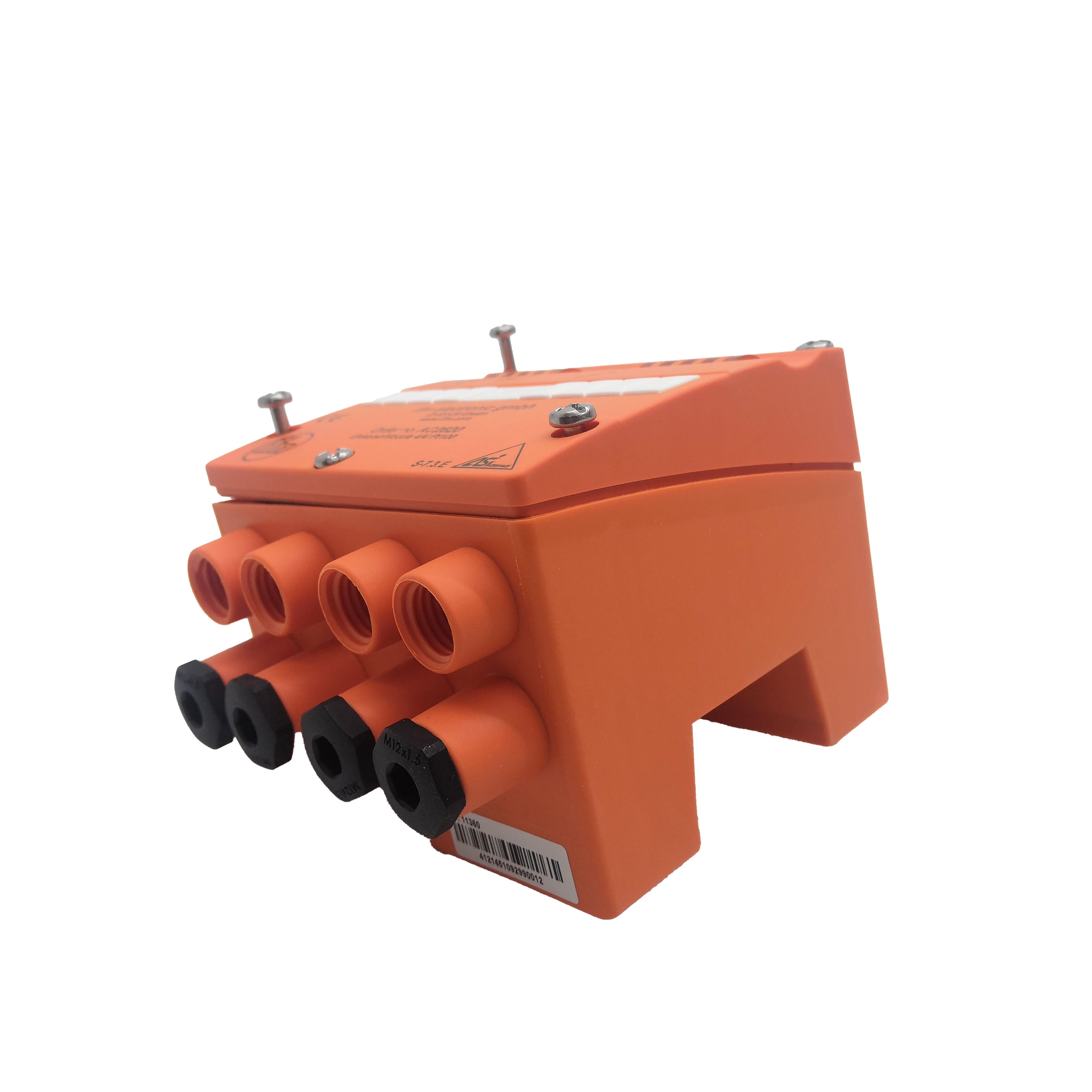

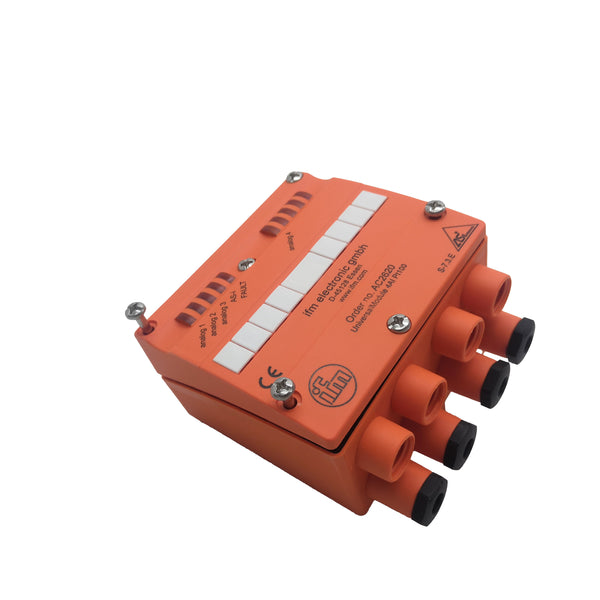

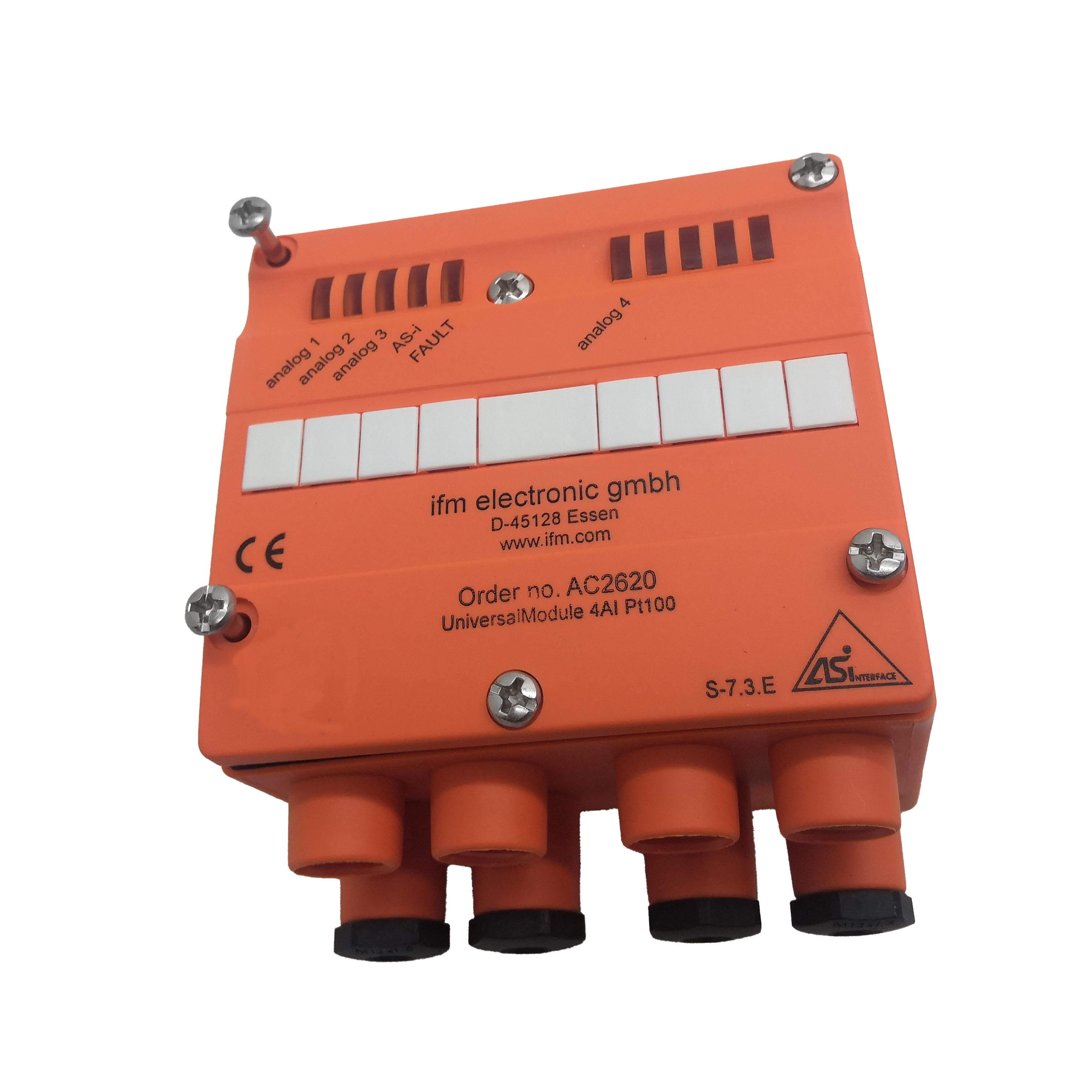

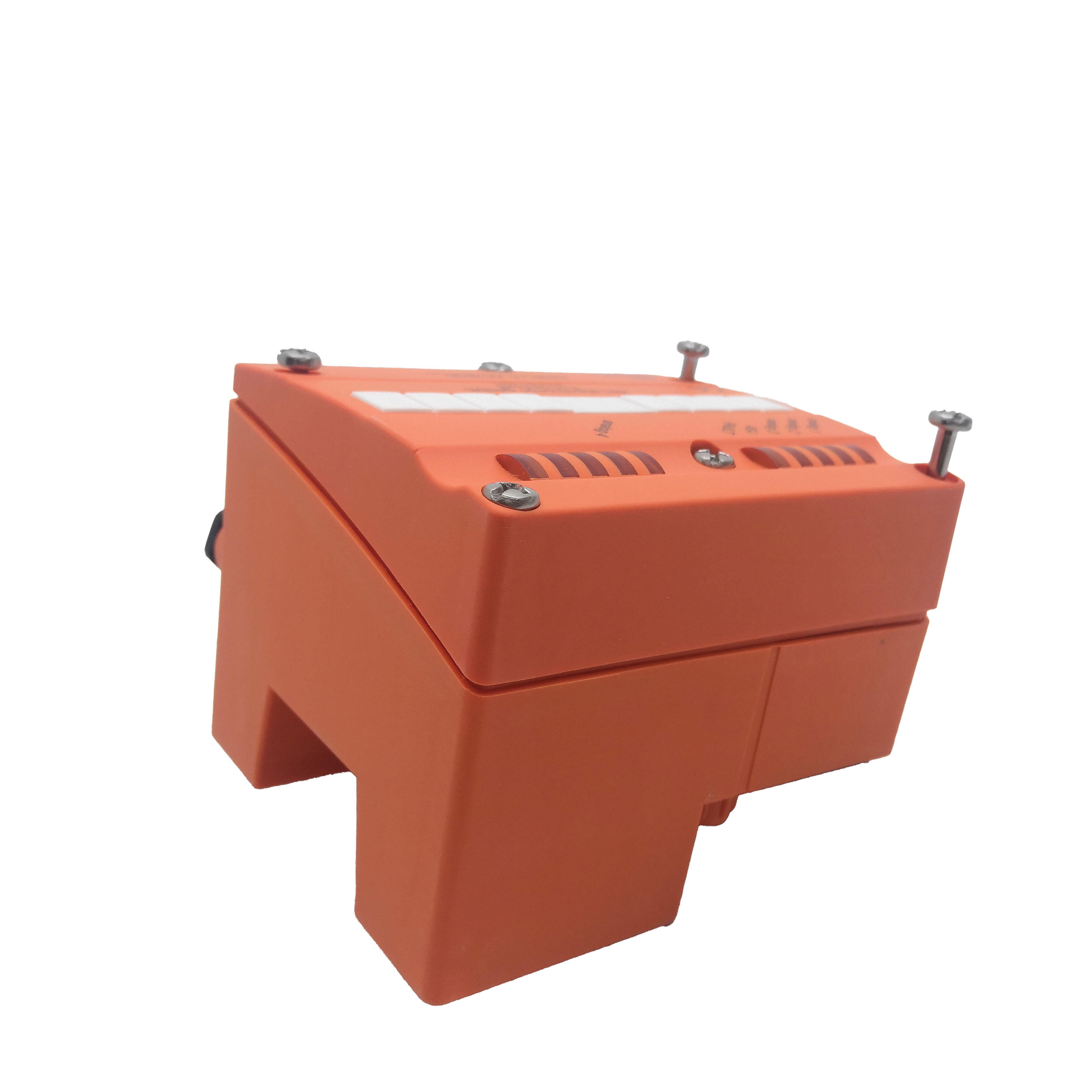

AC2620 Genuinel IFM Electronic AS-i Module IP65 AC2620 New In Box
PRODUCT DETAILS
🔹 Product TitleÂ
IFM Electronic AC2620 AS-Interface Universal Module IP65 – 4 Pt100 Inputs for Industrial Field I/O
🔹 Meta DescriptionÂ
Industrial IP65 AS-Interface universal module with 4 Pt100 temperature inputs, 16-bit resolution, robust LED diagnostics and AS-i S-7.3.E profile. Reliable field I/O.
🔹 Professional Product DescriptionÂ
The ifm ac2620 AS-Interface universal module is a high-quality AS-Interface (AS-i) I/O module designed for robust industrial field applications where analog sensor signals must be acquired and communicated over the AS-Interface bus. Built by IFM Electronic, this IP65-rated universal module integrates seamlessly into AS-i networks to capture four Pt100 temperature sensor inputs with high precision while maintaining protection against dust and water ingress, making it ideal for harsh industrial environments.
This module is a versatile solution for distributed analog data acquisition, enabling efficient temperature monitoring and control in automation systems, packaging lines, conveyors, HVAC, and other field-mounted sensor applications.
🔹 Key Features & Benefits
📊 4 × Pt100 Temperature Inputs
Supports connection of up to four Pt100 resistance temperature sensors (2- or 3-wire) for analog temperature acquisition. Excellent for thermal process control and environmental monitoring.
🧠High-Resolution Data
16-bit resolution ensures fine granularity (~0.1 °C resolution) in temperature measurements across each channel, enabling precise control and early detection of thermal variations.
🔌 AS-Interface Connectivity
Compliant with standard AS-i S-7.3.E profile for universal modules, allowing seamless integration into existing AS-i networks and controllers.
🛡 IP65 Industrial Protection
Rated IP65, the module is protected from dust and low-pressure water jets, making it suitable for field installation without additional enclosures.
💡 LED Diagnostics
Status LEDs provide clear, real-time indication of module operation, AS-i communication, and fault conditions — improving troubleshooting and reducing downtime.
🔋 Low Power Consumption
Operates from standard AS-i power supply (approx. 26.5–31.6 V DC) with power draw under 80 mA, enabling efficient distributed I/O deployment.
🔹 Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | IFM Electronic |
| Model | AC2620 |
| Product Type | AS-Interface Universal Module |
| Protection Rating | IP65 (dust tight + water jets) |
| Input Channels | 4 × Pt100 analog inputs |
| Temperature Range | –200 °C to +850 °C |
| Resolution | 16-bit / ~0.1 °C |
| AS-i Profile | S-7.3.E (Universal Module) |
| Operating Voltage | 26.5 – 31.6 V DC (AS-i power) |
| AS-i Current Draw | < 80 mA |
| Operating Temp | 0 °C – 70 °C |
| Storage Temp | –25 °C – +85 °C |
| Weight | ~299 g |
| Housing Material | Durable PBT (engineering plastic) |
| Connection | Cage clamp or flat ribbon AS-i bus interface |
🔹 Typical Industrial Applications
• Distributed analog temperature sensing and reporting in manufacturing lines
• Field sensor integration for process control (e.g., HVAC and thermal systems)
• AS-i networked automation in factories and packaging equipment
• Remote temperature acquisition with durable environmental protection
Modules like the AC2620 enable simplified wiring and reduced panel complexity by moving analog sensing close to the process, while still providing robust communication back to the AS-i master or PLC.
🔹 Why Choose This Module?
✔ Precision Analog Inputs: 16-bit resolution ensures accurate temperature monitoring for critical automation tasks.
✔ Rugged IP65 Field Protection: Suitable for outdoor or washdown areas without additional enclosures.
✔ Standard AS-i Interface: Compatible with widely used industrial AS-Interface fieldbus systems.
✔ Low Power Efficiency: Minimal AS-i current draw enables deployment of multiple nodes without overloading the bus.
