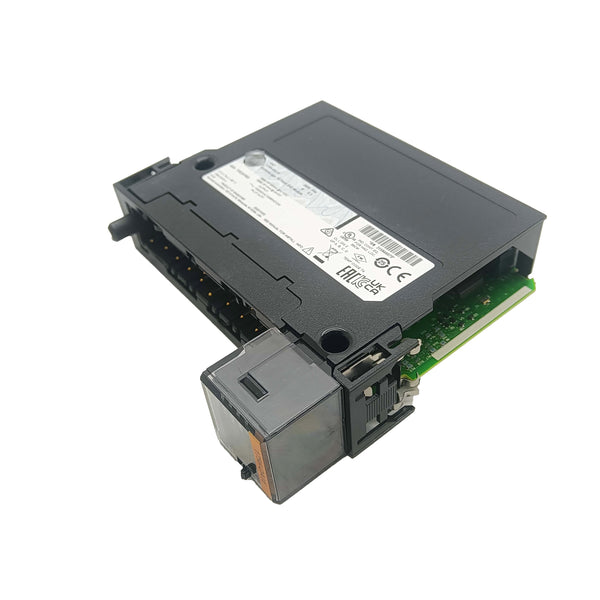

1756-OA16SerA Genuine AC Output PLC Module 17560A16
PRODUCT DETAILS

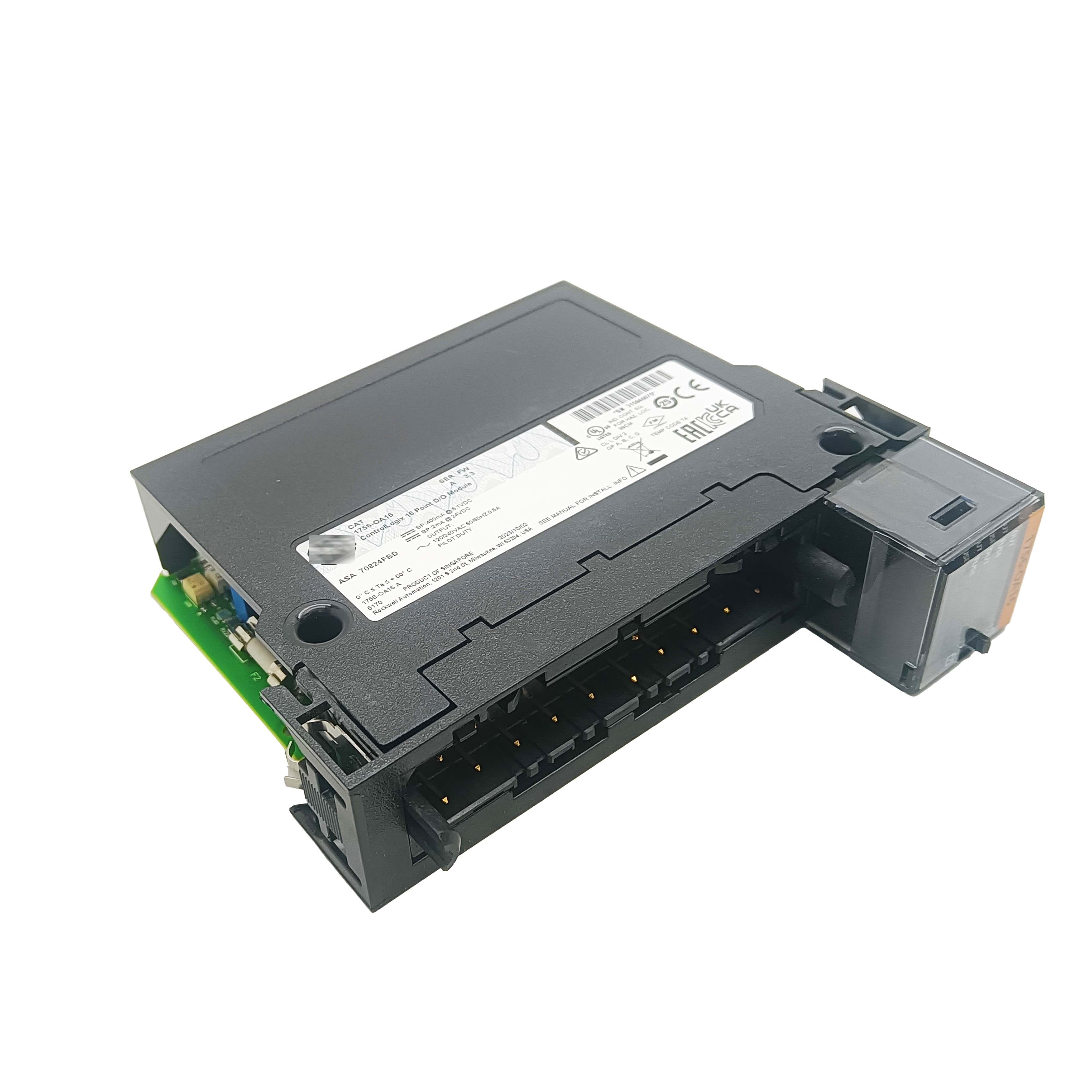

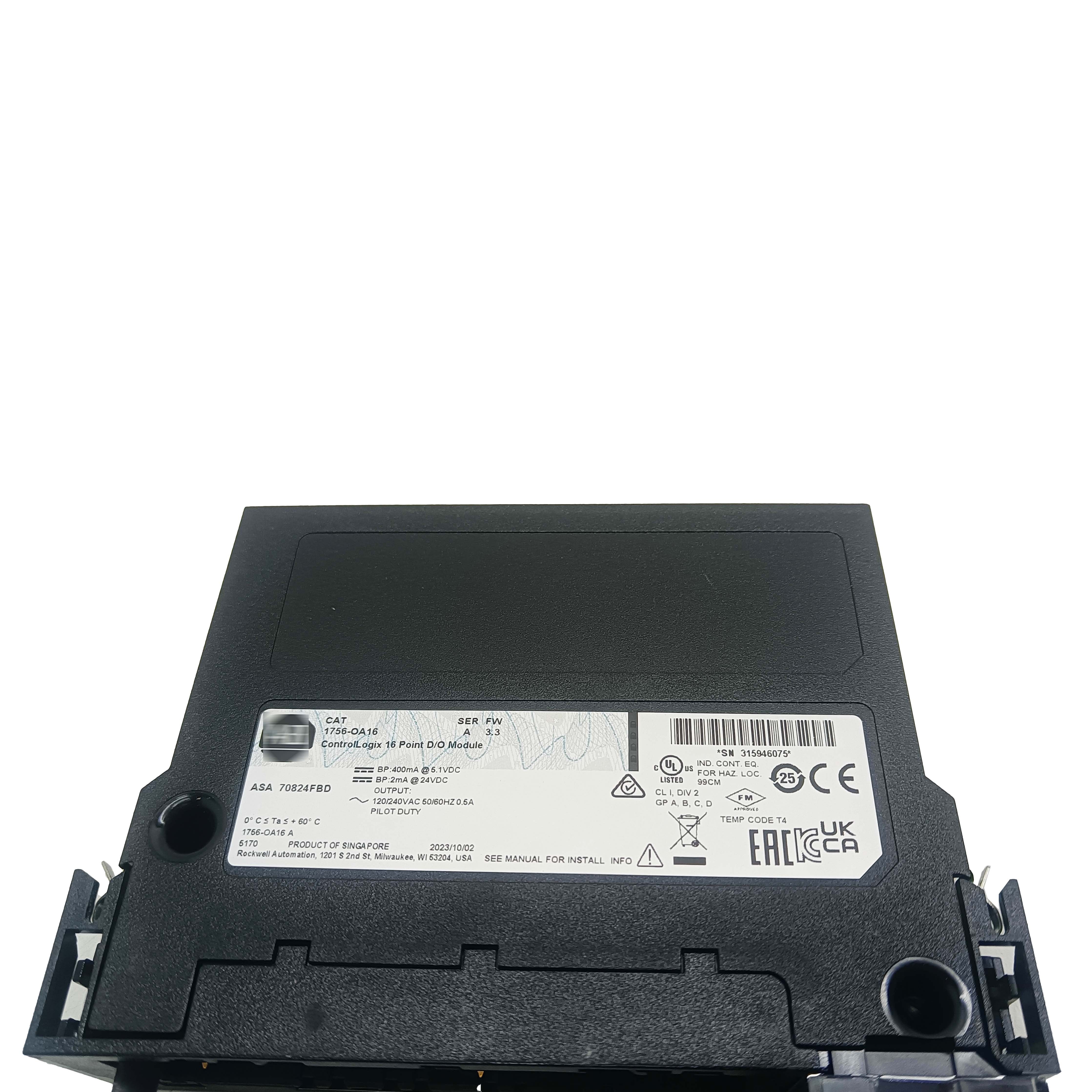

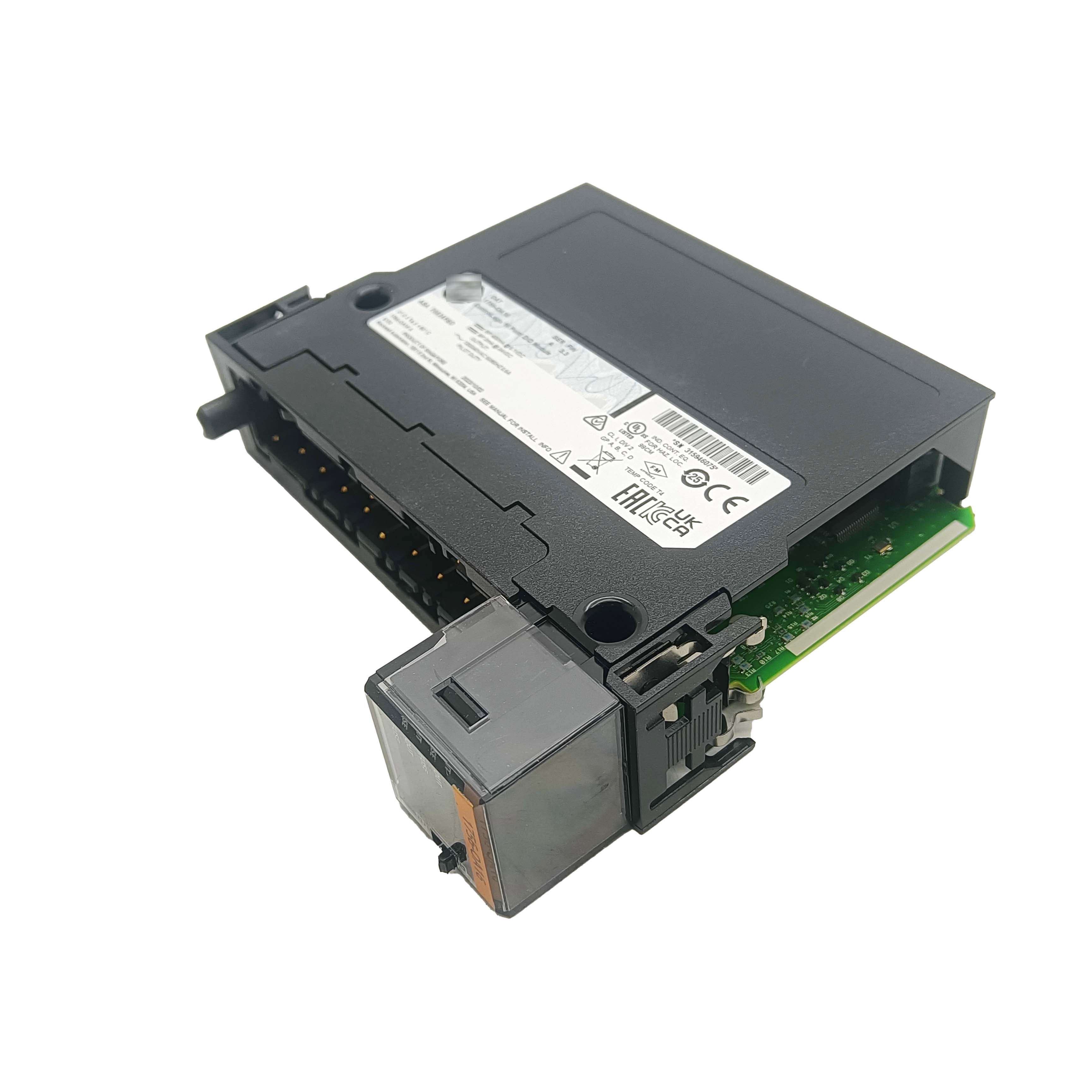

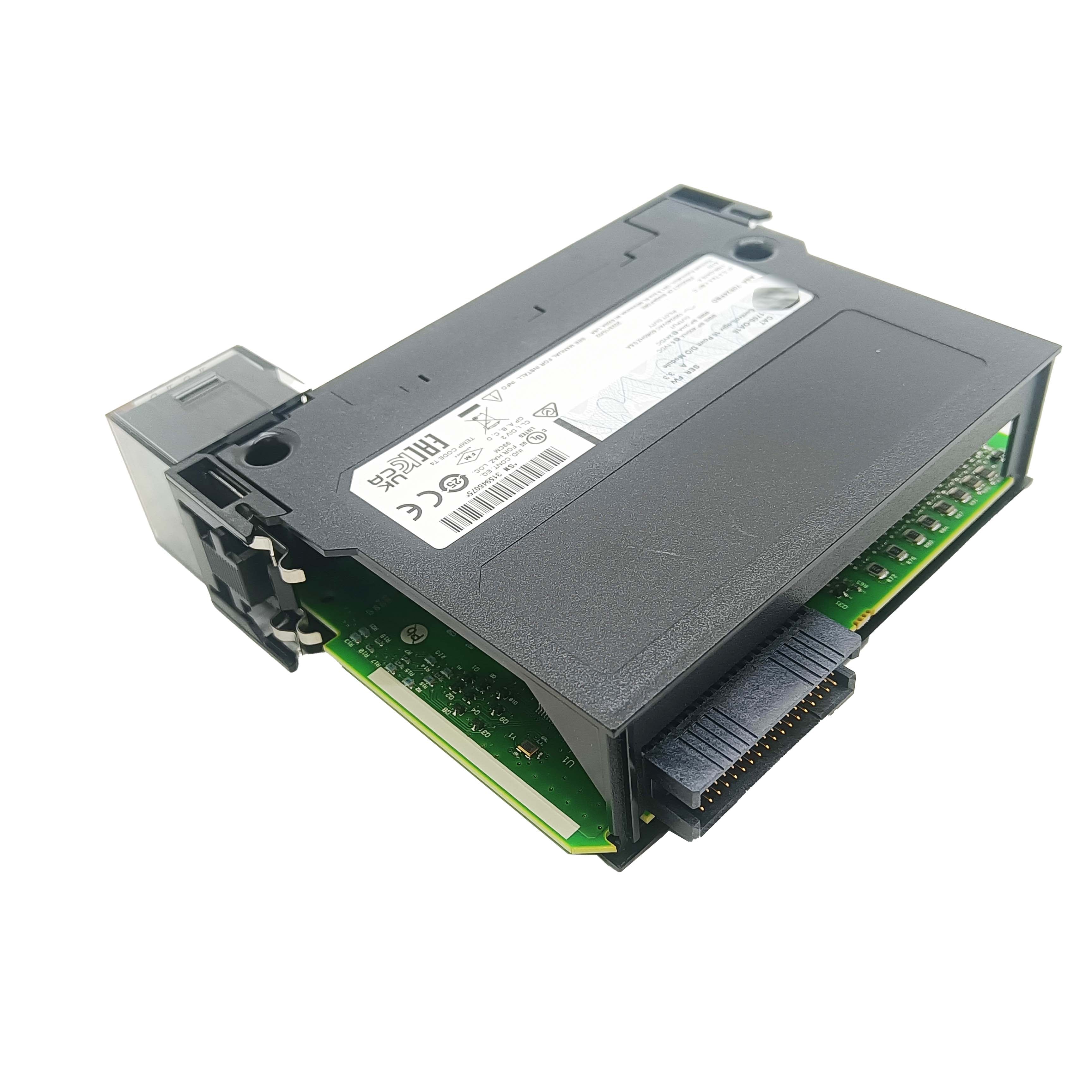

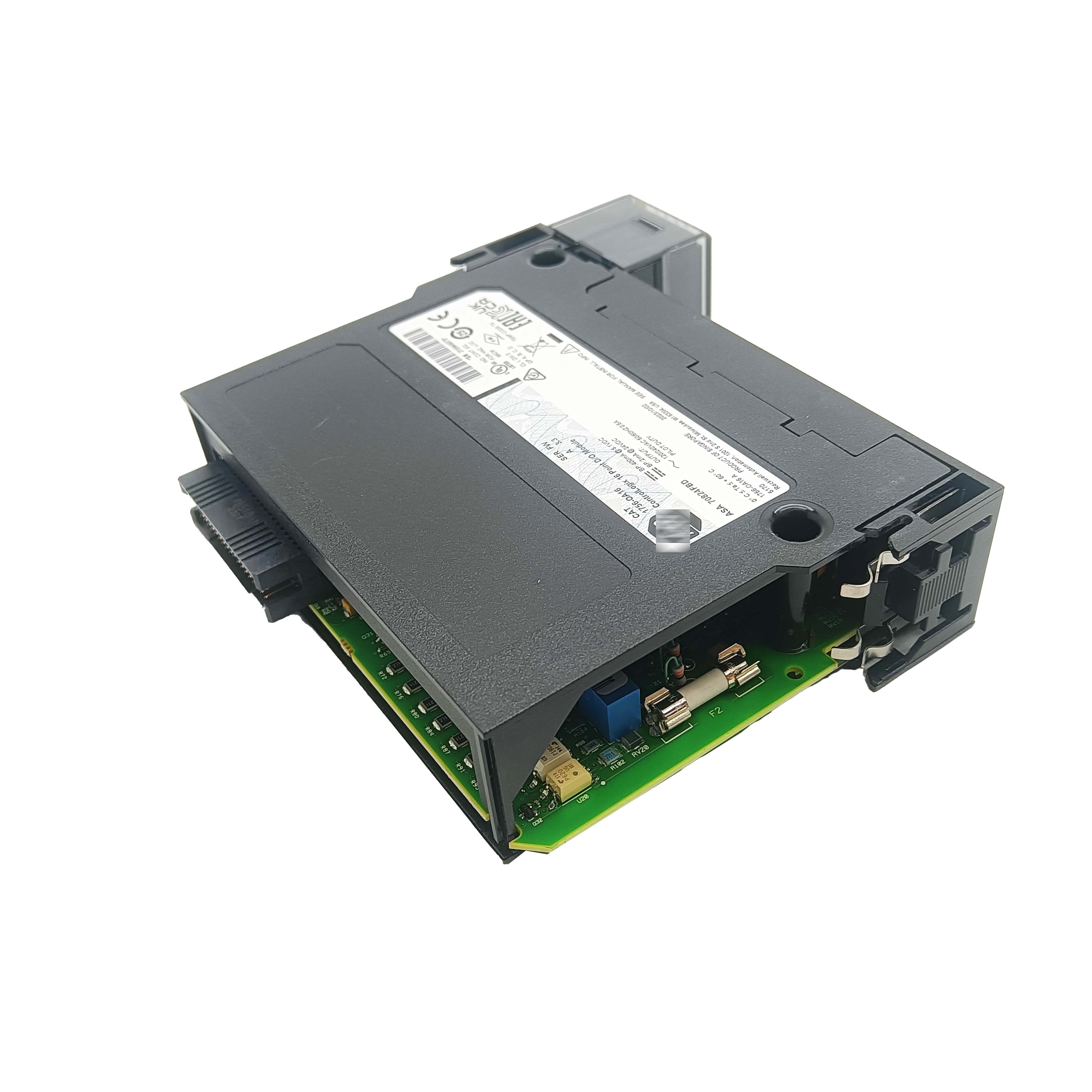

1756-OA16 Digital AC Output Module
Product Overview
The 1756-OA16 is a 16-point digital AC output module designed for industrial control systems that require reliable switching of field devices. With individually controlled output channels, the module provides dependable operation for contactors, pilot lights, relays, and other AC-powered loads.
Its modular design makes it suitable for scalable automation architectures where flexibility and maintainability are important.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1756-OA16 |
| Module Type | Digital AC Output Module |
| Number of Outputs | 16 |
| Output Voltage Range | 74–265 VAC |
| Nominal Output Voltage | 120/240 VAC |
| Output Category | AC |
| Isolation | Channel Group Isolation |
| Mounting | Chassis-Based Installation |
| Status Indicators | Per-Channel LED Indicators |
Applications
- Production lines
- Conveyor control systems
- Industrial machinery
- Motor starter control
- Packaging equipment
- Process automation systems
- Facility automation
Advantages
The module offers reliable AC load switching while providing clear status indication for maintenance personnel. Its modular structure simplifies system expansion and replacement procedures.
FAQ
1. How many outputs does the module provide?
The module includes 16 independent AC output channels.
2. What type of loads can it control?
It can switch relays, contactors, indicator lamps, and other AC-powered devices.
3. Does each output have a status indicator?
Yes. Individual LEDs provide output status information.
4. Is the module suitable for industrial environments?
Yes. It is designed for demanding automation and control applications.
5. What voltage range is supported?
The module supports AC output voltages from 74 to 265 VAC.
