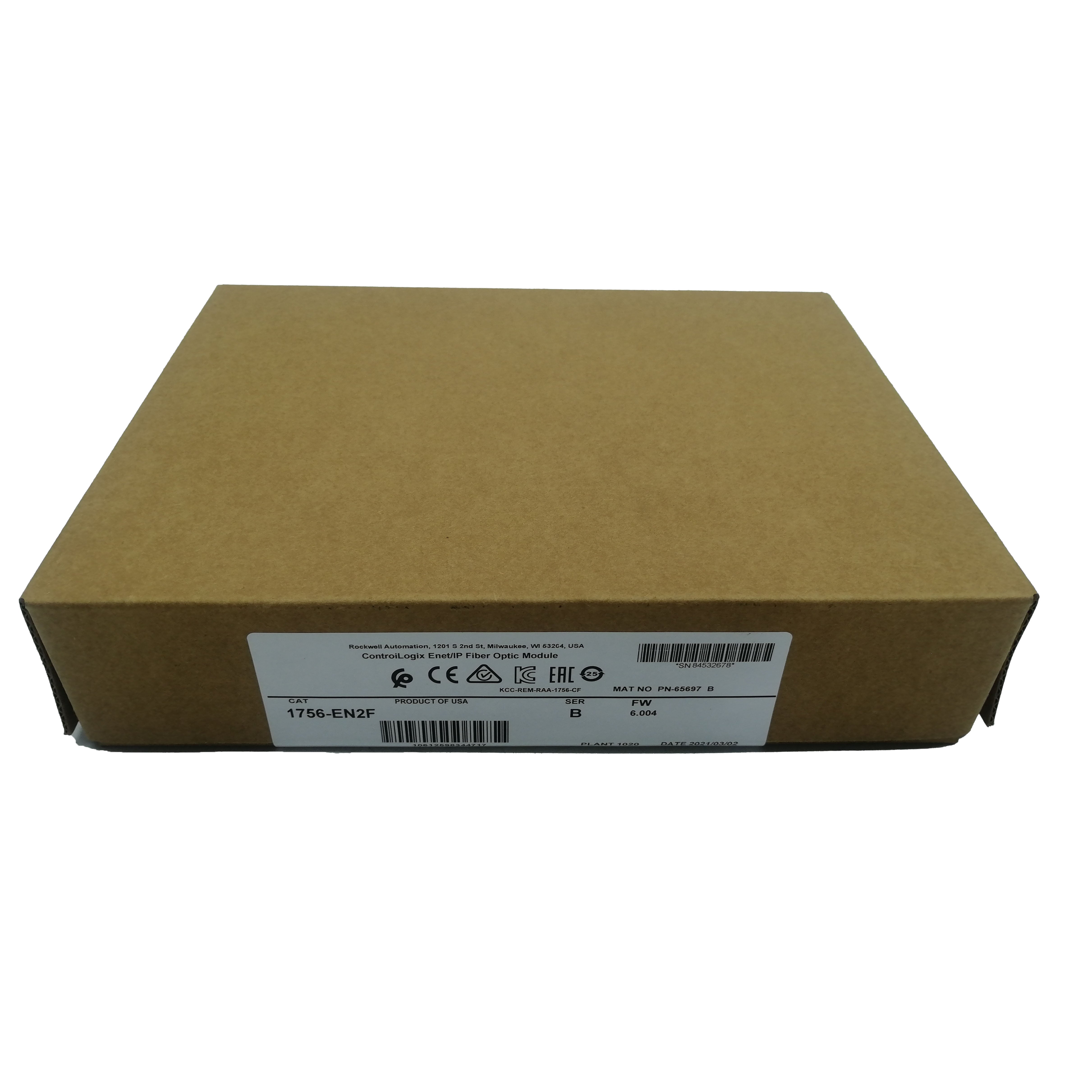

1756-EN2F New Sealed 1756EN2F Ser C Enet/IP Fiber Optic Module
PRODUCT DETAILS
1756-EN2F EtherNet/IP Communication Module for Industrial Control Networks
The 1756-EN2F is an industrial communication module designed for high-speed Ethernet-based data exchange in automation systems. It enables stable network connectivity between controllers, distributed devices, and supervisory systems, supporting real-time industrial communication.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Ethernet Communication Module |
| Network Protocol | EtherNet/IP |
| Communication Port | Fiber Ethernet Interface |
| Data Rate | 100 Mbps |
| Number of Ports | Dual Port |
| Mounting Type | Chassis Mount |
| Function | Industrial Network Communication |
Installation Guide
- Power off the control system before installation
- Insert the module into the compatible chassis slot
- Ensure secure backplane connection
- Connect fiber Ethernet cables to network ports
- Power up and verify network status LEDs
- Configure IP settings via controller software
Typical Applications
- Industrial Ethernet networks
- Factory automation systems
- Distributed control systems
- High-speed machine communication
- Process monitoring systems
- Production line integration
FAQ
Q1: What is the main function of this module?
A: It enables EtherNet/IP communication in control systems.
Q2: What type of network does it support?
A: It supports fiber-based EtherNet/IP networks.
Q3: How is it installed?
A: It is installed in a controller chassis slot.
Q4: Is it suitable for industrial automation?
A: Yes, it is designed for automation communication systems.
Q5: What is its communication speed?
A: It supports up to 100 Mbps data transmission.
