5069-IF8 New Factory Sealed Compact 5000 Analog Input Module 5069IF8
PRODUCT DETAILS

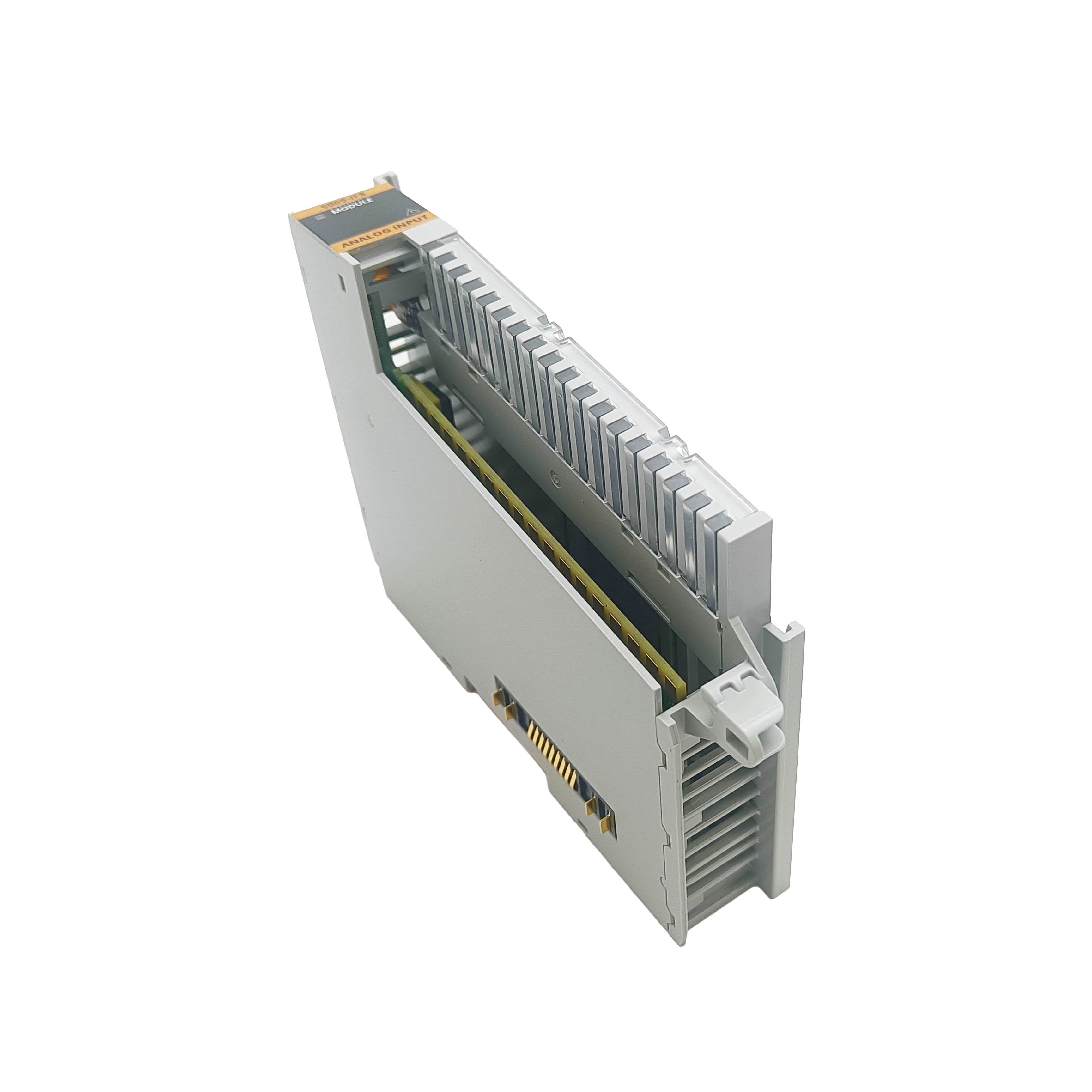

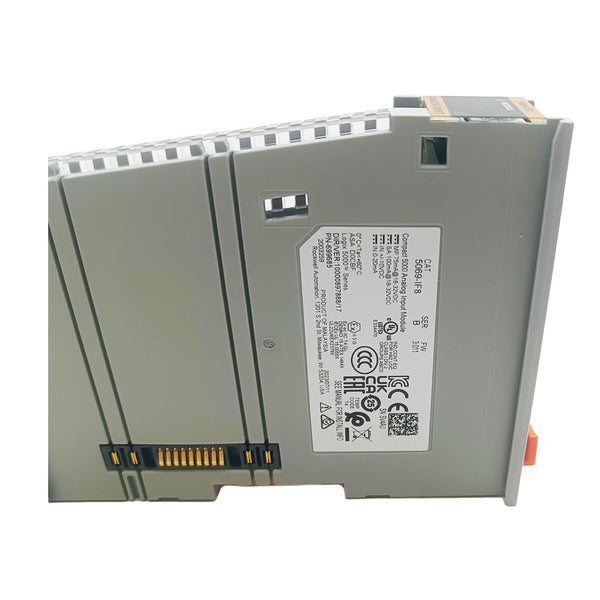

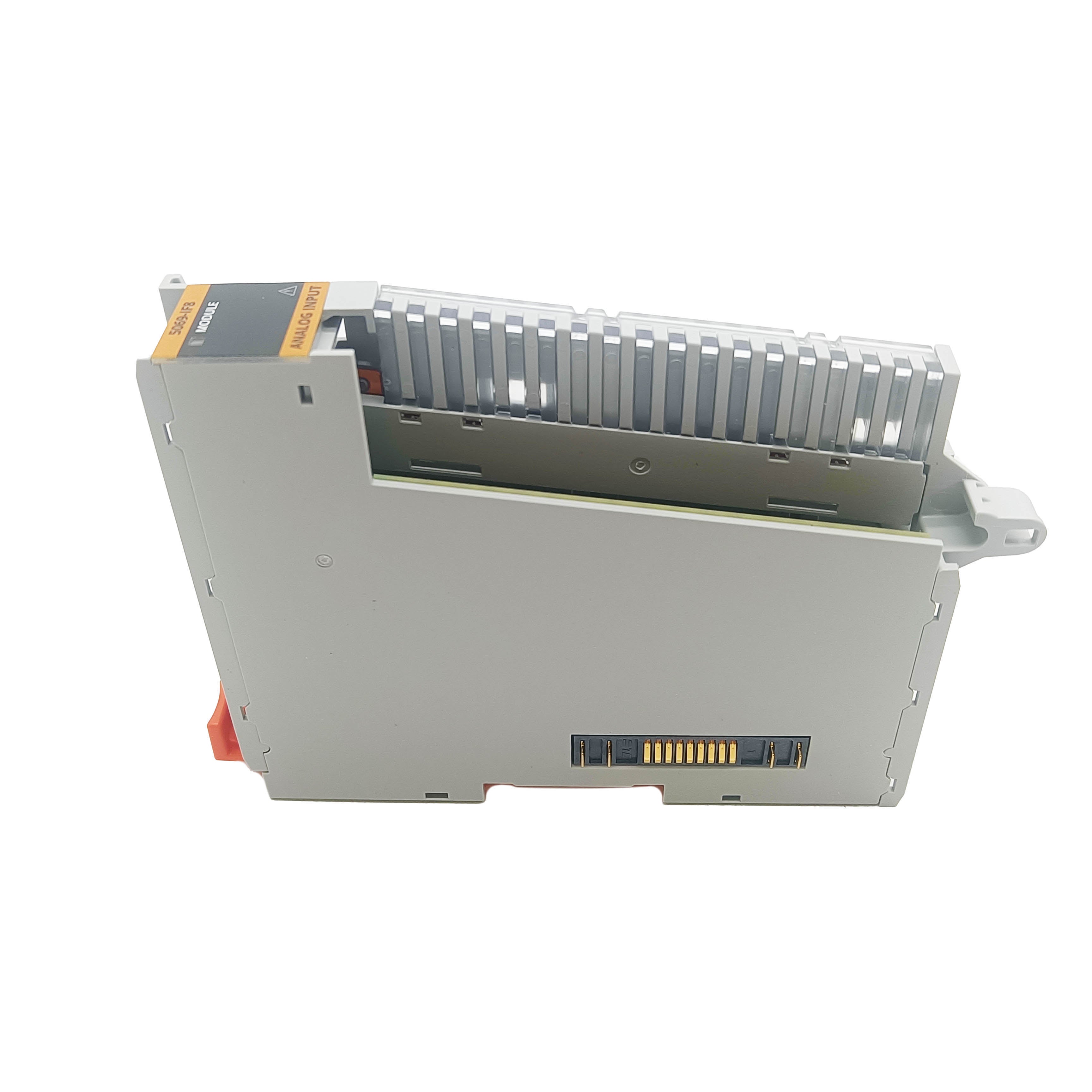

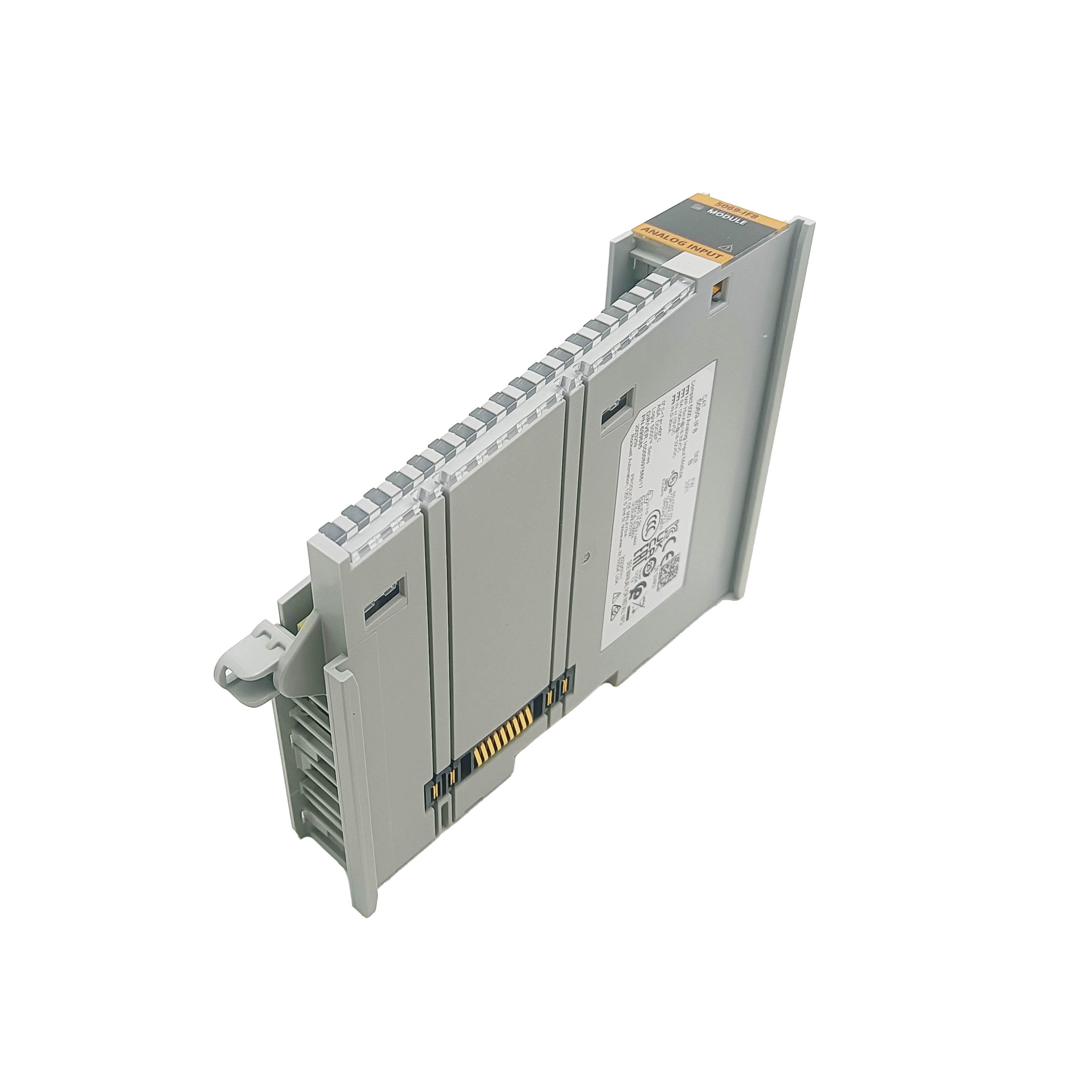

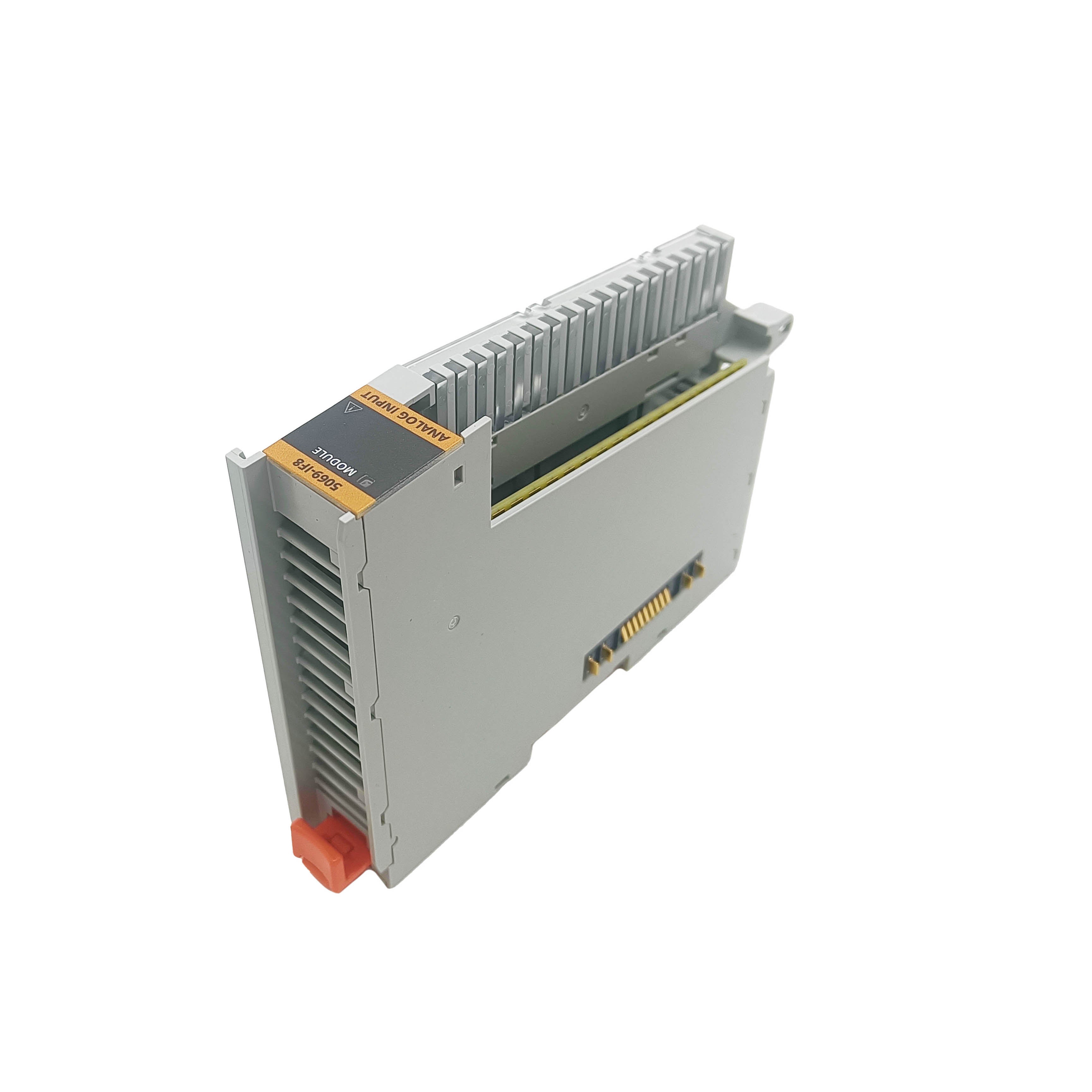

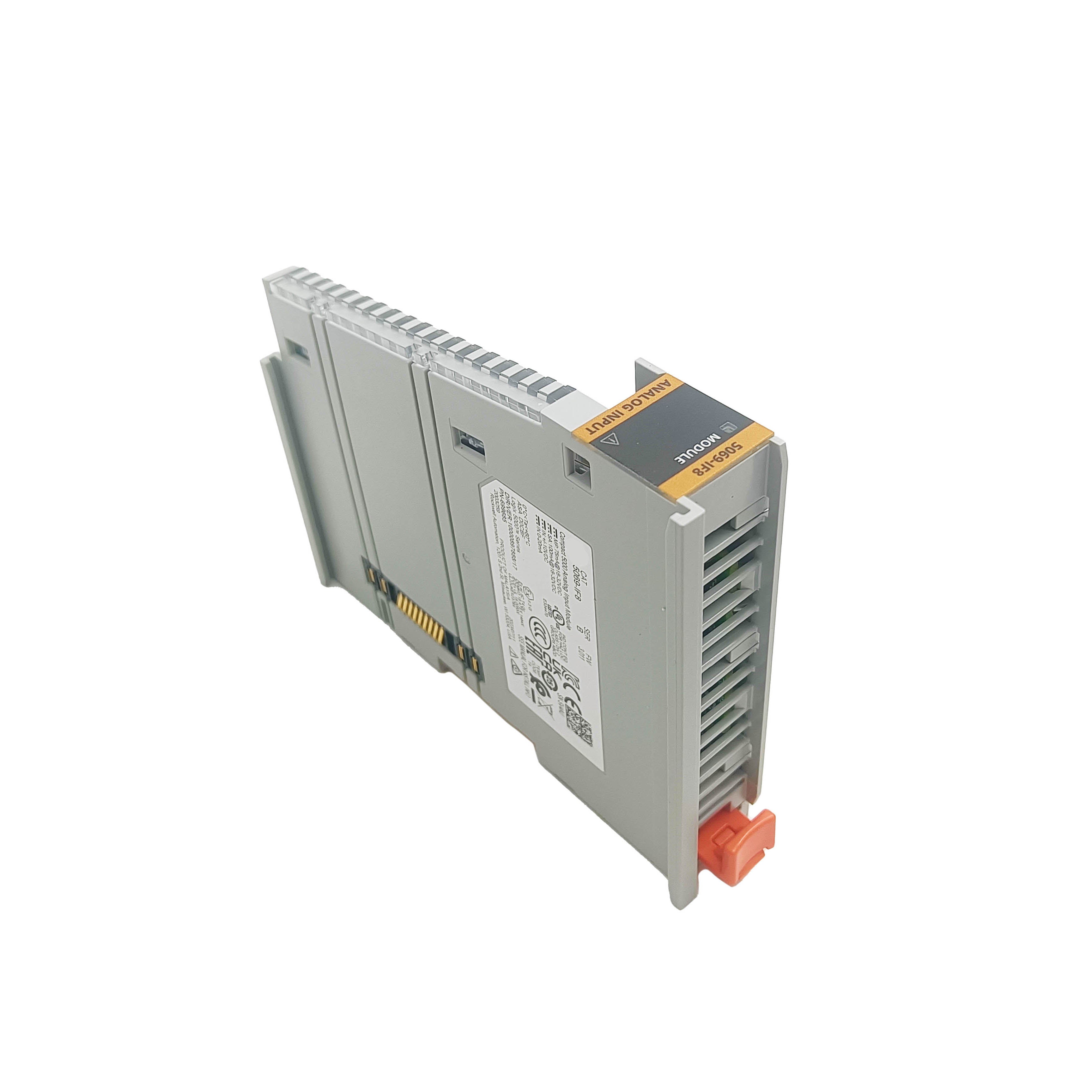

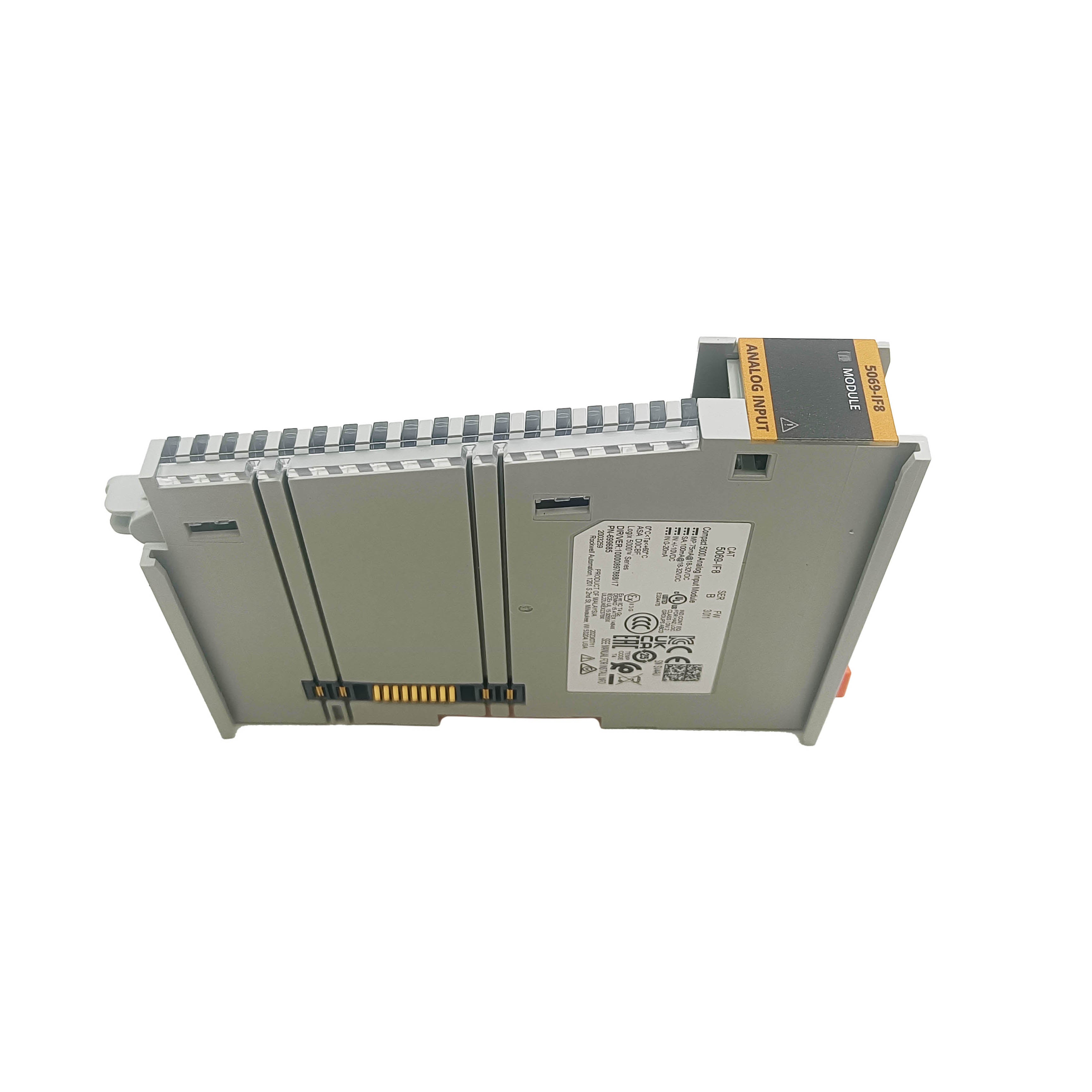

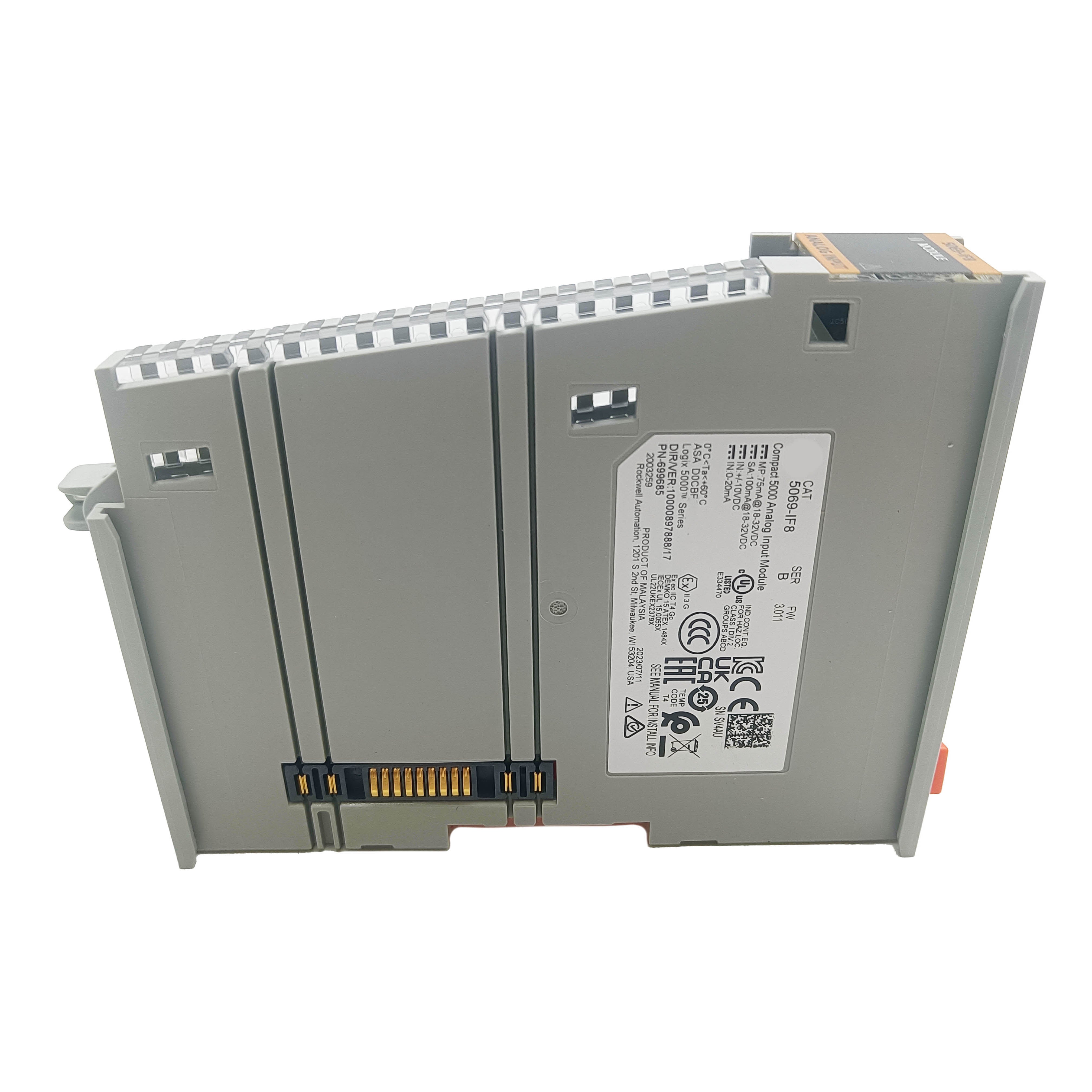

5069-IF8 — Compact 5000 8-Channel Analog Current/Voltage Input Module
The 5069-IF8 is an 8-channel analog input module for the Compact 5000 I/O platform, with each channel independently configurable for voltage or current signal types. It reports values directly in scaled engineering units as floating-point data rather than raw integer counts, which removes a manual conversion step that older-generation analog modules typically require in the controller program.
Specifications
| Parameter | Value |
|---|---|
| Part Number | 5069-IF8 |
| Platform | Compact 5000 I/O (5069) |
| Input Channels | 8 |
| Voltage Ranges | 0–5V, 0–10V, ±10V |
| Current Ranges | 0–20 mA, 4–20 mA |
| Resolution | 16-bit |
| Data Format | IEEE 754 floating point (REAL), scaled engineering units |
| Open-Wire Detection | Yes |
| Channel Isolation | Non-isolated, differential inputs |
| Mounting | 35 mm DIN rail, side-mount bus connector |
One Channel, Any Signal Type — No Hardware Tradeoff
Many analog input modules force a choice at the channel-group level — pick voltage or current for the whole bank, or buy two separate modules to cover both. The 5069-IF8 sets signal type per individual channel: a 4–20 mA pressure transmitter on channel 0 and a 0–10V valve position feedback on channel 1 coexist on the same module without any additional hardware or wiring workaround. For mixed-instrumentation process skids where the signal types aren't uniform across every measurement point, this removes a recurring specification headache.
The module's differential input architecture gives it meaningfully better resistance to electromagnetic interference than single-ended designs, which matters in panels where analog signal cables run anywhere near drive output cables or contactor switching circuits — common sources of induced noise on long analog runs.
FAQ
Q: Does the module require manual scaling from raw counts to engineering units in the program?
No. The module outputs data already in engineering units as a floating-point value — voltage or current is presented directly, removing the raw-to-engineering-unit conversion step needed on older analog modules.
Q: What does open-wire detection actually report?
It flags a broken or disconnected field wire on a channel by detecting the signal falling outside the expected range for an active connection — useful for distinguishing a genuine zero reading from a wiring fault.
Q: Can the module be used in a remote chassis over EtherNet/IP rather than local to the controller?
Yes. The 5069 platform supports both local installation directly on the controller's bus and remote installation through a Compact 5000 EtherNet/IP adapter.
Q: Is a removable terminal block included with the module?
No. The RTB must be ordered separately to match the module's wiring requirements — it does not ship bundled with the analog input module itself.
