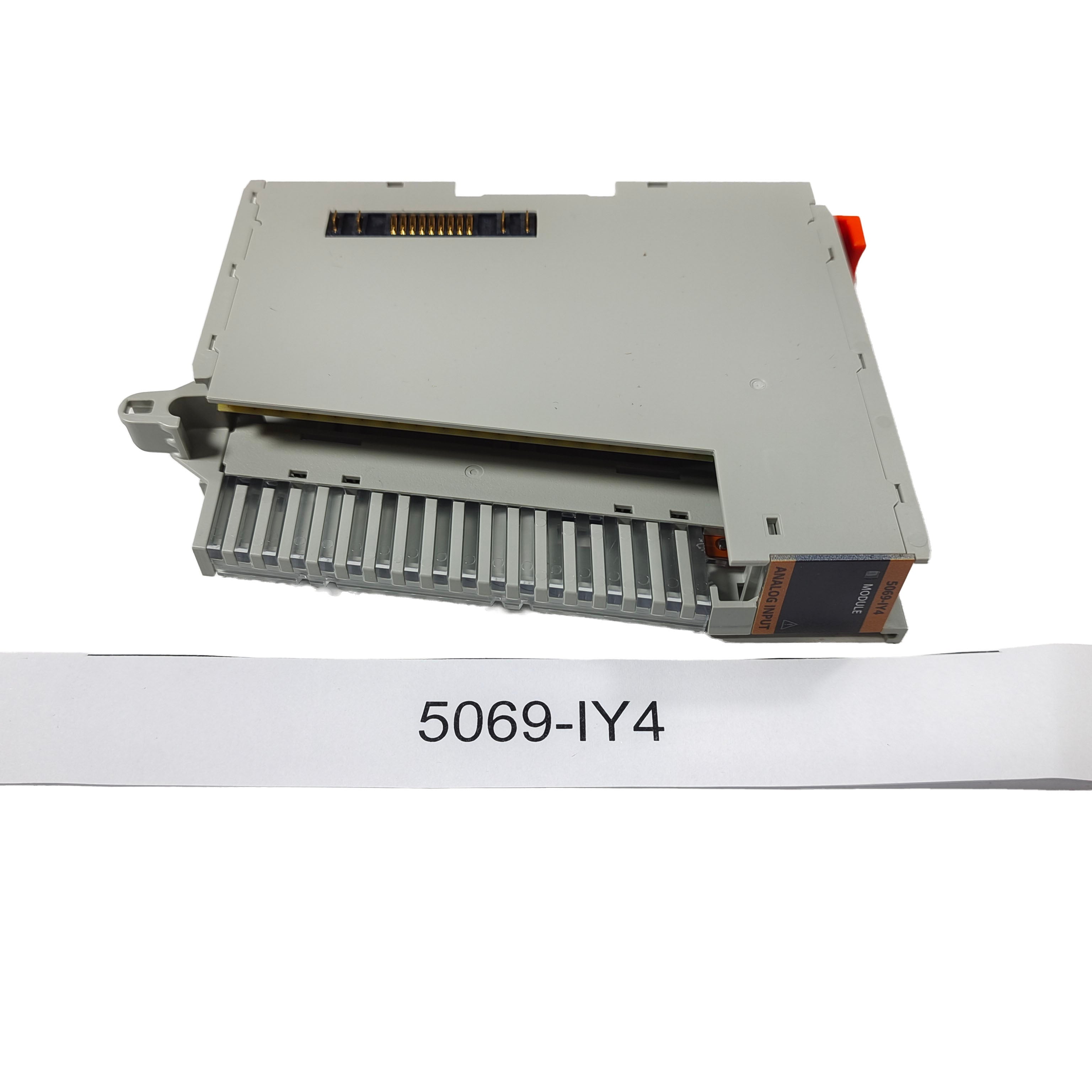

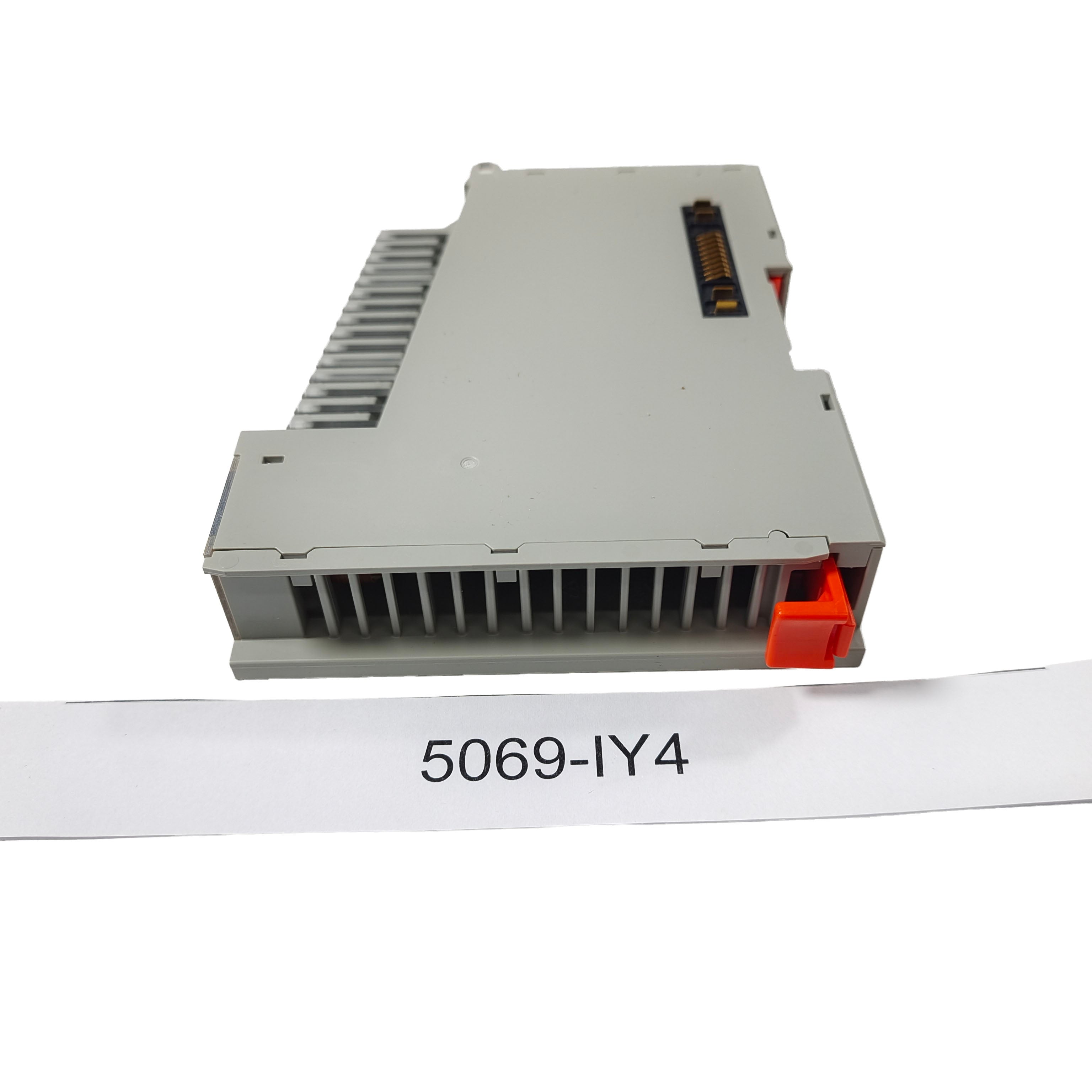

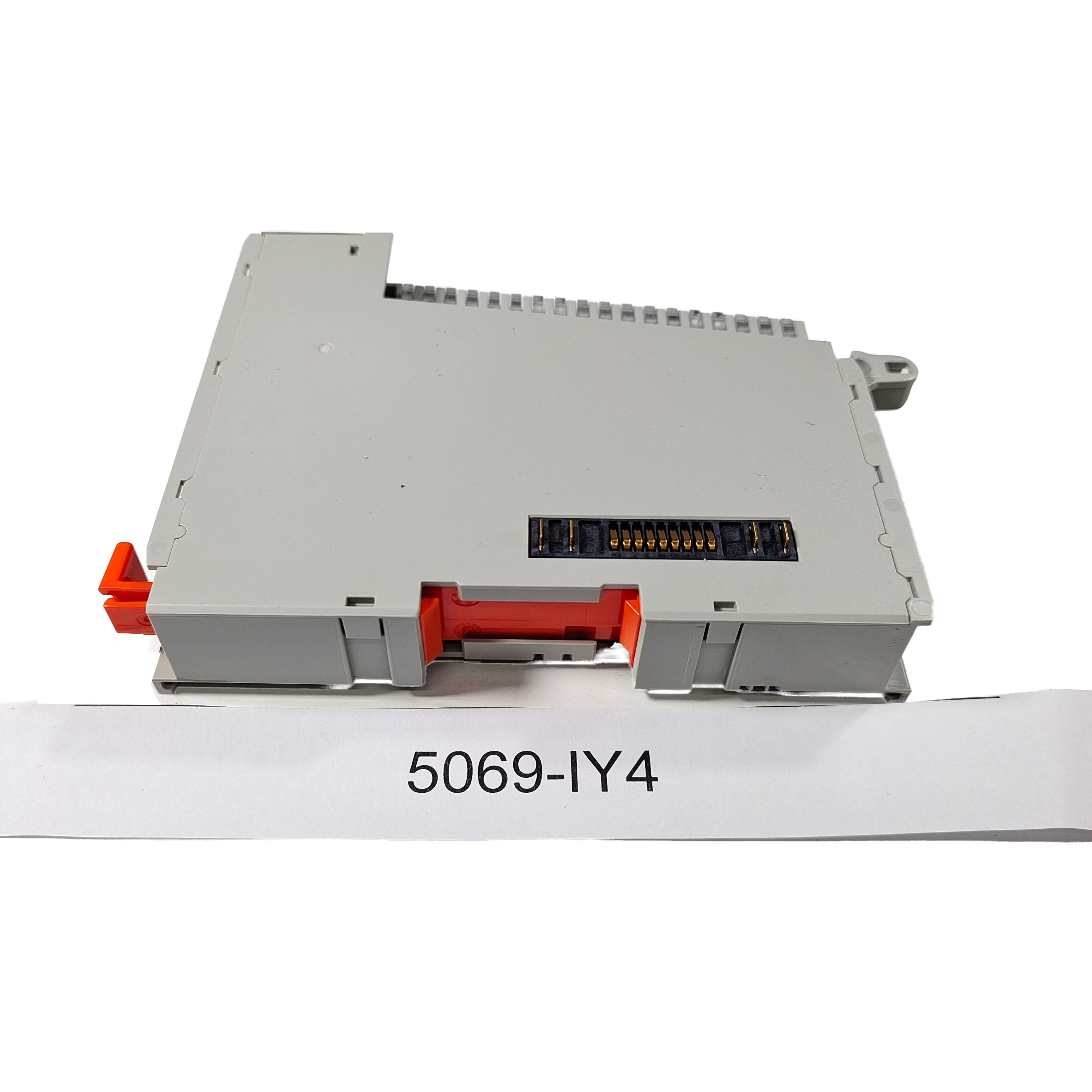

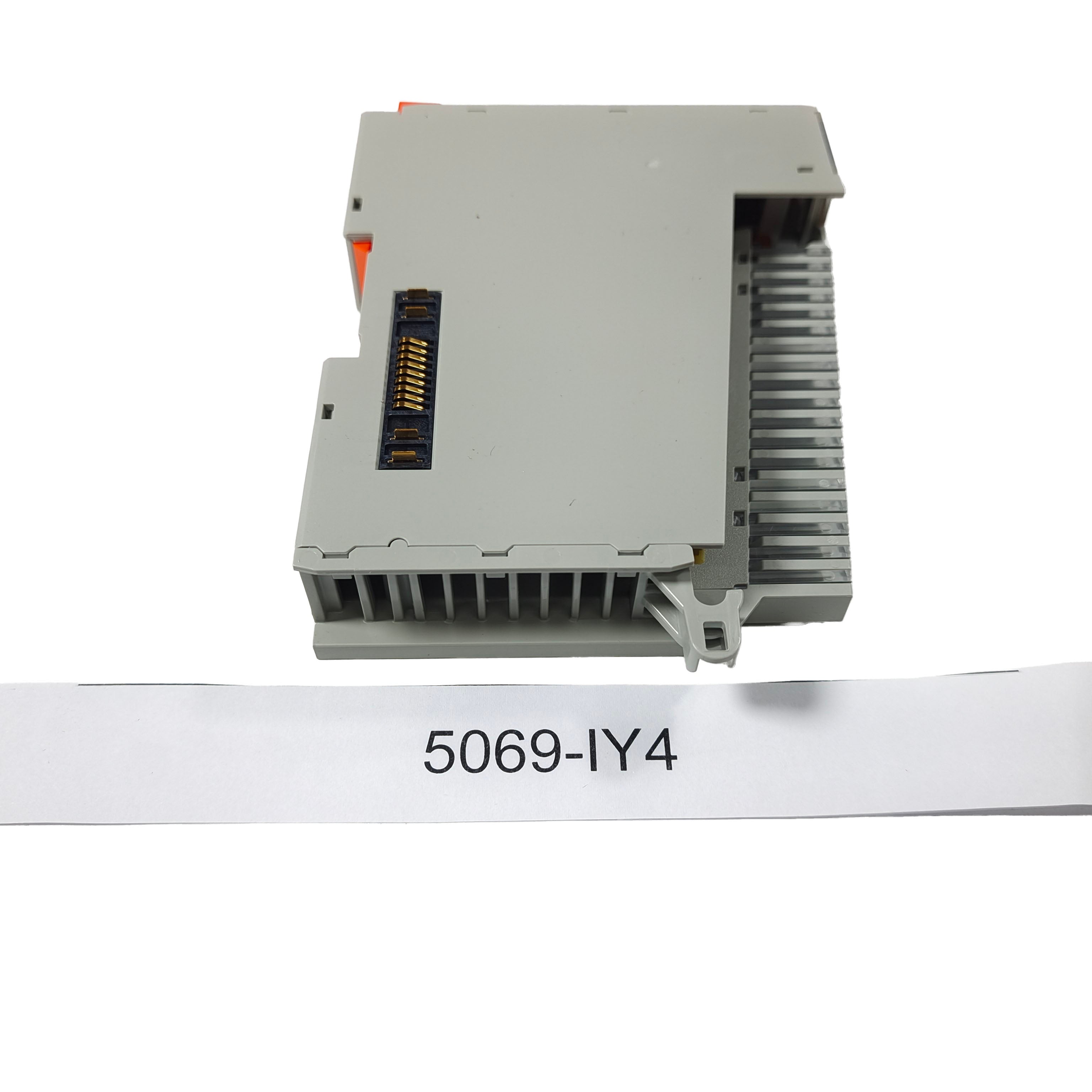

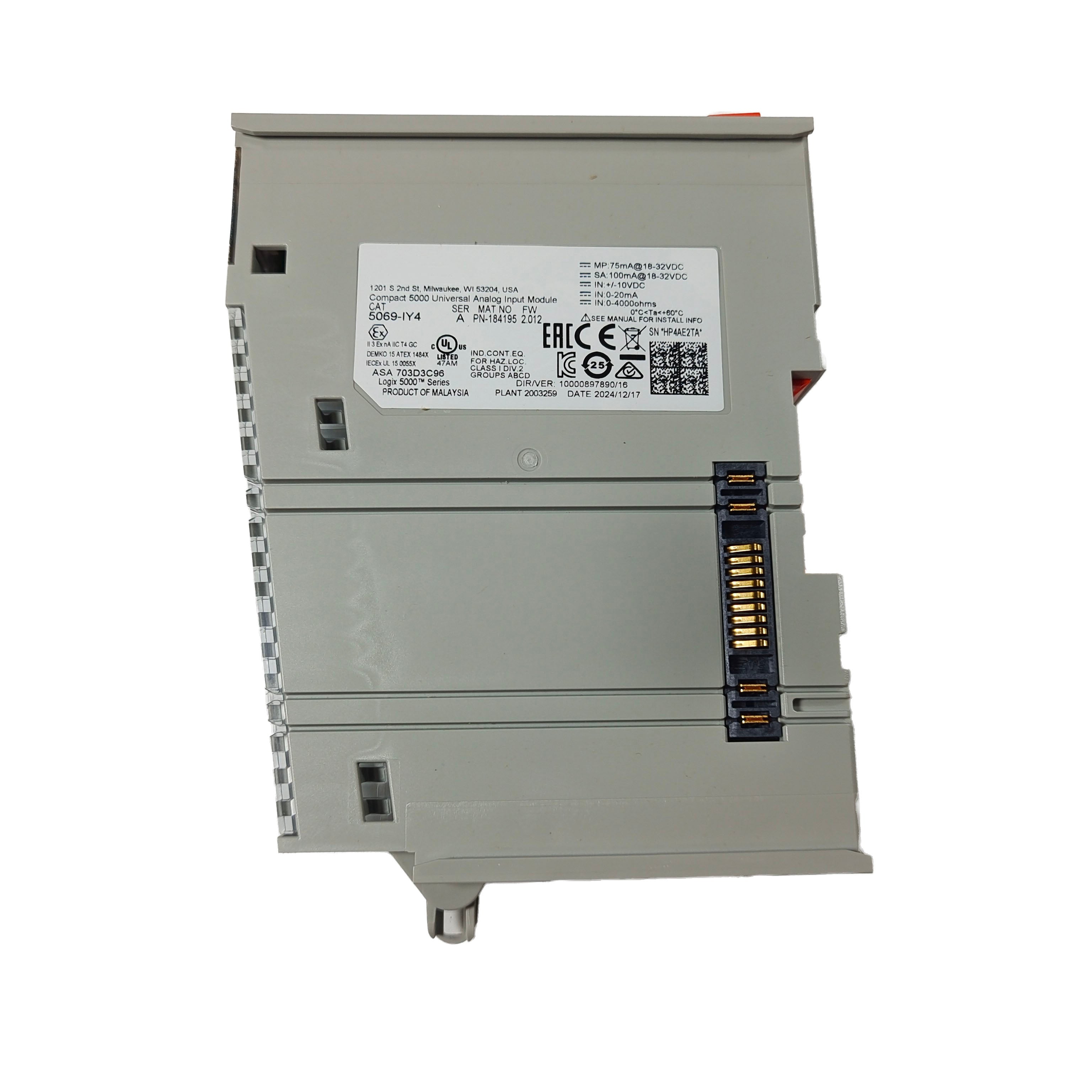

5069-IY4 Genuine Logix 5000 Input Module 5069IY4
PRODUCT DETAILS
5069-IY4 Analog Input Module for Industrial Signal Processing
The 5069-IY4 is an analog input module designed for precise signal acquisition in automation environments. It converts field analog signals into digital data for control systems, supporting stable monitoring of process variables.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Analog Input Module |
| Input Channels | 4 |
| Signal Type | Voltage / Current Analog |
| Installation | Modular I/O System |
| Mounting | DIN Rail |
| Application | Process Signal Acquisition |
Installation Guide
- Ensure system power is disconnected before installation.
- Mount securely onto the I/O rack.
- Connect signal wires according to channel labeling.
- Keep analog wiring separated from power cables.
- Verify signal scaling in controller configuration.
Applications
- Process monitoring systems
- Temperature and pressure sensing
- Industrial data acquisition
- Machine condition monitoring
- Automated production lines
FAQ
Q1: What signals can it read?
A: Standard industrial analog voltage and current signals.
Q2: How many inputs are available?
A: Four analog input channels.
Q3: Can it be used in noisy environments?
A: Yes, with proper shielding and grounding.
Q4: Is configuration required?
A: Yes, scaling must be set in the controller.
Q5: Where is it typically used?
A: Industrial monitoring and automation systems.
