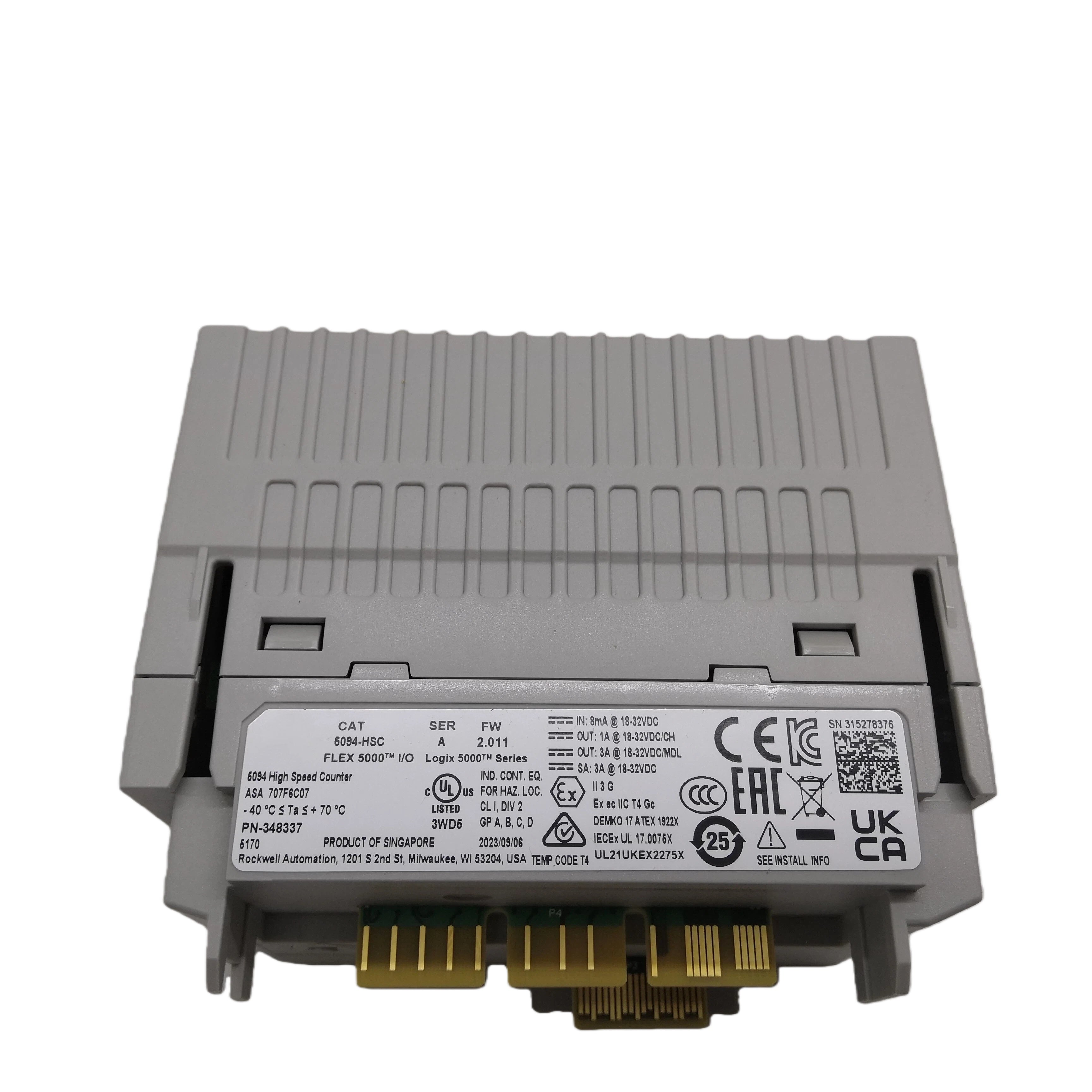

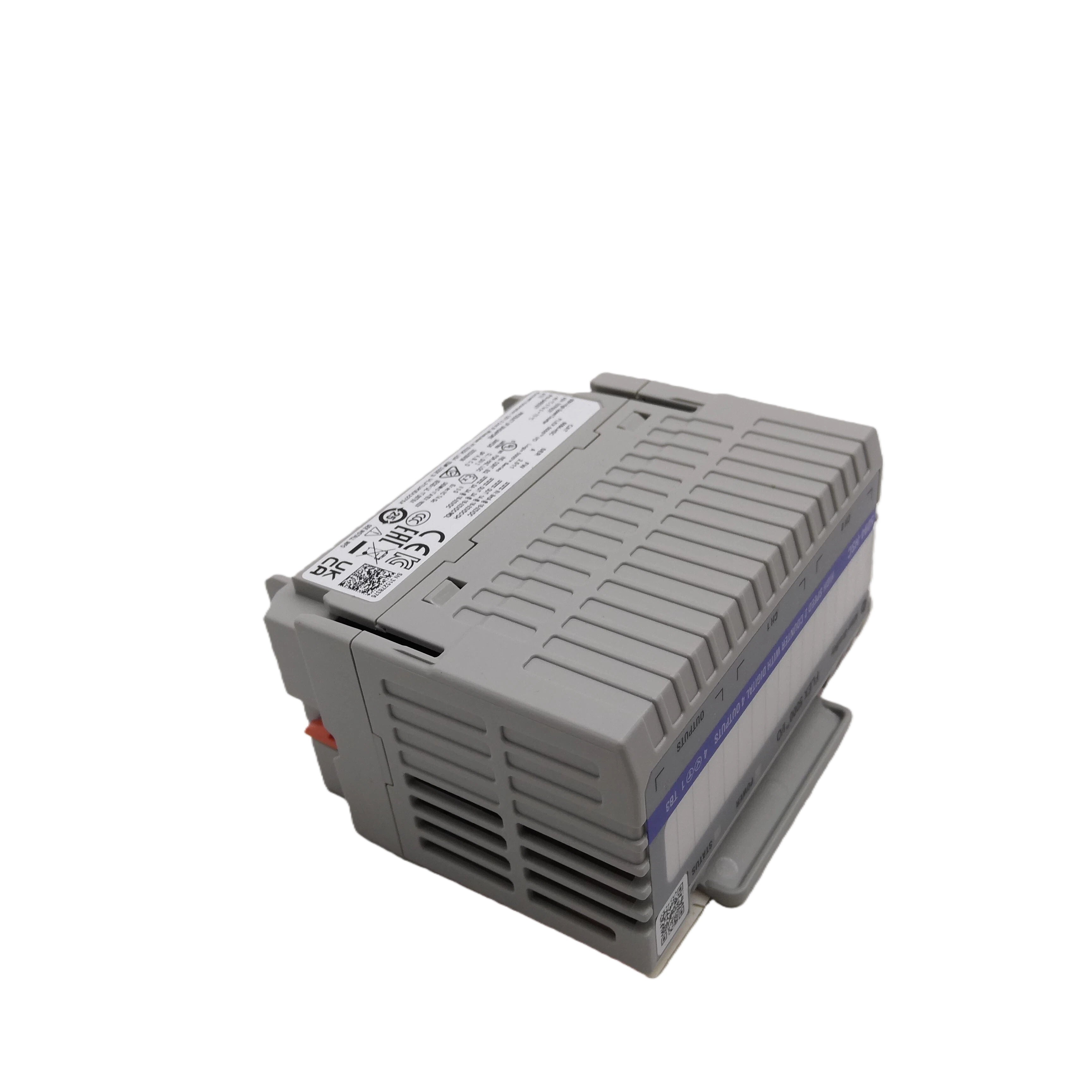

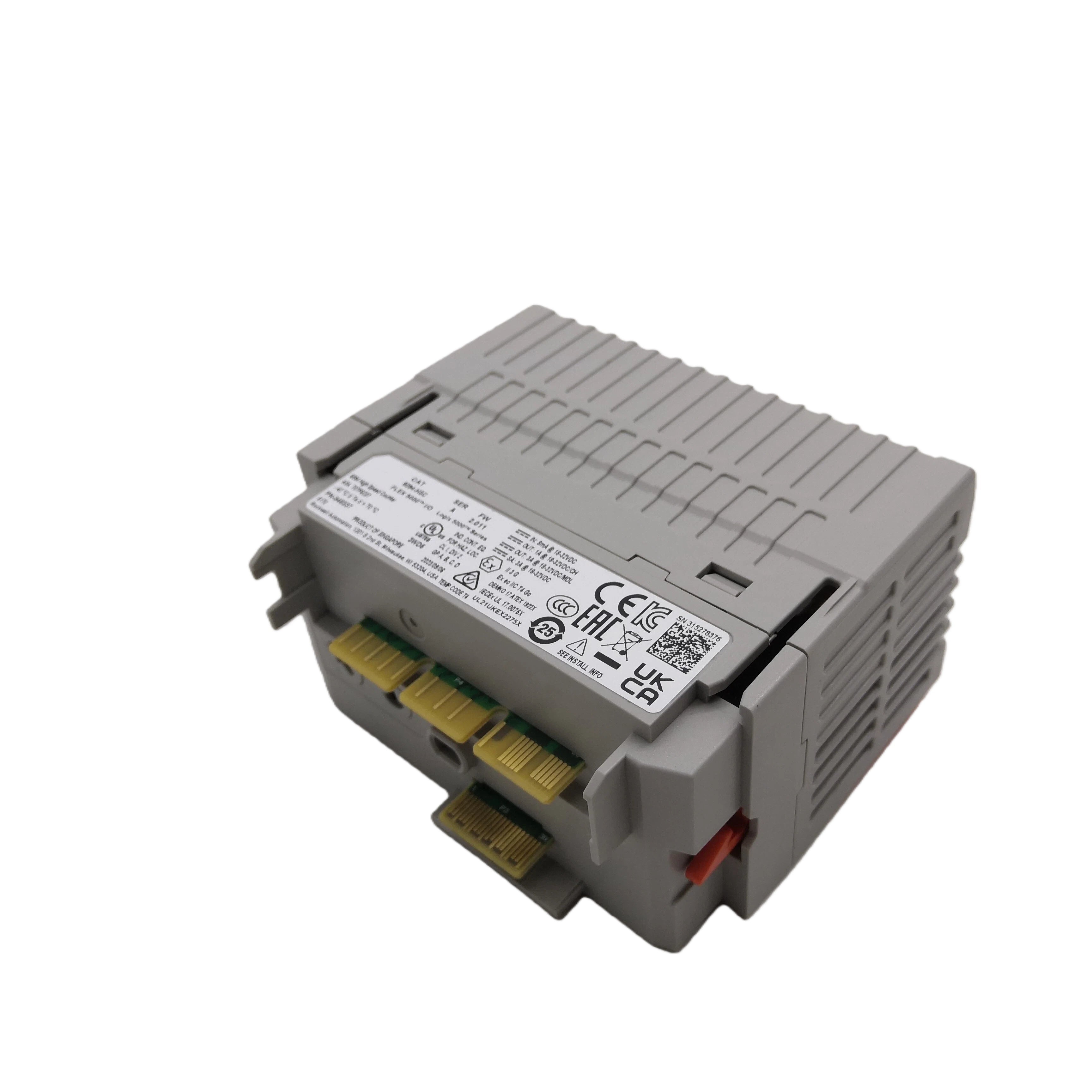

5094-HSC New Original 5094HSC Module
PRODUCT DETAILS
1769-HSC High-Speed Counter Module for Precision Motion and Position Monitoring
The 1769-HSC is a high-speed counter module designed for accurate pulse counting, frequency measurement, and position monitoring in industrial automation systems. It supports high-speed encoder and sensor inputs, enabling reliable data acquisition for motion-related applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | High-Speed Counter Module |
| Input Channels | 4 |
| Input Type | High-Speed Digital |
| Supported Devices | Incremental Encoders, Pulse Sensors |
| Counting Function | Up, Down, Quadrature |
| Mounting Type | DIN Rail Mount |
| Application | Motion Monitoring and Position Control |
Typical Applications
- Encoder signal processing
- Position monitoring
- Conveyor tracking
- Packaging machinery
- Labeling equipment
- Motion control systems
FAQ
Q1: What is the primary function of this module?
A: It performs high-speed pulse counting and position monitoring.
Q2: Can it be used with encoders?
A: Yes, it supports incremental encoder inputs.
Q3: What counting modes are available?
A: Up, down, and quadrature counting.
Q4: How is it installed?
A: It is designed for DIN rail installation.
Q5: Where is it commonly used?
A: In motion control and high-speed automation equipment.
