6BK1620-0AA00-0AA0 Siemens PN/CAN Link Gateway Module 6BK16200AA000AA0 New
PRODUCT DETAILS

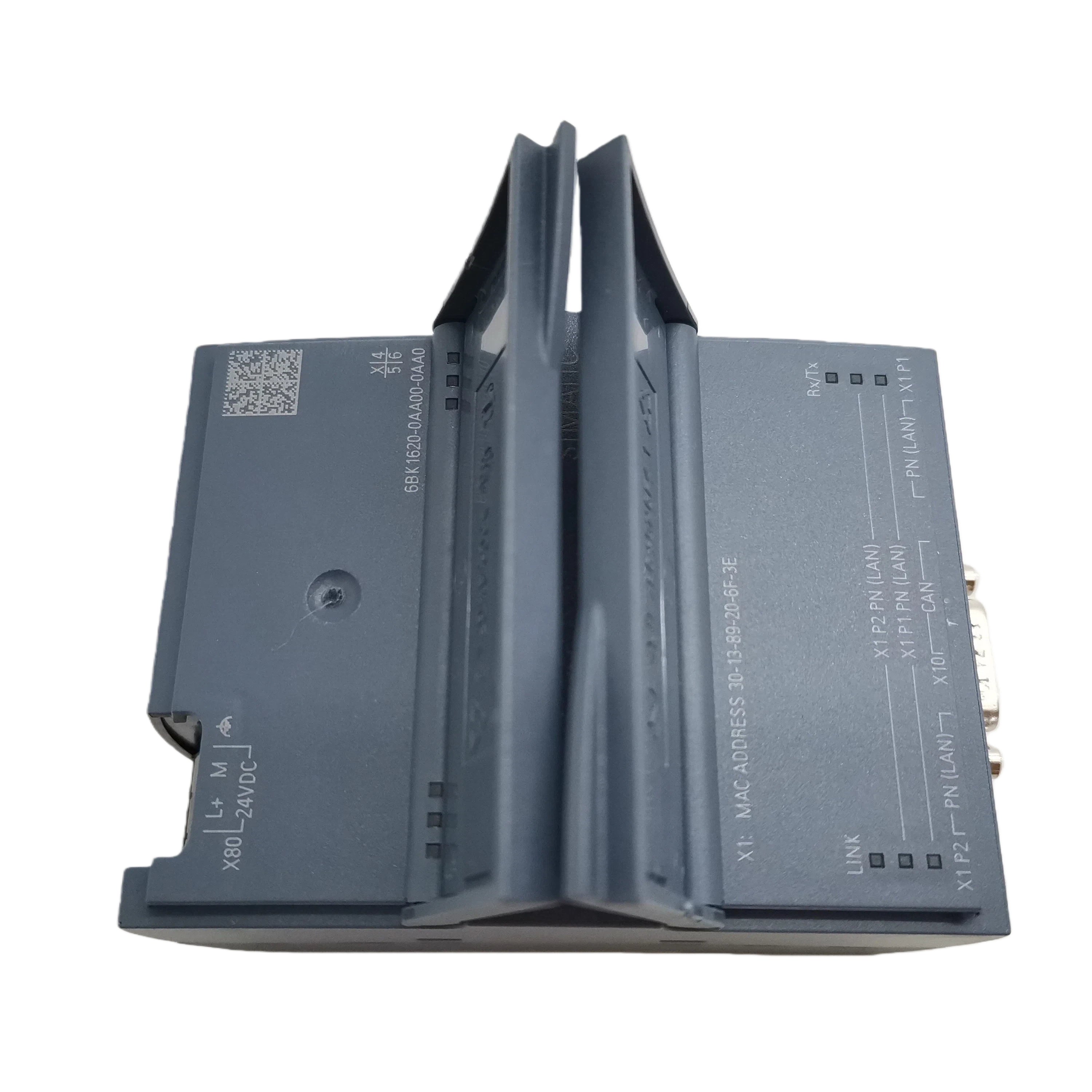

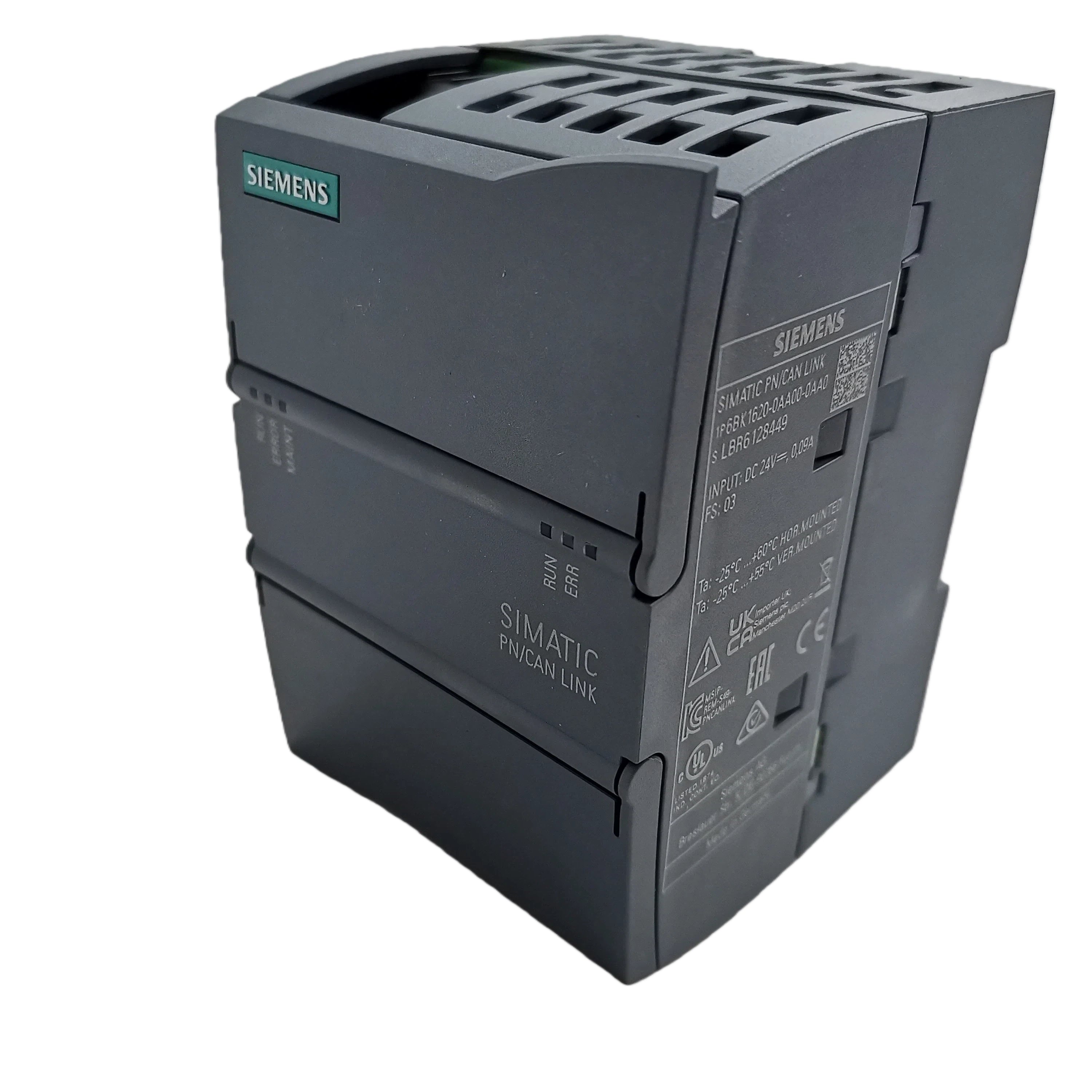

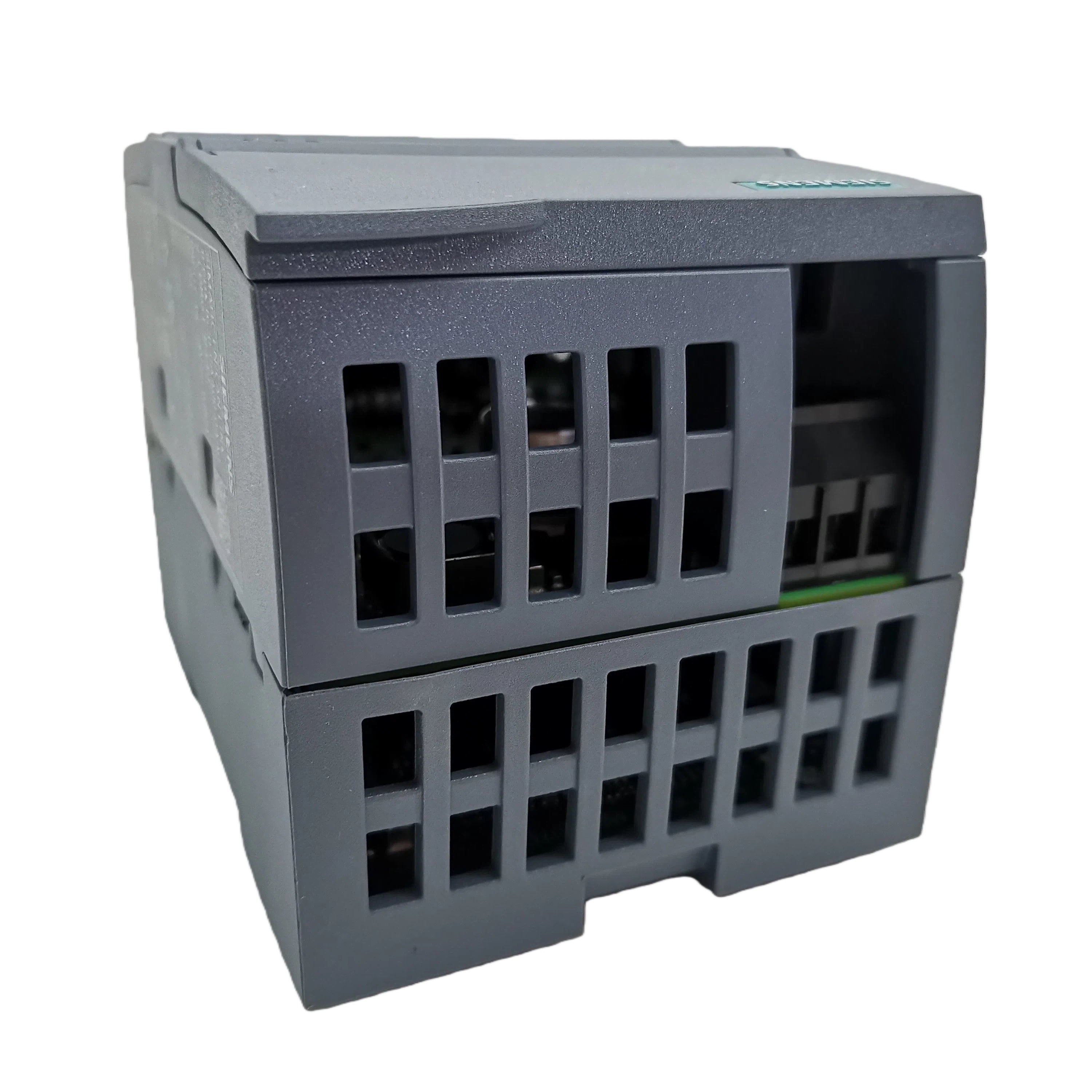

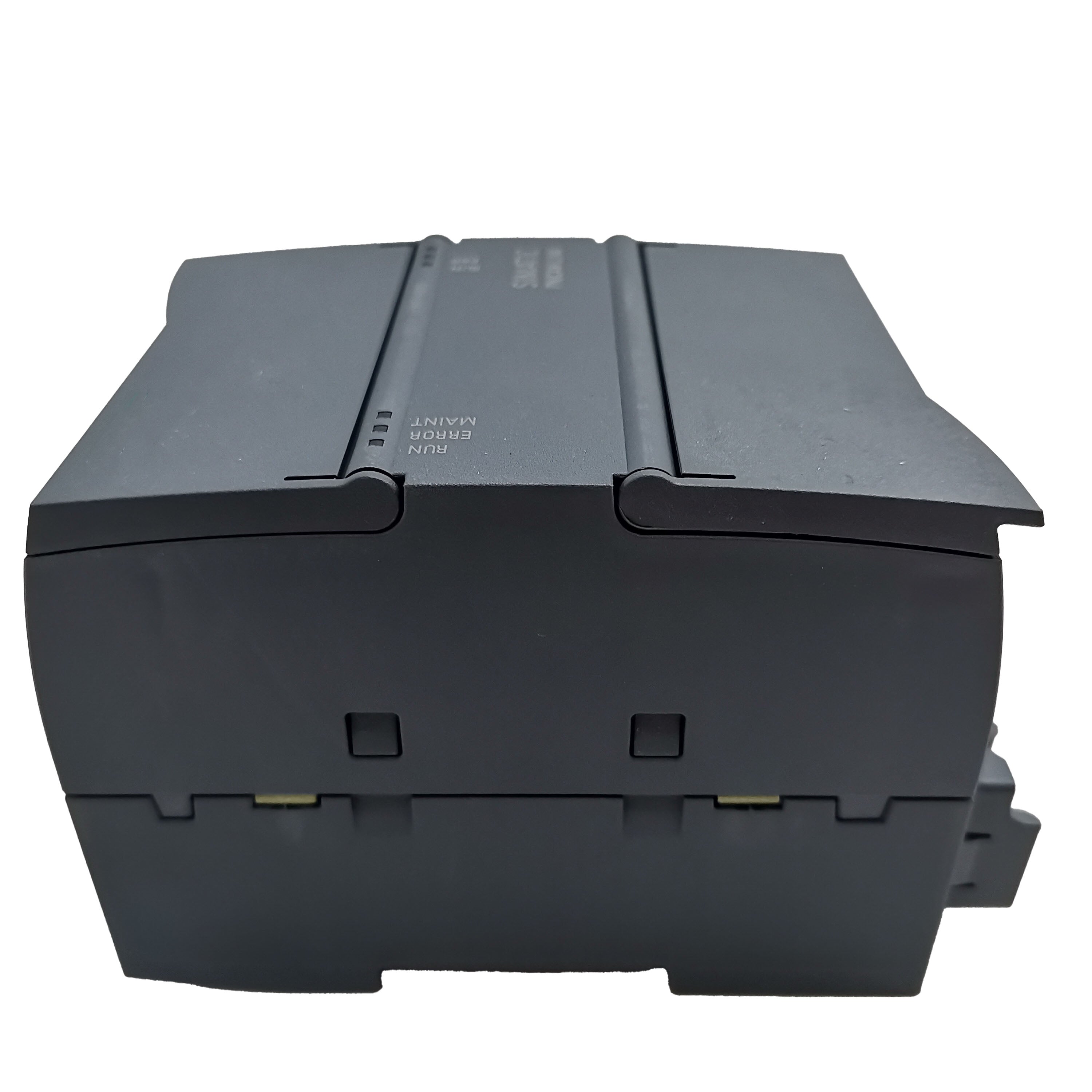

🔗Siemens PN/CAN Link Gateway Module – 6BK1620-0AA00-0AA0
New, Genuine Siemens Industrial Communication Module
Enhance mixed-protocol automation networks with the Siemens PN/CAN Link 6BK1620‑0AA00‑0AA0 — a high-performance PROFINET to CAN/CANopen gateway designed for industrial automation systems and reliable device communication. This module bridges Ethernet-based PROFINET IO controllers and field-level CAN or CANopen networks with robust connectivity.
📌 Core Technical Parameters
- Model: Siemens 6BK1620-0AA00-0AA0 (6BK16200AA000AA0)
- Type: Industrial PROFINET/CAN Link Gateway Module
- Firmware Version: V2.0.0 | Support firmware update 📥
- Power Supply: DC 24V (20.4~28.8V allowable) | Reverse/overvoltage/short-circuit protection ⚡
- Power Consumption: 0.09A rated current | 2.2W typical power loss

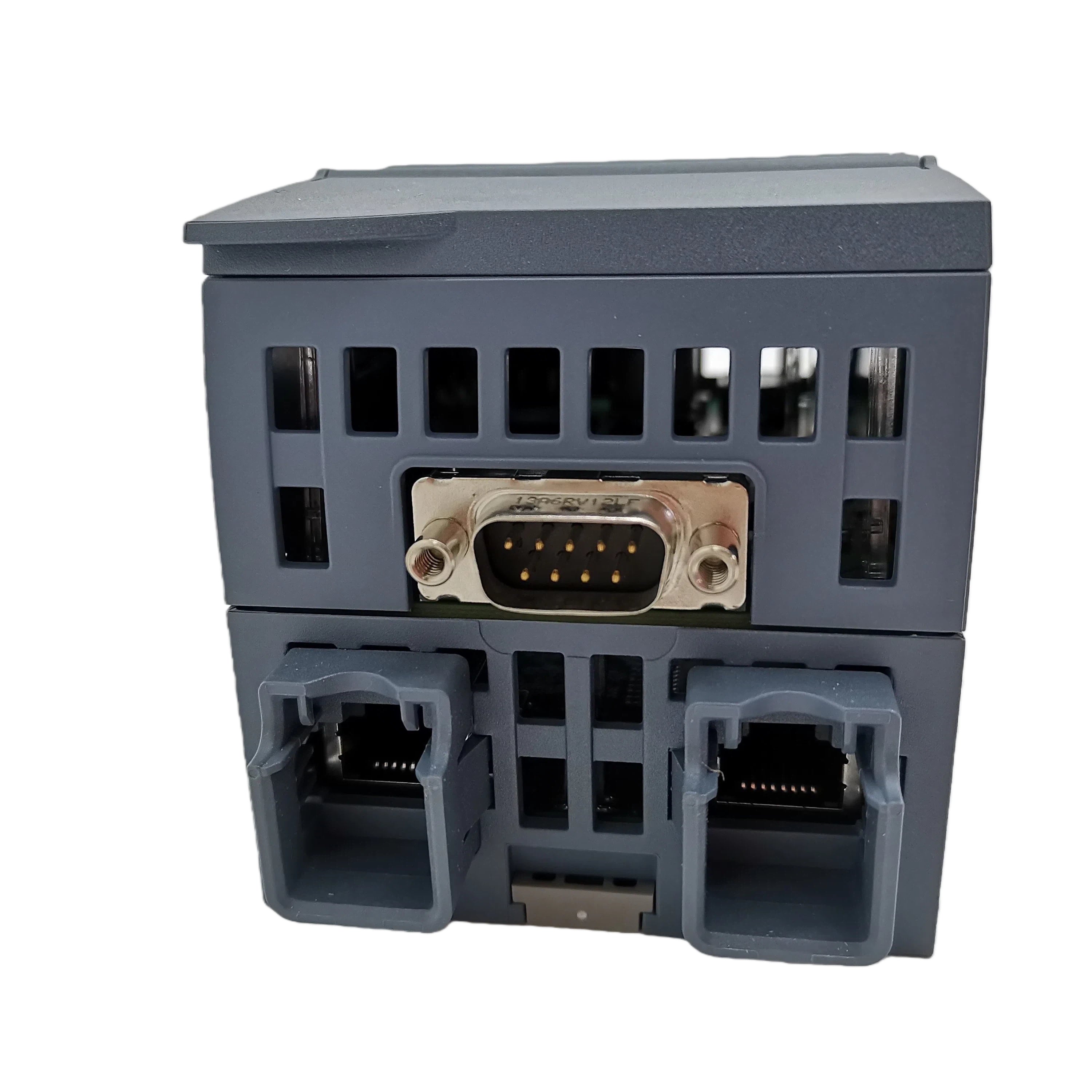

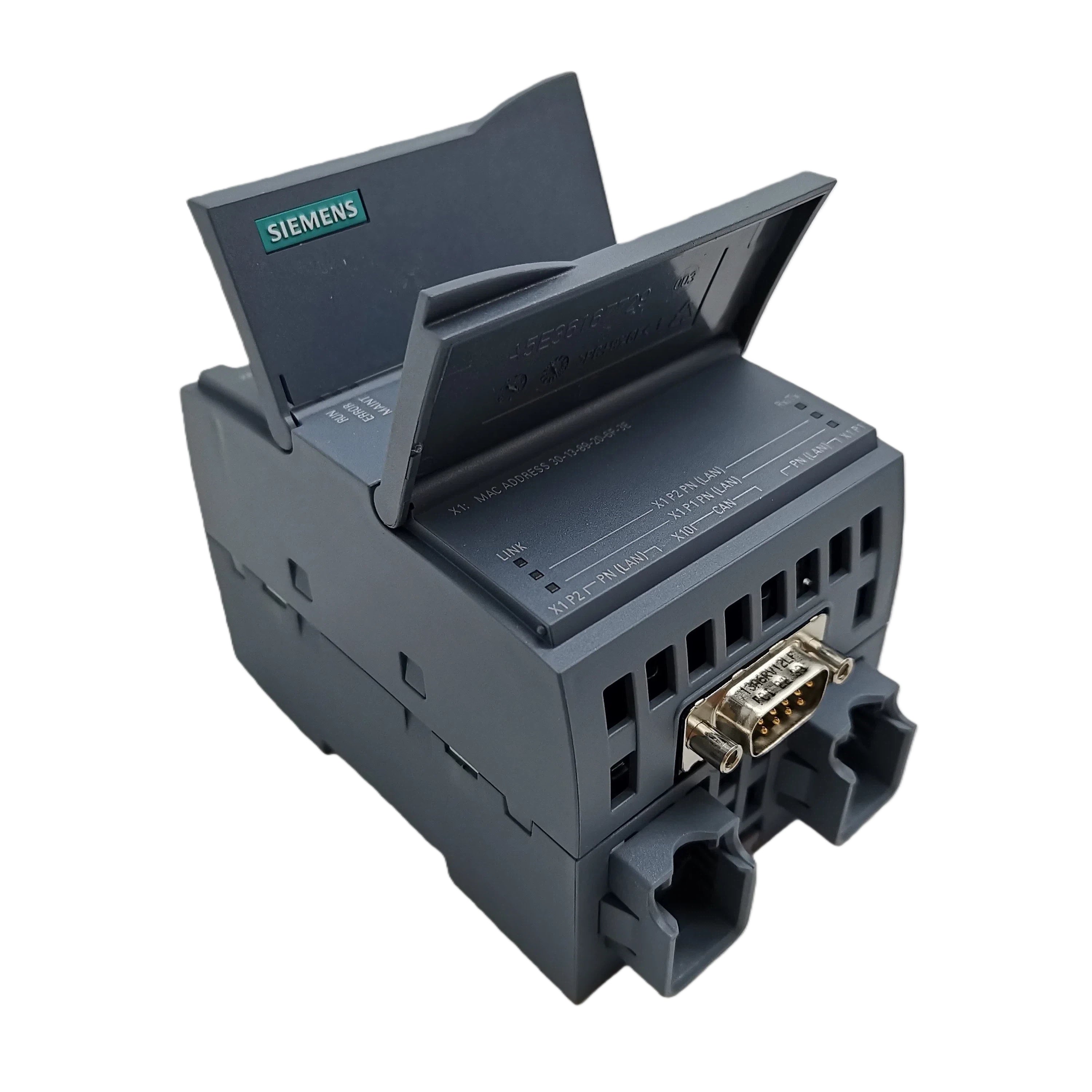

- Communication Interfaces: 2×RJ45 PROFINET ports | 1×9-pin Sub-D CAN port
- Transmission Rate: PROFINET 100 Mbit/s | CAN 50 kbit/s ~ 1000 kbit/s
- Network Capacity: Max 126 CANopen slave nodes | 16 parallel SDO | 512 PDO (Tx/Rx)
- Isolation Performance: CAN port 500V AC/707V DC | PROFINET port 1500V AC/2250V DC 🛡️
- Mechanical Size: 70mm(W)×112mm(H)×75mm(D) | Net weight 212g
- Mounting Mode: DIN rail/wall/panel mounting | Any installation position available 🛠️
- Operating Temperature: -25~60℃ (horizontal) | -25~55℃ (vertical) | Storage: -40~85℃
- Humidity Resistance: Max 95% RH (non-condensing)
- Protection Grade: IP20 | Suitable for switch cabinet installation

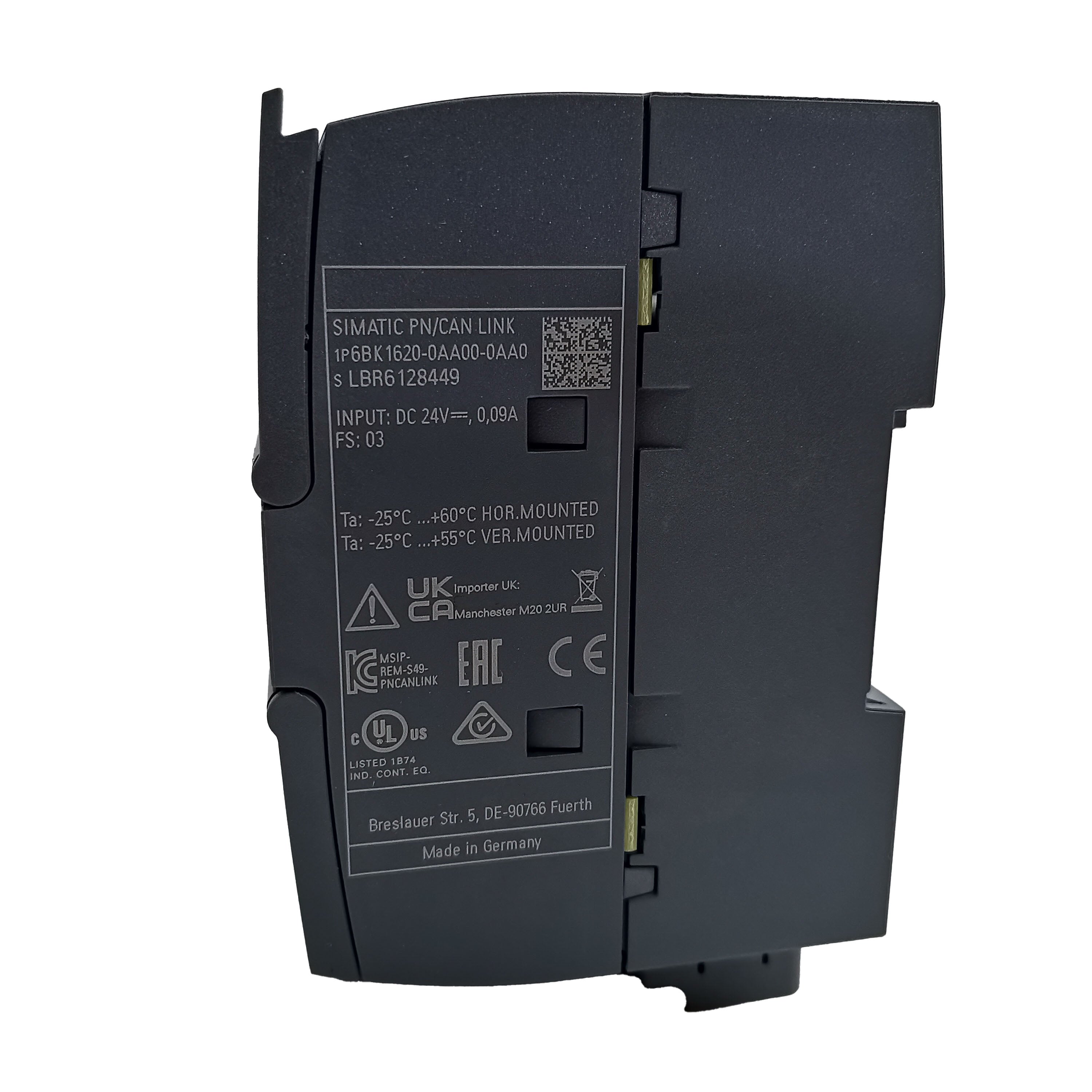

- Certifications: CE, UL, cULus, RCM, KC, EAC | Marine classification society certified 📜
- Configuration Software: STEP 7 TIA Portal (V14 and above) | Plug-and-configure
📊 Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Siemens SIMATIC |
| Model | 6BK1620-0AA00-0AA0 |
| Type | PN/CAN Link Gateway Module |
| Protocols | PROFINET IO, CAN 2.0A/B, CANopen (CiA301/302) |
| Ethernet | 2 × RJ45 (10/100 Mbps) |
| CAN Interface | 1 × 9-pin D-Sub |
| Supply Voltage | 24 V DC |
| Protection | IP20 |
| Mounting | DIN-rail / Panel |
| Operating Temp | –25 °C to +60 °C |
| Width | ~70 mm |
🏭 Typical Applications
✔ Mixed automation environments requiring PROFINET ↔ CAN/CANopen connectivity
✔ Machine tools, distributed IO networks, and fieldbus integration
✔ Process automation linking Siemens PLCs with CAN-based actuators and sensors
✔ Legacy upgrades and protocol bridging in industrial systems
📦 Included
✔ 1 × Siemens 6BK1620-0AA00-0AA0 Gateway Module
✔ Factory packaging (availability may vary by seller)
✔ Documentation and mounting instructions if provided
