6FC5210-0DF52-3AA0 New Sealed 6FC52100DF523AA0 Siemens Electronic Control Unit

Product Description

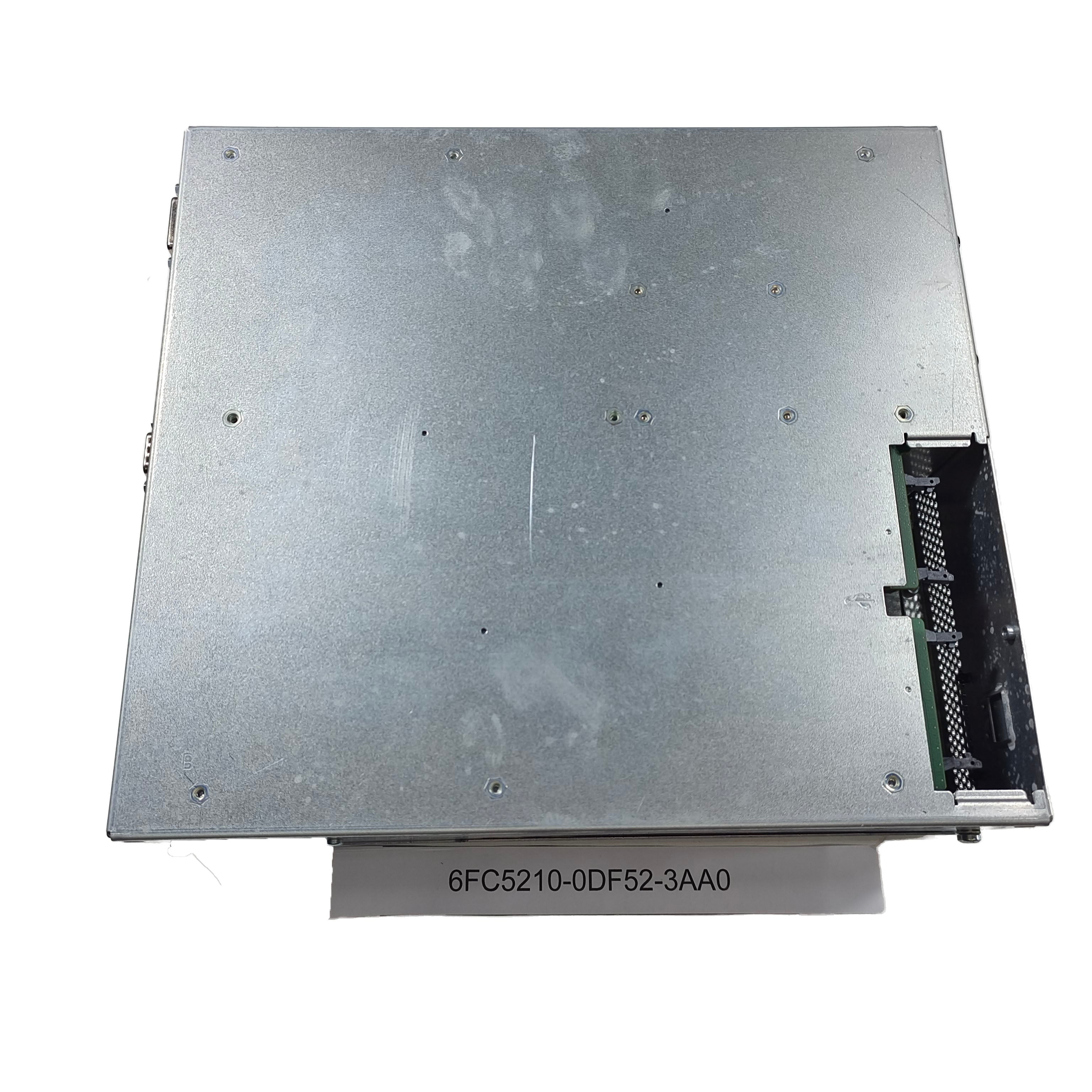

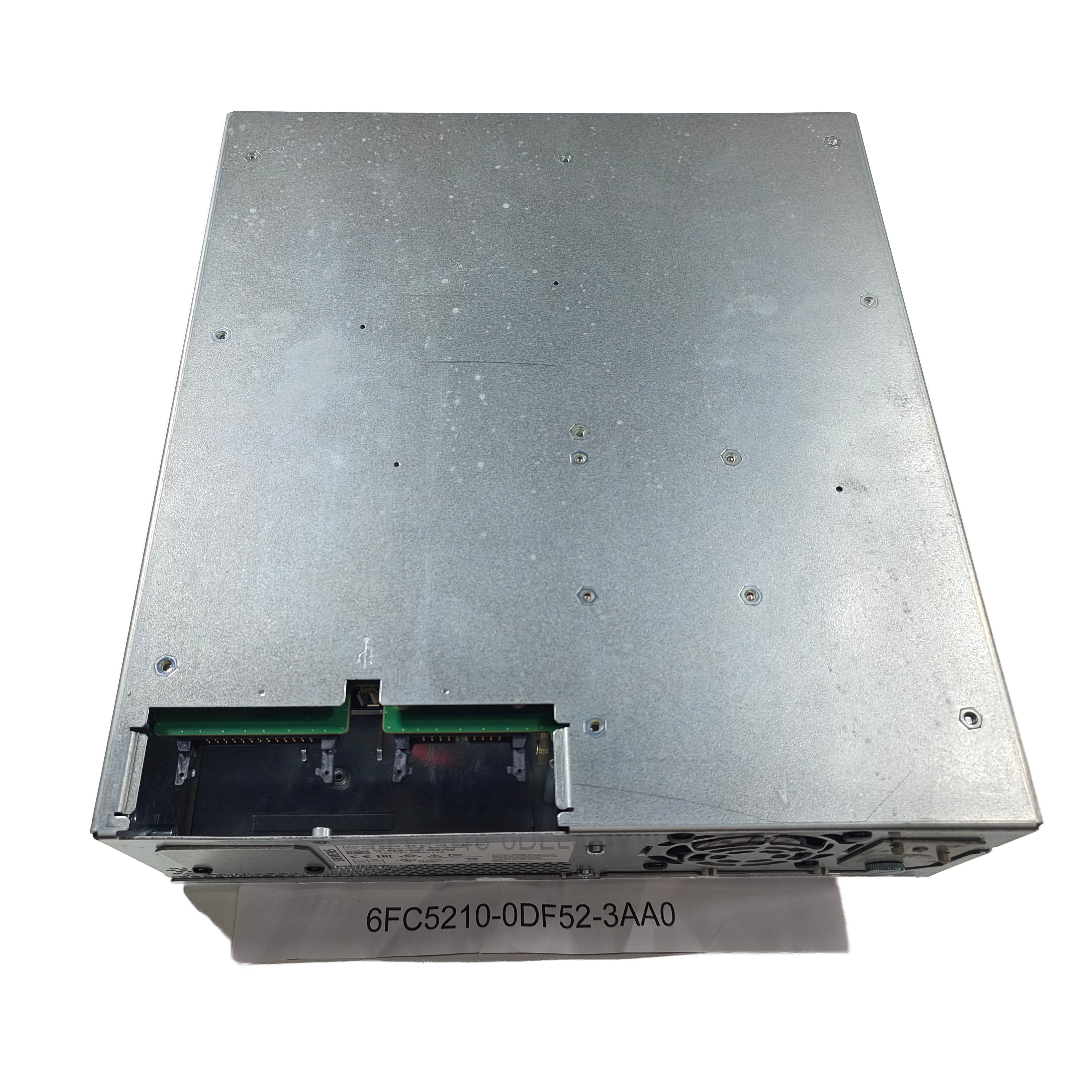

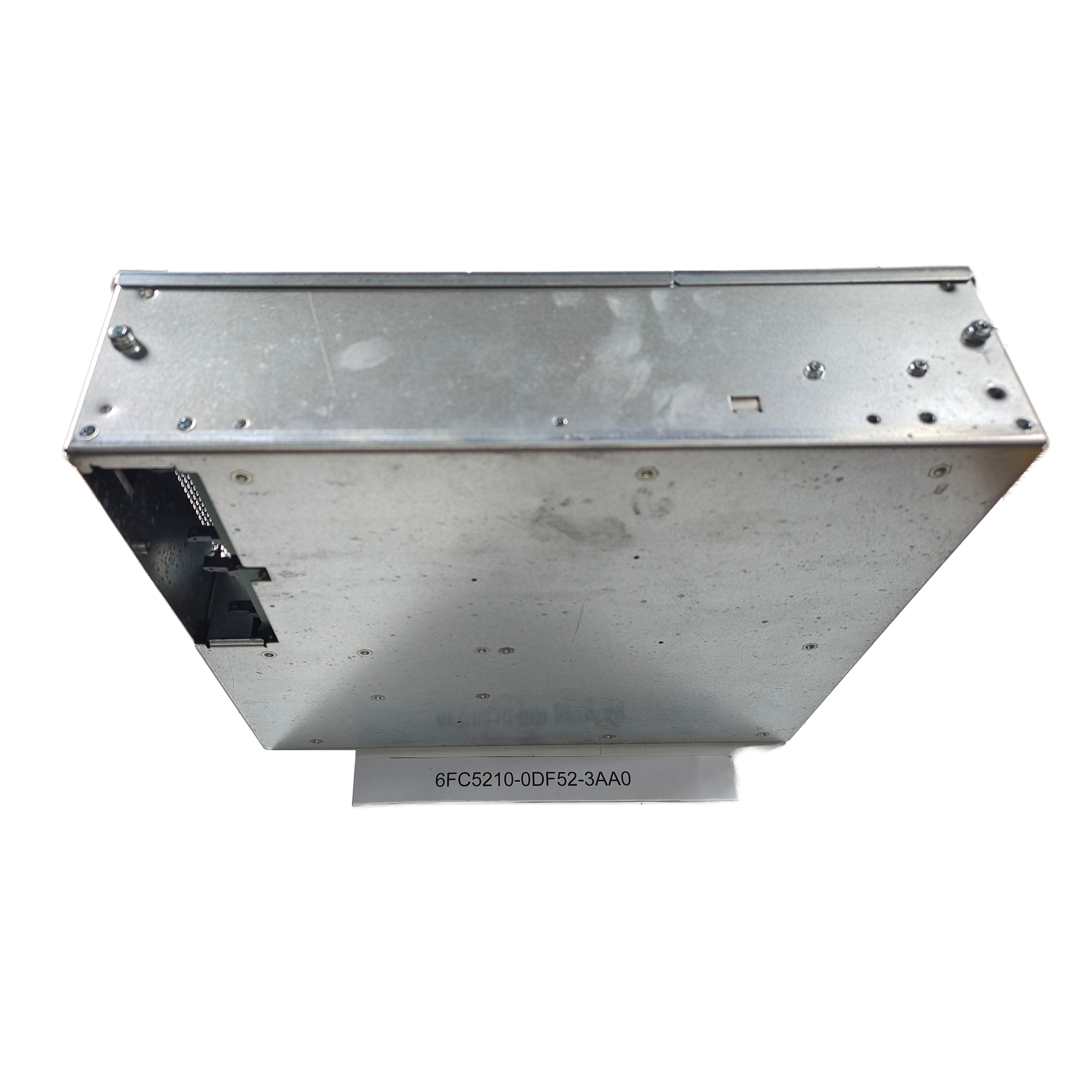

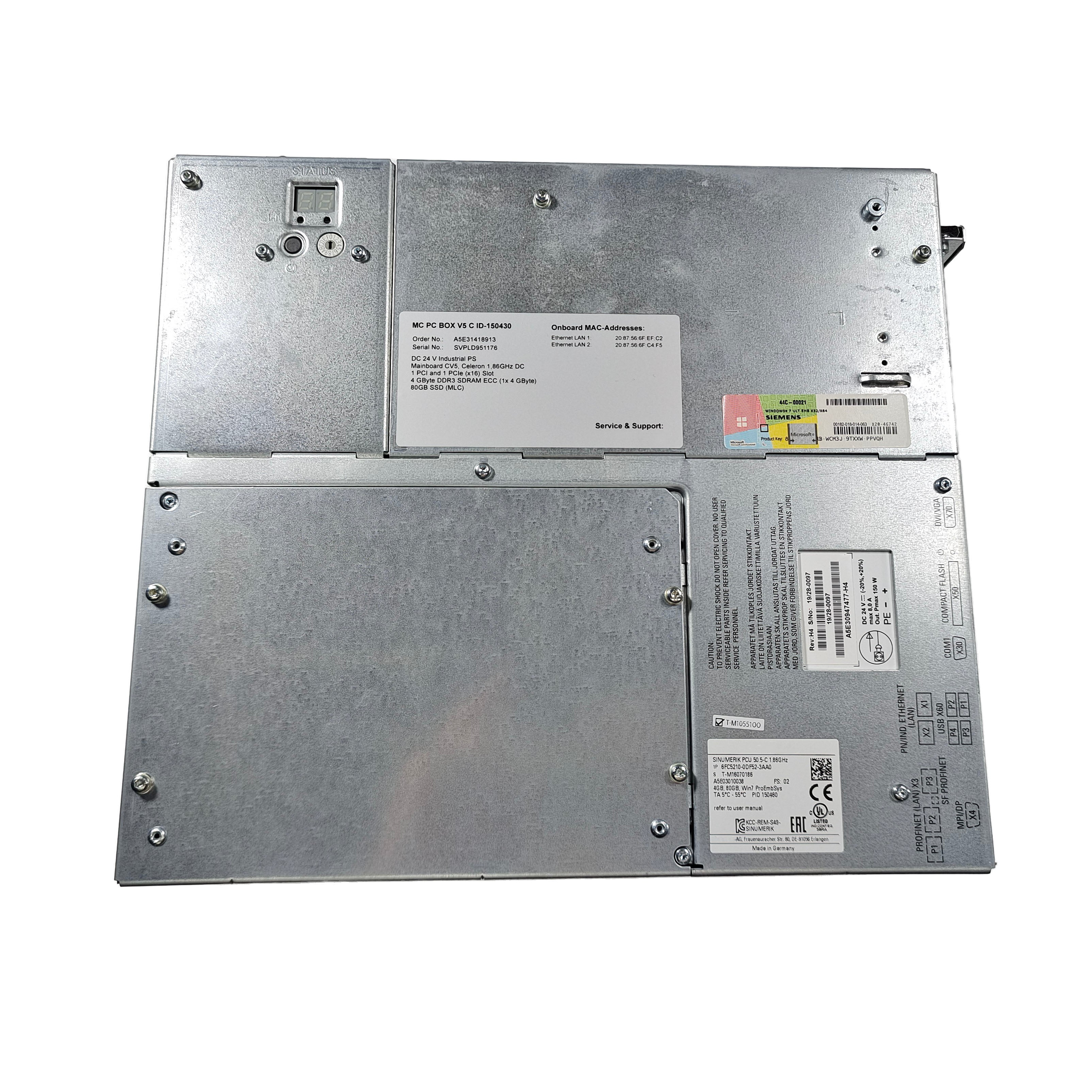

Siemens 6FC5210-0DF52-3AA0 — SINUMERIK PCU 50.5-C Electronic Control Unit, 1.8 GHz, 4 GB RAM, Windows 7 Embedded, 24V DC

A CNC machine's cutting performance is defined by the NCU and the drive system. What the operator actually sees, touches, and programs through is defined by the PCU — the Personal Computer Unit that runs the HMI software, stores programs, manages the operator interface, and handles all the computational tasks that sit above the real-time control layer. When that PCU fails, the machine stops regardless of how healthy the mechanics are. Finding a genuine, new-condition replacement with the correct software configuration is the whole game.

The 6FC5210-0DF52-3AA0 is Siemens' SINUMERIK PCU 50.5-C variant running Windows 7 for Embedded Systems — the direct successor to the XP-based PCU 50.5-C (6FC5210-0DF52-2AA0) and the standard PCU for SINUMERIK 840D sl and 840D/DE machine installations requiring SINUMERIK Operate 4.x software. A 1.8 GHz processor, 4 GB of RAM, and the full Windows 7 Embedded environment provide the computational headroom for multi-axis SINUMERIK Operate, ShopMill/ShopTurn, optional WinCC RT Advanced integration, and OEM HMI extensions without performance compromise.

Genuine Siemens manufacture. New original, factory sealed. In stock and available for worldwide dispatch.

Technical Specifications

Understanding the PCU 50.5 Product Line: C vs P Variants

Siemens produced two performance variants of the PCU 50.5, distinguished by the suffix in the order number and by their internal hardware configuration.

The PCU 50.5-C (this product, 6FC5210-0DF52-3AA0) uses a 1.8 GHz processor and 4 GB of RAM. It is the standard specification for the vast majority of SINUMERIK 840D sl installations — turning centres, machining centres, grinding machines, gear cutting machines — where SINUMERIK Operate runs as the primary HMI. The available processing power comfortably handles multi-channel operation, simultaneous display of workpiece graphics, program simulation, and background program management without visible latency.

The PCU 50.5-P (6FC5210-0DF53-3AA0) is the performance variant, featuring an Intel Core i5-520E processor at 2.4 GHz and 8 GB of DDR3 ECC RAM. It was intended for installations where WinCC RT Advanced is integrated into the HMI environment alongside SINUMERIK Operate, or where third-party applications running on the PCU demanded significantly more computational headroom than the standard variant provided.

Both variants use Windows 7 Embedded (the -3AA0 suffix across both catalog numbers denotes Windows 7; the -2AA0 suffix on older versions denoted Windows XP Embedded). Both integrate identically into the 840D sl architecture. Unless the machine specifically requires the WinCC RT integration or a computationally demanding OEM HMI application, the PCU 50.5-C is the correct replacement for any standard 840D sl operator panel station.

How the PCU Fits Into the SINUMERIK 840D sl Architecture

The SINUMERIK 840D sl separates real-time CNC control from the operator interface into two physically distinct modules.

The NCU (Numerical Control Unit) contains the CNC kernel, the drive control, the safety logic, and all time-critical functions. It runs on dedicated real-time hardware and is entirely independent of the PCU's operating state. An NCU by itself is a fully functional CNC — it will execute part programs, control axes, and maintain safety functions whether the PCU is running or not.

The PCU 50.5-C sits above this layer. It runs Windows 7 Embedded as a standard industrial PC platform, with SINUMERIK Operate as the primary application. SINUMERIK Operate communicates with the NCU via Ethernet (the system network, typically on the 192.168.214.x address range) to exchange operator data — program selection, parameter display, tool management, alarms, and the graphical workpiece simulation. The PCU also provides the Windows environment that OEMs use to add machine-specific HMI screens, integrate measurement systems, or run peripheral application software alongside the CNC HMI.

This architecture means a PCU failure is not a CNC failure in the strict sense — an 840D sl NCU will hold its current state with the PCU disconnected — but it is a complete operator lockout. No HMI means no program loading, no tool data management, no alarm acknowledgement, and no manual intervention at the operator panel. In production terms, the machine is down. PCU 50.5 spares are therefore a standard stocking item in any facility running 840D sl machines.

The PCU connects to the operator panel front (OP 010, OP 010C, OP 015, OP 015A, or TP 015A) via the LVDS cable for the display and the MCI bus connection for the keypad and USB front port. The connection to the NCU is via Ethernet — either directly (point-to-point via the X130 service port for single-PCU configurations) or through a switch (for multi-NCU or TCU-extended configurations).

Windows 7 Embedded: The -3AA0 Distinction

The last three characters of a SINUMERIK PCU 50.5 order number encode the operating system variant. The -3AA0 suffix on the 6FC5210-0DF52-3AA0 specifies Windows 7 for Embedded Systems — Microsoft's industrial version of Windows 7 designed for fixed-function devices, with reduced footprint, extended support lifecycle, and lockdown capabilities not present in standard Windows 7.

The predecessor variant, 6FC5210-0DF52-2AA0, used Windows XP Professional for Embedded Systems. The two variants are not software-interchangeable. SINUMERIK Operate 4.x software compiled for Windows 7 will not run on an XP PCU, and earlier software versions for XP will not install on the Windows 7 variant. When replacing a failed PCU 50.5-C, the operating system variant of the existing unit must be matched. A machine running SINUMERIK Operate 4.x (the standard HMI for current 840D sl CNC software versions 4.x) requires the Windows 7 variant — this 6FC5210-0DF52-3AA0.

Practically, any 840D sl system with CNC software version 4.4 or later will have been running on a Windows 7 PCU (either the -3AA0 or its Pentium-era predecessors). Systems with CNC software version 2.x or 3.x may still be running on XP PCUs. Checking the existing PCU's order number before ordering a replacement takes thirty seconds and avoids receiving a non-compatible unit.

Connectivity and I/O Interface Overview

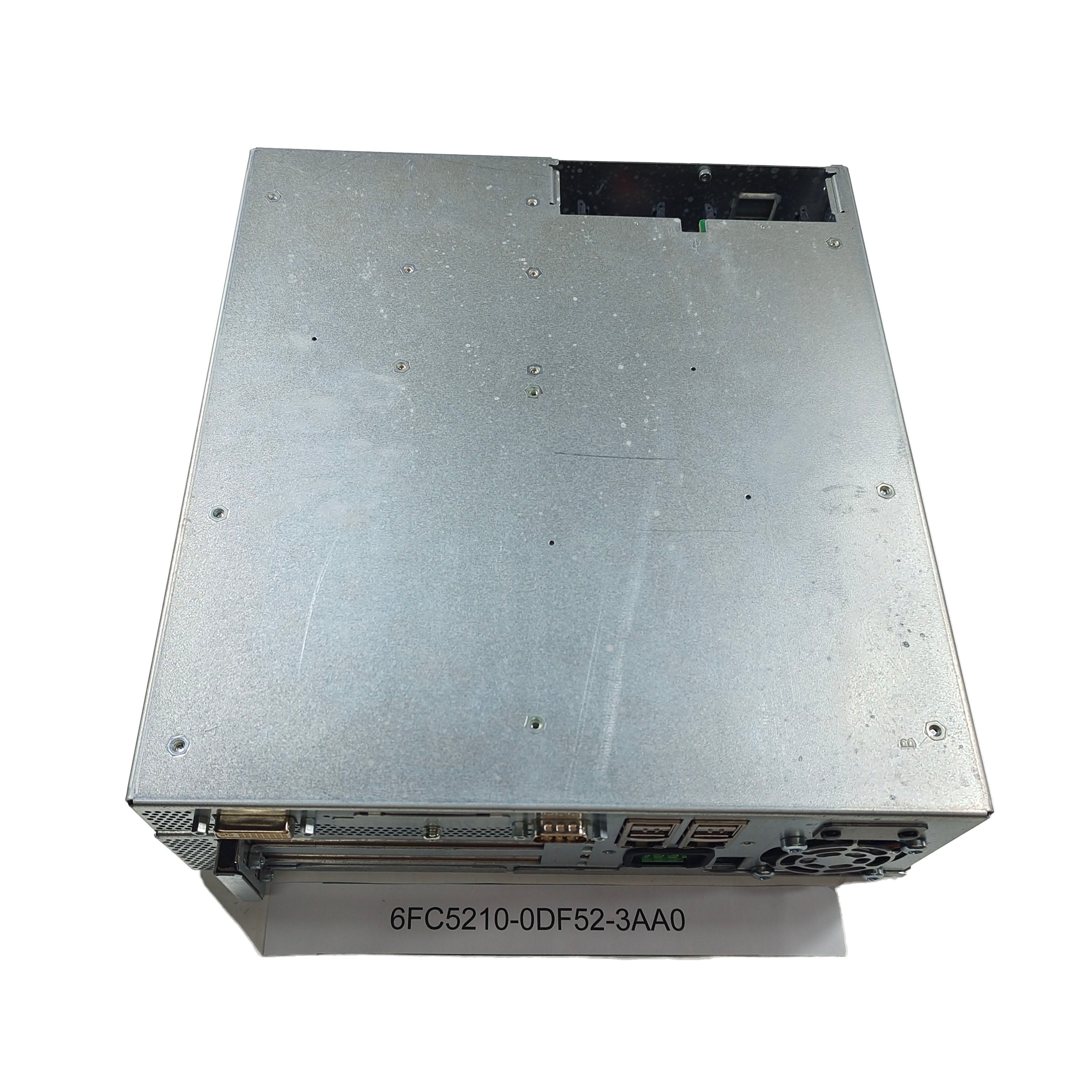

The PCU 50.5-C rear panel provides the connection points for all external devices and network interfaces.

Display connections use a DVI-I port for an external monitor (for service access or secondary display) and an LVDS interface that carries the display signal to the directly attached operator panel front via the K1 cable. These two connections serve different purposes — LVDS to the OP panel for normal operation, DVI-I for service laptop or external monitor connection during commissioning and troubleshooting.

USB 2.0 ports appear on both the rear panel and, via the MCI board connection, on the front of the operator panel (the OP front USB port). The rear USB ports support keyboard, mouse, USB memory sticks for program transfer, and USB-connected external drives. The front panel USB port — routed from the PCU through the MCI bus — is the primary operator-accessible port for NC program loading and data backup in normal production use.

Ethernet provides two distinct network segments. The company network Ethernet connects the PCU to the plant IT network for remote access, program management from a DNC system, or integration with Siemens' SINUMERIK Integrate suite. The system network Ethernet (the internal subnet, typically 192.168.215.x) connects the PCU to the NCU, any TCUs (Thin Client Units), and other system network components.

CF card slot accepts standard CompactFlash cards for software installation, PCU base software updates, and data archiving. The CF card is also the standard medium for restoring a PCU from a backup image following a hard drive failure.

SINUMERIK Operate and Software Environment

The PCU 50.5-C with Windows 7 Embedded supports SINUMERIK Operate from version 4.4 onwards. SINUMERIK Operate is Siemens' unified operator interface for the 840D sl — combining program editing, tool management, workpiece measurement, axis control, alarm management, and the ShopMill/ShopTurn conversational programming environments in a single application.

Unlike earlier SINUMERIK HMI variants (HMI Advanced, HMI sl), SINUMERIK Operate uses a consistent interface architecture across both the PCU 50 platform and the NCU-integrated solution line (where Operate runs directly on the NCU without a separate PCU). This means operators familiar with Operate on one machine type can transfer skills directly to another, regardless of whether the machine uses a PCU 50 or the NCU-integrated HMI.

The Windows 7 environment on the PCU also allows standard Windows applications to run alongside SINUMERIK Operate. Common additions include Siemens' own NX CAM post-processing tools, Vericut simulation packages, machine-builder-specific toolpath verification programs, and plant-floor ERP data collection clients. Siemens' PCU base software manages application switching and ensures SINUMERIK Operate priority in resource allocation.

Frequently Asked Questions

Q: What is the difference between the 6FC5210-0DF52-3AA0 and the 6FC5210-0DF52-2AA0?

A: The sole difference is the operating system. The -3AA0 carries Windows 7 for Embedded Systems and supports SINUMERIK Operate 4.x. The -2AA0 carries Windows XP Professional for Embedded Systems and supports earlier SINUMERIK HMI sl software versions. The processor (1.8 GHz) and RAM (4 GB) are identical between the two. They are not software-interchangeable — installing Operate 4.x software onto a -2AA0 (XP) PCU is not supported. When replacing a failed unit, the order number suffix of the existing PCU must be matched to ensure the correct OS variant is received.

Q: Will the 6FC5210-0DF52-3AA0 work with an older SINUMERIK 840D (non-sl) system?

A: The PCU 50.5-C is compatible with both SINUMERIK 840D/840DE and SINUMERIK 840D sl platforms. However, the software running on the PCU must be appropriate for the NCU it connects to. An 840D sl NCU running CNC software 4.x works natively with this PCU and SINUMERIK Operate 4.x. Older 840D (non-sl) systems using earlier NCU generations and HMI Advanced may require a different HMI software configuration. If the existing machine was running a PCU with HMI Advanced rather than SINUMERIK Operate, the software environment must be re-established on the replacement PCU during commissioning.

Q: Is a backup of the original PCU required before replacement, and how is it performed?

 A: Backing up the original PCU before replacement is strongly recommended and in many cases essential. The PCU hard drive contains the base software, SINUMERIK Operate installation, OEM HMI extensions, machine-specific configuration files, NC program archives stored locally, and the Windows 7 user profile settings. Without a backup, all of this must be reinstalled from original media — which may no longer be available for older machines. Backup is performed using Siemens' PCU backup tool (accessible from the PCU's Windows desktop in service mode) onto a USB drive or network share. The backup image can be restored onto the replacement PCU's hard drive using the same tool, bringing the replacement unit to an identical software state as the original.

Q: The unit is listed as discontinued by Siemens — does that affect its usability or supportability?

A: Siemens discontinued new manufacture of the 6FC5210-0DF52-3AA0 in October 2019. Discontinuation means Siemens no longer produces or sells the unit through its standard sales channels. It has no effect on the unit's technical capability or its ability to operate in existing installations — a new-in-box unit from inventory is functionally identical to a unit that was delivered in 2018. Software support through Siemens' maintenance contracts covers installed SINUMERIK systems regardless of PCU production status. The practical consequence of discontinuation is that new-condition units are only available through industrial surplus channels, making genuine new-sealed stock increasingly valuable for service departments maintaining 840D sl fleets.

Q: Can the PCU 50.5-C be used with a TCU (Thin Client Unit) for remote operator panel distribution?

A: Yes. The PCU 50.5-C supports TCU-based distributed operator panel topologies. In this architecture, the PCU runs SINUMERIK Operate and acts as the system network DHCP server. TCUs connect via Ethernet and mirror the PCU's display to remote operator panel fronts positioned away from the PCU's physical location — on the machine door, at a pendant station, or at a separate operator workstation. Up to 30 operator stations (TCUs and directly connected panels combined) can be supported on a single system network. The TCUs do not run Operate locally; they stream the display from the PCU and send keypad/touch inputs back. This topology allows a single PCU to serve multiple display locations on large machines or manufacturing cells.

Q: How does the hard drive in the PCU 50.5-C affect reliability, and is a CF-card-based alternative available?

A: The standard PCU 50.5-C uses a conventional hard disk drive mounted on a vibration-damping bracket within the housing. Hard drives are the most common failure point in PCU 50.5 units due to the mechanical nature of the storage medium — bearing wear, head crashes, and sector failures all occur at higher rates in industrial environments with vibration and temperature cycling compared to office environments. For maintenance purposes, keeping a spare hard drive with a verified backup image stored off the machine is the most practical reliability measure. Some integrators replace the original hard drive with an SSD (solid-state drive) of equivalent interface and capacity, which eliminates rotating media failure modes. Siemens also offers the PCU 50.5-P variant with SSD standard, but that is a different product from this PCU 50.5-C.

Q: What operator panel fronts are directly compatible with the 6FC5210-0DF52-3AA0?

A: The PCU 50.5-C connects directly to SINUMERIK operator panel fronts in the 840D sl product family, including the OP 010, OP 010C, OP 015, OP 015A, and TP 015A. The LVDS cable carries the display signal and the MCI bus connection handles the keypad matrix and front panel USB port. The specific cable set (K1 and K2) depends on which operator panel front is installed. For installations using TCUs at the operator panel rather than a direct PCU connection, the TCU handles the LVDS/MCI interface to the panel front, and the PCU connects only via Ethernet. The PCU 50.5-C is not designed for use with older SINUMERIK 810D operator components, which use a different physical and electrical interface.
