6SL3130-6TE23-6AA3 New Original 6SL31306TE236AA3 Siemens S120 Module
PRODUCT DETAILS

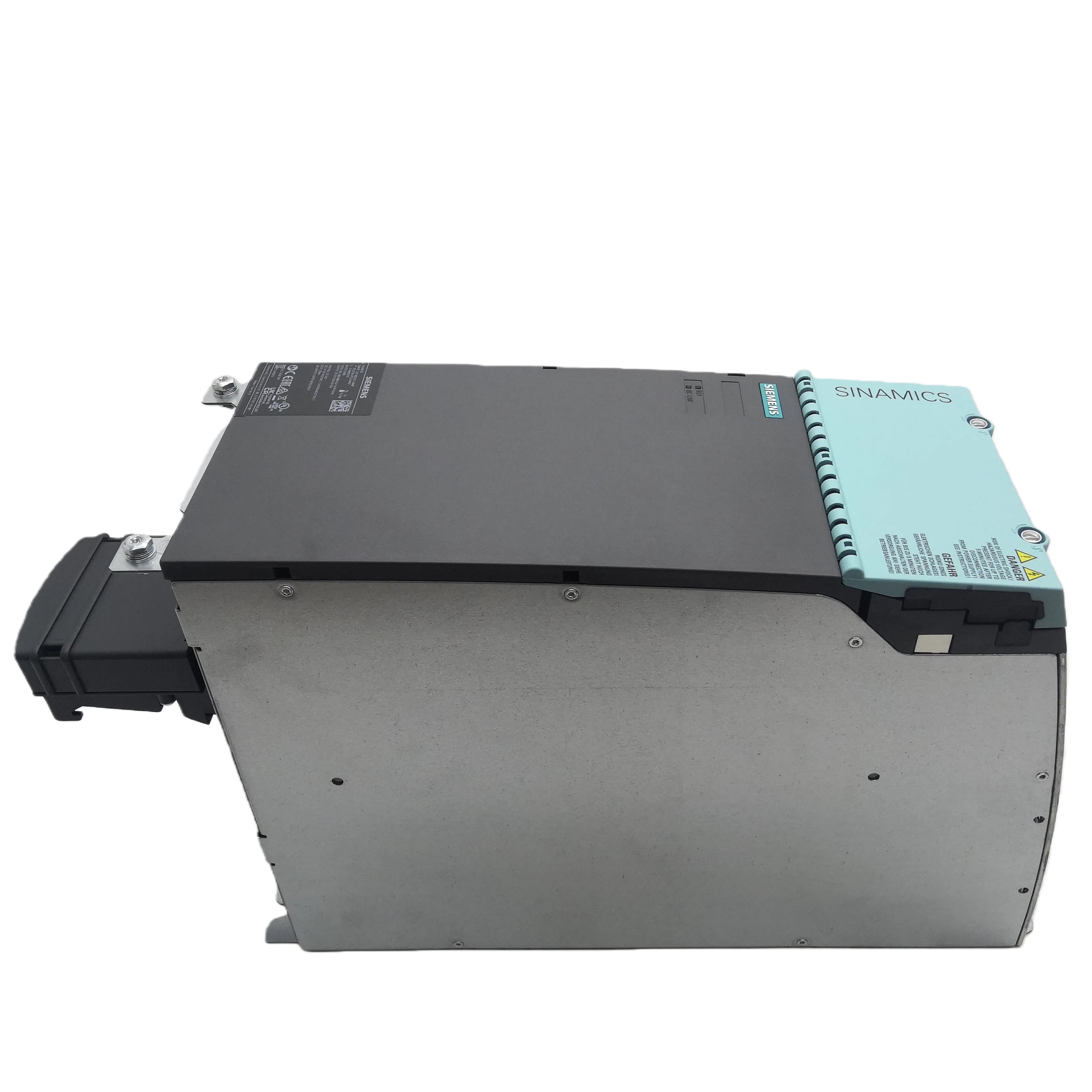

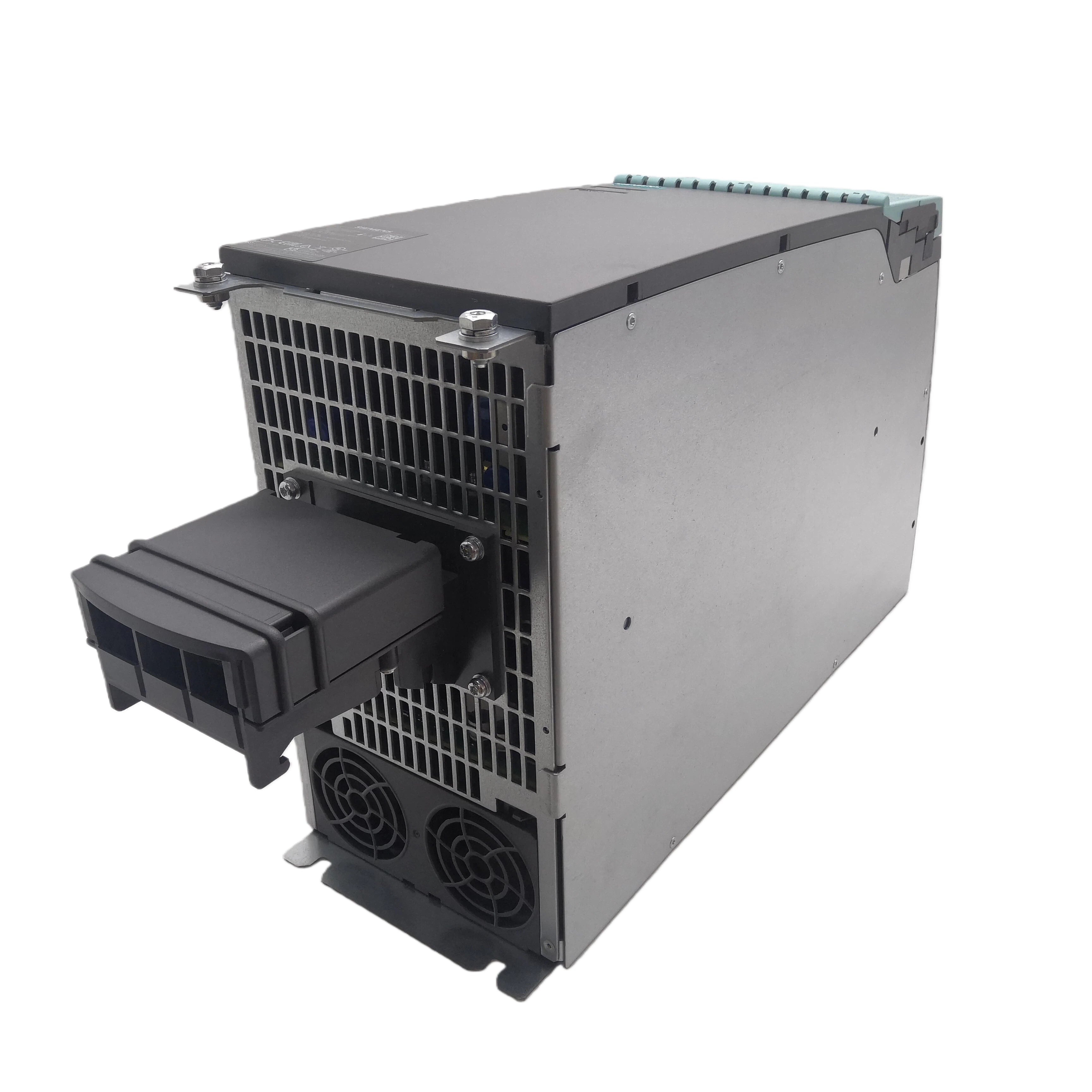

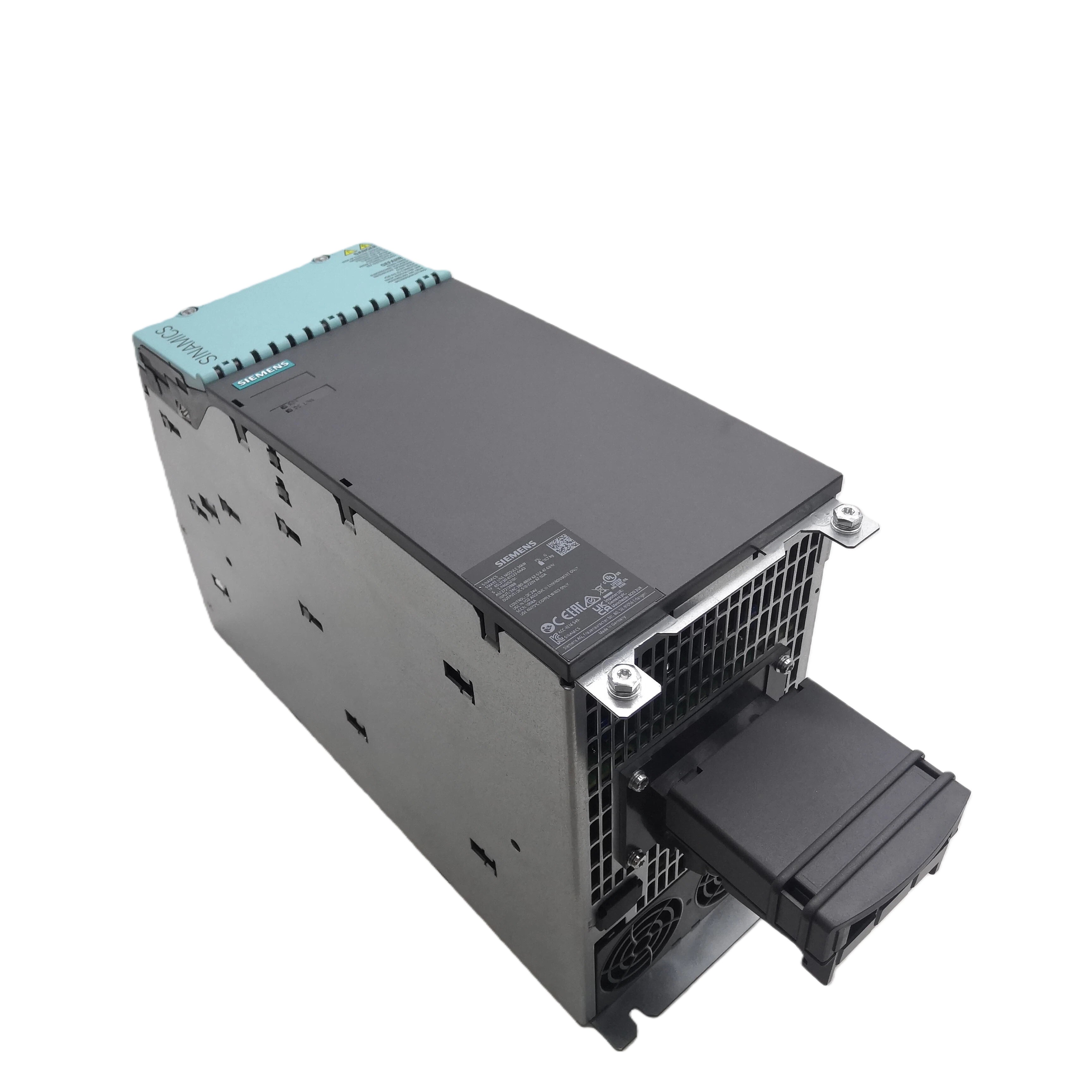

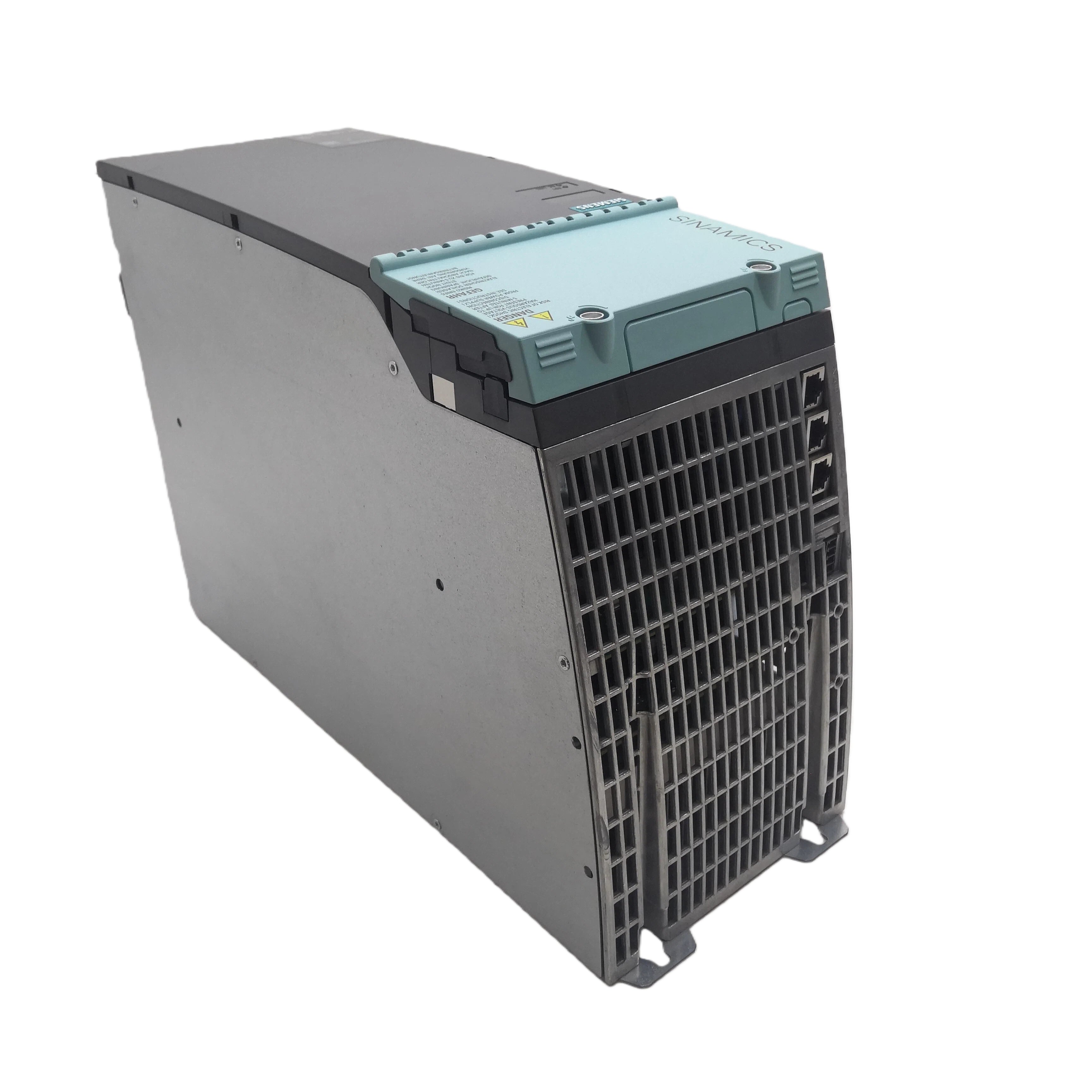

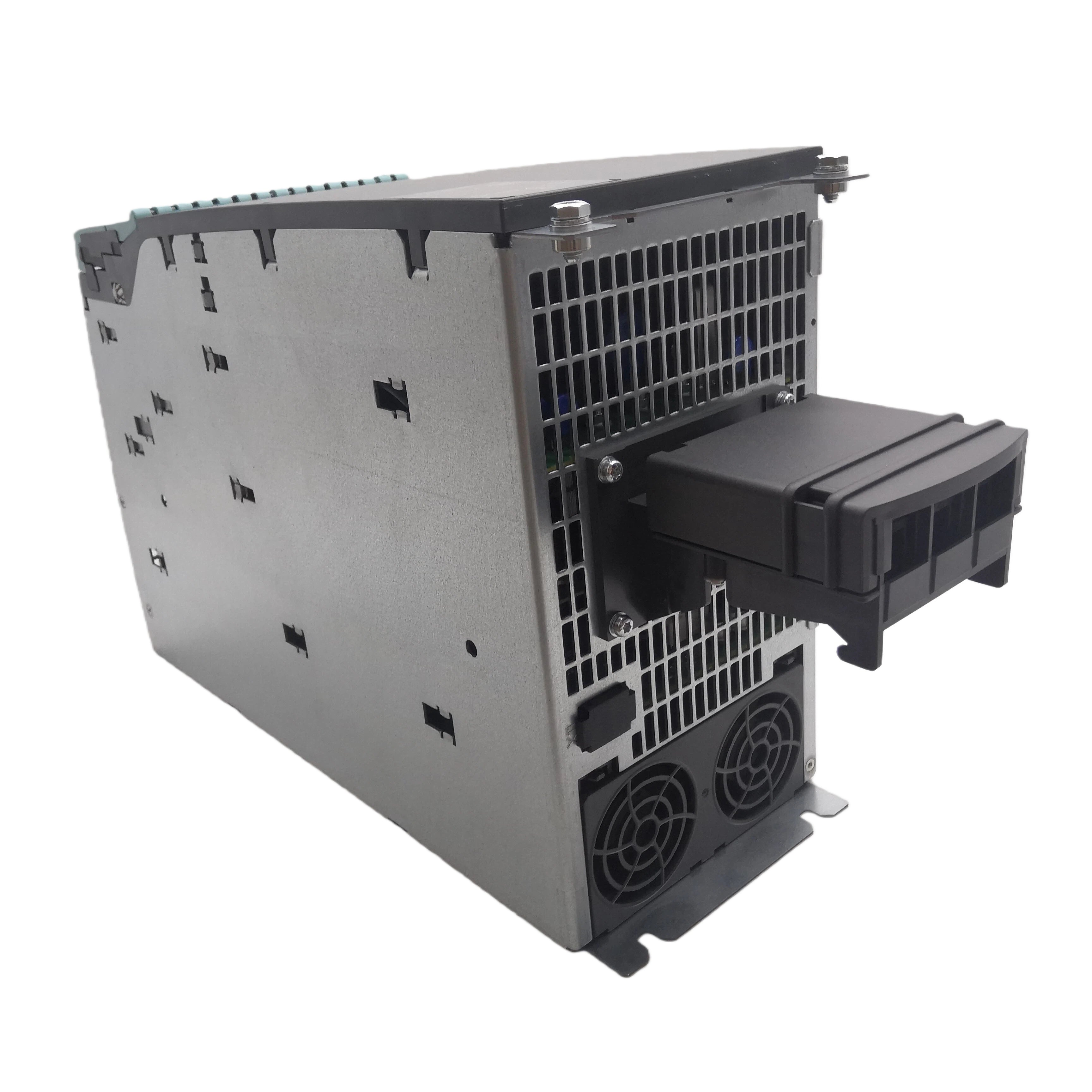

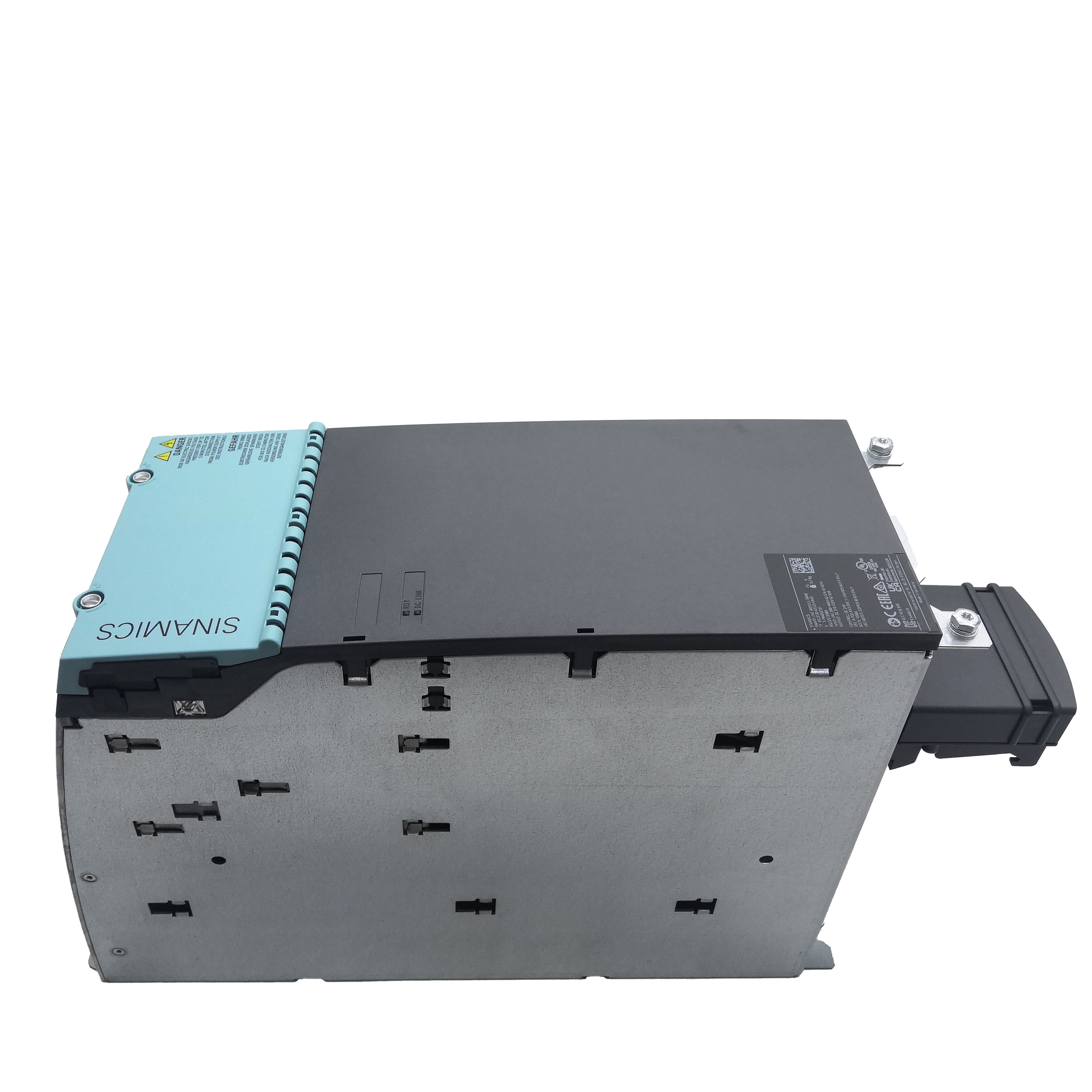

6SL3130-6TE23-6AA3 | New Original Siemens S120 Smart Line Module ⚡
100% Brand New & Original Siemens Genuine Product ✅
Core component of Siemens SINAMICS S120 series, designed for high-performance industrial automation multi-axis drive systems, with compact booksize structure and reliable IP20 protection grade, perfectly adapted to harsh industrial working environments.
📌 Core Technical Parameters
- Power Rating: 36kW rated / 47kW S6 duty / 70kW maximum
- Input: 3AC 380-480V (342~528V) , 47~63Hz | 62A@380V / 59A@400V / 51A@480V
- Output: DC 600V, 60A | 67A@540V DC | 118A maximum DC-link current
- Cooling Mode: Internal air cooling 🌀
- Mechanical Size: 150mm(W)×380mm(H)×270mm(D) | Net weight 10.0kg
- Regenerative Feedback: 36kW rated regenerative power, energy feedback function
- Communication: Support Profibus DP + Drive-Cliq cable (included) 📡
- Ambient Temperature: 0~40℃ (32~104°F) | Installation altitude ≤1000m
- Certification: CE, cULus compliant 📜
- DC Link Capacitance: 1,410 µf | Short-circuit strength 65kA
✨ Key Product Advantages
- Efficient Energy Management ♻️: Public DC bus design, realize energy sharing between multi-inverter units, reduce system energy consumption by 15%-20% for film production, packaging and papermaking industries.
- Intelligent Diagnosis & Protection 🚨: Built-in overheat protection, self-test function and fault code prompt; detect ±10% voltage fluctuation, motor connection fault in real time, shorten equipment downtime.
- High Precision Multi-axis Control 🎯: Cooperate with S7-1500 PLC/SIMOTION controller, realize multi-axis synchronous control with positioning error ≤±0.1%, positioning accuracy up to 0.01mm for CNC machine tools.
- Modular Design 🔧: Fast replacement of components, high equipment availability; flexible combination with other S120 series modules to customize drive solutions.
- Integrated Safety Functions: Meet SIL 2 (EN 61508) and PL d (EN ISO 13849-1) safety standards, with STO/SBC/SS1 and other safety functions.
🏭 Typical Application Scenarios
- CNC Machine Tools: Realize automatic tool management and high-precision feed axis positioning 🛠️
- Film/Printing Production Lines: High-speed sorting and speed chain control, response time ≤2ms, 30% throughput improvement 📦
- Intelligent Warehousing Systems: Precise scheduling of logistics equipment and distributed I/O node control 📦
- Packaging/Papermaking Machinery: Energy-saving operation and multi-axis coordinated drive 📄
- Industrial Assembly Lines: High-dynamic motion control and synchronous operation of multiple equipment 🚥
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SINAMICS S120 |
| Product Type | Smart Line Module |
| Part Number | 6SL3130-6TE23-6AA3 |
| Input Voltage | 3-phase AC 380–480 V |
| Frequency | 50 / 60 Hz |
| DC Link Voltage | 600 V DC |
| Rated Output Current | approx. 60 A |
| Rated Power | approx. 36 kW |
| Cooling Method | Internal Air Cooling |
| Form Factor | Booksize |
| Protection Class | IP20 |
| Condition | New Original |
| Mounting | Control Cabinet |
📩 After-sales & Guarantee
- New original genuine product with original factory technical support
- Stable performance, long service life for industrial continuous operation
