TC-IDJ161 New Original TCIDJ161 Honeywell PLC Module

Honeywell TC-IDJ161 — Experion PKS 16-Channel 24VDC Digital Input Module | New Original

The TC-IDJ161 is a genuine Honeywell digital input module designed for use within the Experion PKS (Process Knowledge System) distributed control system. It provides 16 channels of 24VDC discrete input to the controller, making it a core component in process plant I/O cabinets where field signals from pushbuttons, position switches, motor run feedbacks, and valve limit switches need to be brought into the Experion control network.

This module belongs to the Series C I/O family, which pairs with the Honeywell C300 Controller and ACE (Application Control Environment) in large-scale DCS installations — refineries, petrochemical plants, power generation facilities, and offshore platforms where Experion PKS is the standard control platform.

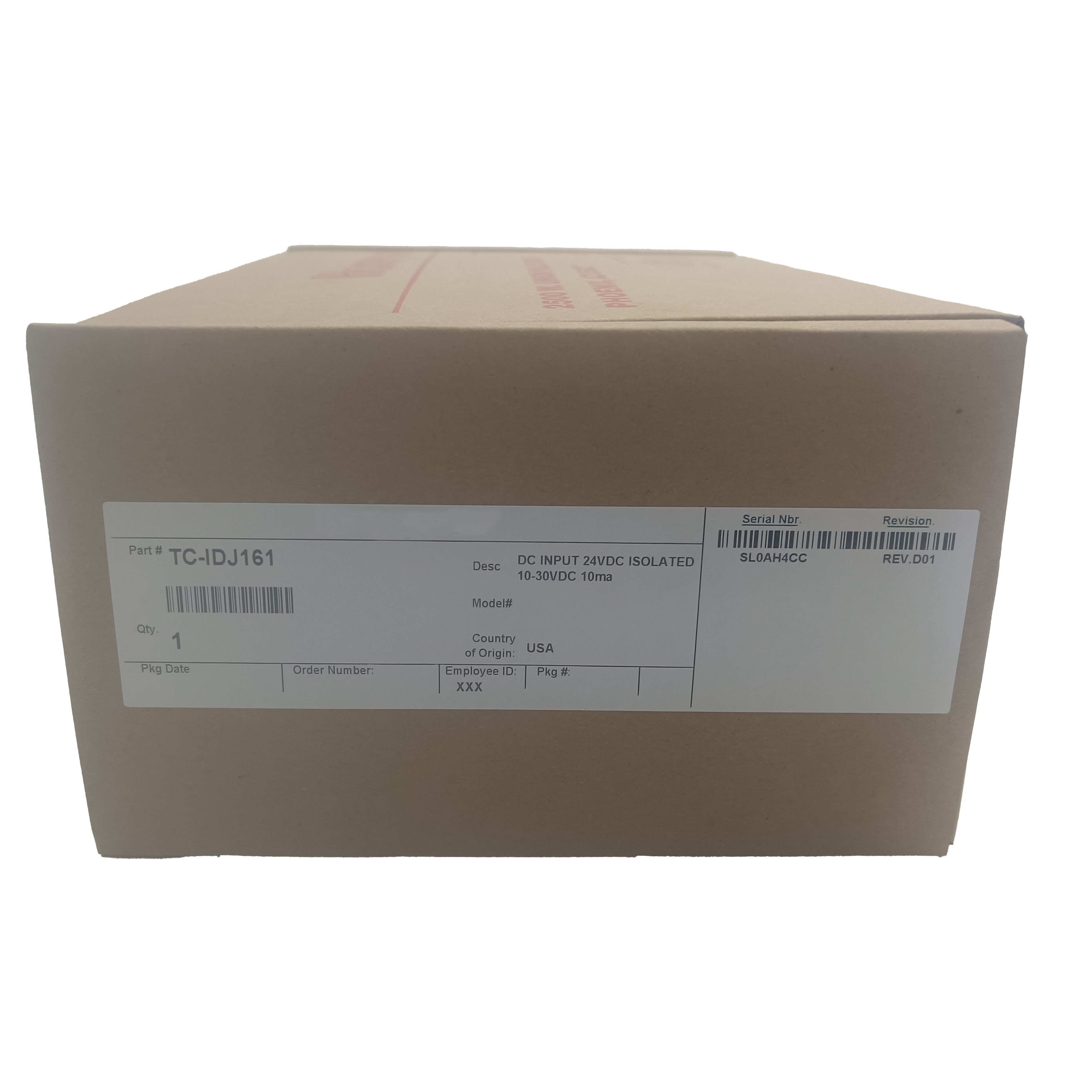

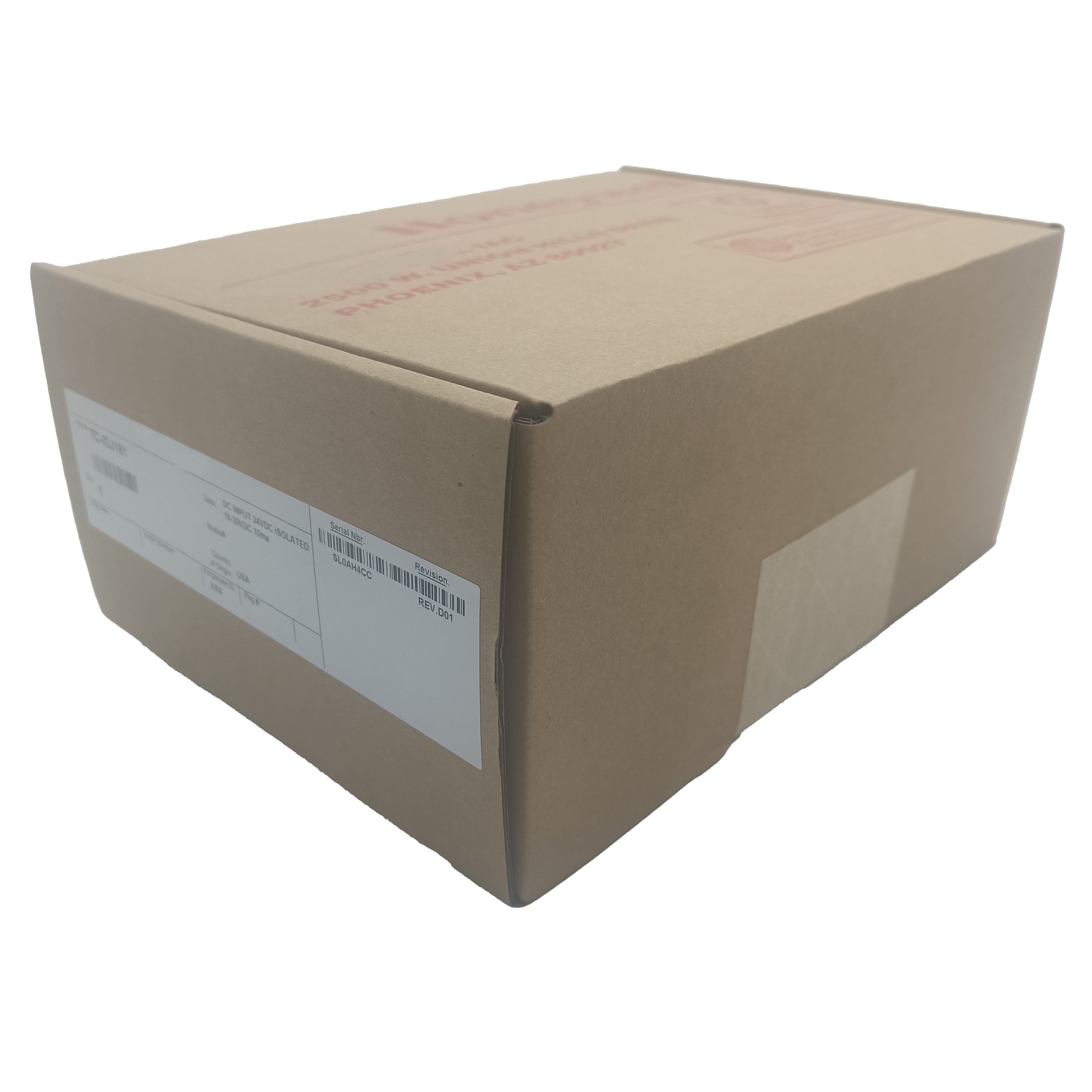

✅ New Original. Factory sealed. Serial number traceable.

Part Number Breakdown

TC — Terminal/Controller I/O module identifier within Honeywell's Series C family.

ID — Input, Digital. This confirms it's a discrete (digital) input module, not analog (AI/AO) or digital output (DO).

J — 24VDC input voltage class. The "J" designator in Honeywell's Series C I/O numbering indicates 24VDC field input voltage, the standard for most process plant installations.

161 — 16-channel, single-slot form factor. The first two digits (16) indicate channel count; the final digit (1) indicates a standard single-slot module configuration.

Technical Specifications

Series C I/O Architecture — How TC-IDJ161 Fits In

Understanding where the TC-IDJ161 sits in the Experion system helps when planning replacements or expansions. Honeywell's Series C I/O uses a card/IOTA architecture: the electronic module (the TC-IDJ161 itself) plugs into a termination board called an IOTA (Input/Output Termination Assembly). Field wiring connects to the IOTA, not to the module directly.

This is an important design choice for maintenance. When a module fails or needs replacement, you pull the TC-IDJ161 out of its IOTA slot without disturbing the field wiring at all. For a plant with hundreds of I/O channels, this is significant — a card swap takes minutes rather than the hours it would take to rewire a module with direct field connections.

The TC-IDJ161 is compatible with the following IOTA termination assemblies: TC-FPDXX2 (field power distribution) and standard digital input IOTAs in the Series C family. Always verify your specific IOTA revision against Honeywell's compatibility matrix before ordering, as IOTA revisions sometimes limit compatible module hardware revisions.

TC-IDJ161 vs Comparable Honeywell DI Modules

For new installations in 24VDC field environments, the TC-IDJ161 is the standard choice. The TC-IDJ1681 adds redundancy support if the application requires fault-tolerant I/O — this matters in SIL-rated safety loops where the I/O module is within the SIL boundary.

Applications in Process Industry

Refinery and petrochemical DCS — motor run feedbacks, valve position switches, pressure switch high/low alarms, flow switch inputs in unit operations running under Experion PKS with C300 controllers.

Power generation — turbine auxiliary equipment status inputs, breaker position feedbacks, motor start/stop status in coal, gas, or nuclear plants where Experion is the plant DCS.

Offshore platforms — wellhead equipment status monitoring, fire and gas panel discrete inputs integrated into the Experion safety and control architecture.

Pharmaceutical batch — equipment status monitoring in batch operations where Experion is used as the manufacturing execution system backbone.

Spare parts inventory — many major process plants maintain a stock of TC-IDJ161 modules as critical spares to minimize downtime when field modules fail unexpectedly.

❓ FAQ — Honeywell TC-IDJ161

Q1: What DCS system is TC-IDJ161 compatible with?

The TC-IDJ161 is designed exclusively for the Honeywell Experion PKS distributed control system, specifically for use with the C300 Controller and ACE (Application Control Environment). It is not compatible with Honeywell's older TDC 3000 / HPM I/O family or the PlantScape system, even though some physical connections look similar. If your plant runs TDC 3000, you need the older HPM I/O modules (MC-TDIY22, etc.), not Series C modules like the TC-IDJ161.

Q2: Does this module require an IOTA (termination board) to operate?

 Yes — the TC-IDJ161 alone cannot be wired directly. It must plug into a compatible Series C IOTA termination assembly, which provides the backplane connector and the field wiring terminals. The IOTA stays in the cabinet and connects to field cables permanently; the TC-IDJ161 plugs into the IOTA and can be removed for replacement without disconnecting field wiring. Confirm your IOTA part number before ordering the module, as IOTA revisions can affect module compatibility.

Q3: Can the TC-IDJ161 be hot-swapped while the system is running?

 Yes, hot swap is supported in Experion PKS Series C I/O when using compatible IOTAs and a C300 controller running firmware that supports this feature. The channel status for that module will show "offline" briefly during the swap, and the C300 will re-recognize the module automatically when reinserted. However, process interlocks or control logic that reads inputs from this module will see the inputs as off/false during the swap interval — always coordinate with the process operator and confirm safe conditions before hot-swapping in a live control environment.

Q4: What's the input voltage threshold for a valid ON signal?

The TC-IDJ161 reads inputs as logic ON when the field voltage is in the range of approximately 18–30V DC. Below 5V DC is interpreted as logic OFF. The range between 5–18V is an undefined transition zone where the input state is indeterminate — well-designed field wiring should ensure inputs are either fully energized (24V from field power) or de-energized (0V), never floating or sitting in the transition range. If you're seeing intermittent input errors, check field wiring for voltage drops that bring the input below 18V under load.

Q5: Is there a newer replacement for TC-IDJ161 in current Honeywell product lines?

Honeywell continues to produce and support the TC-IDJ161 as part of the current Experion PKS Series C I/O family. It has not been superseded for standard DI applications. For plants upgrading to Experion PKS R500 or later software, verify controller firmware compatibility — the C300 hardware itself is backward compatible across a wide firmware range, but Honeywell's compatibility matrix should always be checked for specific revision combinations. Contact Honeywell or an authorized integrator if you're replacing modules in a system running older Experion software versions.

Q6: Can I use TC-IDJ161 inputs for SIL safety loops?

The TC-IDJ161 itself is not independently certified as a SIL-rated safety I/O module for use in IEC 61508 functional safety architectures. For safety-instrumented systems requiring SIL 2 or higher, Honeywell's Safety Manager system with dedicated safety I/O is the appropriate platform. The TC-IDJ161 is suitable for basic process control and monitoring within Experion PKS, including alarms and shutdowns managed by the C300 — but formal SIL claims require the Safety Manager architecture with certified SIL I/O modules.

Q7: How do I identify a genuine TC-IDJ161 vs counterfeit?

Genuine Honeywell Series C modules have a holographic label with a serial number on the side of the module, a part number label matching the catalog number, and Honeywell's standard production date coding on the label. The PCB inside shows Honeywell manufacturing marks and conformal coating consistent with industrial-grade production. Modules sourced from unverified brokers occasionally turn out to be refurbished units relabeled as new — always request a photo of the sealed box and the module label, and verify the serial number with Honeywell's product authentication service if the provenance is uncertain.
