A06B-6141-H022#H580 Fanuc Servo Driver Genuine A06B6141H022#H580
PRODUCT DETAILS

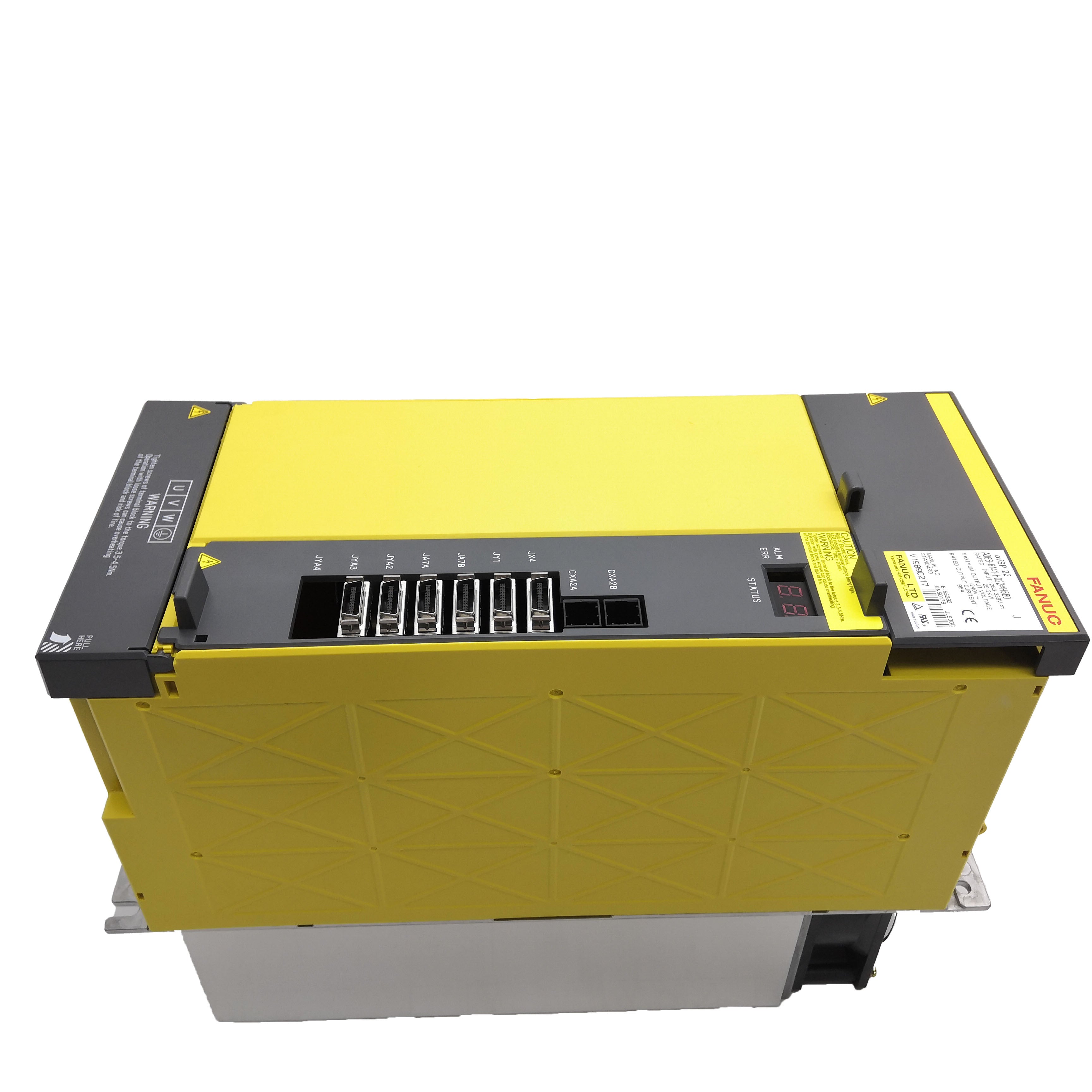

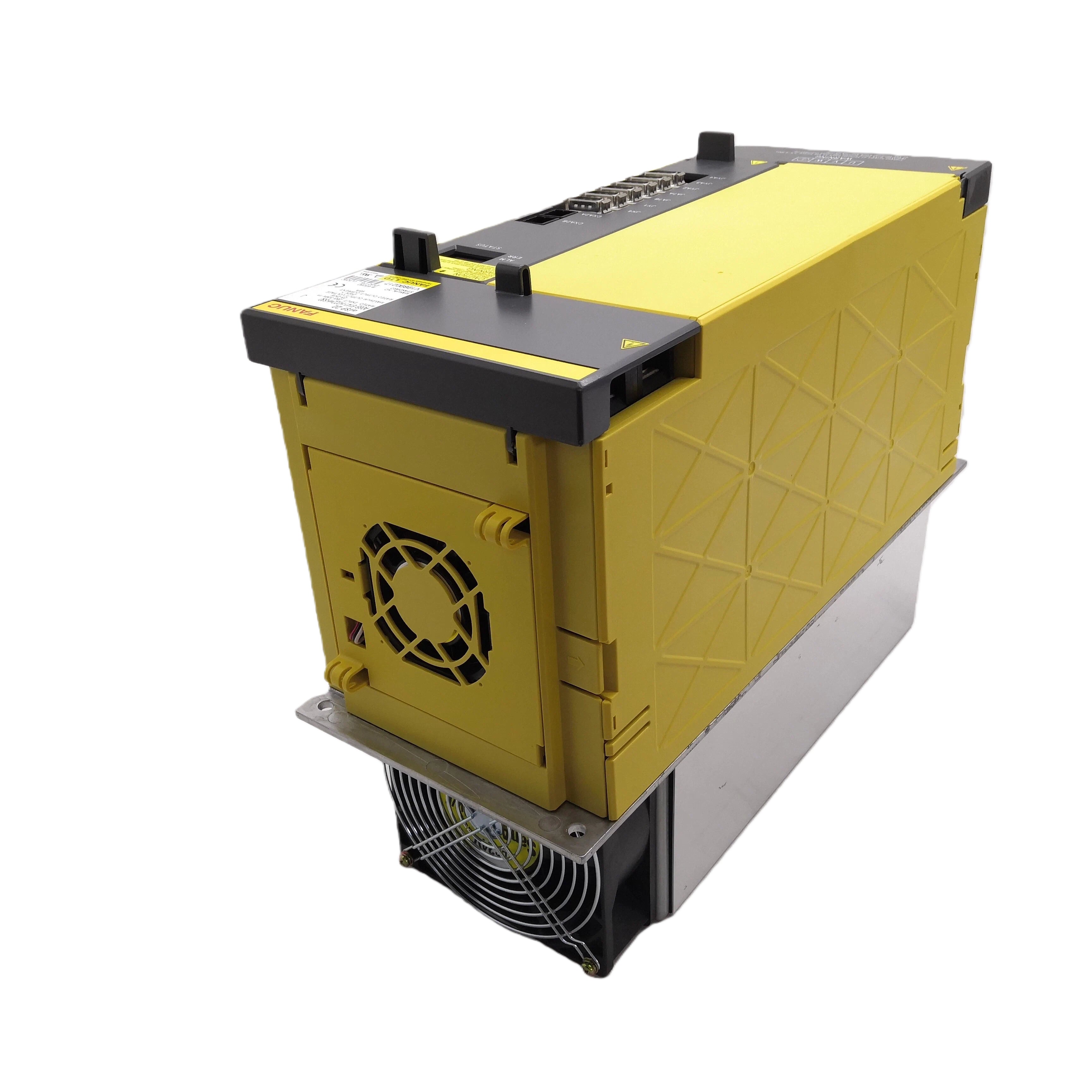

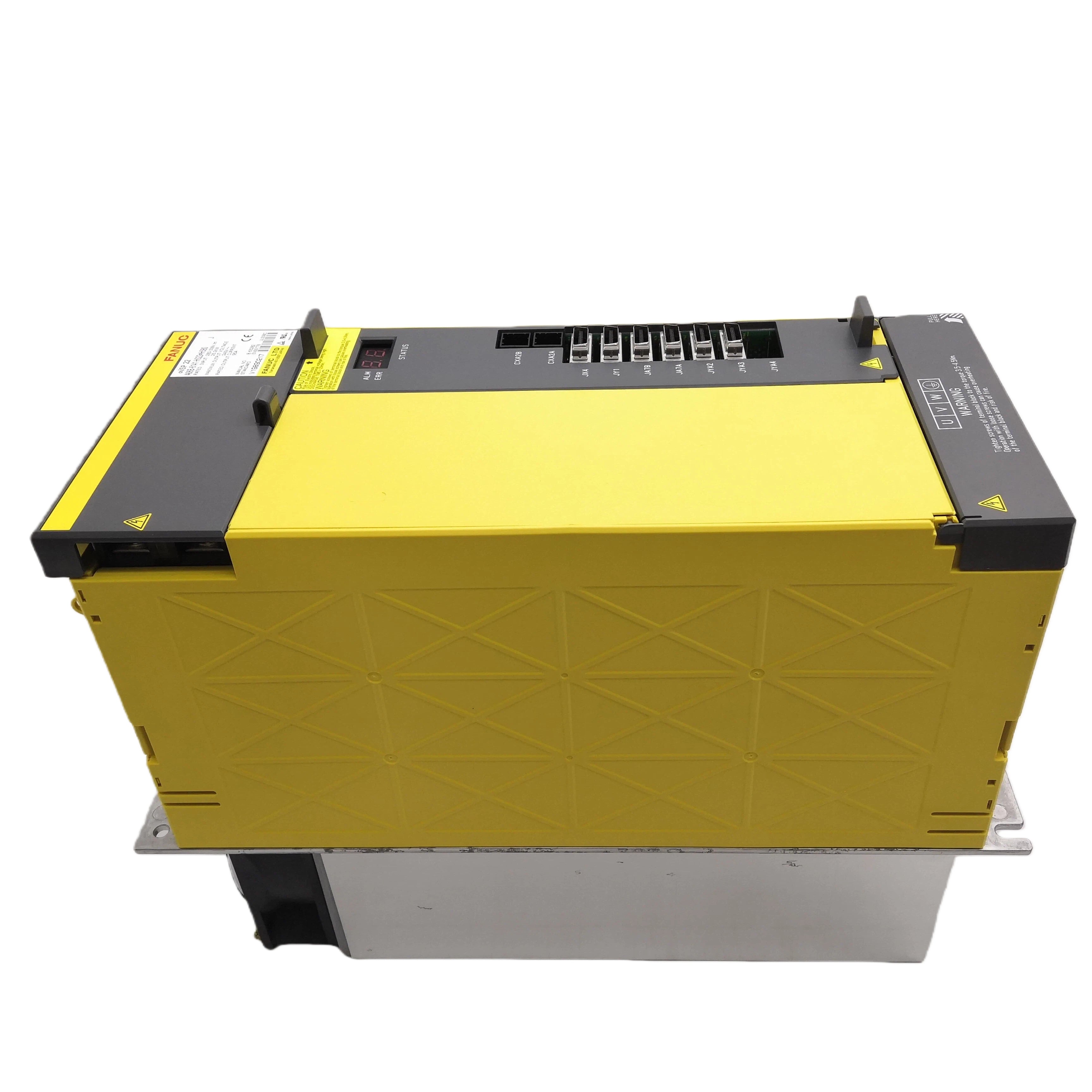

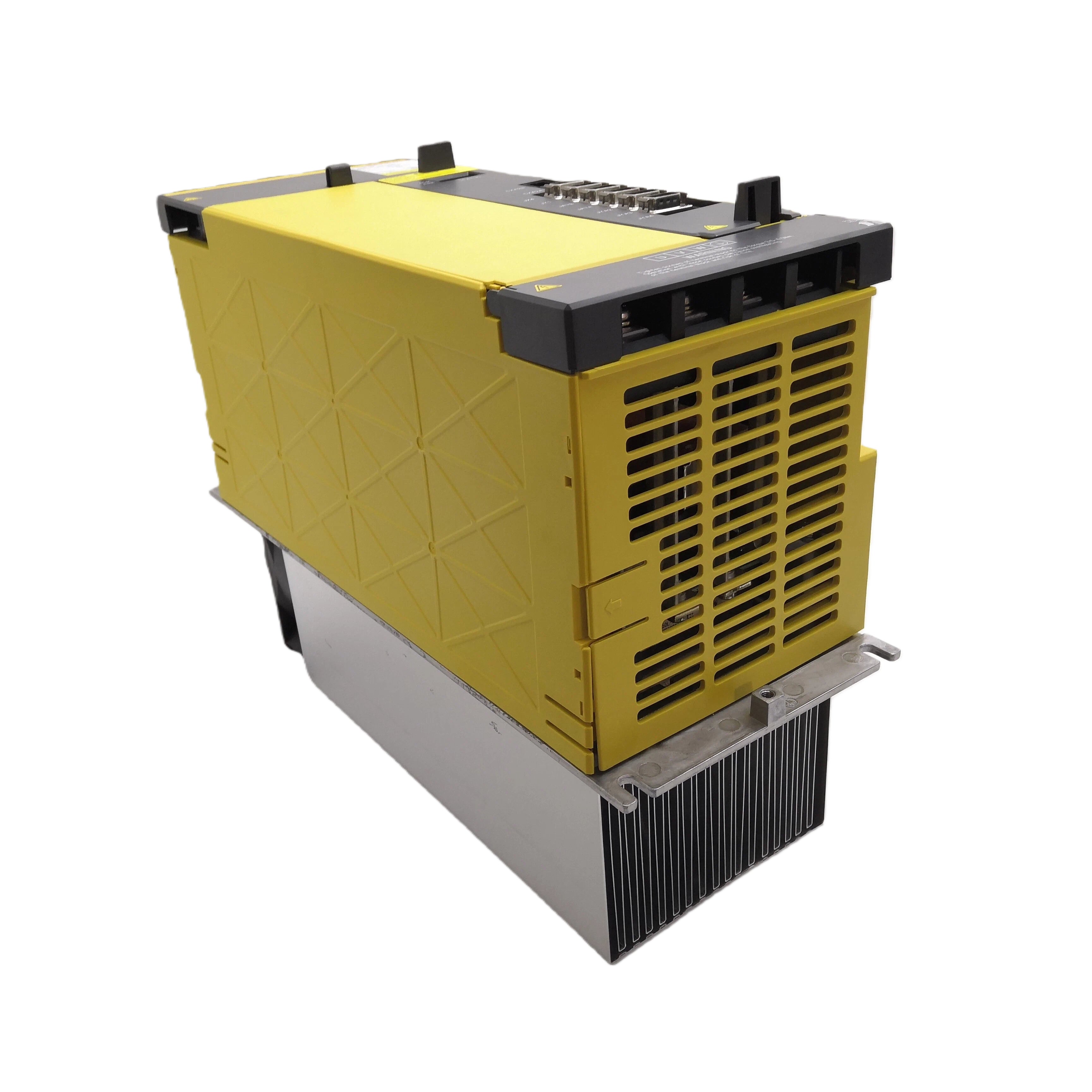

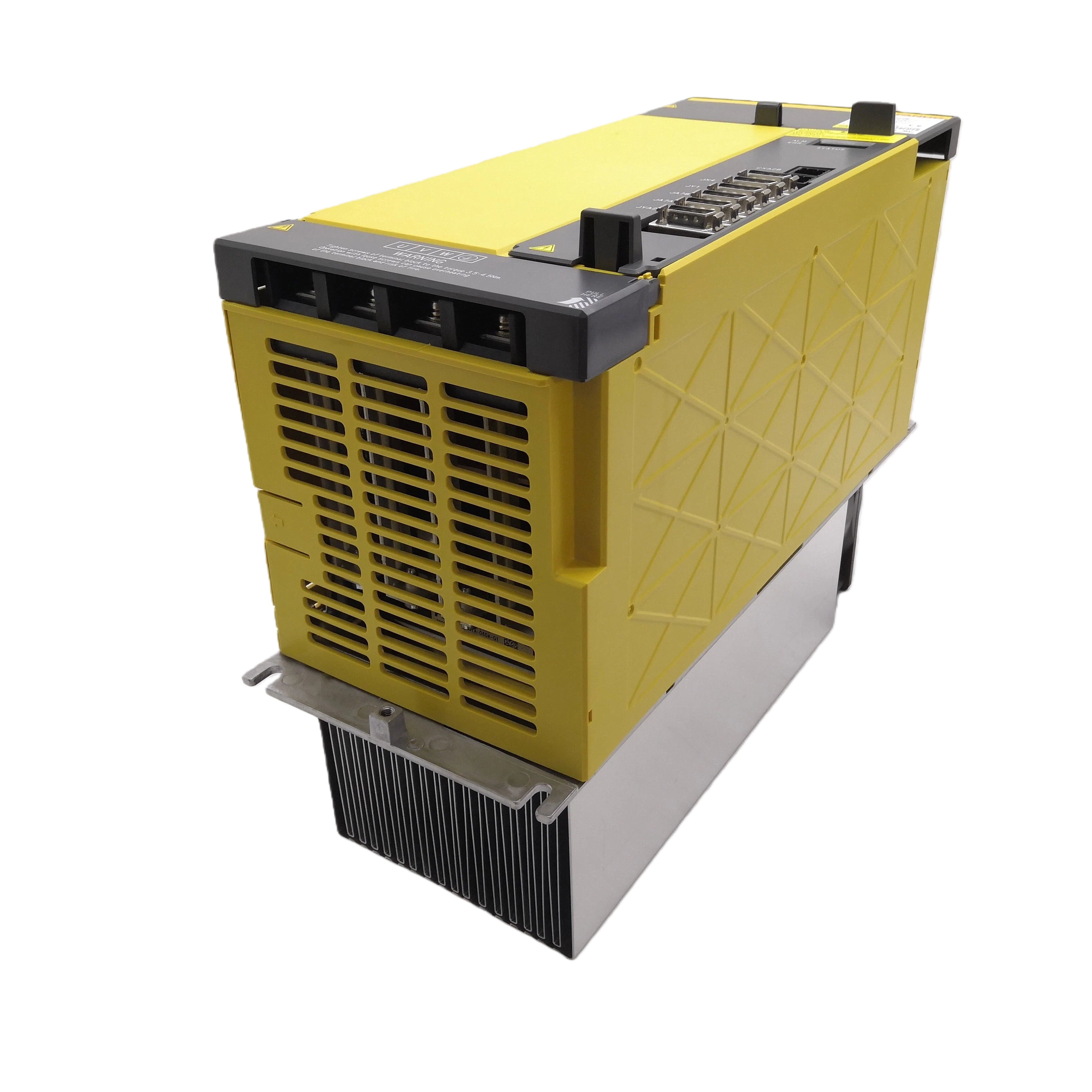

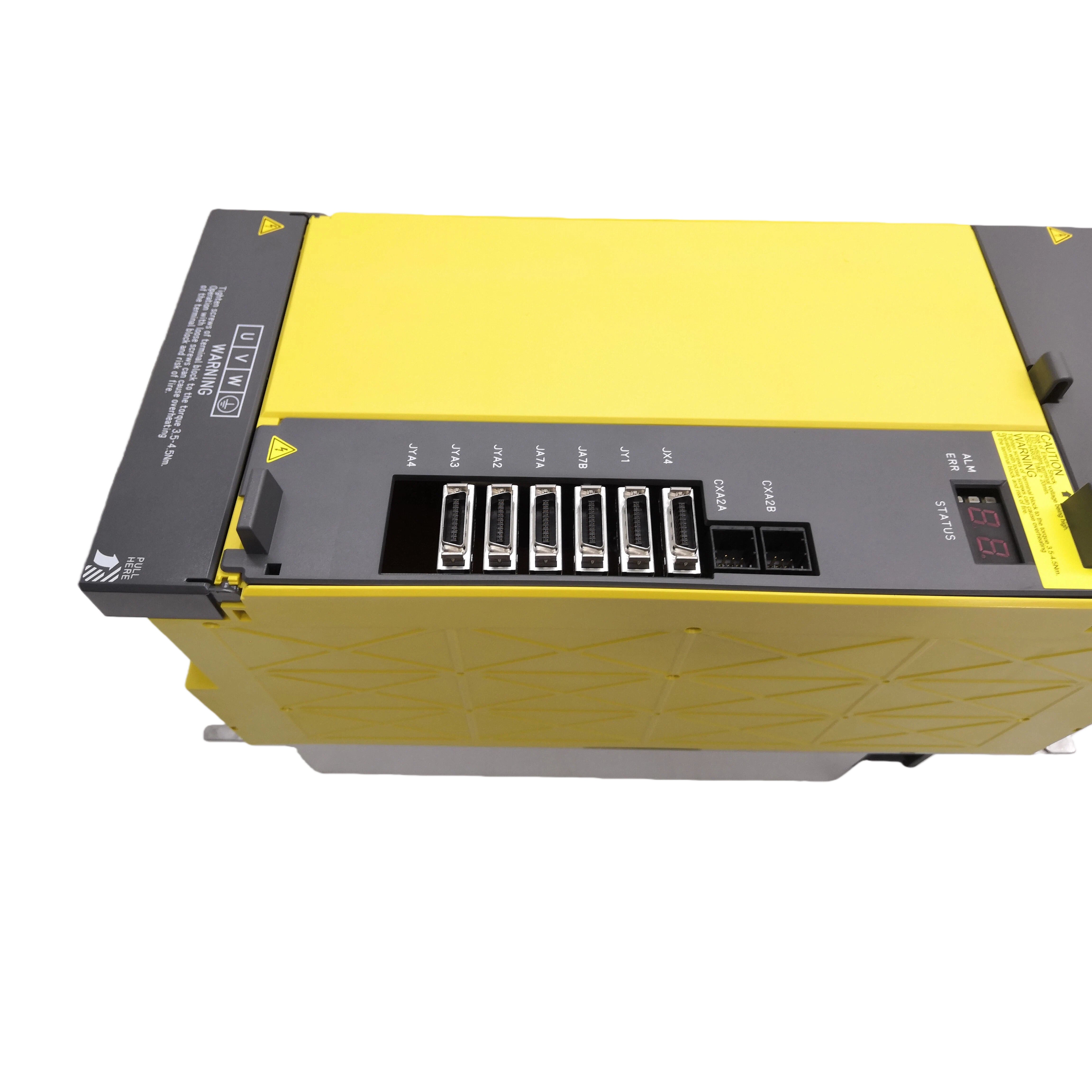

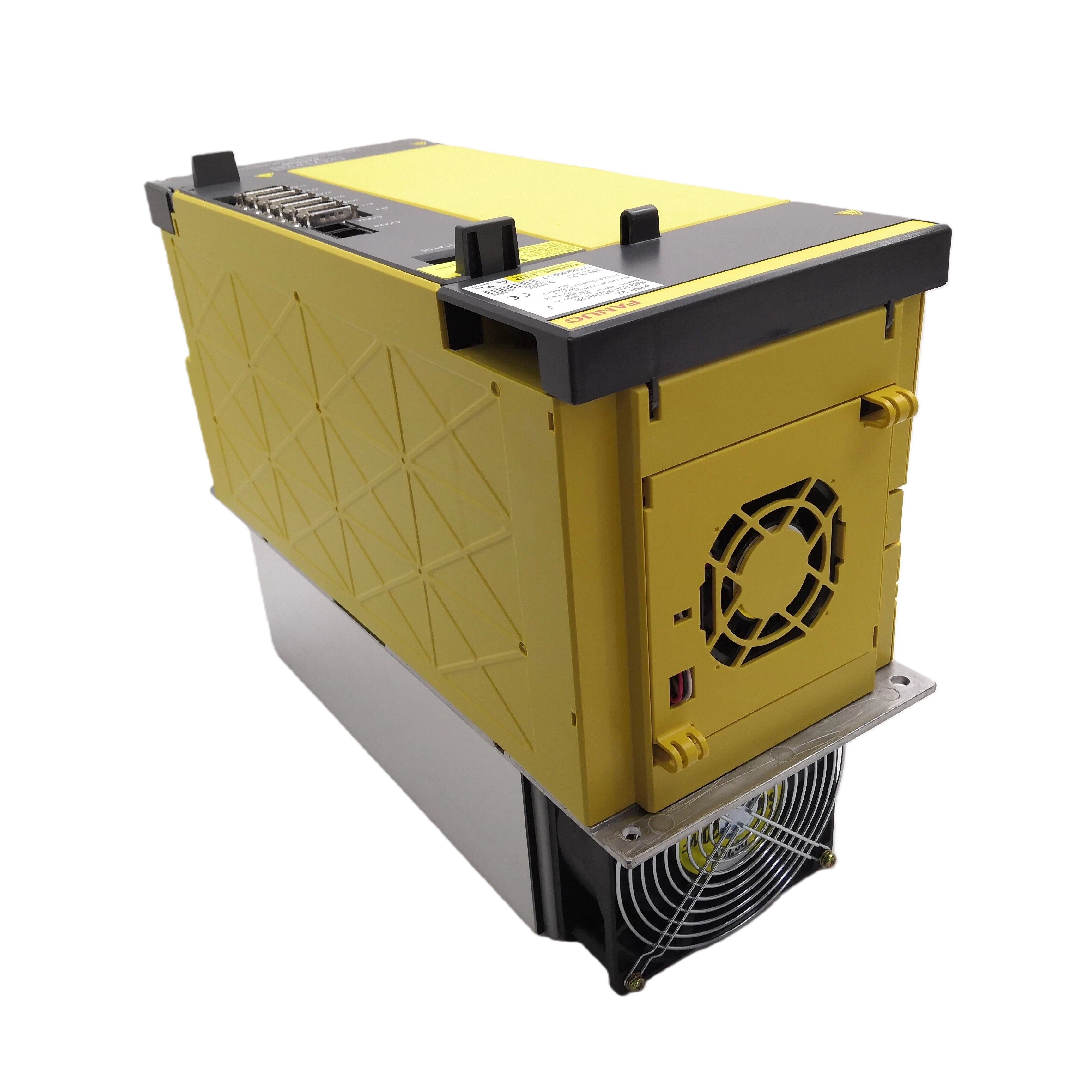

Genuine Fanuc A06B-6141-H022#H580 Servo Driver – High Performance Industrial Automation
Meta Description :
Buy Fanuc A06B-6141-H022#H580 Servo Driver – original, high-precision, reliable industrial servo for CNC machines & automation systems.
Product Overview
Experience next-level precision and reliability with the Fanuc A06B-6141-H022#H580 Servo Driver. Engineered for high-performance CNC machines and industrial automation, this genuine servo amplifier delivers exceptional torque accuracy, ultra-fast response, and robust protection, making it a top choice for demanding manufacturing environments. Designed to optimize machine uptime and motion control performance, it integrates seamlessly with Fanuc servo motors to provide stable and efficient operation.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | A06B-6141-H022#H580 |
| Type | AC Servo Driver / Amplifier |
| Compatible Motors | Fanuc αi/αiF Series Servo Motors |
| Rated Input Voltage | 200–230 V AC |
| Output Current | 10 A RMS (continuous) |
| Control Method | Pulse train / Analog / Digital (depends on CNC) |
| Feedback | Absolute / Incremental Encoder Compatible |
| Response Time | <1 ms (servo loop) |
| Protection Features | Overcurrent, Overvoltage, Thermal, Short Circuit |
| Mounting Type | Panel / DIN rail compatible |
| Operating Temperature | 0°C – 55°C |
| Standards Compliance | CE, UL certified |
Product Features & Benefits
-
Genuine Fanuc Quality: Reliable performance in industrial-grade conditions.
-
Precision Motion Control: Smooth torque and accurate positioning for CNC, robotics, and automation.
-
Ultra-Fast Response: Servo loop response <1 ms minimizes overshoot and improves cycle times.
-
Comprehensive Protection: Built-in safeguards against overcurrent, overvoltage, thermal, and short-circuit conditions.
-
Flexible Installation: Compatible with panel or DIN rail setups for easy integration.
-
Wide Motor Support: Works with Fanuc αi / αiF Series Servo Motors and encoder types.
-
Certified Safety: CE and UL compliance ensures industrial-grade reliability.
Ideal Applications
-
CNC Milling, Turning, and Grinding Machines
-
Robotics & Automated Assembly Lines
-
Factory Automation and Process Control
-
High-Precision Motion Systems
📌 FANUC Servo/Spindle Drive Model Comparison
| Model | Drive Type | Input Voltage / Power Class | Output Current | Primary Application |
|---|---|---|---|---|

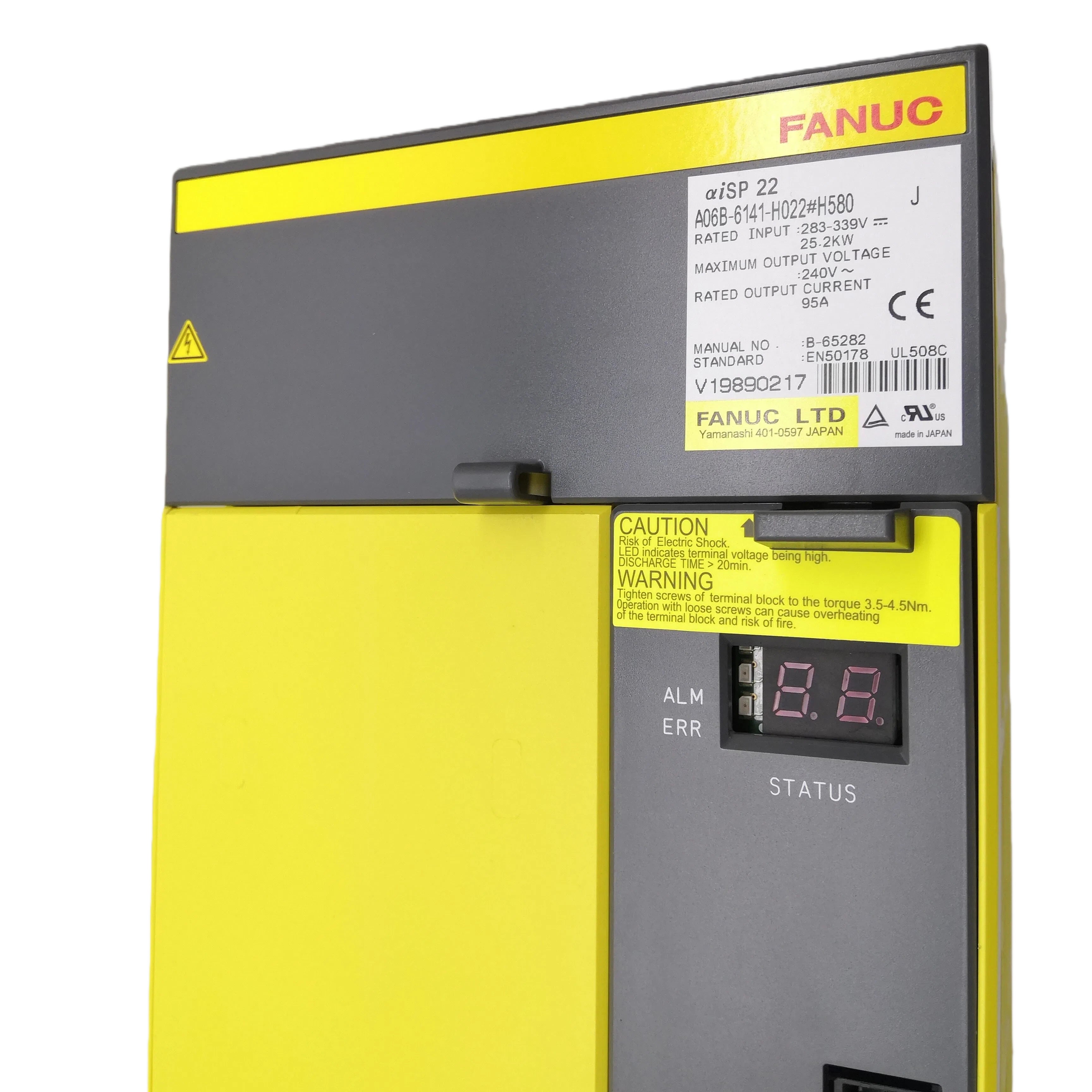

| A06B-6141-H022#H580 | αi Series — Spindle Amplifier | ~283–339 V AC, ≈25.2 kW class | ~95 A | High-power spindle motor control in CNC machines |
| A06B-6141-H015#H580 | αi Series — Servo/Spindle Amplifier | ~283–339 V DC, ≈17.5 kW class | ~63 A | Mid-power axis servo drive / spindle |
| A06B-6141-H011#H580 | αi Series — Spindle/Servo | ~283–339 V | ~48 A | Lower power spindle or high-torque servo |
| A06B-6141-H006#H580 | αi Series — Compact Servo Amplifier | ~200–230 V AC | Lower output | General servo axis drive (compact use) |
| A06B-6240-H105 / H106 | αi Series — Single-Axis Servo Amp | ~200–230 V, FSSB support | Single axis | Standard servo axis drive (position/feed control) |
📊 Key Comparison Points
🔌 1. Power & Functional Differences
-
A06B-6141-H022#H580 is mainly a spindle amplifier with higher power capacity (~25 kW) and higher output current (~95 A) optimized for high-load spindle motors used in CNC machining applications.
-
Other variants such as H015 and H011 are often used for servo axes or lower power spindle operations, with lower power and current ratings.
⚙️ 2. Series & Functional Context
-
These units are part of the FANUC αi (Alpha i) amplifier lineup, which is designed for improved efficiency, thermal performance, and dynamic response compared to older generations.
-
The differing suffix numbers (e.g., H006, H011, H015, H022) indicate internal power scaling within the same hardware family.
📌 3. Typical Fields of Use
| Drive Model | Recommended Use Case |
|---|---|
| H022 (High Current) | High-speed CNC milling / lathe spindle control |
| H015 (Mid-Power) | Mid-level axis servo or smaller main spindle |
| H011 / H006 (Low-Power) | Lower power axis servo, simple positioning axes |
| 6240 Series (Single Axis Servo) | Precision feed axis control on CNC machines |
📈 Summary
✅ A06B-6141-H022#H580
-
Best choice when high-power spindle drive required
-
Higher current, higher thermal capacity
⚠️ Compared to H006 / H011 / H015
-
These are lower power servo/spindle amplifiers
-
More suitable for motion axes or mid-range drive tasks
Why Choose A06B-6141-H022#H580
Designed for engineers and integrators who demand accuracy, speed, and durability, the A06B-6141-H022#H580 Fanuc Servo Driver combines high precision, robust protection, and easy integration, ensuring your automation systems operate at peak efficiency with minimal downtime.
High Conversion
-
✅ Genuine Fanuc Part – A06B-6141-H022#H580 for guaranteed industrial performance
-
✅ High-Precision Motion – Smooth torque and accurate positioning
-
✅ Ultra-Fast Response – Servo loop <1 ms for high-speed CNC operations
-
✅ Built-in Protections – Overcurrent, overvoltage, thermal, and short-circuit safeguards
-
✅ Wide Motor Compatibility – Fanuc αi / αiF Series Servo Motors
-
✅ Standards Certified – CE & UL approved
-
✅ Easy Installation – Panel or DIN rail mountin
