Mitsubishi Servo Motor Spindle Drive MDS-C1-SP-260 for CNC Controller Electric MDSC1SP260
PRODUCT DETAILS

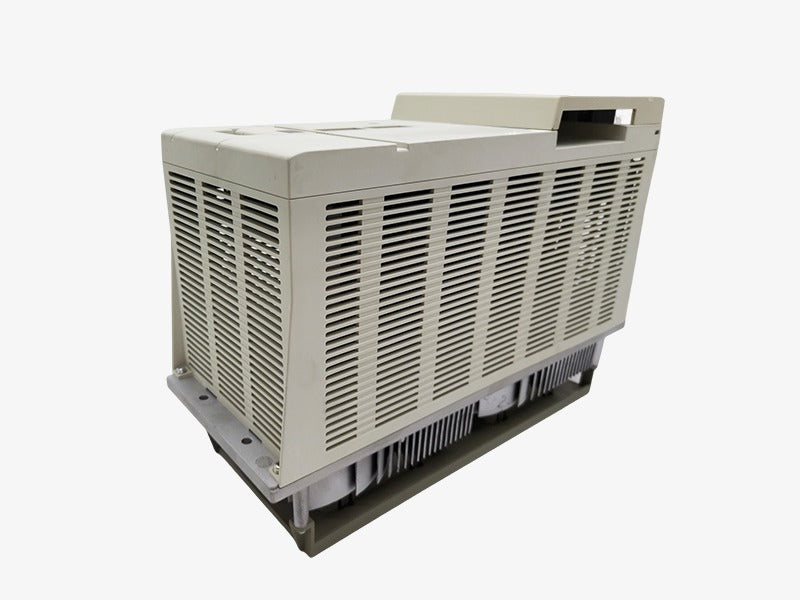

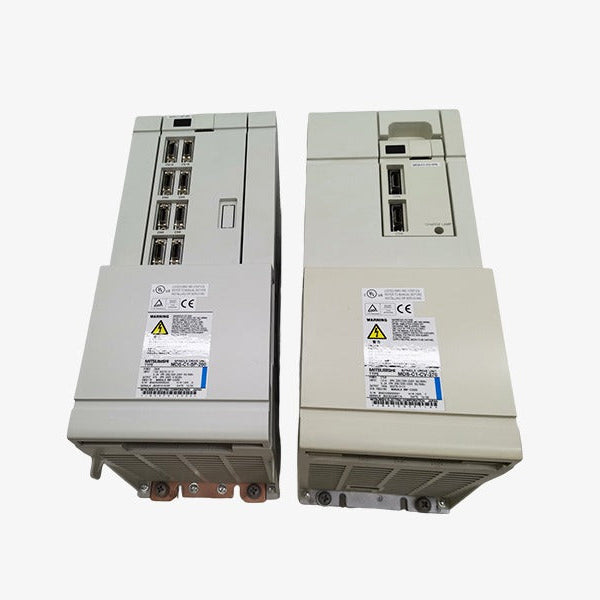

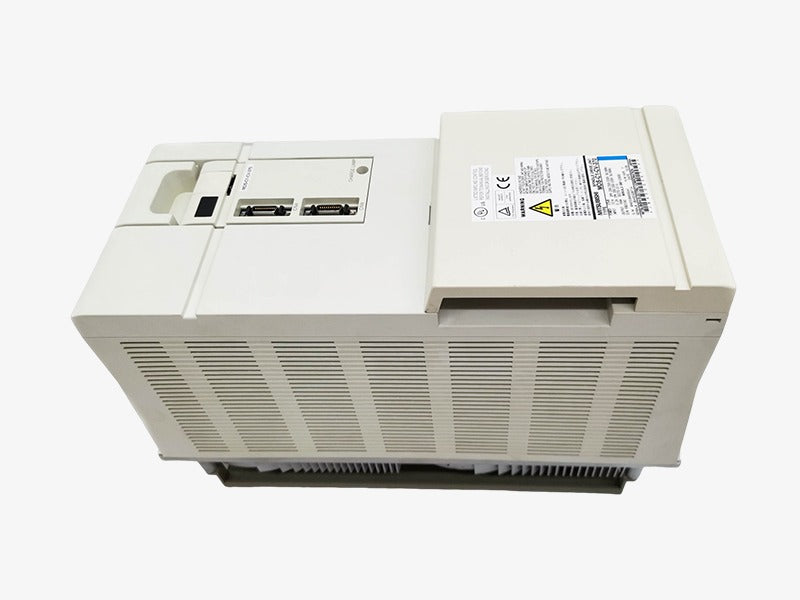

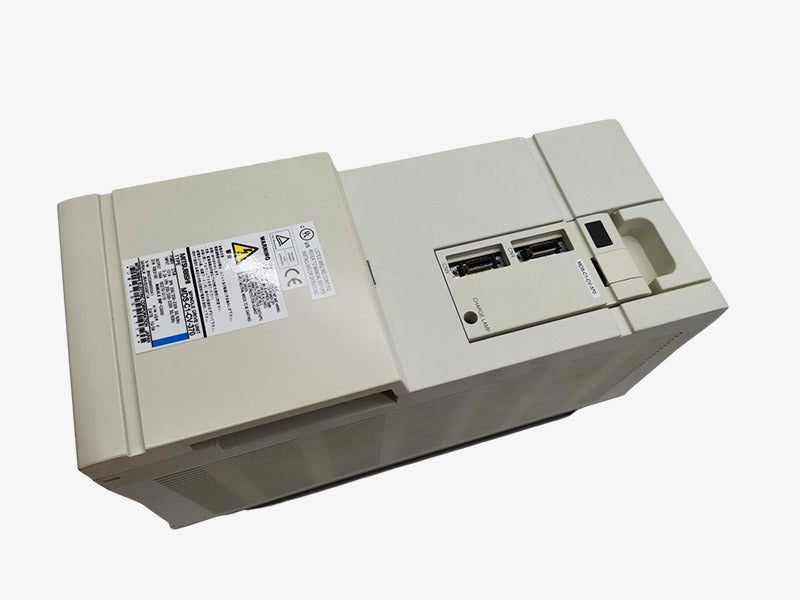

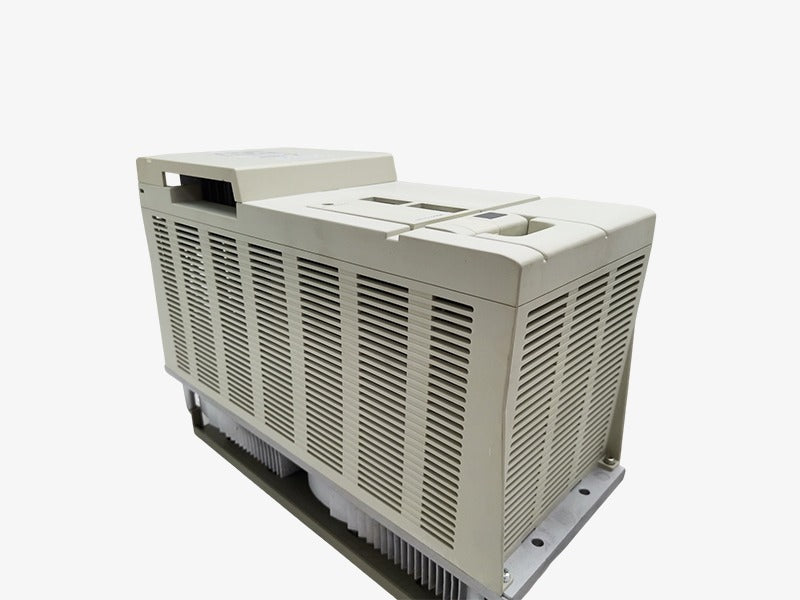

New Original Mitsubishi CNC Servo Drive Amplifier Controller MDS-C1-CV-370 MDS-C1-SP-260
Mitsubishi MDS-C1-CV-370 and MDS-C1-SP-260 servo controller maintenance failure: whether there is display, phase loss, overcurrent, overvoltage, undervoltage, overheating, overload, grounding, parameter error, display output, module damage, Touch screen no display, screen does not light up, black screen, blue screen, flower screen, etc. The company's business involves elevators, machinery, printing, chemical, textile, steel manufacturing, BOPP film and many other industries.
Mitsubishi MDS servo amplifier MDS-C1-CV-370 alarm code query table
AL.10 Undervoltage
AL.12 Memory Exception 1 RAM Exception
AL.13 Clock Exception 2 EEP-ROM Exception
AL.16 Encoder Exception 1 Communication between encoder and servo amplifier is abnormal
AL.17 Board Exception CPU. Component Exception
AL.19 Memory Exception 2 ROM memory abnormal
The AL.1A motor is used with a servo amplifier and the servo motor is incorrectly coordinated
AL.20 Encoder Exception 2 Communication between encoder and servo amplifier is abnormal
AL.24 Motor output ground fault Servo motor output (U.V.W phase) ground fault
AL.25 Location Loss Location data loss
Location system, when power is applied
AL.30 Regenerative braking abnormalities The braking current exceeds the allowable value of the built-in regenerative braking resistor or regenerative braking option
