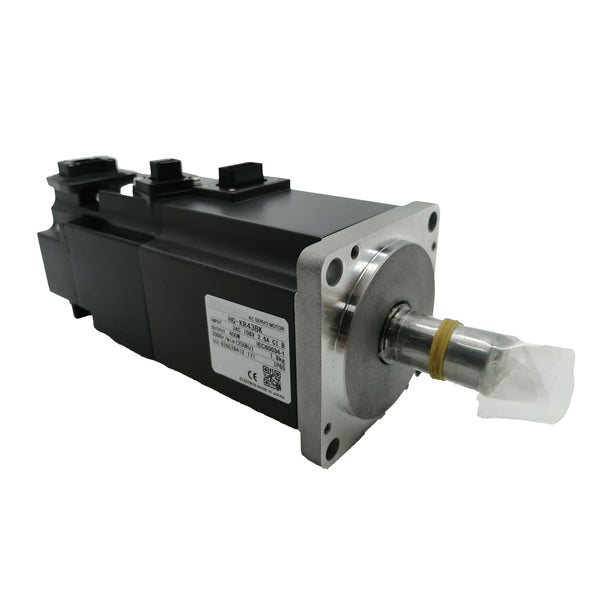

HG-KR43BK 1PC Mitsubishi Servo Motor HGKR43BK New In Box
PRODUCT DETAILS

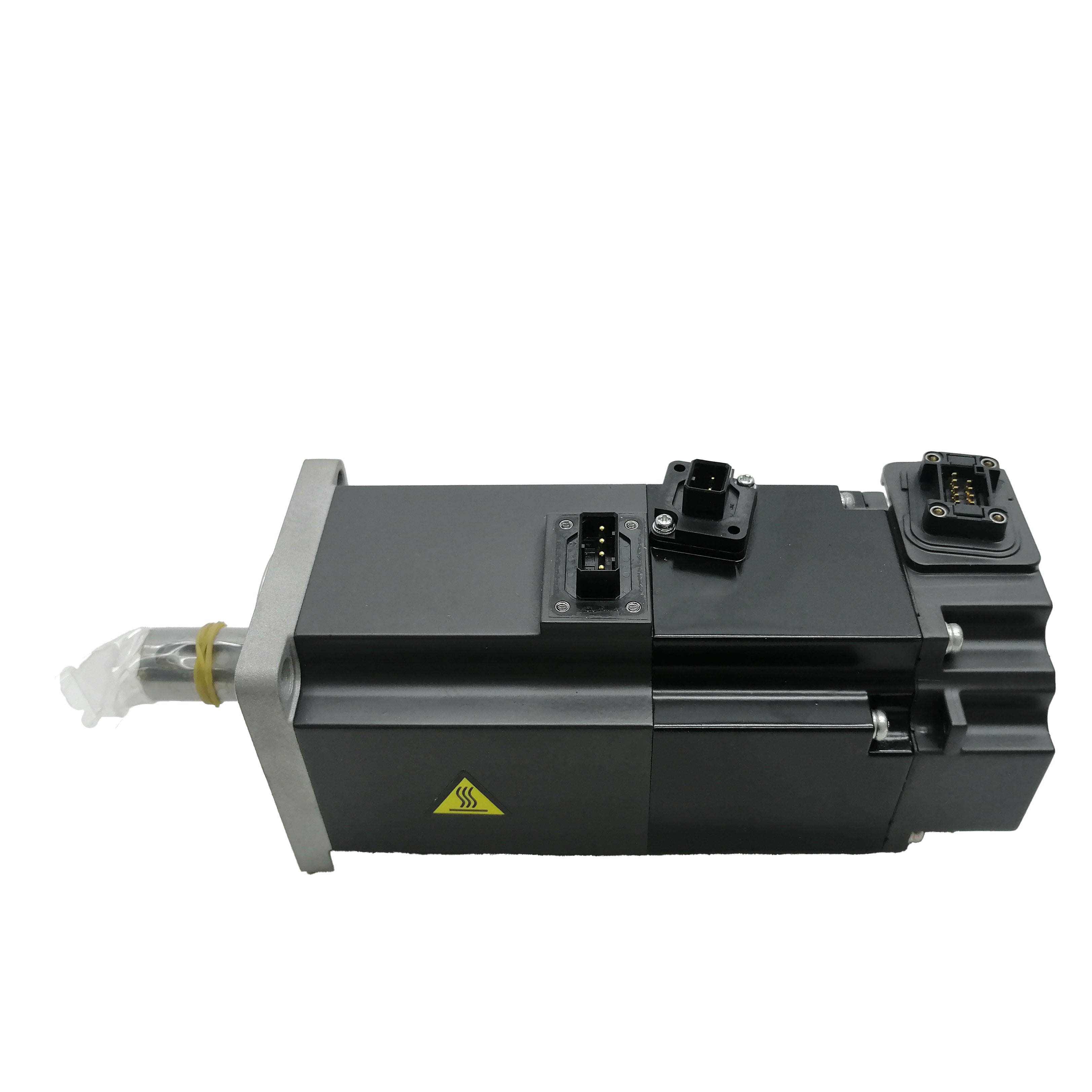

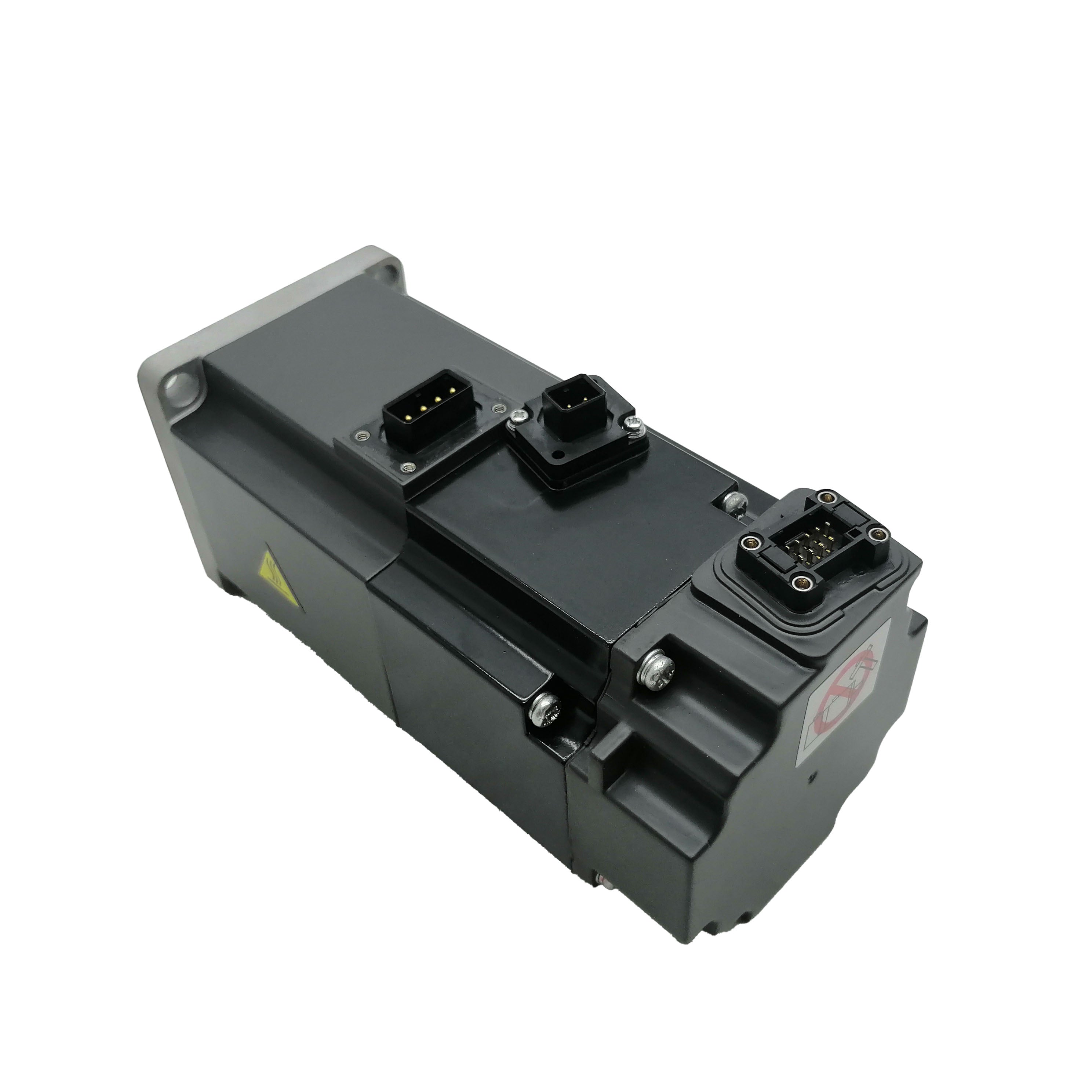

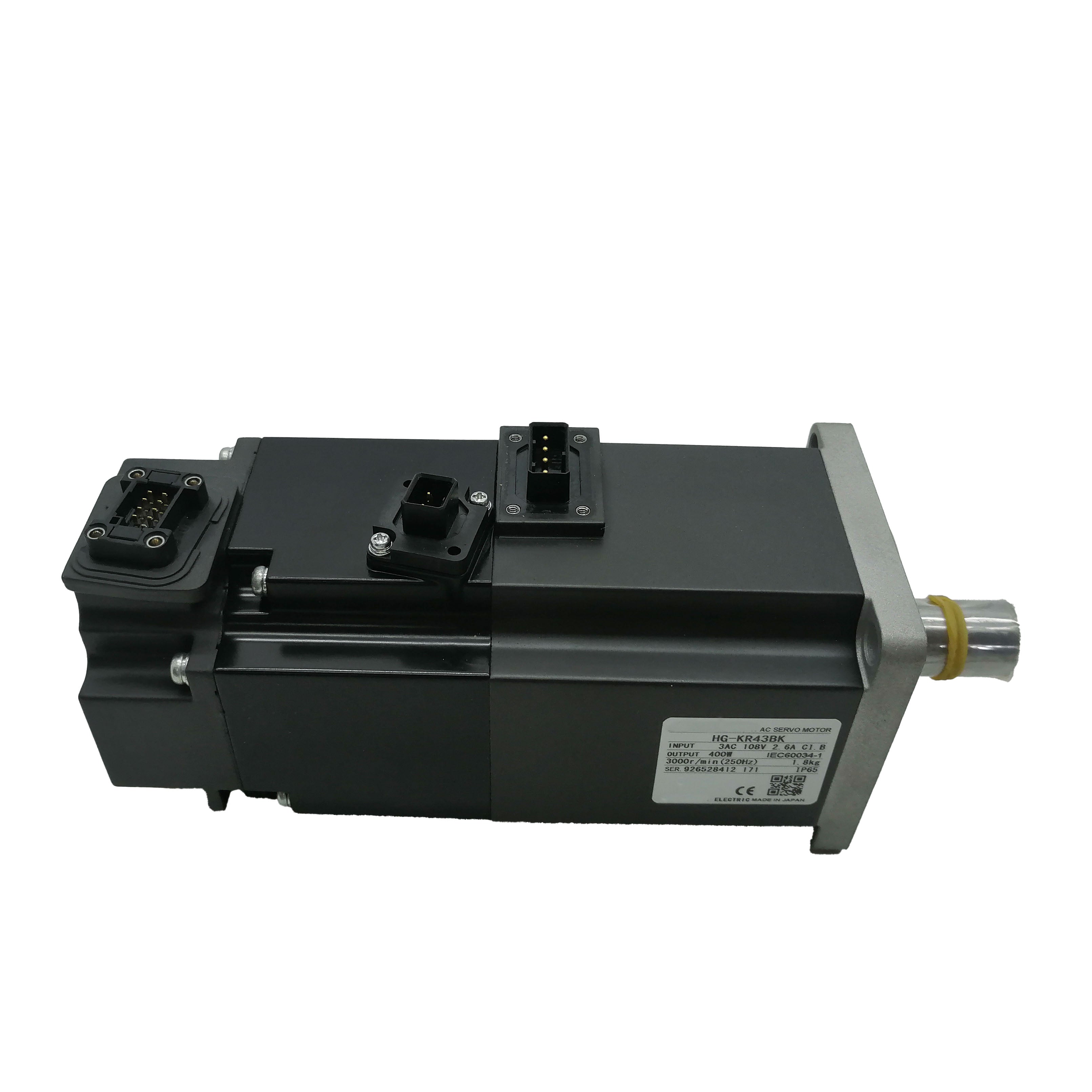

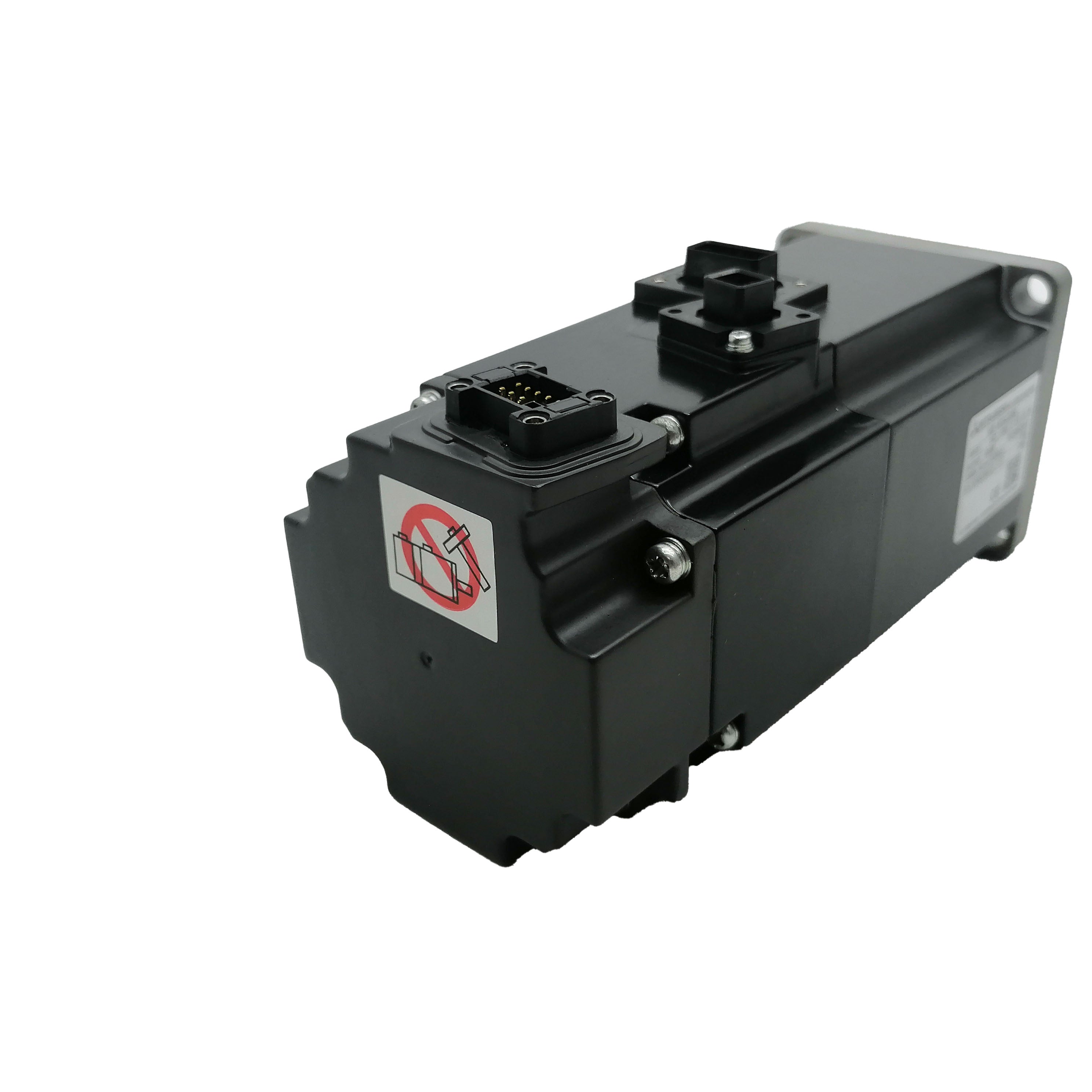

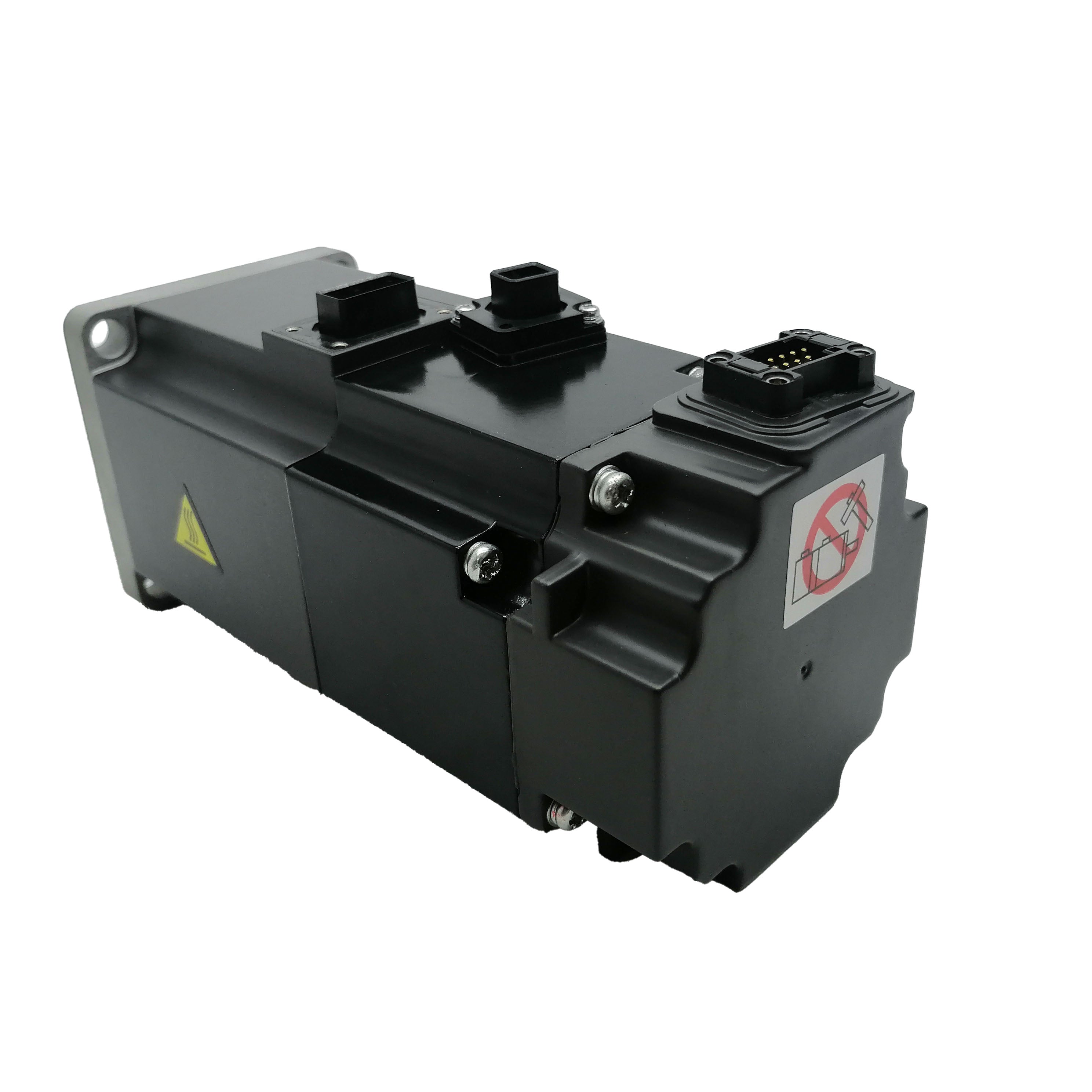

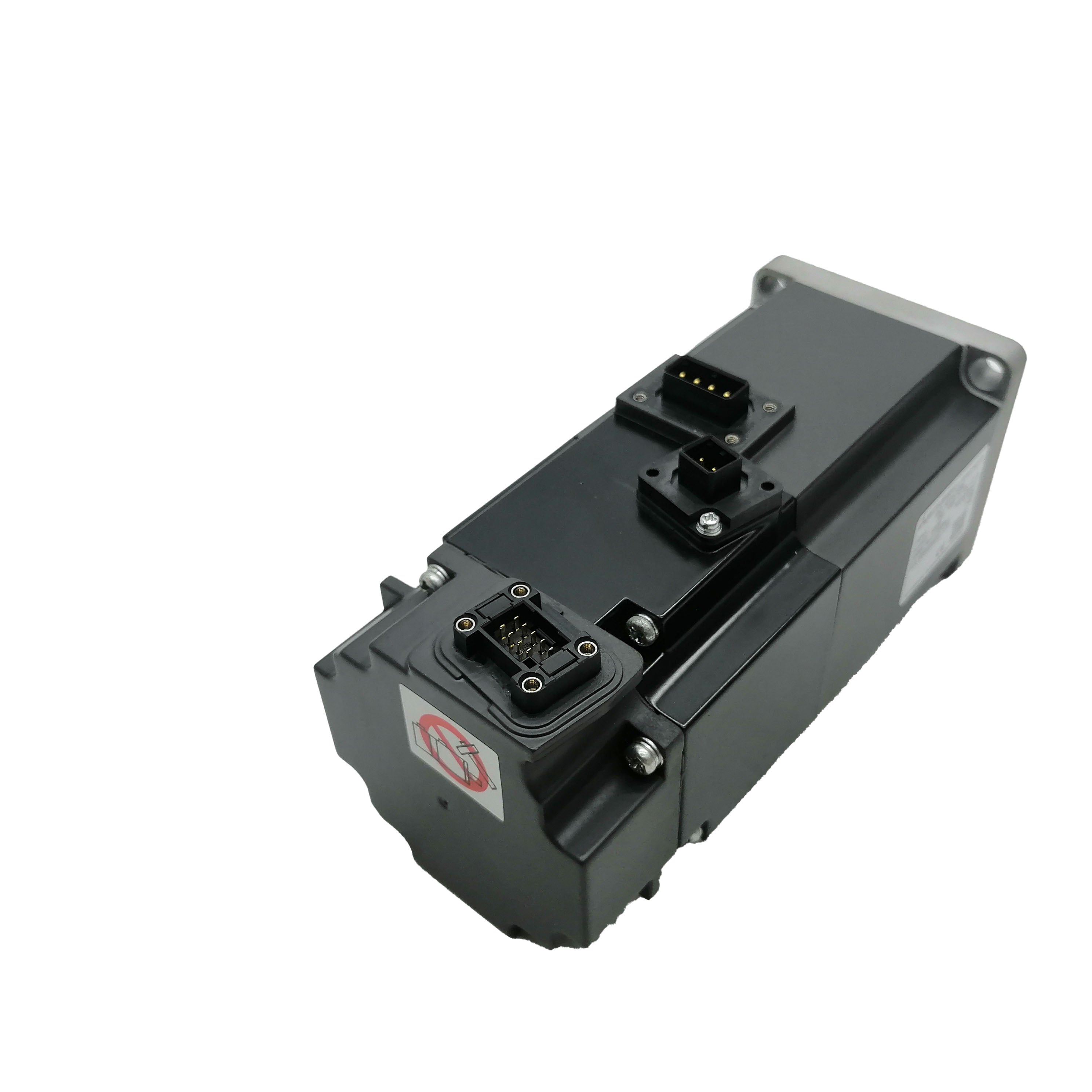

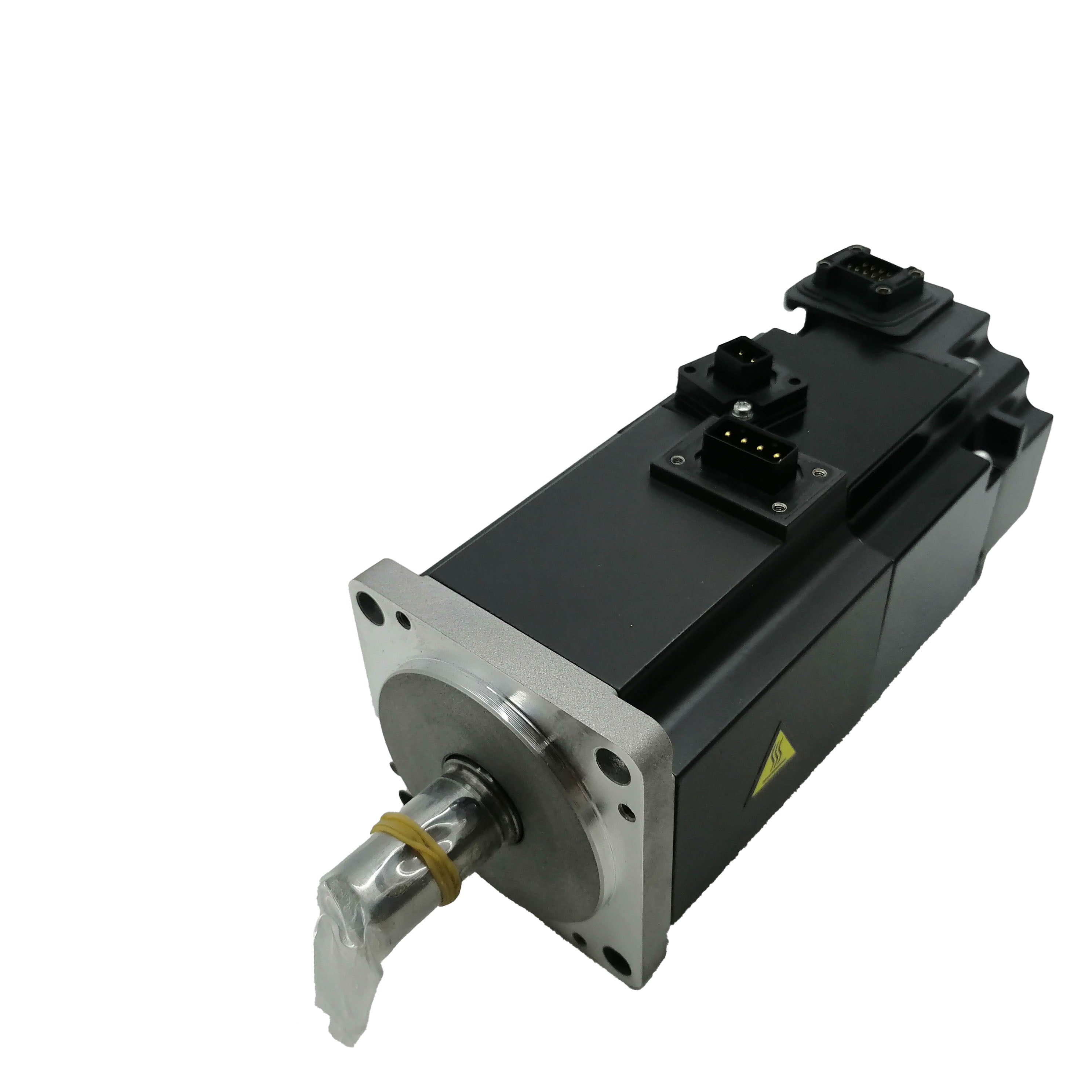

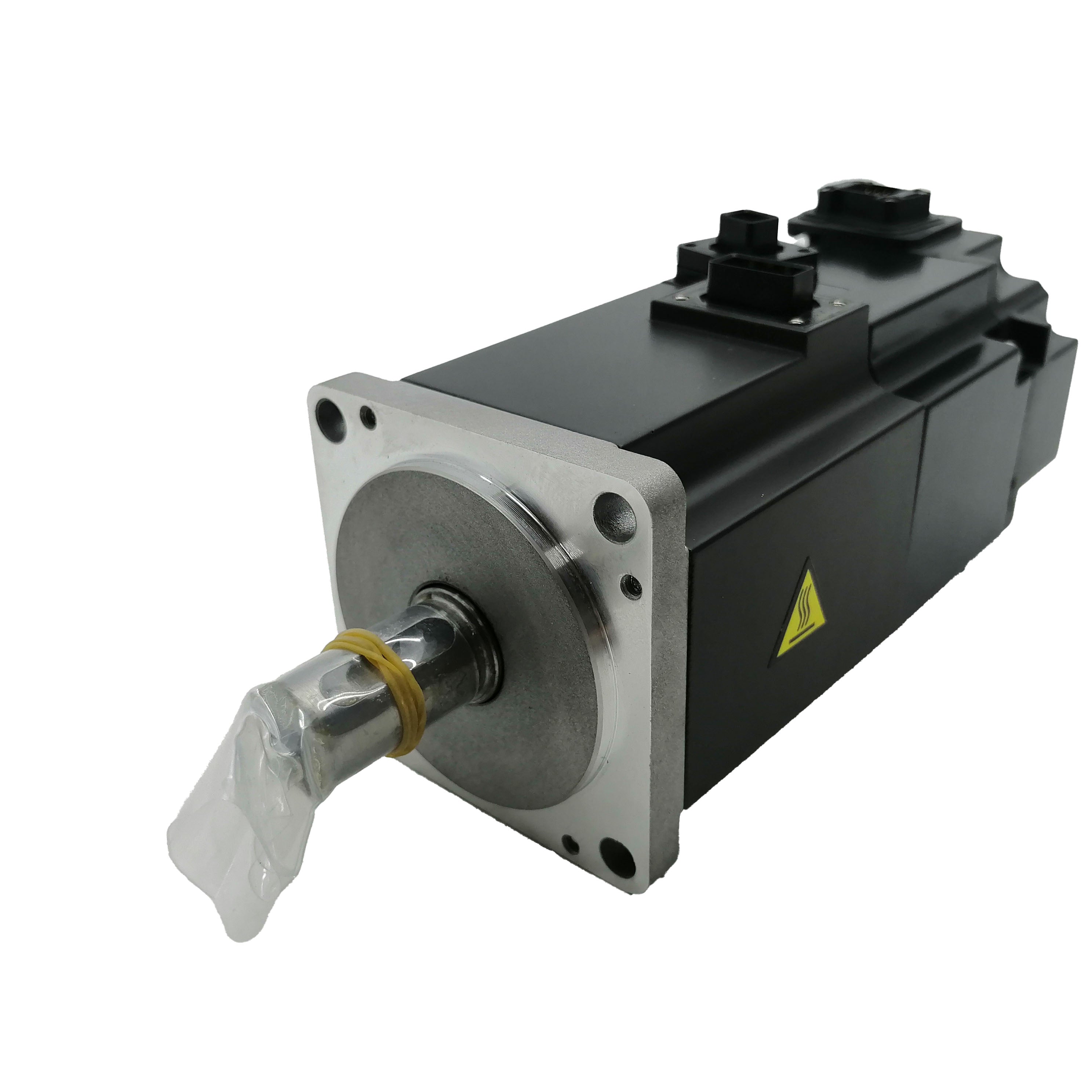

Mitsubishi HG-KR43BK AC Servo Motor — 400W | Genuine New In Box
The Mitsubishi HG-KR43BK is a 400W AC servo motor from Mitsubishi's high-performance HG-KR series, built for demanding precision motion control applications. Featuring a 20-bit absolute encoder, rated speed of 3000 RPM, and peak torque of 3.82 N·m, it delivers the accuracy and dynamic response that CNC machines, robotics, and automated production lines depend on.
✅ Genuine Mitsubishi product. Factory sealed. Ready for immediate worldwide shipment.
At a Glance — Why Engineers Choose the HG-KR43BK
| Strength | What It Means for You |
|---|---|
| 20-bit absolute encoder | Sub-micron positioning accuracy, no homing required after power cycle |
| 5000 RPM peak speed | Rapid acceleration/deceleration with minimal overshoot |
| 400W / 1.27 N·m rated | Right-sized power for compact CNC axes and robotic joints |
| MR-J4 / MR-JE compatible | Seamless integration into existing Mitsubishi servo drive systems |
| Compact flange mount | Easy retrofit into tight machine enclosures |
Full Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model | HG-KR43BK |
| Motor Type | AC Servo Motor |
| Rated Power | 400 W |
| Rated Torque | 1.27 N·m |
| Peak Torque | 3.82 N·m |
| Rated Speed | 3000 RPM |
| Max Speed | 5000 RPM |
| Rated Current | 1.3 A |
| Supply Voltage | 200V AC, 3-phase |
| Encoder | 20-bit Absolute |
| Rotor Inertia | 0.00033 kg·m² |
| Mounting | Flange mount |
| Operating Temp | 0°C ~ 55°C |
| Condition | New / Factory Sealed |
| Compatible Drives | MR-J4, MR-JE, MR-JE-B series |
Compatible Mitsubishi Servo Drive Pairing
For the HG-KR43BK to perform at its best, pair it with a compatible Mitsubishi MR-J series servo amplifier:
- MR-J4-10A / MR-J4-10B — Standard position/speed/torque control
- MR-JE-10A — Cost-effective option for general automation
- MR-JE-10C — CC-Link IE Field Network variant
💡 Always verify the amplifier capacity (W rating) matches or exceeds the motor's rated power to avoid drive faults.
HG-KR Series Model Comparison
Choosing between Mitsubishi HG-KR models? Here's a quick reference:
| Model | Rated Power | Rated Torque | Rated Speed | Best For |
|---|---|---|---|---|
| HG-KR13BK | 100W | 0.32 N·m | 3000 RPM | Small axes, light loads |
| HG-KR23BK | 200W | 0.64 N·m | 3000 RPM | Compact servo applications |
| HG-KR43BK | 400W | 1.27 N·m | 3000 RPM | ⭐ Mid-range CNC axes, robotics |
| HG-KR73BK | 750W | 2.39 N·m | 3000 RPM | Heavier load applications |
| HG-KR103BK | 1000W | 3.18 N·m | 3000 RPM | High-torque industrial axes |
Typical Applications
The HG-KR43BK excels wherever precision, compactness, and reliability matter:
- CNC machine tools — milling, turning, grinding axes
- Industrial robotics — joint actuation in 6-axis arms and SCARA robots
- Automated assembly lines — pick-and-place, conveyor positioning
- Semiconductor & electronics manufacturing — ultra-precise stage control
- OEM machine builders — custom automation equipment integration
Shipping & Quality Assurance
- 🔒 100% genuine Mitsubishi Electric product — factory sealed
- 🔍 Pre-shipment inspection on every unit
- 📦 Anti-static, vibration-protected industrial packaging
- 🌍 Worldwide express shipping available
- ⚡ In-stock units dispatched within 1–2 business days
FAQ — Mitsubishi HG-KR43BK Servo Motor
Q1: Is the HG-KR43BK a genuine Mitsubishi product? Yes. Every unit we supply is a 100% original Mitsubishi Electric HG-KR43BK — factory sealed and inspected before dispatch. We do not sell aftermarket or remanufactured units.
Q2: What servo drives are compatible with the HG-KR43BK? The HG-KR43BK is compatible with Mitsubishi MR-J4 and MR-JE series servo amplifiers. Common pairings include the MR-J4-10A, MR-JE-10A, and MR-JE-10C. Always match the amplifier's rated capacity to the motor's 400W output.
Q3: What does the "BK" suffix mean in HG-KR43BK? The "BK" suffix indicates the motor is equipped with a built-in electromagnetic brake. This holds the load in position when the motor is de-energized — essential for vertical axis applications or safety-critical installations.
Q4: Does the HG-KR43BK require homing after a power cycle? No. The 20-bit absolute encoder retains position data even after power loss (when backed by a battery in the servo drive). This eliminates the need for a homing routine after every startup, saving cycle time on your machine.
Q5: Can I use this motor as a direct replacement for a failed HG-KR43BK? Yes — it is a direct, plug-in replacement for any existing HG-KR43BK installation. Ensure your servo drive firmware and parameter settings are configured for this specific motor model.
Q6: What is the difference between HG-KR43BK and HG-KR43K (without BK)? The standard HG-KR43K does not include a brake. The HG-KR43BK variant adds an integrated electromagnetic brake for load holding. If your original motor had a brake, always replace with the BK version.
Q7: How quickly can you ship, and is bulk pricing available? In-stock orders ship within 1–2 business days with worldwide express options available. For volume orders or ongoing procurement, please contact us via WhatsApp or the Enquiry button for competitive bulk pricing.
Need help confirming compatibility with your servo drive or machine model? Reach out to our technical team — we're happy to assist.
