Mitsubishi AC Servo Motor Made in Japan HG-KR13
PRODUCT DETAILS

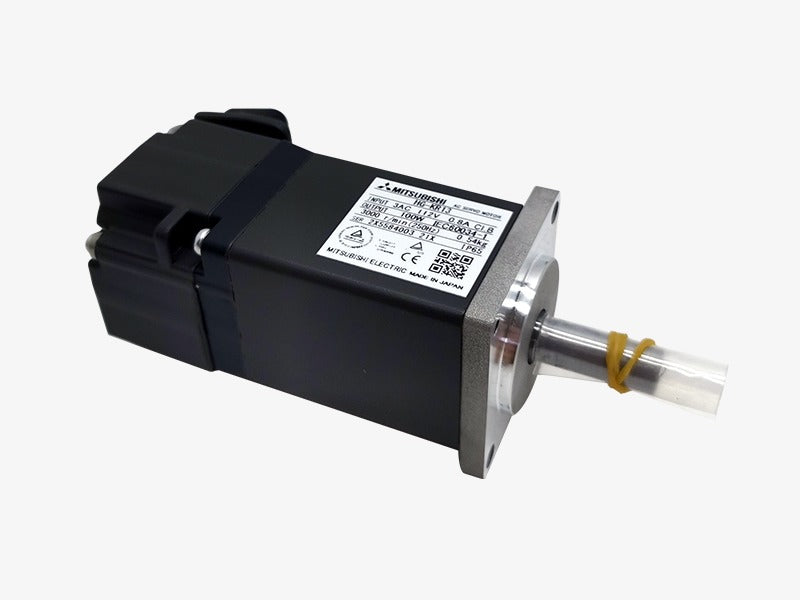

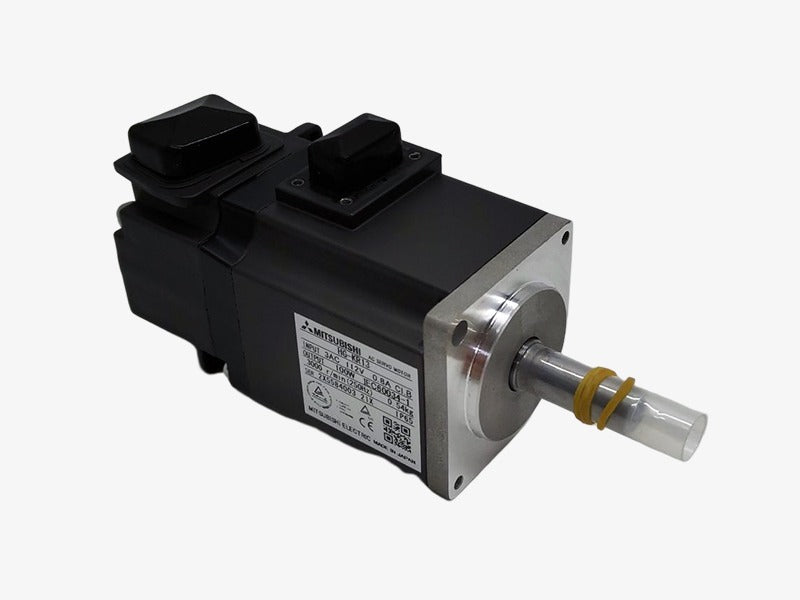

HG-KR13
Mitsubishi AC SERVR MOTOR
INPUT 3AC 112V 0.8A CI.B
OUTPUT 100W IEC60034-1
3000 r/min(250Hz) 0.54kg MITSUBISHI ELECTRIC Made in Japan

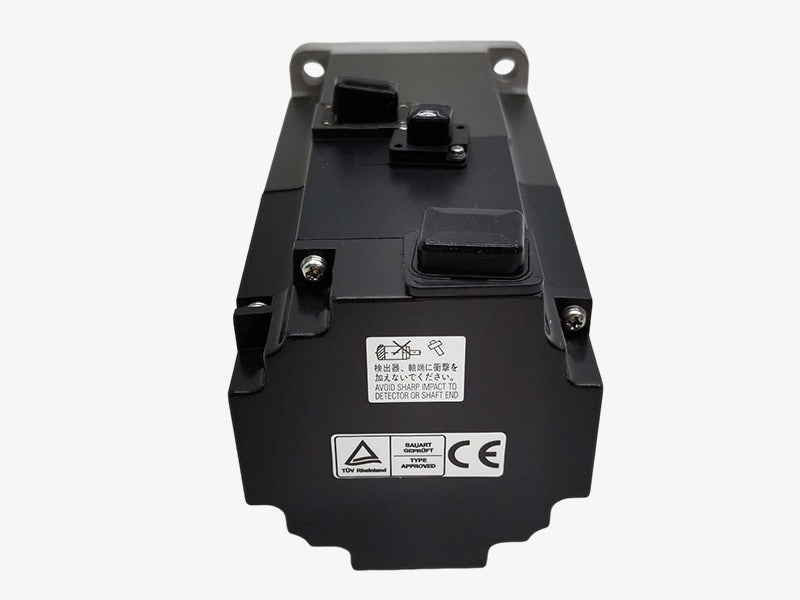

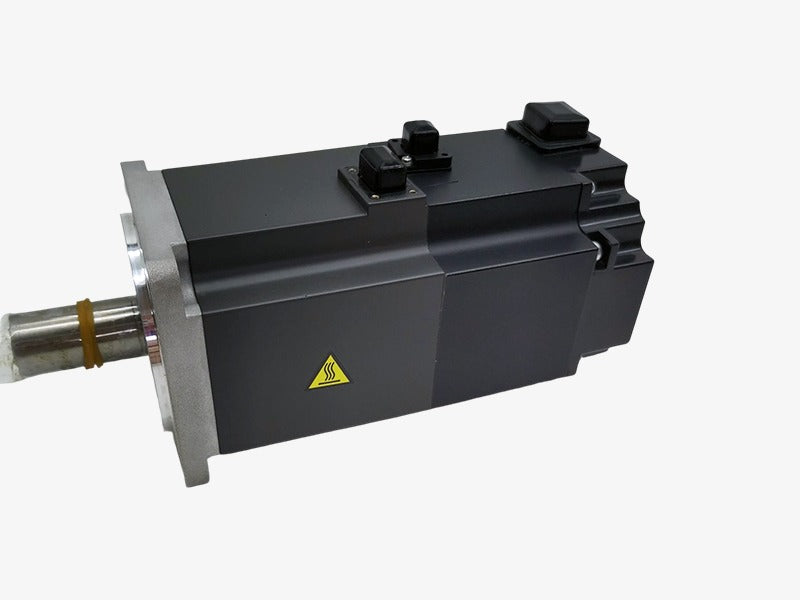

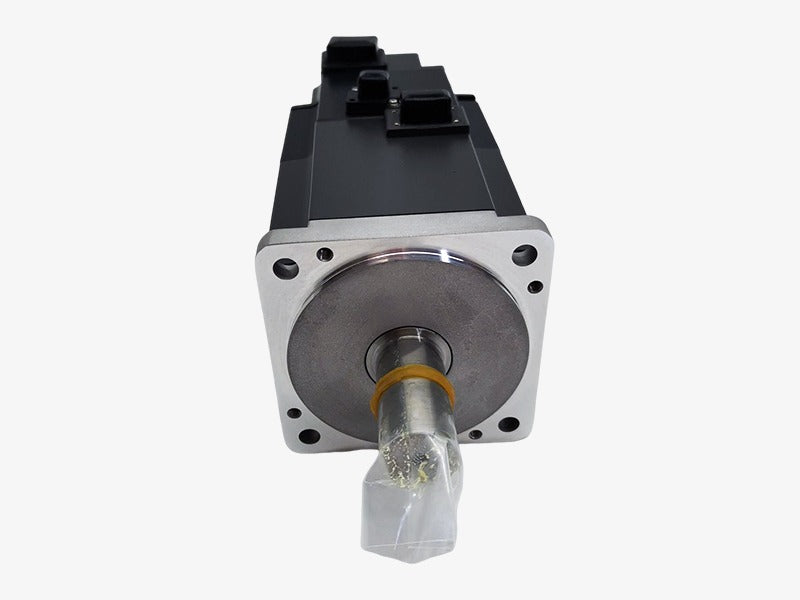

HF-KP738
MITSUBISHI AC SERVO MOTOR
INPUT :3AC 108V 5.2A
OUTPUT 750W
3000r/min(150hz) 3.9kg MITSUBISHI ELECTRIC made in Japan
Working principle of AC servo motor: Servo system is generally composed of servo amplifier and servo motor.
The rotor inside the servo motor is a permanent magnet. The U/V/W three-phase electricity controlled by the servo amplifier forms an electromagnetic field, and the rotor rotates under the action of this magnetic field. At the same time, the encoder of the motor feeds back the signal to the driver, and the driver compares the feedback value with the target value to adjust the rotation angle of the rotor. The accuracy of servo motor depends on the resolution of encoder.
AC servo motor series: MR-J, MR-H, MR-C series; MR-J2 series; MR-J2S series; MR-E series; MR-J3 series; MR-ES series
MR-E series including:
HC-KFE series, HC-SFE series, HF-KE series, HF-SE series, HF-KN series, HF-SN series etc.
MR-J2S series including:
HC-SFS series、HC-KFS series, HC-MFS series, HC-RFS series, HC-UFS series etc.
MR-J3 series including:
HF-MP series, HF-KP series etc.
