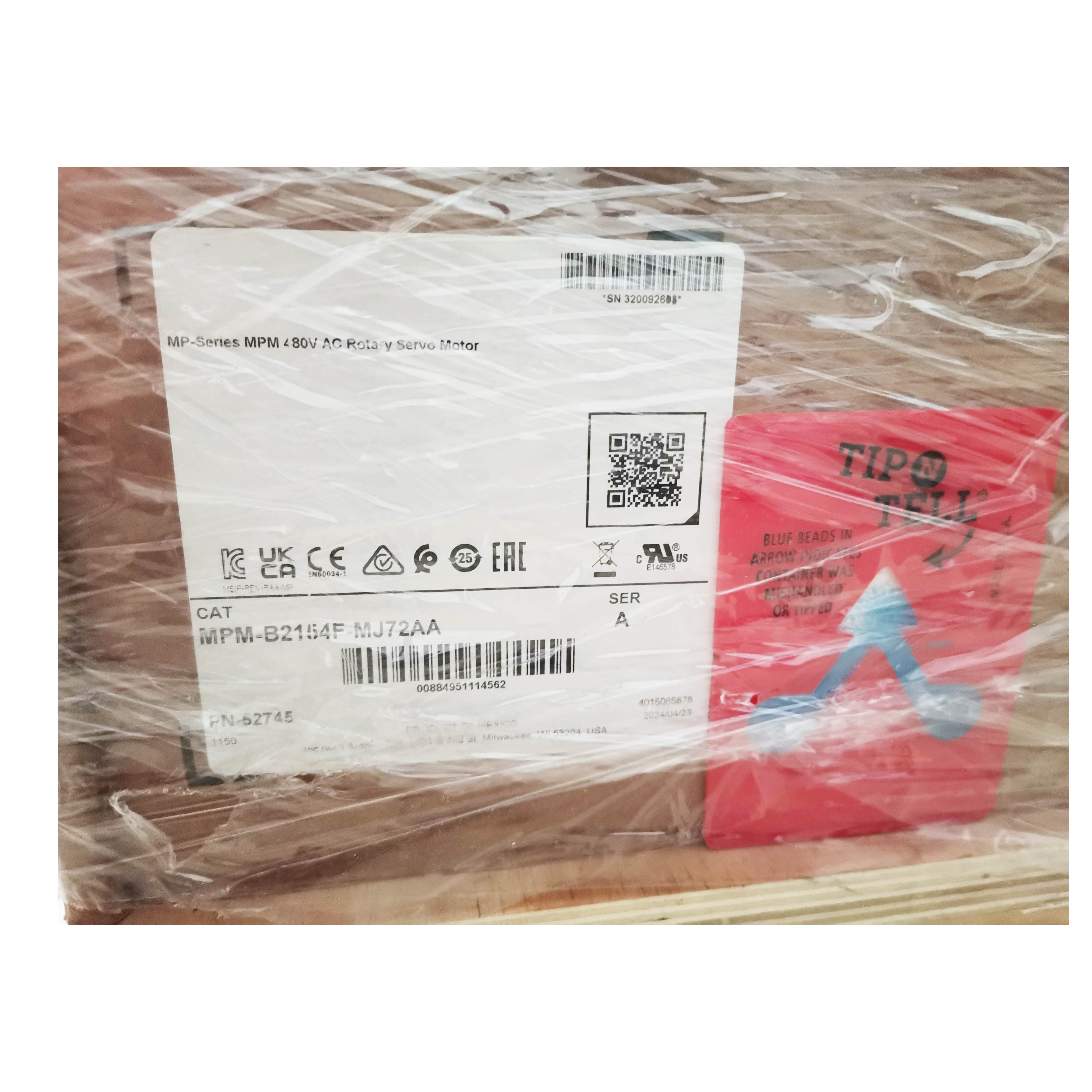

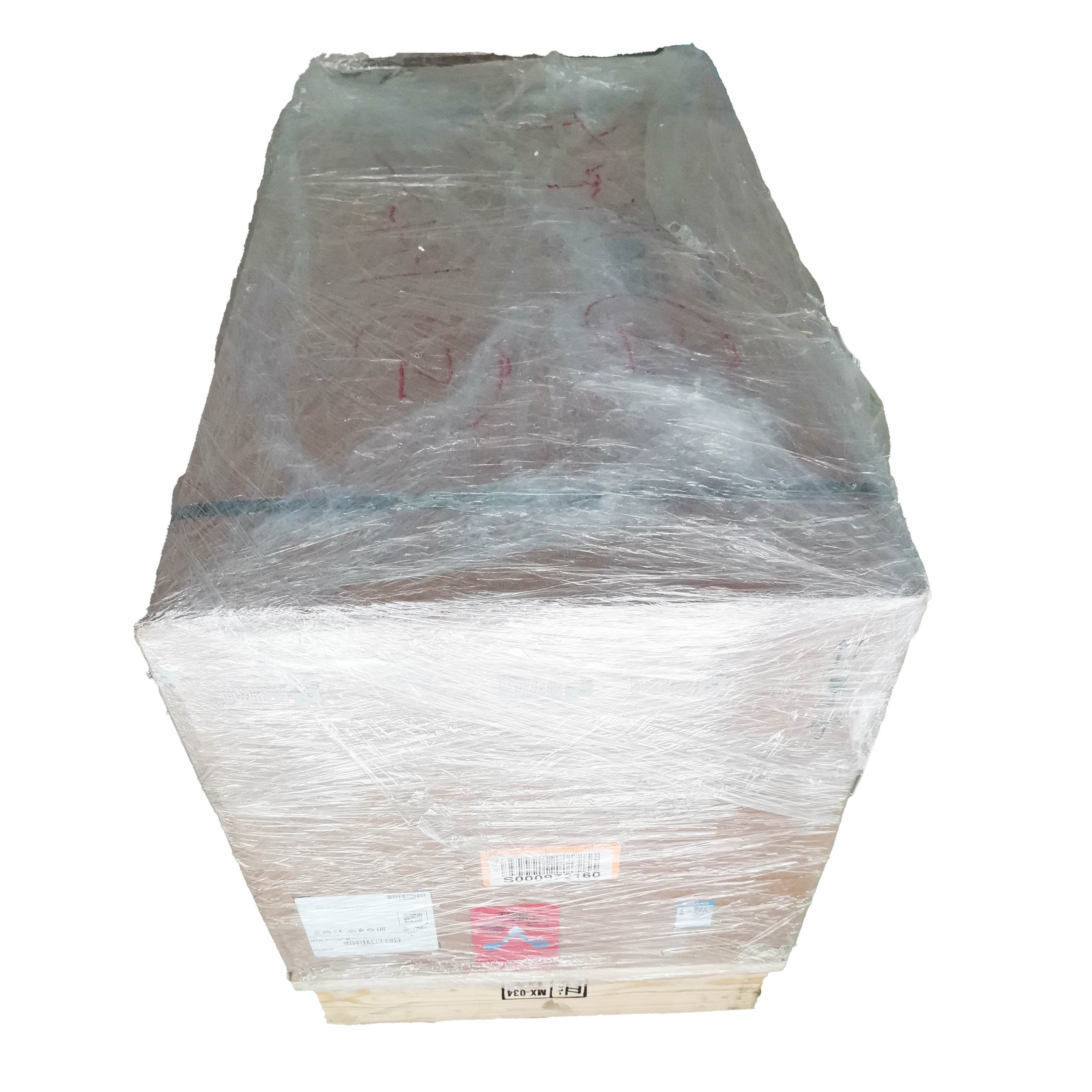

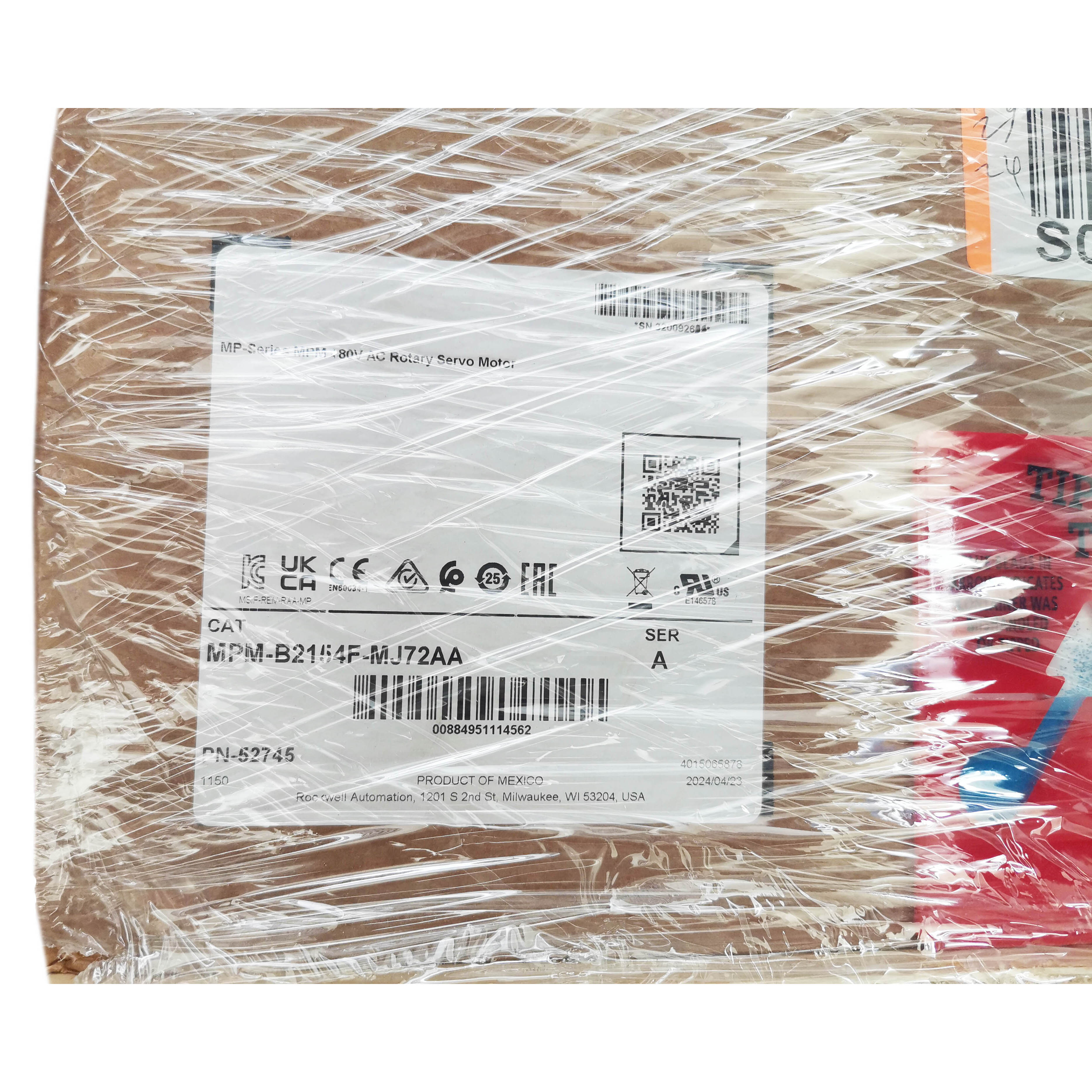

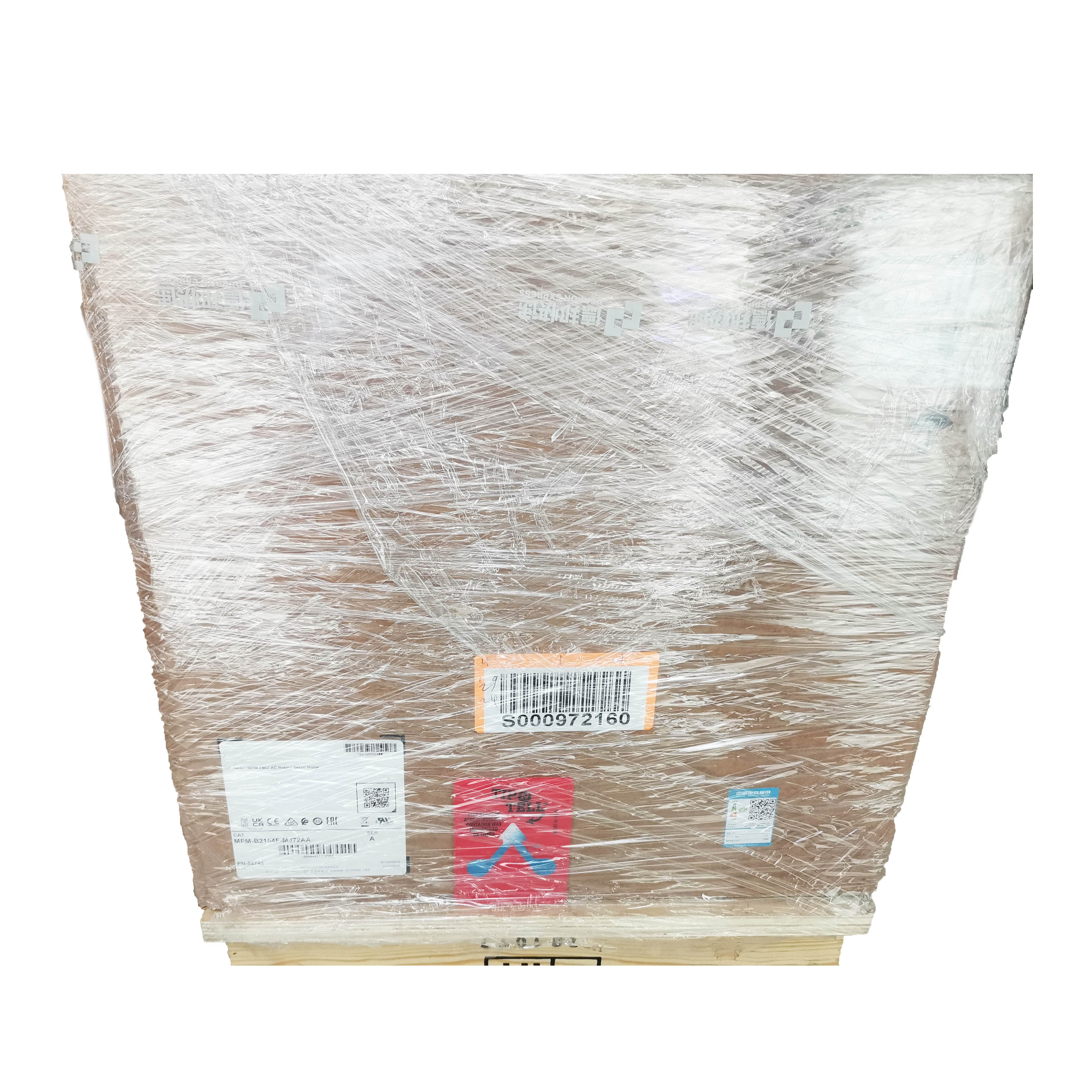

MPM-B2154F-MJ72AA Rotary Servo Motor Brand New MPMB2154FMJ72AA

MPM-B2154F-MJ72AA — MP-Series Low-Inertia Servo Motor, 460V, High Speed

The MPM-B2154F-MJ72AA is a low-inertia servo motor from the MP series, frame size 215, configured for 460V drive bus operation with an extended speed range (the "F" suffix). It targets dynamic motion applications — pick-and-place, indexing, and high-cycle positioning — where fast acceleration and a wide speed range matter more than continuous torque density. The MJ feedback and connector configuration pairs the motor with compatible servo drives over a matched cable system, supporting precise closed-loop position and velocity control.

Specifications

Low Inertia at Frame 215 — Why It's Built This Way

Low-inertia rotor construction trades continuous torque density for faster dynamic response — the motor accelerates and decelerates quickly because there's less rotational mass to move. This is the right tradeoff for applications dominated by rapid point-to-point moves: a pick-and-place head making hundreds of cycles per minute, an indexing table stepping between fixed positions, or a converting machine axis that needs to settle quickly after each move rather than sustain high torque continuously.

At frame 215, this motor sits in the mid-to-large range for low-inertia servo motors — enough mass to deliver meaningful torque while still keeping the inertia low enough for fast response. Matching the load-to-rotor inertia ratio is critical at this size: a poorly matched mechanical system (excessive gear reduction error or a high-inertia load coupled directly) will fight the motor's fast-response design rather than benefit from it.

Feedback, Cabling, and Drive Pairing

The MJ-series connector designates the cable and feedback interface standard used to pair this motor with its compatible drive family. Selecting the correct cable assembly — power and feedback — matched to the MJ72AA connector code is essential; a mismatched cable assembly either won't seat correctly or will misroute signal pins, causing feedback faults on power-up. Always select drive-side and motor-side cables from the same compatible system rather than mixing assemblies across different connector generations.

Drive pairing should be verified through the manufacturer's motor-drive sizing tool before commissioning — the drive's continuous and peak current ratings must cover this motor's continuous stall current and peak current at the application's maximum acceleration demand. Running this motor on an undersized drive results in early current-limit faults during acceleration; oversizing wastes capability without harm.

FAQ

Q: Does the "F" suffix in the part number affect the torque rating?

The F designation extends the motor's maximum speed range rather than its torque rating. Continuous and peak torque are determined by the frame size and winding configuration; the high-speed variant trades some low-speed torque margin for a wider usable speed band.

Q: Can this motor be run without a holding brake on a horizontal axis?

Yes, for horizontal or non-gravity-loaded axes where an unbraked stop on power loss doesn't create a hazard. For vertical axes where gravity could move the load when de-energized, a brake-equipped motor variant is required instead.

Q: What feedback resolution does the MJ connector system support?

Feedback resolution depends on the specific encoder fitted to this motor model — verify the encoder type and resolution against the motor's full nameplate or catalog data sheet, since the MJ designation refers to the connector and cable interface, not the encoder specification itself.

Q: Is a forced-air or liquid cooling option needed at frame 215?

Standard self-cooled (convection) operation is typical at this frame size for most duty cycles. For continuous near-peak torque operation or high ambient temperatures, verify the motor's thermal duty rating against the application's actual RMS torque demand before assuming standard cooling is sufficient.
