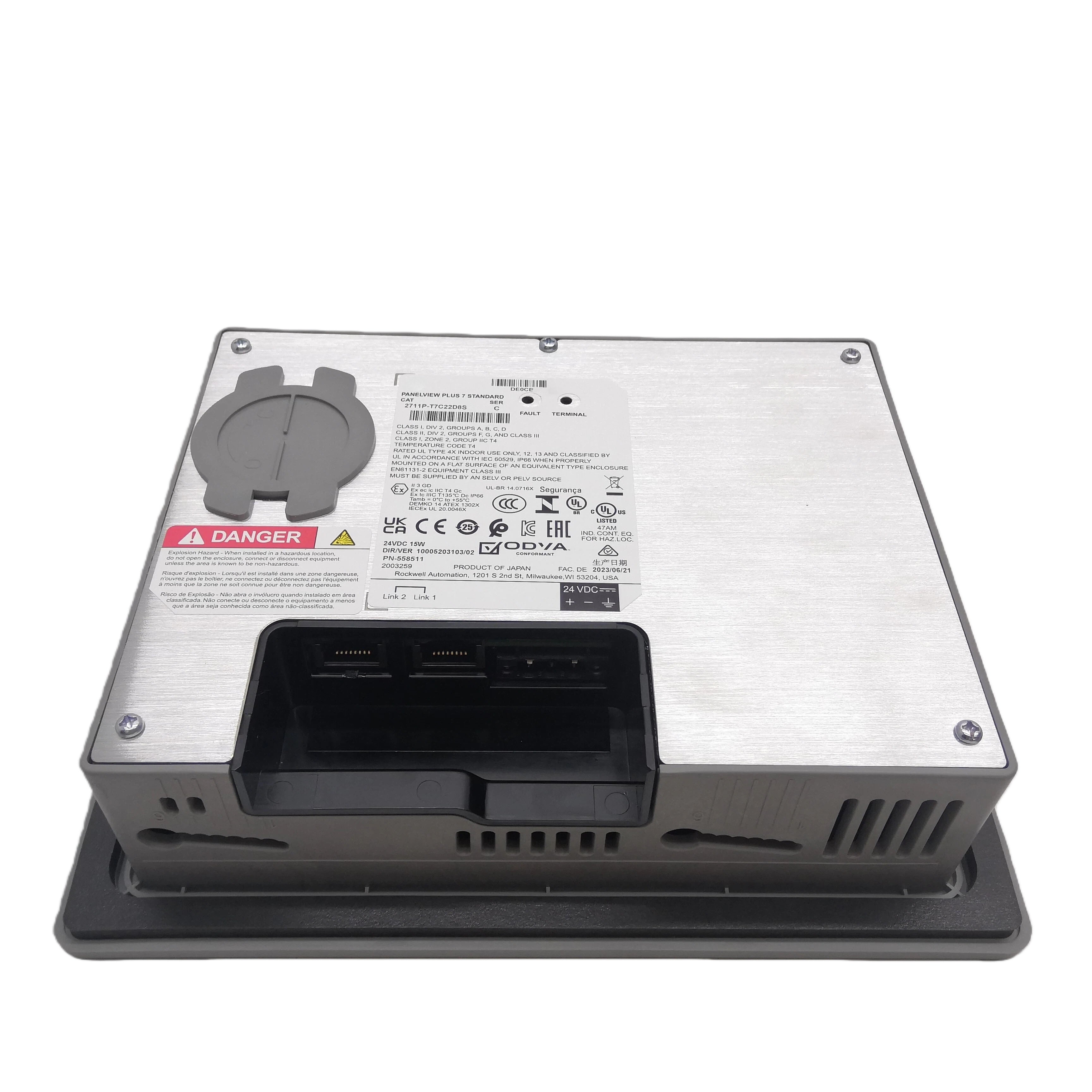

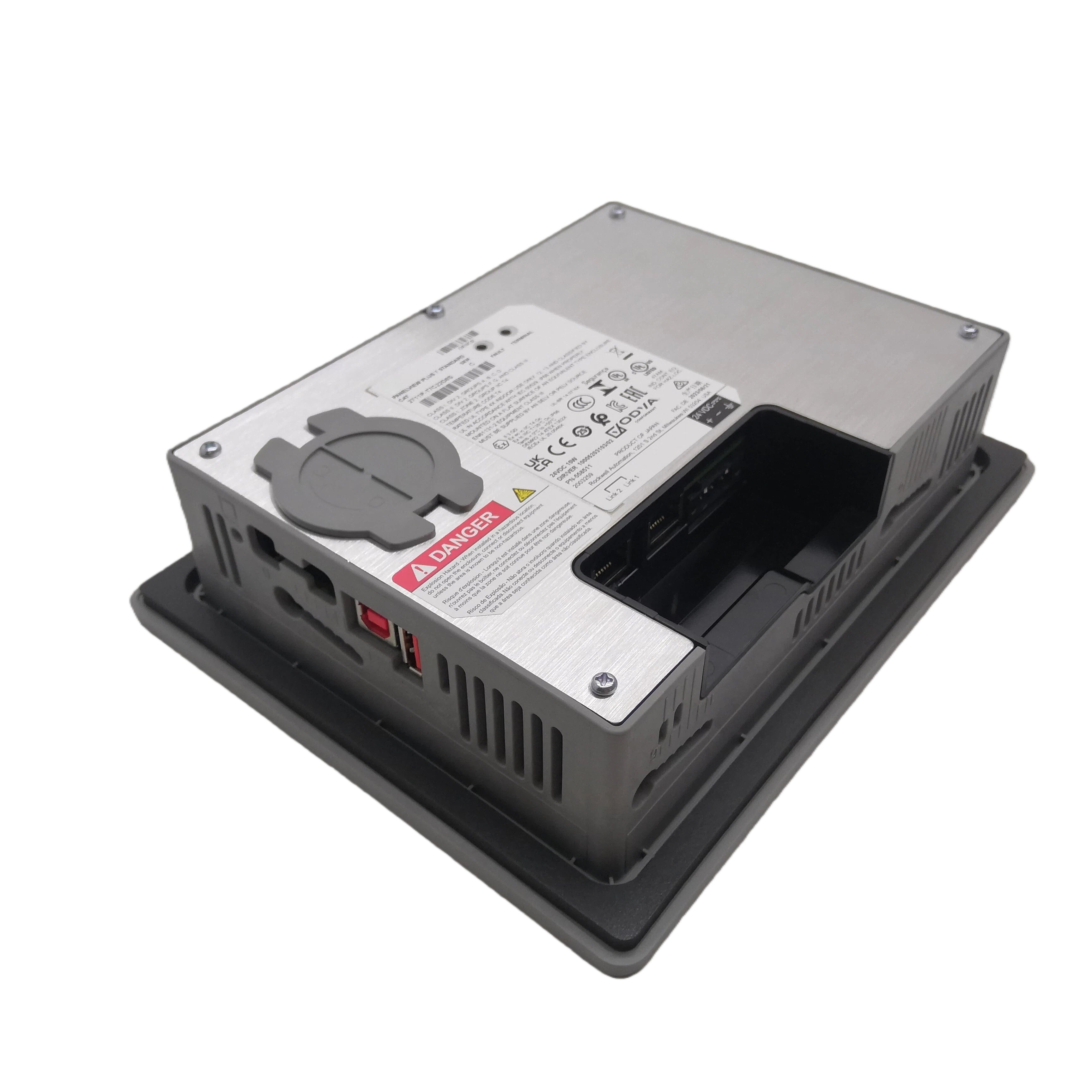

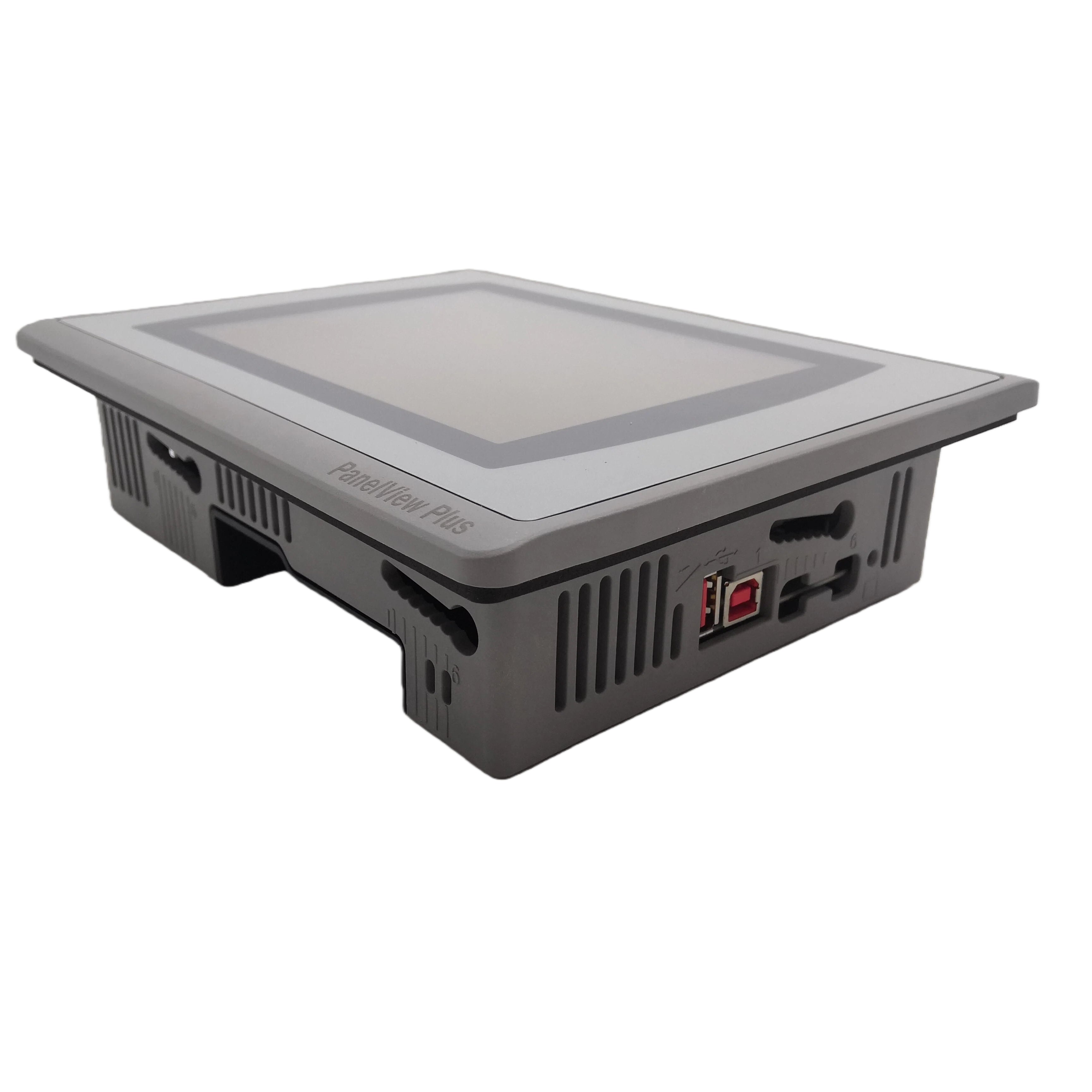

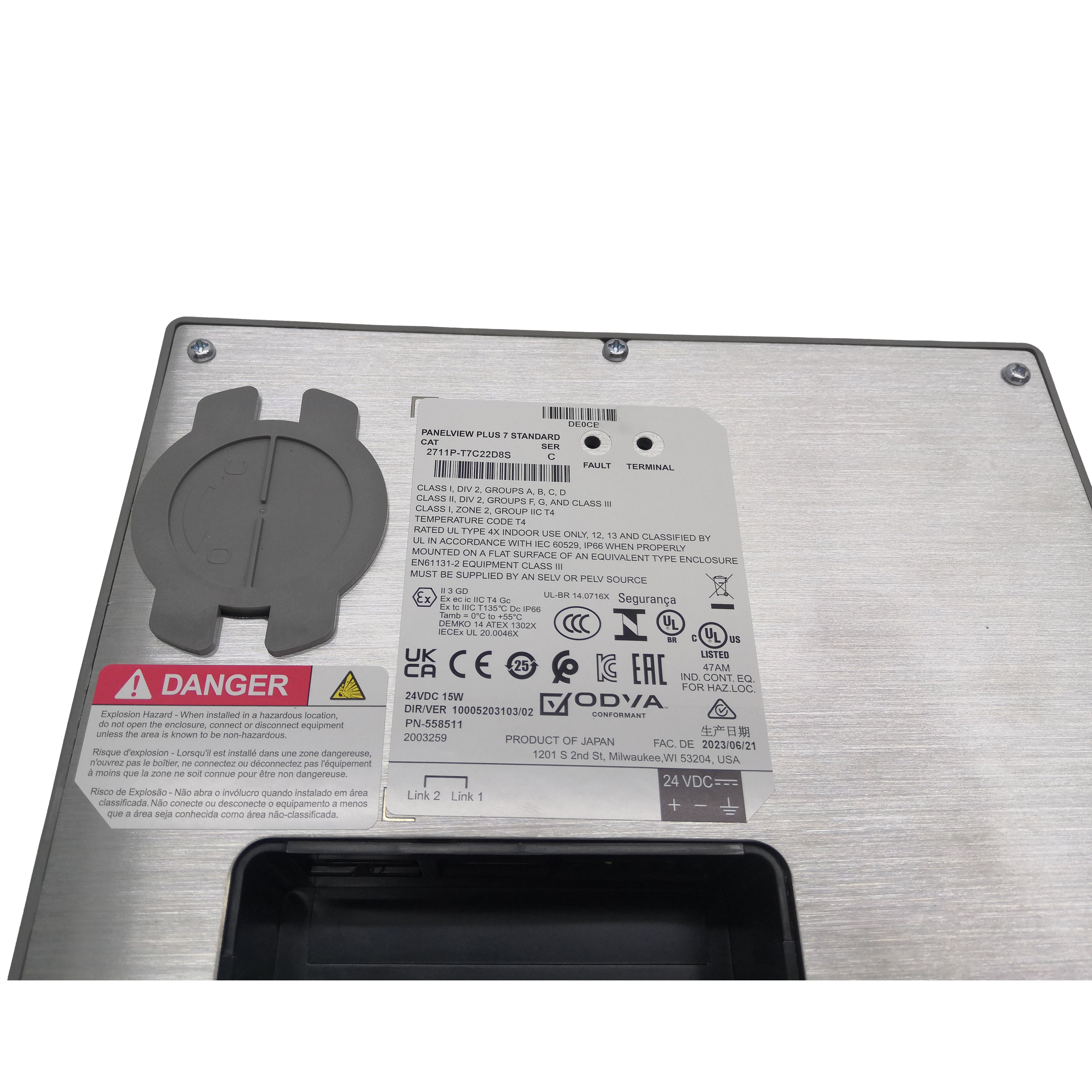

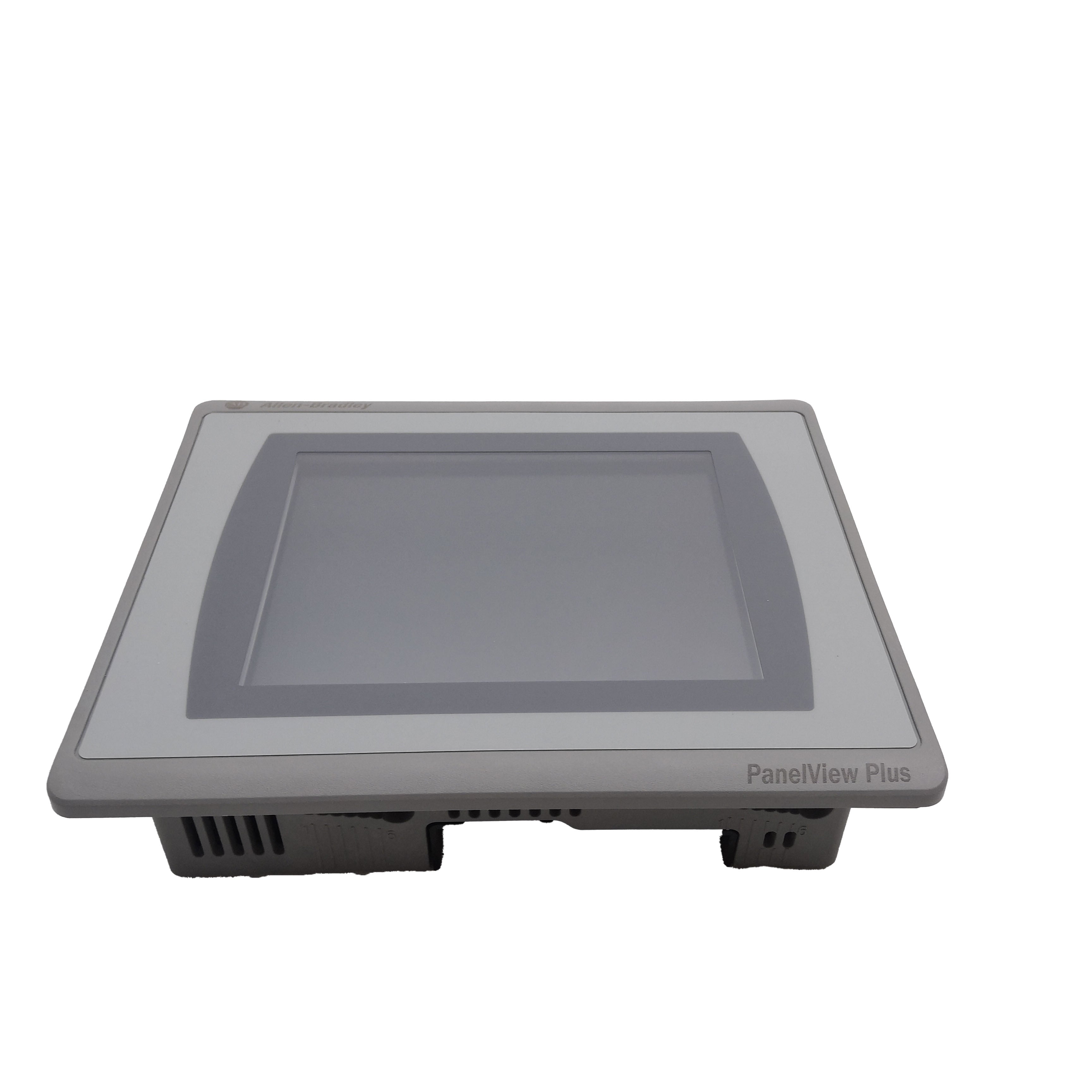

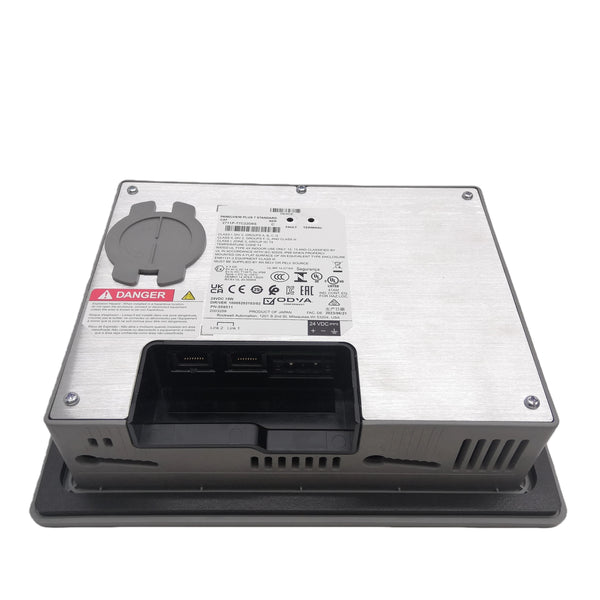

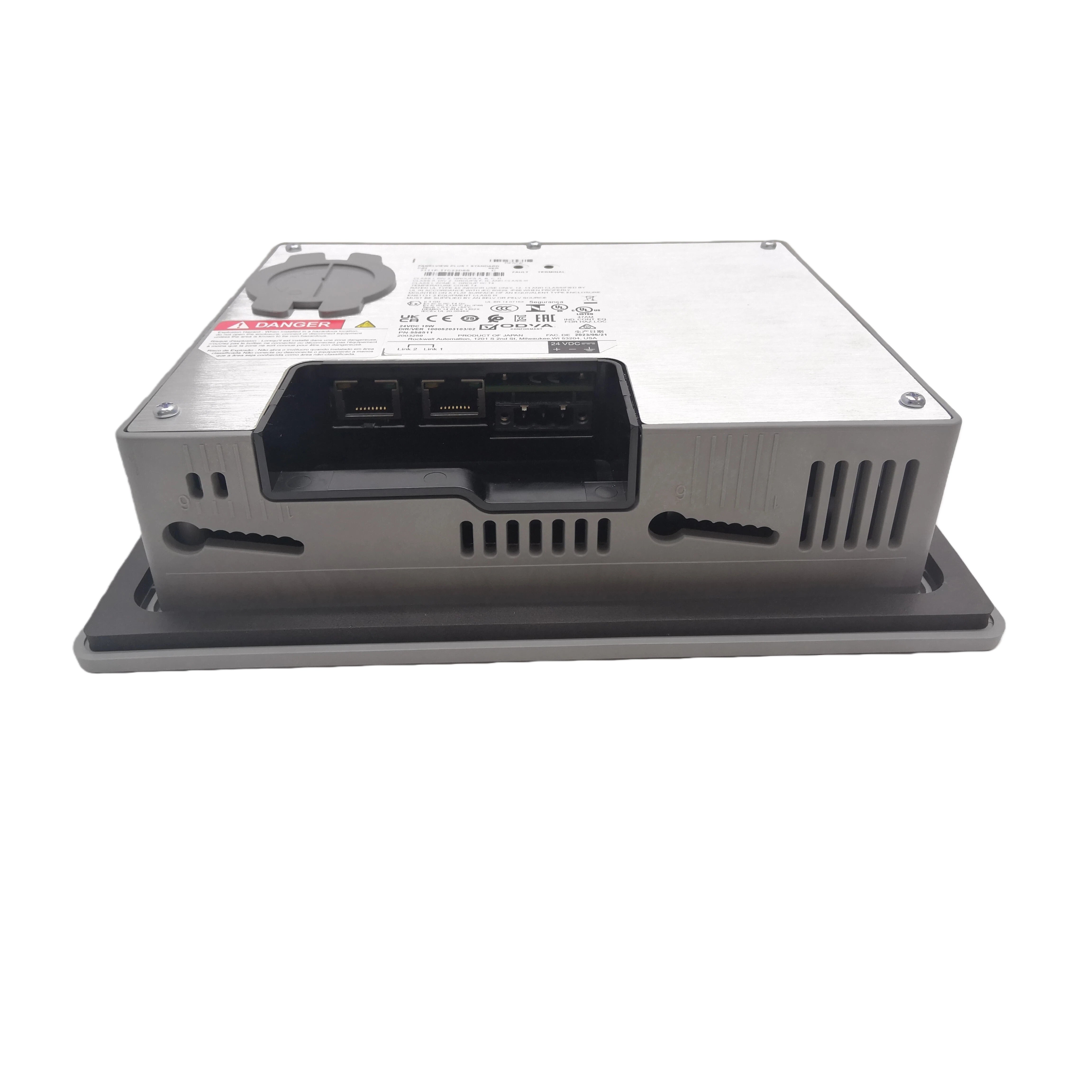

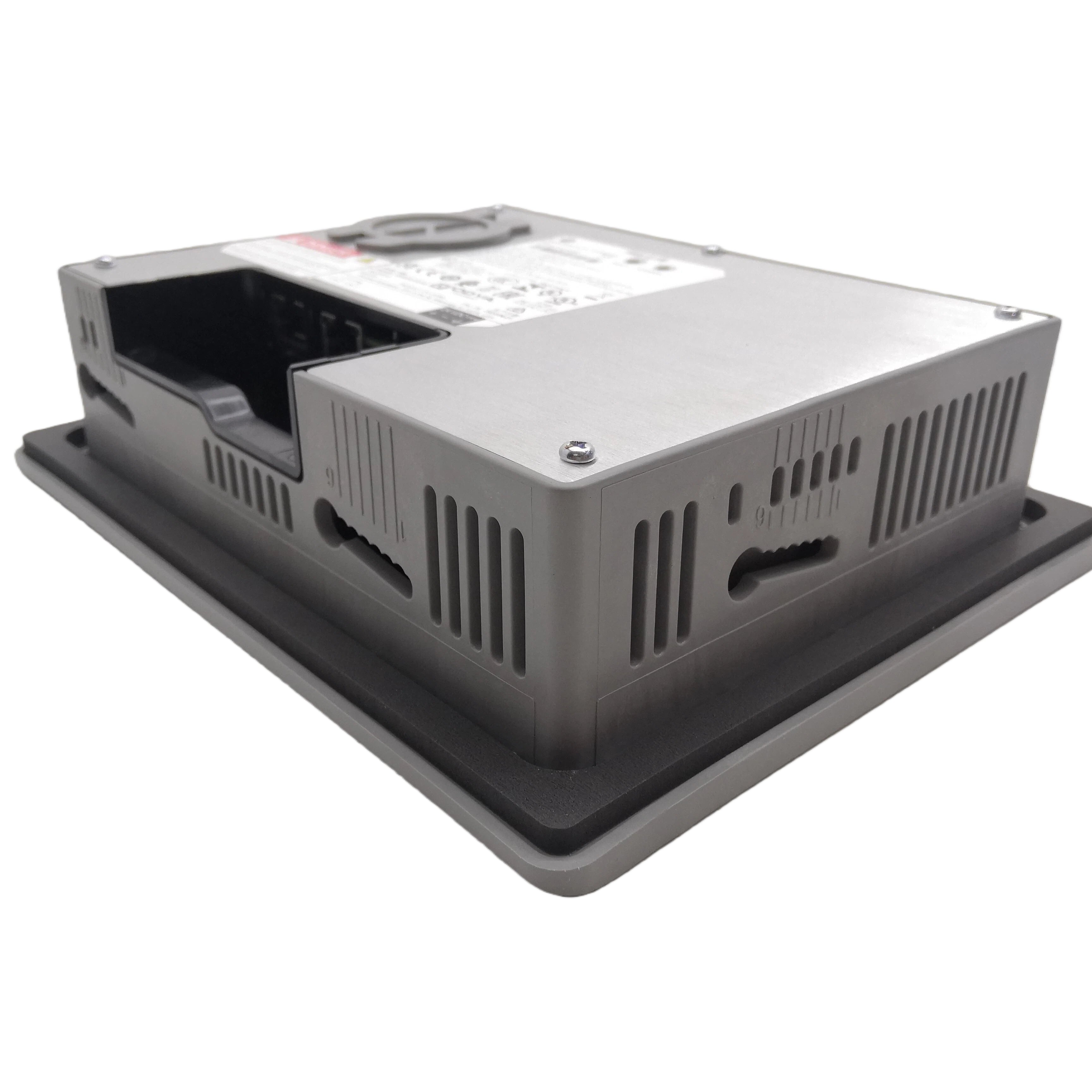

2711P-T7C22D8S New PanelView Plus 7 Standard 7 Terminal Touch Screen 2711PT7C22D8S
PRODUCT DETAILS
2711P-T7C22D8S 7-Inch Color Touch Operator Terminal for Industrial HMI Applications
The 2711P-T7C22D8S is a 7-inch color touch operator terminal designed for machine visualization and process monitoring. It provides an intuitive user interface for real-time operation, diagnostics, and production management in industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Operator Terminal |
| Display Size | 7 in |
| Display Type | Color TFT LCD |
| Touchscreen | Yes |
| Communication | Ethernet / USB / Serial |
| Power Supply | 24 VDC |
| Mounting | Panel Mount |
Installation Guide
- Cut the panel opening according to installation dimensions.
- Secure the terminal using the supplied mounting clips.
- Connect the 24 VDC power supply.
- Attach the required communication cables.
- Verify the display and communication after power-up.
FAQ
Q1: What is the primary function of this terminal?
A: Machine operation and process visualization.
Q2: Does it support touch operation?
A: Yes, it features a color touchscreen.
Q3: How is it installed?
A: Standard panel mounting.
Q4: Which communication interfaces are available?
A: Ethernet, USB, and serial communication.
Q5: Where is it commonly used?
A: Packaging, manufacturing, and automated production equipment.
