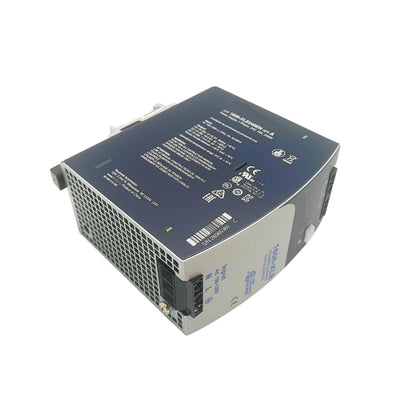

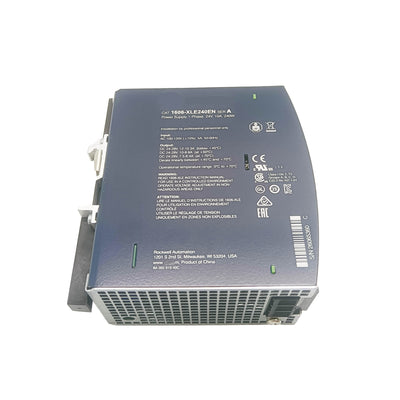

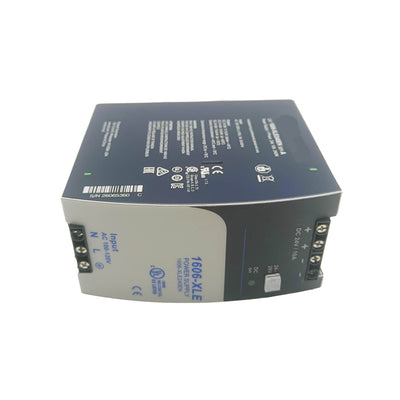

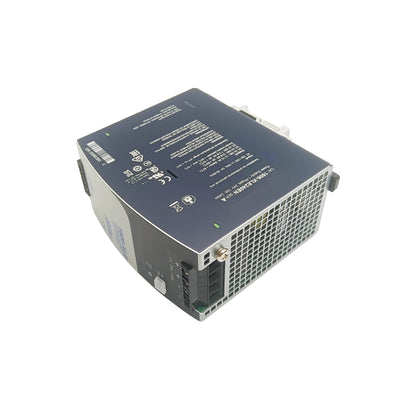

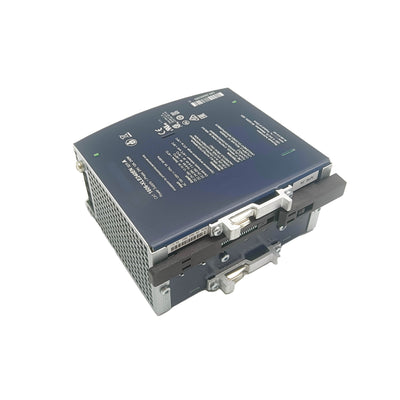

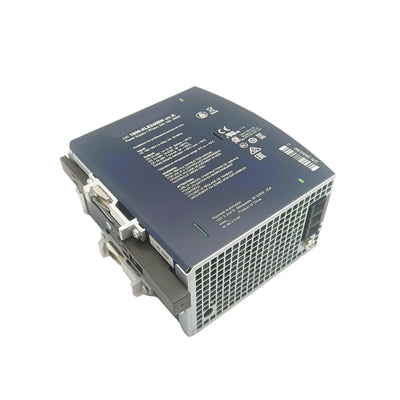

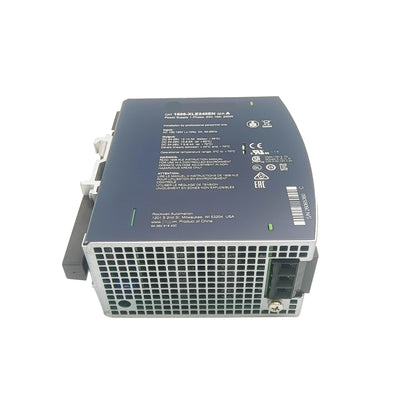

1606-XLE240EN — 240W DIN Rail Power Supply, 120V AC Input, 24V DC / 10A

The 1606-XLE240EN is a 240W DIN rail power supply from the essential-tier XLE family, with its AC input range narrowed specifically to 90–132V — the 120V class rather than the universal 100–240V input most XLE models accept. Output is 24V DC, adjustable up to 28V, at 10A continuous. It carries the same intelligent circuit design, long-life capacitors, and 20% power reserve as the broader XLE family, packaged for installations where the available supply is specifically North American 120V single-phase.

Specifications

Parameter	Value
Part Number	1606-XLE240EN
Output Voltage	24–28V DC (adjustable)
Output Current	10 A @ 24V, 8.6 A @ 28V
Output Power	240 W
Input Voltage	90–132V AC, 47–63 Hz (120V class)
Power Reserve	20%, usable continuously up to 45°C
Ripple/Noise	≤ 50 mV peak-to-peak
Mounting	35 mm DIN rail
Operating Temperature	−25°C to 60°C

A 120V-Only Supply for North American Panels

Most XLE supplies auto-select across a wide input range, simplifying global stocking but adding little value in a facility that only ever sees 120V single-phase at the panel. The "N" designation in this catalog number narrows the input range specifically to that voltage class — a deliberate simplification for installations where the broader auto-sensing range isn't needed and a region-specific unit is the more straightforward specification.

The built-in 20% power reserve means the supply can sustain output above its nominal 240W rating continuously at moderate ambient temperatures, covering momentary load increases — additional I/O added later, or a load that draws slightly more than originally estimated — without immediately requiring a larger supply.

FAQ

Q: Can this supply run from a 230V input instead of 120V?

No. The input range is specifically narrowed to 90–132V AC. For 230V installations, the standard wide-input XLE240E or a 230V-specific variant is the correct choice.

Q: Does the power reserve require any special configuration to use?

No. The 20% reserve is automatically available — the supply simply sustains higher output current continuously up to that margin without any setting change.

Q: What protects the supply against a short circuit on the output?

Built-in short-circuit protection automatically limits output current and the supply restarts once the fault is cleared — no internal fuse replacement is needed for a transient short-circuit event.

Q: Is this supply suitable for charging batteries?

No. Standard XLE-family power supplies, including this model, are not intended for battery charging applications — a supply specifically designed for that purpose should be used instead.
