1734-RTBS Terminal Block

The 1734-RTBS is a removable terminal block used in modular industrial I/O systems to provide secure field wiring connections for signal distribution. It supports fast module replacement while keeping wiring intact, helping reduce downtime during maintenance or system expansion.

Technical Specifications

Parameter	Value
Product Type	Removable Terminal Block
Compatible System	Distributed I/O modules
Connection Type	Screw Clamp Terminals
Mounting	DIN Rail Base
Wiring Capacity	Multi-channel signal wiring
Material	Industrial-grade insulating housing
Maintenance	Tool-assisted module removal
Environment	Industrial control cabinets

Installation Guide

Disconnect system power before installation.
Mount the terminal base securely on DIN rail.
Insert and tighten field wiring into screw terminals.
Align with compatible I/O module interface.
Confirm all connections before energizing the system.

Applications

Distributed I/O wiring systems
Industrial control cabinets
Factory automation panels
Machine control wiring interfaces
Modular production equipment

FAQ

Q1: What is the main purpose of this terminal block?
A: It provides a stable wiring interface for I/O modules.

Q2: Can the module be replaced without rewiring?
A: Yes, wiring remains fixed while the module is removed.

Q3: What type of connection does it use?
A: It uses screw-clamp terminals for secure wiring.

Q4: Where is it typically installed?
A: Inside industrial control cabinets on DIN rail systems.

Q5: Is it suitable for industrial environments?
A: Yes, it is designed for standard industrial automation conditions.

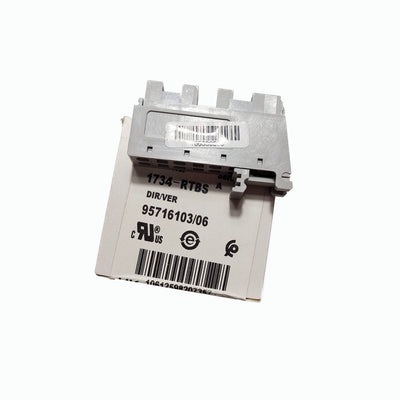

1734-RTBS Terminal Block Genuine 1734RTBS
