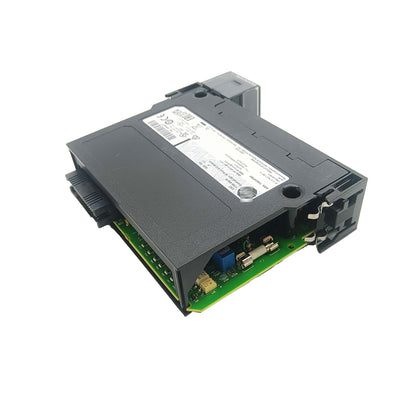

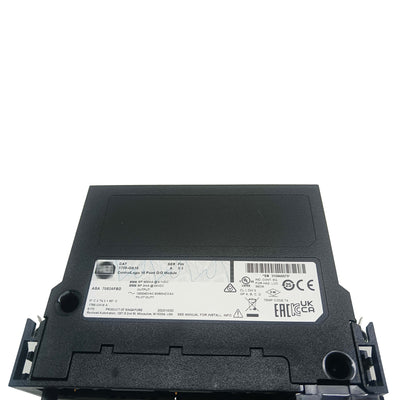

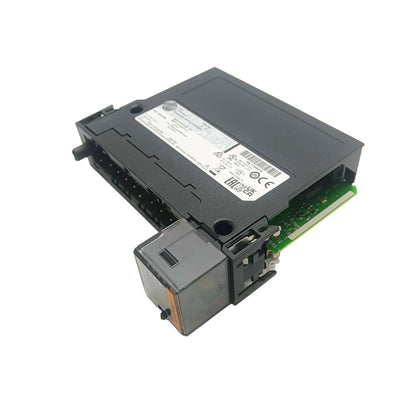

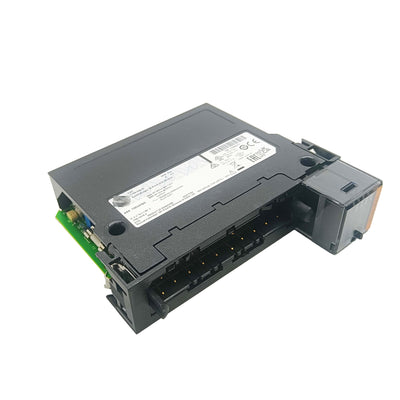

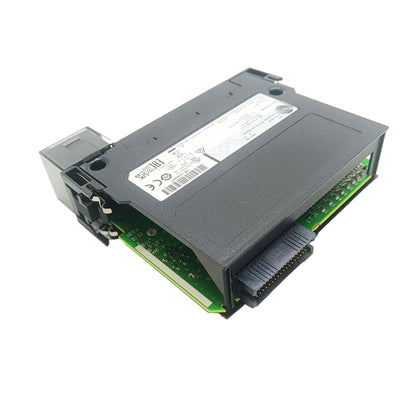

1756-OA16 Digital AC Output Module

Product Overview

The 1756-OA16 is a 16-point digital AC output module designed for industrial control systems that require reliable switching of field devices. With individually controlled output channels, the module provides dependable operation for contactors, pilot lights, relays, and other AC-powered loads.

Its modular design makes it suitable for scalable automation architectures where flexibility and maintainability are important.

Technical Specifications

Parameter	Specification
Model	1756-OA16
Module Type	Digital AC Output Module
Number of Outputs	16
Output Voltage Range	74–265 VAC
Nominal Output Voltage	120/240 VAC
Output Category	AC
Isolation	Channel Group Isolation
Mounting	Chassis-Based Installation
Status Indicators	Per-Channel LED Indicators

Applications

Production lines
Conveyor control systems
Industrial machinery
Motor starter control
Packaging equipment
Process automation systems
Facility automation

Advantages

The module offers reliable AC load switching while providing clear status indication for maintenance personnel. Its modular structure simplifies system expansion and replacement procedures.

FAQ

1. How many outputs does the module provide?

The module includes 16 independent AC output channels.

2. What type of loads can it control?

It can switch relays, contactors, indicator lamps, and other AC-powered devices.

3. Does each output have a status indicator?

Yes. Individual LEDs provide output status information.

4. Is the module suitable for industrial environments?

Yes. It is designed for demanding automation and control applications.

5. What voltage range is supported?

The module supports AC output voltages from 74 to 265 VAC.
