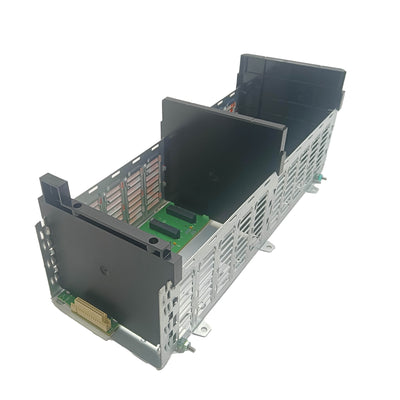

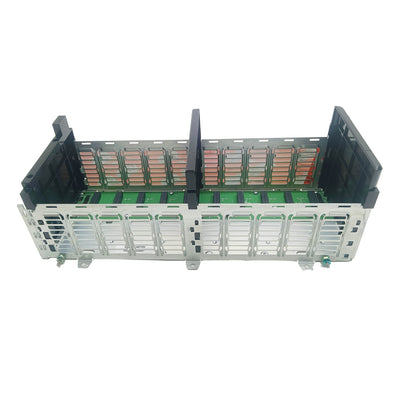

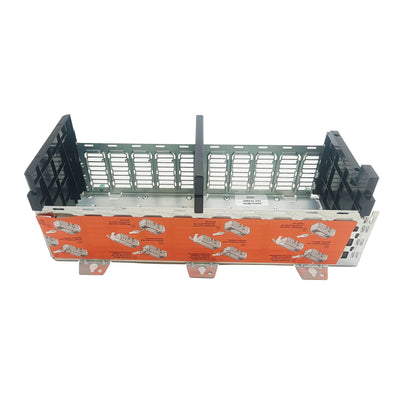

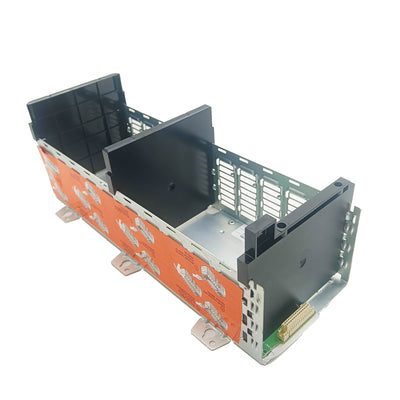

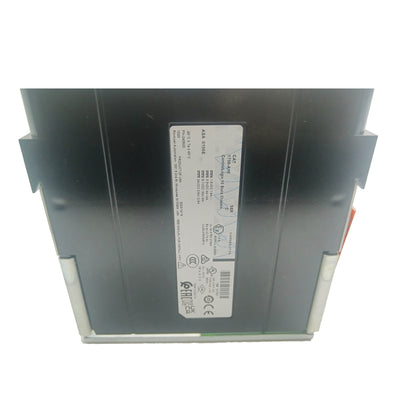

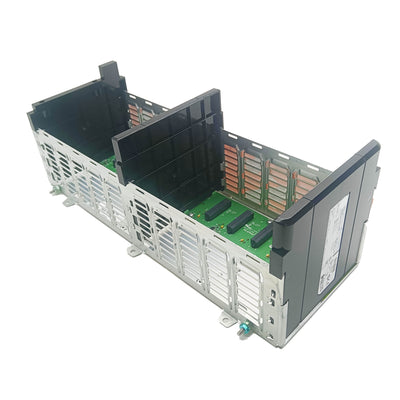

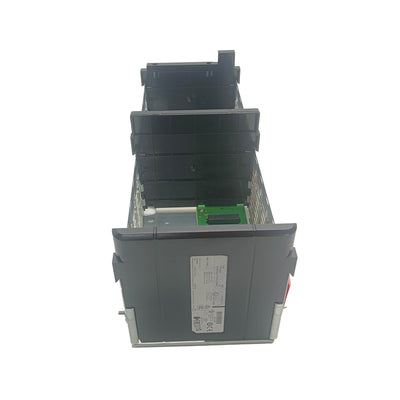

1756-A10 — 1756 Ten-Slot Logix Chassis

The 1756-A10 is a 10-slot chassis for the 1756 Logix modular control system, providing room for a processor plus up to nine additional modules on the shared backplane. It's the natural step up from the 7-slot chassis for builds where the planned module count is too high for 7 slots but doesn't yet justify the larger 13 or 17-slot frames — covering systems with a processor, multiple communication modules, and a meaningful spread of digital and analog I/O.

Specifications

Parameter	Value
Part Number	1756-A10
Total Slots	10
User Module Slots	9 (Slot 0 = processor; Slots 1–9 = I/O/comm)
Power Supply Slot	Dedicated, left end (separate from the 10-slot count)
Module Compatibility	All standard 1756-series modules
Mounting	Panel surface or DIN rail adapter
Operating Temperature	0°C to 60°C

When the Extra Capacity Actually Pays Off

Systems integrating multiple networks (EtherNet/IP plus a legacy fieldbus) typically need two communication module slots before any I/O is even considered.
Process applications with both digital and analog I/O spread across several modules consume slots faster than pure digital-only systems with the same point count, since analog modules carry fewer channels per slot.
Projects with a known future expansion — an additional machine zone, more sensors, or a safety system retrofit — benefit from reserving slots now rather than facing a chassis change later, which involves rewiring and requalification effort beyond just the hardware cost.

FAQ

Q: Can I/O modules from a 7-slot chassis be moved directly into a 10-slot chassis?

Yes. All standard 1756-series modules are chassis-size agnostic — they install in any compatible 1756 chassis regardless of slot count, with no module-level reconfiguration required for the move itself.

Q: Does a 10-slot chassis require a larger power supply than a 7-slot chassis?

Not necessarily — power supply sizing depends on the actual backplane current draw of the installed modules, not the chassis slot count itself. A lightly populated 10-slot chassis may need the same supply as a fully populated 7-slot chassis.

Q: Is there a performance difference between a 7-slot and 10-slot chassis for the same processor and modules?

No inherent performance difference exists between chassis sizes themselves — backplane communication characteristics are consistent across the 1756 chassis family. Performance is governed by the processor, the modules installed, and the overall I/O configuration, not the number of available slots.

Q: Can a 10-slot chassis be mounted in the same panel space designed for a 7-slot unit?

No — the 10-slot chassis is physically longer than the 7-slot version. Panel space must be planned for the actual chassis dimensions before committing to a particular slot count, especially in retrofit projects with fixed panel footprints.
