1756-HSC High-Speed Counter Module for Precision Pulse Measurement

The 1756-HSC is a high-speed counter module designed for accurate pulse counting and high-speed position feedback. It enables precise acquisition of encoder and pulse signals for demanding motion and automation applications.

Technical Specifications

Technical Specifications

Parameter	Specification
Product Type	High-Speed Counter Module
Function	Pulse Counting & Position Detection
Signal Type	Encoder / Pulse Input
Response	High-Speed Signal Processing
Mounting	Modular Rack
Application	Motion & Position Control

Typical Applications

Encoder feedback systems
Conveyor position tracking
Packaging machinery
Labeling equipment
Rotary indexing tables
Material handling systems
Production line synchronization
Motion control equipment

FAQ

Q1: What is the main function of this module?
A: It performs high-speed pulse counting and position monitoring.

Q2: Can it receive encoder signals?
A: Yes, it is designed for encoder and pulse inputs.

Q3: Is it suitable for motion applications?
A: Yes, it supports precise position and speed measurement.

Q4: Where is it commonly used?
A: In automation systems requiring fast signal acquisition.

Q5: Does it improve measurement accuracy?
A: Yes, it delivers reliable high-speed counting performance.

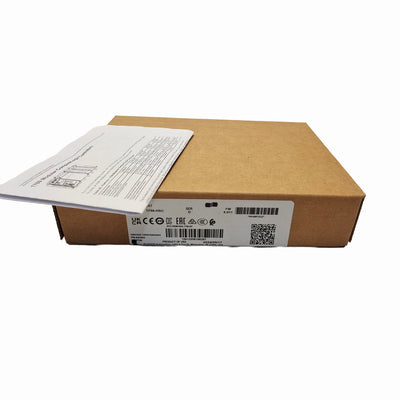

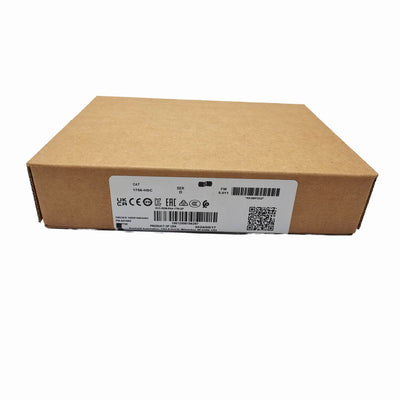

1756-HSC New Factory Sealed 1756HSC ControlLogix High Speed Counter Module
