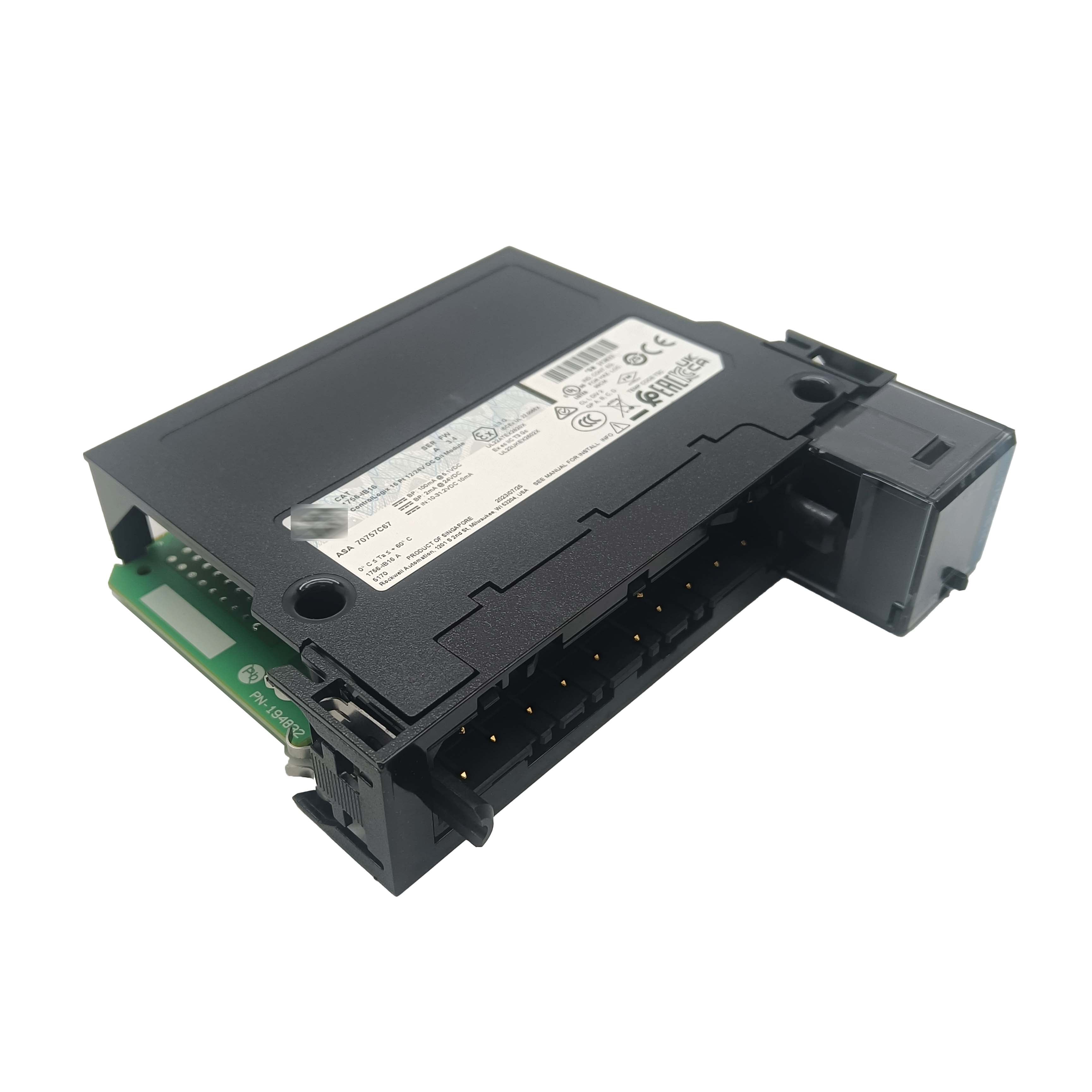

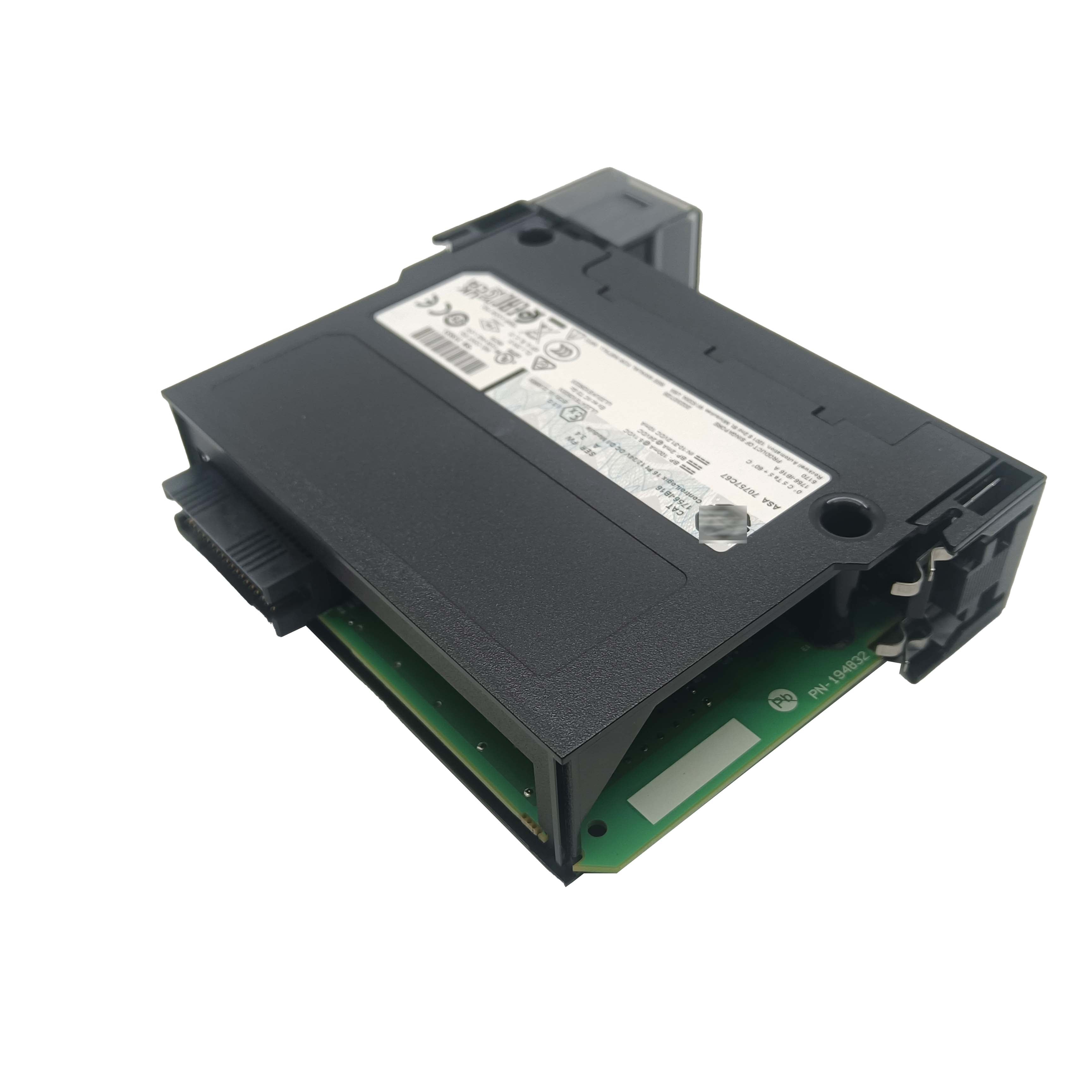

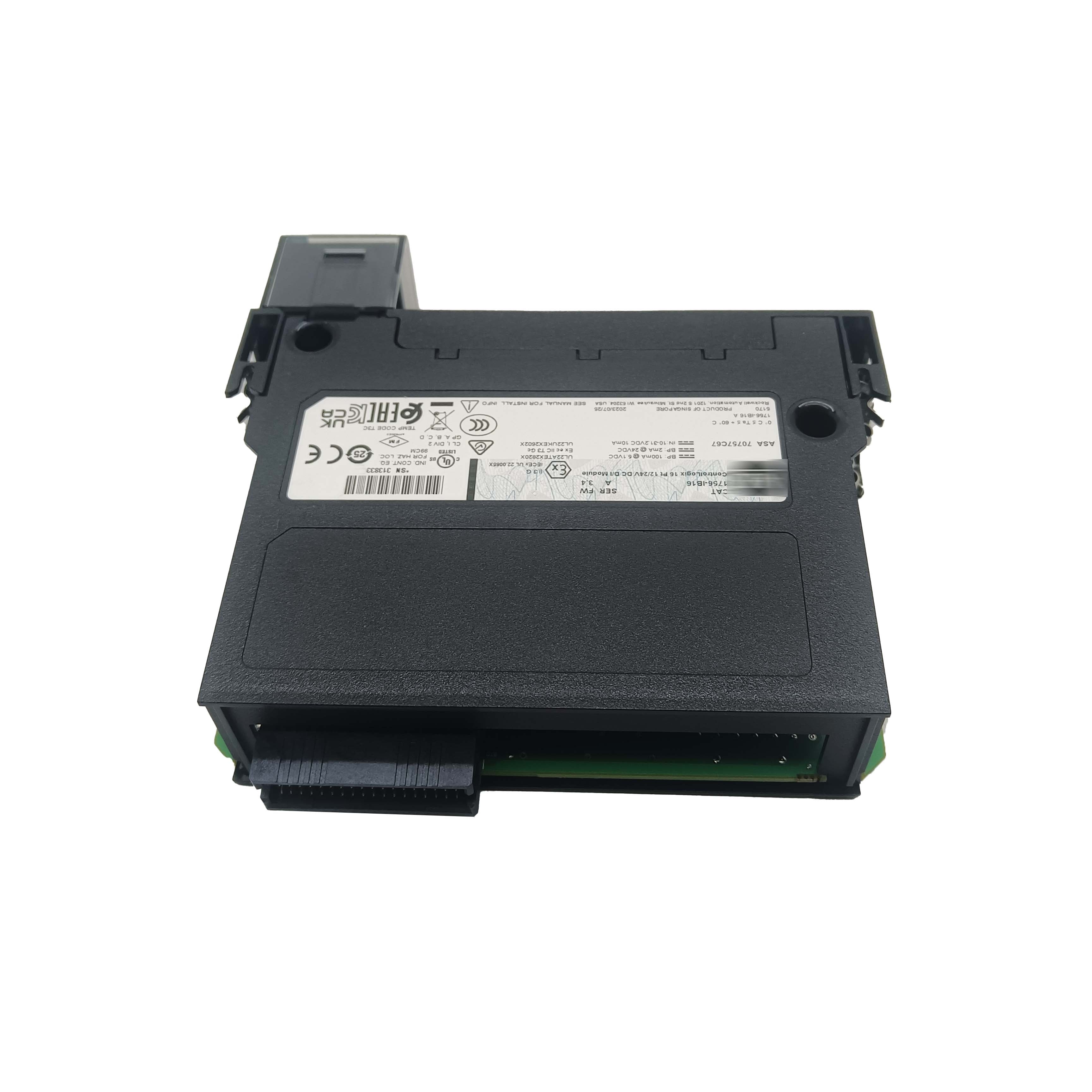

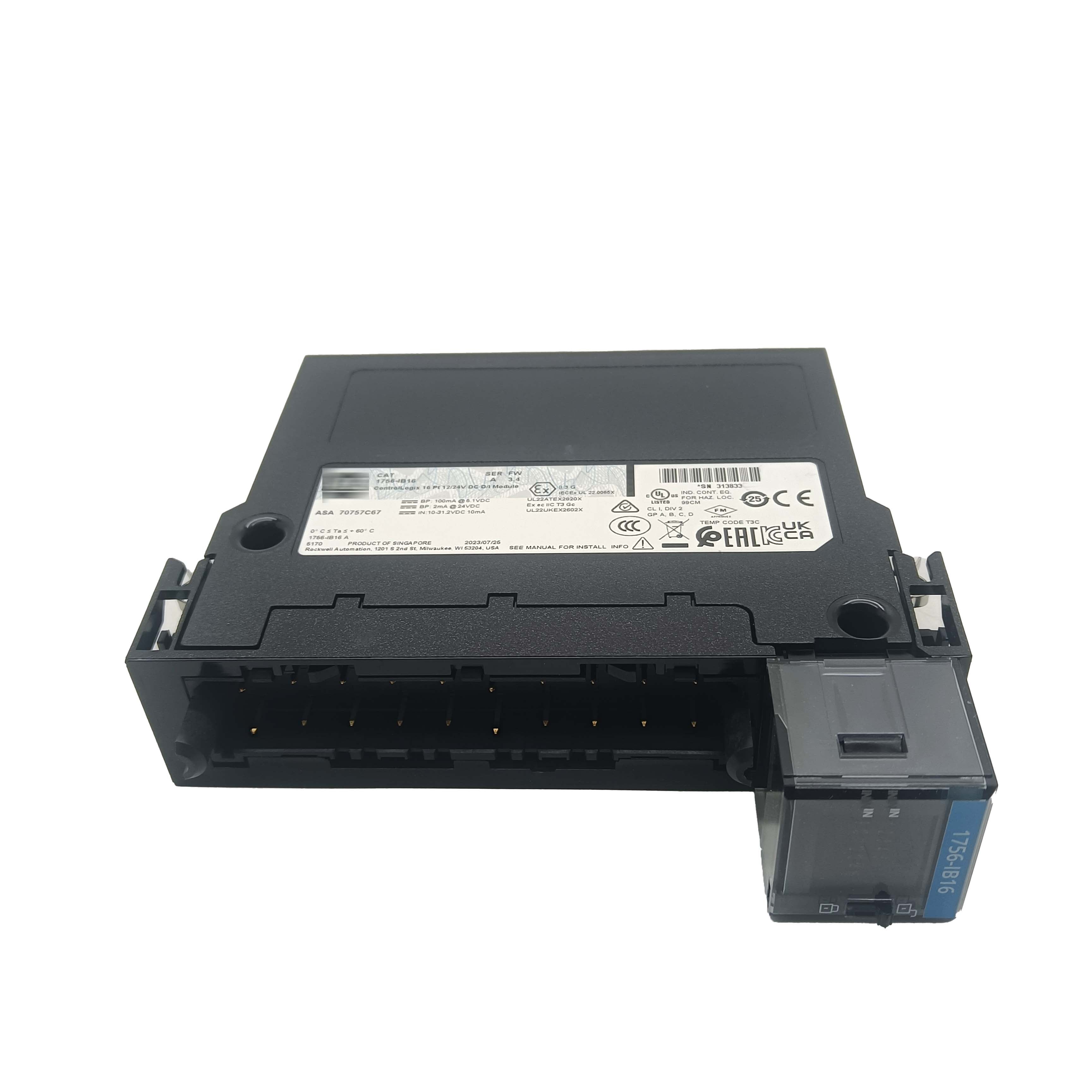

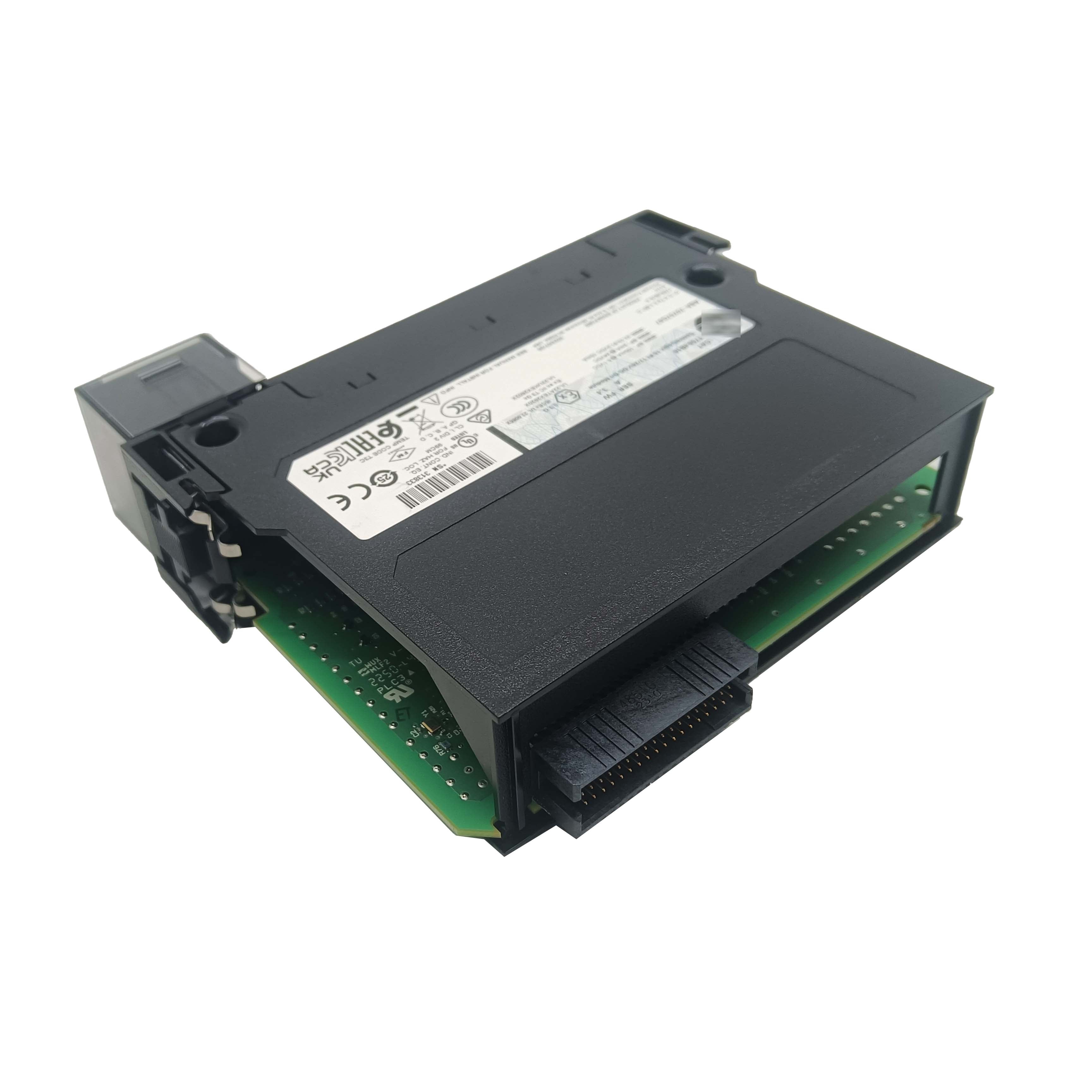

1756-IB16 — ControlLogix 16-Point 24V DC Sinking Input Module

The 1756-IB16 is one of the most straightforward modules in the ControlLogix I/O catalog — 16 digital inputs, 24V DC, sinking (sourcing field devices). It reads discrete on/off signals from pushbuttons, limit switches, proximity sensors, photoelectric sensors, and any other 24V DC digital device and presents the results as 16 individual input bits in the controller's I/O image.

Despite being a basic module by capability, it's one of the highest-volume modules in ControlLogix systems because the application is ubiquitous: machine control runs on discrete signals. Proximity sensors detecting part presence, limit switches confirming axis position, pushbuttons providing operator input — the 1756-IB16 handles all of it from a single 1756 chassis slot.

Specifications

Filter Time and Why It Matters

The three filter settings — 1 ms, 2 ms, and 9 ms — determine how long an input signal must be stable before the module registers a state change. The default is 2 ms for most applications.

Shorter filter times (1 ms) are appropriate when capturing fast events is a priority: detecting short pulses from high-speed sensors, capturing brief signals that would be missed at 9 ms. The tradeoff is increased susceptibility to transient noise — a 1 ms glitch on the field wiring will register as a real input event.

Longer filter times (9 ms) are appropriate when the field environment is electrically noisy and false triggering from contact bounce or induced noise is a problem. Mechanical contacts (pushbuttons, limit switches) often benefit from the 9 ms filter to prevent multiple input transitions from a single physical actuation. The tradeoff is that short legitimate pulses shorter than 9 ms will be filtered out — verify that no real input events in the application are faster than the selected filter time.

Common Wiring Mistakes

A few errors that show up repeatedly on 1756-IB16 installations:

• Wiring NPN sensors to a sinking input: NPN sensors output 0V when active; the module's input circuit expects 24V for an ON state. The result is an inverted or non-functional input. Confirm sensor output type (PNP = sourcing, NPN = sinking) before wiring.
• Leaving the commons unconnected: the common terminals must be wired back to the 24V DC supply negative. Without the common connection, the input circuit has no return path and no inputs will register.
• Using a separate 24V supply without tying the 0V references: if sensors run from a different 24V supply than the module's common reference, the common-mode voltage between them can prevent inputs from switching reliably or cause permanent low-level noise on all channels.
• Exceeding the 30V maximum input voltage: voltage spikes above 30V on an input terminal can damage the input protection circuit over time. Inputs connected to long cable runs in environments with inductive loads nearby may need transient voltage protection at the terminal base.

FAQ

Q: Can NPN (sinking) sensors be used with this module?

Not directly. The 1756-IB16 is a sinking input designed for PNP (sourcing) sensors. For NPN sensors, the 1756-IV16 (sourcing input module) is the correct choice. Alternatively, an interposing relay can adapt an NPN sensor to a sinking input, but this adds cost and complexity.

Q: Can this module be used in a remote chassis over EtherNet/IP?

Yes. The 1756-IB16 is a standard ControlLogix I/O module and works in any 1756 chassis, local or remote. In a remote chassis, a communication module (1756-EN2T or equivalent) handles the connection back to the controller.

Q: What is the module's response time from input change to controller update?

Total response time is the sum of the input filter time plus the RPI (requested packet interval) of the I/O connection. At 2 ms filter and a 5 ms RPI, worst-case response is about 7 ms. For faster response, reduce the filter time and the RPI, accepting that shorter filter times increase noise sensitivity.

Q: Is the 1756-IB16 compatible with 12V DC field devices?

The minimum ON-state voltage is 10V DC, so a 12V sensor that outputs the full 12V when active will register reliably. Verify the sensor's output high-level voltage under load — some sensors drop several volts when sourcing current, which could bring the input level below the 10V threshold.
