1756-IB16S — ControlLogix 16-Point 24V DC Safety Digital Input Module

The 1756-IB16S is part of the ControlLogix Safety I/O family, designed to work with GuardLogix safety controllers in machinery and process applications that require certified functional safety. It reads 16 channels of 24V DC digital input and supports safety integrity up to SIL 2 (IEC 61508) and PLe Category 4 (ISO 13849-1).

What sets safety I/O apart from standard I/O isn't just certification paperwork — it's the internal diagnostics. The 1756-IB16S continuously checks for wiring faults (short-to-24V, short-to-0V, cross-channel shorts) and reports them back to the safety controller. It also supports dual-channel input wiring for redundant device configurations like safety light curtains, two-hand controls, and E-stop circuits.

Key Specifications

Parameter	Value
Part Number	1756-IB16S
Backplane	ControlLogix 1756
Safety Controller Compatibility	GuardLogix 5560, 5570, 5580
Input Points	16 (single or dual-channel configurable)
Input Voltage	10–31.2V DC (nominal 24V DC)
ON-State Voltage Min	10V DC
OFF-State Voltage Max	5V DC
Safety Rating	SIL 2 (IEC 61508), PLe Cat 4 (ISO 13849-1)
Input Response Time (ON→OFF)	≤ 6 ms (configurable)
Short-Circuit Detection	Channel-to-24V, channel-to-0V, cross-channel
Test Pulse Output Support	Yes (for passive device testing)
Operating Temperature	0°C to 60°C
Current Draw (backplane, 5V)	250 mA
Current Draw (backplane, 24V)	105 mA
RTB	1756-TBCH or 1756-TBS6H (36-pin)

Application Scenarios

Emergency Stop Circuits Dual-channel E-stop buttons wire directly to two adjacent channels, configured as a redundant pair. The module monitors for simultaneous channel activation and detects discrepancy faults if one contact fails to open or close with the other — a requirement for Category 4 E-stop loops.

Safety Light Curtain Interfaces Light curtains with OSSD (Output Signal Switching Device) outputs connect to the 1756-IB16S's dual-channel inputs. The module monitors OSSD pulse behavior and detects cross-channel shorts or output failures, enabling the safety controller to trigger a protective stop.

Two-Hand Control Stations Applications requiring two-hand initiation (press brakes, stamping presses) use dual-channel input pairs to verify simultaneous operator hand engagement. The module's discrepancy detection ensures both inputs must activate within a defined time window.

Gate and Guard Interlock Monitoring Safety door switches and trapped-key interlocks on automated cells connect through the 1756-IB16S for SIL 2 zone protection. Wiring fault detection catches cable damage or connector issues before they become safety gaps.

FAQ

Q: Can the 1756-IB16S be used with a standard ControlLogix controller instead of GuardLogix?

The module can be installed in a standard ControlLogix chassis, but safety functionality requires a GuardLogix safety controller. Without a GuardLogix CPU managing the safety task, the safety-rated diagnostics and SIL 2 / PLe integrity guarantees do not apply. Standard controllers can read the module's data, but the safety integrity chain is broken.

Q: What is dual-channel input configuration and when should it be used?

Dual-channel mode pairs two adjacent channels to monitor a single safety device with redundant contacts — such as an E-stop with NC/NC contacts or a light curtain with two OSSD outputs. The module compares both channels and generates a discrepancy fault if they don't agree within the configured time. This is required for Category 3 and Category 4 safety functions under ISO 13849-1.

Q: How does the module detect short-circuit faults?

The 1756-IB16S uses test pulses — brief, controlled signal interruptions — to check the input wiring state during normal operation. If a channel remains active during a test pulse, the module identifies a short-to-24V condition and reports a diagnostic fault to the safety controller. This happens in the background without affecting normal input scanning.

Q: Does adding the 1756-IB16S automatically make a machine SIL 2 compliant?

No. SIL 2 or PLe compliance depends on the complete safety function — the sensor, wiring method, input module, safety controller, output module, and actuator all contribute to the overall PFH (probability of failure on demand). The 1756-IB16S is a certified component that supports SIL 2 architecture, but a full risk assessment and safety function design are required to claim compliance for any specific machine.

Q: Can standard (non-safety) devices be connected to the 1756-IB16S?

Electrically, a standard 24V DC sensor or switch will work on the module. However, the safety diagnostics — particularly test pulse monitoring — assume the connected device meets certain passive characteristics. Connecting an active output device that doesn't tolerate test pulses may generate spurious faults. For safety applications, always verify device compatibility with the module's test pulse behavior before deployment.

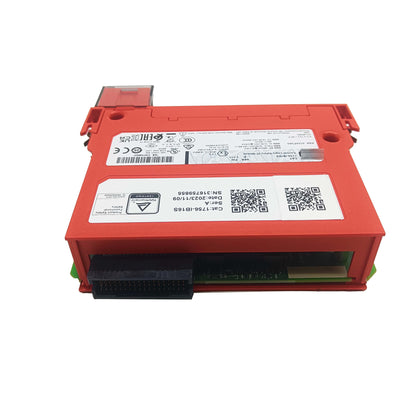

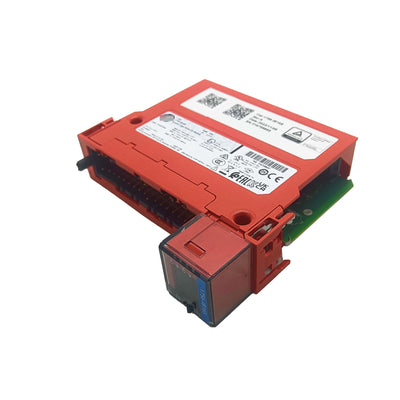

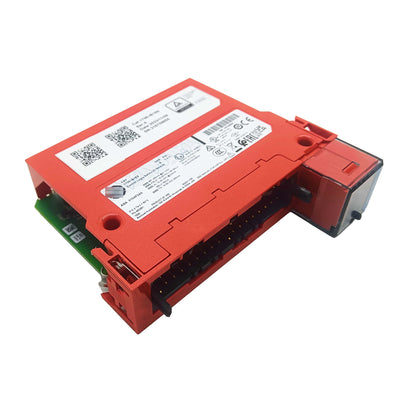

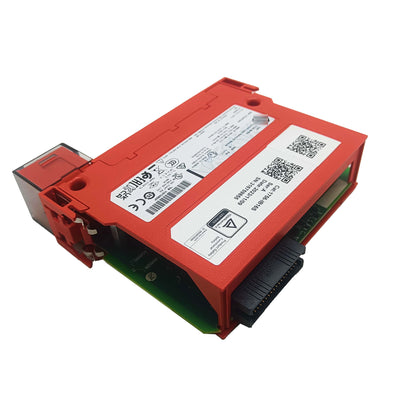

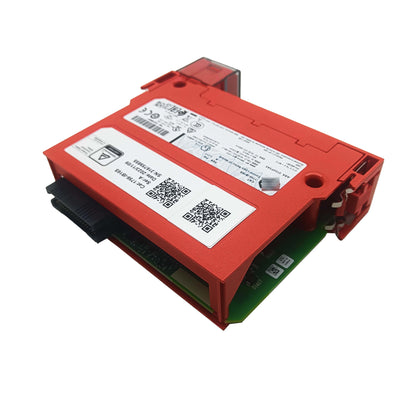

1756-IB16S Original Input Module New 1756IB16S
