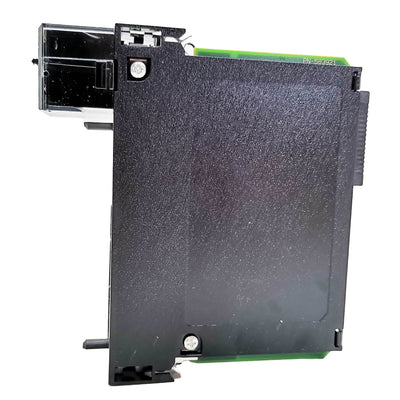

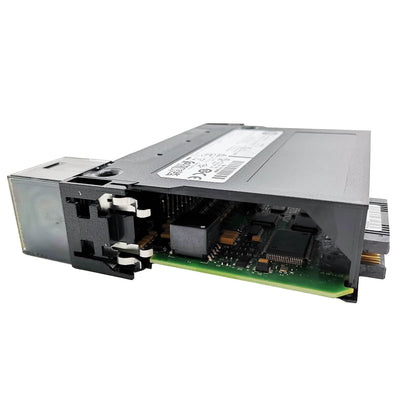

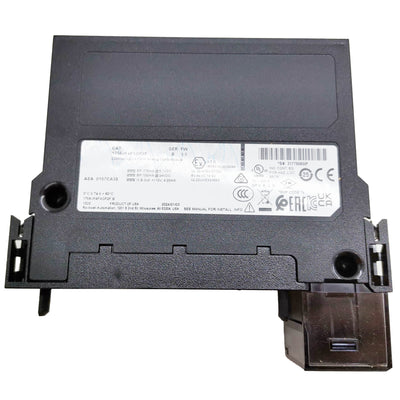

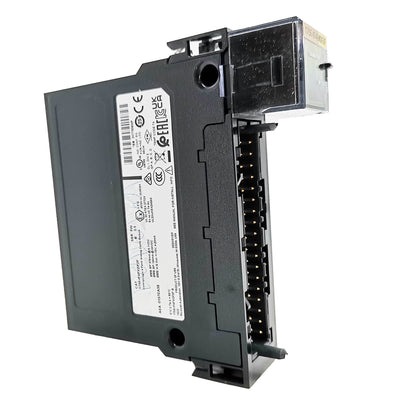

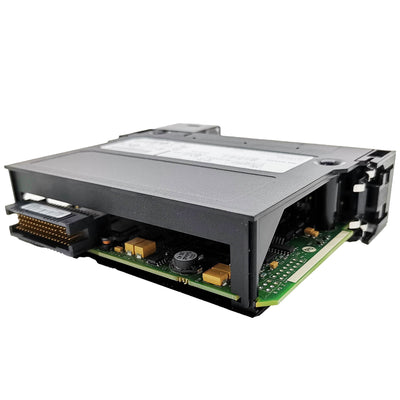

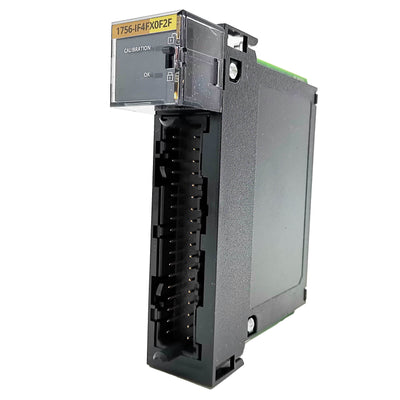

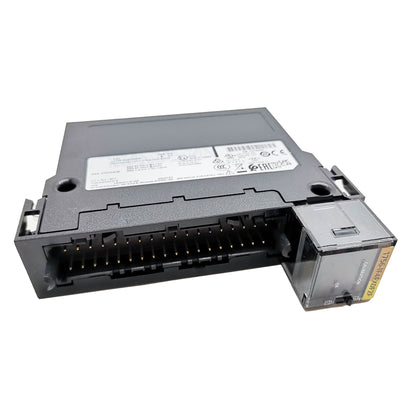

1756-IF4FXOF2F — 1756 Fast Analog Combination Module, 4 Isolated Inputs / 2 Isolated Outputs

The 1756-IF4FXOF2F is a fast analog combination module for the 1756 chassis — four individually isolated current/voltage inputs and two individually isolated current/voltage outputs in a single backplane slot. The "F" in the designation stands for fast: the module updates its analog channels at up to 1 ms rate (versus the ~10 ms of standard analog modules), and each channel is hardware timestamped. This speed and timestamping make it the right choice for fast closed-loop control loops running in the controller's periodic task, process upset detection, and applications where the timing relationship between multiple analog signals matters.

Specifications

Parameter	Value
Part Number	1756-IF4FXOF2F
Platform	1756 Logix chassis
Analog Inputs	4 (individually isolated)
Analog Outputs	2 (individually isolated)
Input Ranges (voltage)	0–10V, ±10V
Input Ranges (current)	0–20 mA, 4–20 mA
Output Ranges (voltage)	0–10V, ±10V
Output Ranges (current)	0–20 mA, 4–20 mA
Resolution	16-bit input; 16-bit output
Accuracy	±0.05% of full scale @ 25°C
Channel Update Rate	Down to 1 ms (user-configurable)
Hardware Timestamping	Yes — coordinated system time (CST)
Channel Isolation	250V AC continuous, channel-to-channel and channel-to-backplane
Backplane Current (5V)	500 mA
RTB	1756-TBNH or 1756-TBS6H (36-pin)
Operating Temperature	0°C to 60°C
Standards	UL 508, CE

Fast Update Rate and Loop Performance

Standard 1756 analog modules update on the controller's RPI (requested packet interval) — which for analog channels is typically set to 20–100 ms, consistent with slow process variables like temperature and level. That update rate is entirely adequate for those loops. Where it becomes a constraint is fast process control: pH titration, pressure surge suppression, tension control on web-handling machinery, flow control with fast-response valves, or any loop where the process variable can move significantly within 50–100 ms.

At 1 ms update rate, the 1756-IF4FXOF2F provides ten times the sample resolution of a standard module at 10 ms, and 100 times the resolution of a 100 ms RPI module. This allows the controller's PID instruction — running in a periodic task at 1–5 ms — to close a fast control loop with genuine closed-loop bandwidth. The hardware timestamp associates each sample with the controller's coordinated system time, which enables sample-accurate cross-correlation between channels and precise event timing independent of scan cycle jitter.

Individual Channel Isolation — Four Inputs, Two Outputs, All Independent

Every channel on this module is individually isolated at 250V AC continuous — no shared common, no backplane reference path between channels. Each input and output operates as if it were on a completely separate module with its own floating reference. This matters when field devices come from different electrical systems or have different ground references, when each channel connects to equipment on separate power distribution circuits, or when a fault on one loop must be contained without affecting other channels. The combination of fast update rate and individual isolation is what defines this module's niche — it's not just a fast module or just an isolated module, it's both simultaneously.

For the output channels, isolated outputs allow different voltage-level field devices on each output — a 0–10V positioner on Output 0 and a 4–20 mA speed reference on Output 1, each on different supply references — without interference. Configure output fault behavior (hold last value, go to defined value) in Studio 5000 for each channel independently to match the fail-safe requirement of each connected field device.

FAQ

Q: What's the practical difference between this module and the standard 1756-IF16 for a PID loop?

The 1756-IF16 updates at ~10 ms (slower RPI). For temperature and level PID loops with process time constants of tens of seconds, there's no practical difference. For fast loops — pressure, flow with fast valves, web tension — the 1 ms update rate and hardware timestamp allow significantly tighter loop tuning and better disturbance rejection.

Q: Can all four inputs be configured for different signal ranges?

Yes. Each channel is configured independently in Studio 5000 — channel 0 on 4–20 mA, channel 1 on ±10V, etc. Input type and range are per-channel, not per-module.

Q: Is the 1 ms update rate available for all channels simultaneously?

Yes. At 1 ms RPI, all four inputs and both outputs update every millisecond. The update rate is configurable from 1 ms up to the standard RPI range — reduce it if the application doesn't need 1 ms and backplane bandwidth is a concern.

Q: What is the coordinated system time timestamp used for?

The CST timestamp records the exact microsecond (within the chassis time base) when each sample was acquired. This allows precise determination of which measurement came first, time-correlation between events across channels, and accurate calculation of rate-of-change across samples — not possible with standard RPI-based updates where the actual sample time is indeterminate within the scan cycle.
