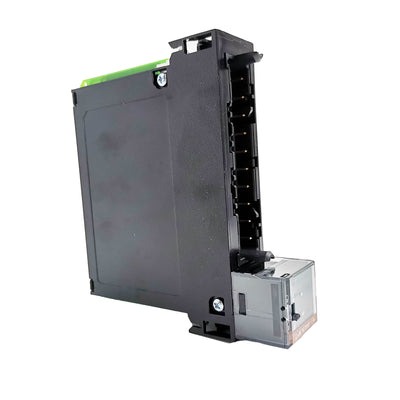

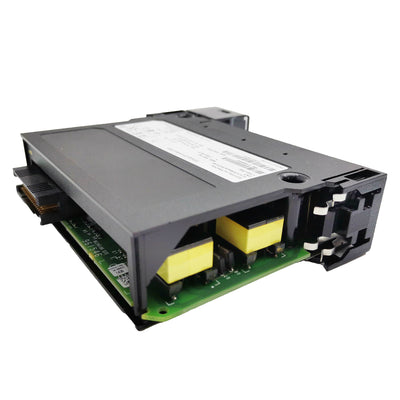

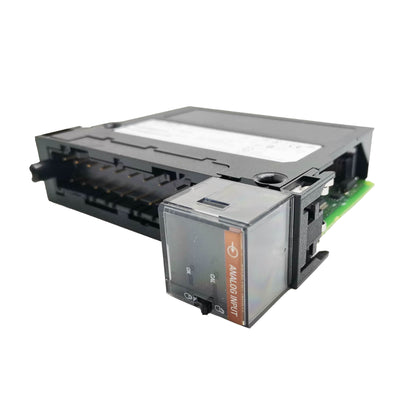

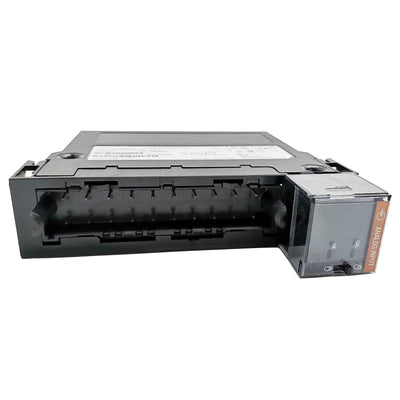

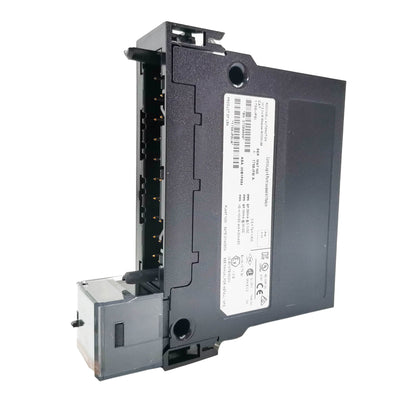

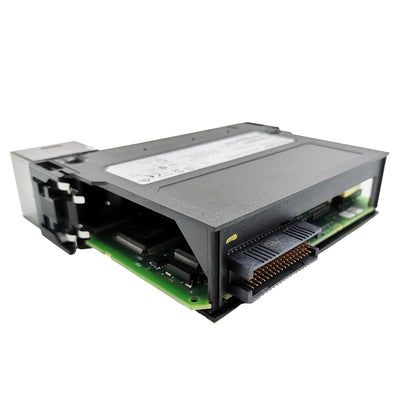

1756-IF6I — 1756 6-Channel Isolated Analog Voltage/Current Input Module

The 1756-IF6I is a 6-channel analog input module for the 1756 chassis with each channel individually isolated — not just from the backplane, but from every other channel on the module. Each input is independently configurable for voltage (±10.5V, 0–10.5V, 0–5.25V) or current (0–21 mA), with 16-bit resolution using sigma-delta conversion and a calibrated accuracy better than 0.1% of range.

Specifications

Parameter	Value
Part Number	1756-IF6I
Platform	1756 Logix chassis
Input Channels	6, individually isolated
Voltage Ranges	±10.5V, 0–10.5V, 0–5.25V
Current Range	0–21 mA
Resolution	16-bit (86 μV/bit voltage; 0.34 μA/bit current)
Calibrated Accuracy	Better than 0.1% of range @ 25°C
Common-Mode Rejection	120 dB @ 60 Hz, 100 dB @ 50 Hz
Overvoltage Protection	120V AC/DC (voltage); 8V AC/DC (current)
Backplane Current	250 mA @ 5.1V, 100 mA @ 24V
RTB Required	1756-TBNH or 1756-TBSH (20-pin)
Operating Temperature	0°C to 60°C

Six Fully Isolated Channels — Why That Matters

Most analog input modules isolate the field side from the backplane as a group, but leave the channels referenced to each other. The 1756-IF6I isolates every channel individually, which means each input requires its own complete signal path including its own return (RTN) connection — there's no shared ground reference between channels the way there would be on a non-isolated module. This matters significantly when connecting transmitters powered from different supplies or located on equipment with different ground potentials: each channel operates independently, with no interaction or ground loop risk from the others.

The tradeoff is wiring discipline. Because returns aren't shared, floating or improperly bonded RTN connections on an isolated channel can cause early signal clamping or unstable readings that wouldn't occur on a non-isolated module where the common reference handles this automatically. Each transmitter should have its own dedicated return path to its assigned channel rather than relying on a shared ground bus.

FAQ

Q: Can different channels be configured for voltage and current simultaneously?

Yes. Each of the six channels configures independently in the controller's I/O configuration — voltage and current ranges can be freely mixed across the module.

Q: Why might a 4–20 mA signal clamp at 17 mA during testing?

This typically indicates an improper or shared return wiring configuration on an isolated channel. Since each channel is fully isolated, every input needs its own dedicated RTN connection back to the transmitter — a floating or shared return can cause the reading to clamp or become unstable.

Q: Does this module require a separate loop power supply for current-mode transmitters?

For 2-wire transmitters, an external 24V DC loop supply (user-provided) is typically required to power the transmitter — the module itself measures the loop current but doesn't source transmitter excitation power on its own.

Q: What data formats does the module support for the controller program?

Both integer (left-justified, two's complement) and IEEE 32-bit floating-point formats are supported, selectable in the module's configuration — floating-point mode is required if engineering-unit scaling is needed.
