1756-IF8IH — ControlLogix 8-Channel Isolated HART Analog Input Module

The 1756-IF8IH is an 8-channel HART analog input module for the ControlLogix 1756 platform, distinguished from the 1756-IF16H by one critical design difference: all eight channels are individually isolated from each other and from the backplane. Each channel is its own independent measurement circuit with no shared reference to any other channel or to the controller ground. For process control systems where field instruments come from different electrical systems, different ground references, or physically separated equipment, individual channel isolation is what prevents ground loops from corrupting measurements.

The trade-off is channel density — eight rather than sixteen per slot. In installations where ground loop problems are a real concern (multi-vendor instrumentation, instruments spread across large facilities, intrinsically safe installations with barriers), the 1756-IF8IH's isolation architecture earns its slot premium. Where all instruments share a clean common ground reference, the 1756-IF16H's non-isolated design with twice the channel count is the more practical choice.

Specifications

Parameter	Value
Part Number	1756-IF8IH
Platform	ControlLogix 1756
Input Channels	8 (individually isolated)
Signal Range	4–20 mA (primary)
Resolution	16-bit
Accuracy	±0.1% of full scale @ 25°C
HART Protocol	HART 5, 6, 7
HART Pass-Through	Yes
Channel Isolation	Channel-to-channel and channel-to-backplane
Isolation Voltage	250V AC continuous per channel
Loop Supply	External 24V DC (user-supplied, per channel or shared)
Backplane Current (5V)	350 mA
RTB	1756-TBNH or 1756-TBS6H (36-pin)
Operating Temperature	0°C to 60°C
Standards	UL 508, CE, HART Communication Foundation certified

Wiring for Loop-Powered Transmitters

The most common configuration for HART transmitters is the 2-wire loop-powered arrangement: the transmitter draws its operating power from the same loop current it modulates for the measurement signal. The external 24V DC loop supply connects at the module's terminal base; the transmitter connects between the module's + terminal and the supply's negative, with the loop current flowing through the module's measurement circuit.

For the 1756-IF8IH, each channel has its own supply connection at the terminal base. In most installations, one external 24V supply feeds all eight channels in parallel — acceptable because all channels share the same supply reference (while the measurement circuits remain isolated from each other and the backplane). If channels need to be on genuinely independent supplies (different voltage levels, separate fuse groups for safety segregation), individual supply connections per channel are possible.

Use individually shielded twisted-pair cable for each loop. Ground the shield at the panel end only.
Verify the total supply current capacity covers the sum of all transmitter operating currents plus the full-scale 20 mA measurement current — at 16 transmitters typically drawing 4–20 mA of loop current, plan for 20 mA × 8 channels = 160 mA maximum simultaneous draw plus transmitter quiescent current overhead.
Disable unused channels in the module configuration in Studio 5000. Enabled but unconnected channels on a non-isolated module generate noise through shared circuitry — less of a concern on fully isolated channels, but disabling them still removes unnecessary background HART polling traffic on the backplane.

FAQ

Q: When should I choose the 1756-IF8IH over the 1756-IF16H?

Choose the IF8IH when instruments come from different electrical systems with different ground references, when intrinsically safe barriers are in the signal path, or when a fault on one loop must not be able to affect adjacent loops. Choose the IF16H when channel density per slot matters more and all instruments share a clean common ground reference.

Q: Does the individual isolation affect measurement accuracy?

No. The accuracy specification is identical to the non-isolated module — ±0.1% of full scale at 25°C. Isolation is a circuit architecture decision that affects immunity to common-mode interference; it doesn't change the measurement chain's resolution or accuracy.

Q: Can 4-wire (externally powered) transmitters be used with this module?

Yes. For 4-wire transmitters that have their own power supply and output a 4–20 mA signal from an active current source, the loop supply connection at the terminal base is not used. The transmitter's output connects directly to the module's + and − terminals. The module reads the current without sourcing loop power.

Q: Is HART pass-through supported while the process measurement is active?

Yes. Pass-through communication runs over the same loop as the analog measurement. The 4–20 mA process variable continues updating normally during a pass-through session — there is no measurement interruption.

Q: How are the eight isolated channels addressed in the Studio 5000 program?

Each channel appears as a separate set of input tags in the controller's I/O image — process variable, HART secondary variables, and status tags per channel. The channels are indexed 0 through 7 in the module's input data structure. Tag names are assigned in Studio 5000's I/O configuration properties and can be aliased to descriptive names in the controller program.

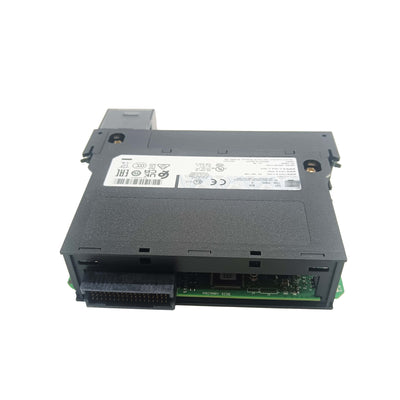

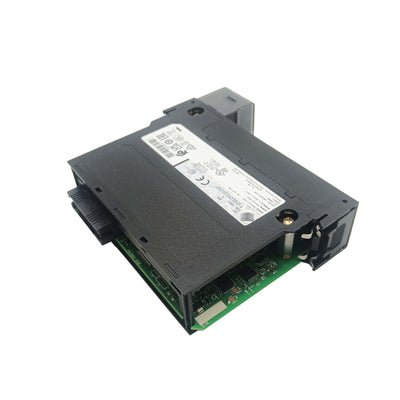

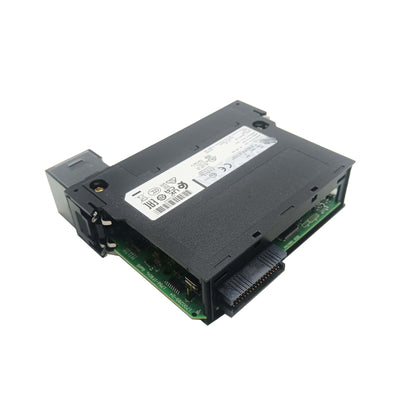

1756-IF8IH 8Pt Analog Input Module New In Box 1756IF8IH
