1756-L8SP — Safety Partner Module for 5580-Series Safety Controllers

The 1756-L8SP is a safety partner module that pairs with a primary 5580-series safety controller to achieve SIL 3 / PLe certified safety performance in a Logix-based chassis system. It has no independent user memory or program execution capability of its own — it functions purely as a co-processor, continuously monitoring and cross-checking the primary controller's safety logic execution to provide the redundant verification that SIL 3 / PLe certification requires.

Specifications

Parameter	Value
Part Number	1756-L8SP
Function	Safety partner module (co-processor only)
Compatible Primary Controllers	5580-series safety controllers (matched safety memory tier)
User Memory	None — relies entirely on paired primary controller
Mounting Position	Immediately to the right of the primary controller
Safety Rating	SIL 3 / PLe (when paired correctly)
Power Dissipation	~6.2 W
Operating Temperature	−25°C to 70°C
Conformal Coating Option	Available (K-suffix variant)

A Partner Module, Not a Standalone Controller

This module cannot run independently and isn't intended to — it has no program of its own to execute. Its sole function is to monitor and validate that the primary controller's safety task is executing correctly, with the safety signature and checksum synchronized between the two modules continuously. If only the primary controller is installed without this partner, the system can still run standard and safety logic, but the achievable safety integrity drops from SIL 3 to SIL 2 — the partner module is specifically what unlocks the higher certification level.

Physical installation position matters: the partner must sit in the chassis slot immediately to the right of its paired primary controller, and firmware revisions plus the safety signature must match between the two for the pairing to validate correctly. A mismatch in either firmware or signature prevents the system from reaching its certified safety state, surfacing as a configuration fault rather than a silent degradation — which is itself a safety-relevant design choice.

FAQ

Q: Can the 1756-L8SP run its own program independent of the primary controller?

No. It has no user-accessible memory and cannot execute logic on its own — all program storage and execution happens on the primary controller, with this module functioning purely as a validating co-processor.

Q: What happens to the system's safety rating if this partner module is removed?

Without the safety partner present, the primary controller's safety integrity drops to SIL 2 / PLd rather than the SIL 3 / PLe achievable with the partner installed and correctly paired.

Q: Where in the chassis must this module be installed?

Directly in the slot immediately to the right of its paired primary safety controller — this fixed positioning is a system requirement, not just a recommendation.

Q: Does the reset button on this module function during normal operation?

No. The reset function is only effective during power-up or restart cycles, specifically to prevent an unintended reset from disrupting safety logic execution while the system is actively running.

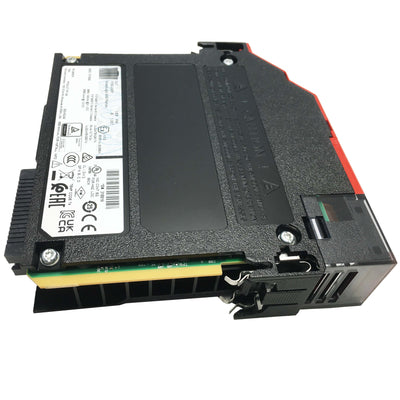

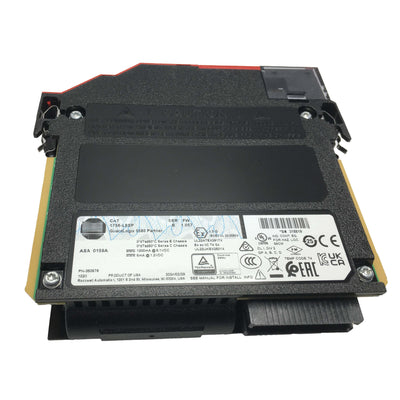

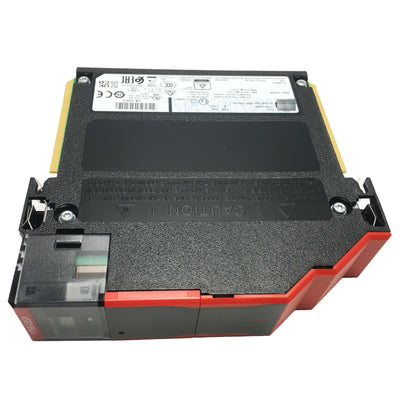

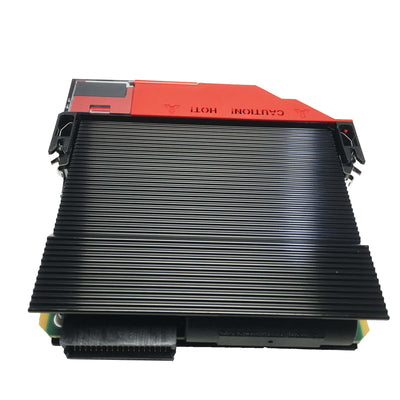

1756-L8SP New Sealed GuardLogix5580 Partner Safety Controller Plc 1756L8SP
