1756-M16SE — ControlLogix 16-Axis Servo Motion Module, EtherNet/IP

The 1756-M16SE is a motion control module for the ControlLogix platform that coordinates up to 16 servo axes over EtherNet/IP. It handles the real-time motion engine — trajectory planning, axis coordination, cam profiles, gear relationships — while the ControlLogix controller runs the machine logic alongside it. The two communicate over the ControlLogix backplane at each scan cycle, keeping motion state and logic state tightly synchronized.

What makes this module useful in complex machinery is the axis coordination it enables. Sixteen axes can be grouped into coordinated systems — Cartesian robots, gantry systems, multi-axis winding heads — and the motion engine manages the interpolation between them. From the Studio 5000 program's perspective, coordinated motion commands (like a linear move from point A to point B in three-dimensional space) execute as single instructions, with the module handling the per-axis decomposition automatically.

Specifications

Parameter	Value
Part Number	1756-M16SE
Platform	ControlLogix 1756
Max Servo Axes	16
Drive Communication	EtherNet/IP (CIP Motion)
Axis Update Rate	250 μs, 500 μs, 1 ms, 2 ms (selectable)
Coordinated Motion	Yes (linear, circular, helical interpolation)
Electronic Cam / Gear	Yes
Configuration Tool	Studio 5000 Logix Designer
Backplane Current (5V)	1.9 A
Backplane Current (24V)	3 mA
Operating Temperature	0°C to 60°C
Standards	UL 508, CE, C-Tick

Axis Configuration and Scaling

Each axis is configured individually in Studio 5000 with the axis properties dialog. Key parameters to set correctly before running any motion:

Feedback type and resolution — the encoder or resolver resolution from the motor datasheet, in counts per revolution or counts per unit of travel. Incorrect scaling here propagates as a position error across every move.
Conversion ratio — the ratio of motor encoder counts to user units (mm, degrees, inches). Setting this correctly means motion instructions work in engineering units directly, without manual conversion in the program.
Torque limits and velocity limits — set these conservatively during initial commissioning. Full torque available from the first move on a new machine increases the risk of mechanical damage if tuning parameters are off.
Axis tuning — run the Autotune wizard in Studio 5000 for each axis after mechanical installation. Autotune performs a series of controlled moves, measures the system response, and calculates initial PID gains. These will likely need refinement, but they provide a safe starting point.

The 1756-M16SE requires a firmware revision match with the ControlLogix controller. Mismatched firmware between the module and controller is a common cause of module faults after a controller upgrade. Verify both are on compatible versions before going online.

FAQ

Q: Can virtual axes (no physical drive) be included in the 16-axis count?

Yes. Virtual axes consume one of the 16 axis slots and are useful for cam master references, time-based profiles, or simulated axes during offline testing. They don't require a physical drive or EtherNet/IP connection.

Q: Does the 1756-M16SE work with third-party CIP Motion drives?

CIP Motion is an open standard, and some third-party drives support it. Compatibility depends on the drive's CIP Motion implementation and which drive profile it supports. Verify the specific drive model against the module's compatibility documentation before committing to a non-standard drive.

Q: What happens to axes if the EtherNet/IP network has a momentary dropout?

The module detects the communication loss and executes the configured fault action — typically a controlled stop or drive inhibit. The exact behavior per axis is configurable in Studio 5000. After reconnection, the axis must be re-homed or re-enabled depending on the application's recovery logic.

Q: Can the 1756-M16SE share the motion network with standard I/O modules?

Technically yes, but not recommended. CIP Motion requires deterministic network timing. Mixing high-volume I/O scanning on the same network increases jitter risk. Keep the motion network isolated for reliable performance at fast update rates.

Q: How many coordinated motion groups can be defined?

Multiple motion groups can be defined within the controller program, each with its own set of axes. All axes still count toward the 16-axis limit of the module. The practical limit on groups is the controller's task structure and scan time budget.

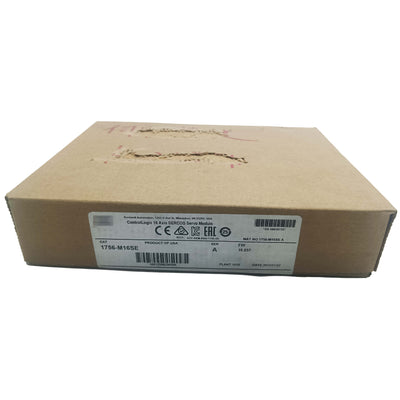

1756-M16SE Genuine ControlLogix 8-Axis Sercos Interface Module 1756M16SE
