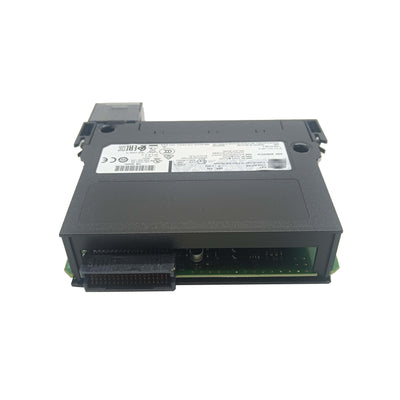

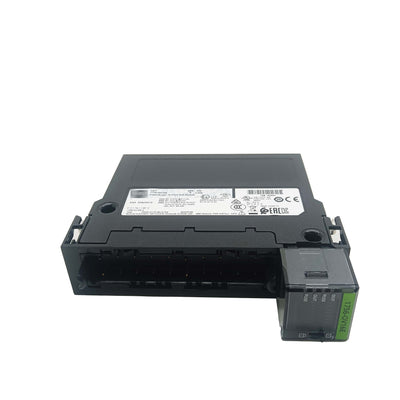

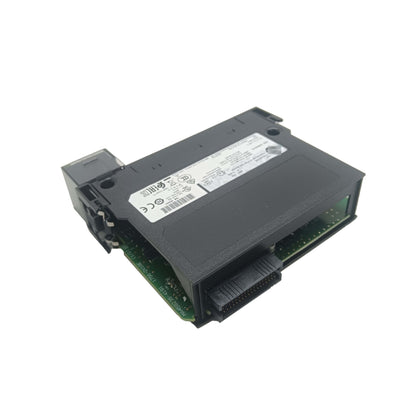

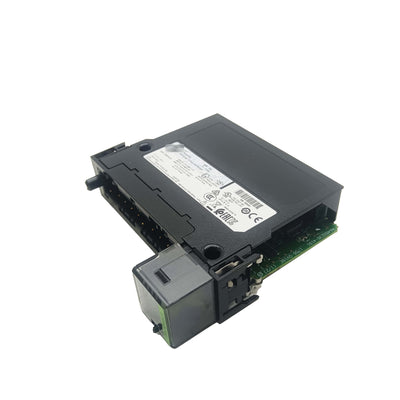

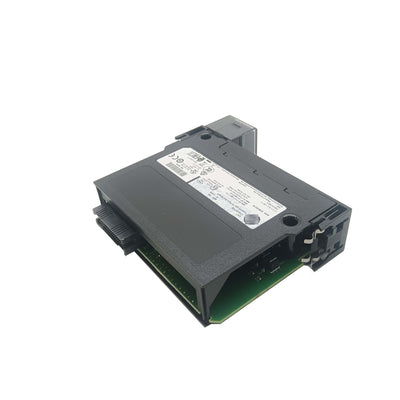

1756-OV16E — ControlLogix 16-Point 24V DC Sinking Transistor Output Module with Diagnostics

The 1756-OV16E is a 16-point sinking (NPN) 24V DC transistor output module for the ControlLogix 1756 platform, with per-point electronic protection and diagnostic reporting. The "E" designation carries real meaning here: each of the 16 outputs has independent protection circuitry that responds to short circuits and overloads without taking down adjacent outputs, and reports the fault condition as a status bit back to the controller. The diagnostic visibility is what sets this module apart from standard output modules.

Sinking outputs pull the load return to 0V when active — field devices connect between the 24V supply positive and the output terminal. This NPN convention suits equipment that expects a low-side switch, and is standard in many process industry and Asian-manufactured machine applications. At 0.5A per point, the module handles the typical range of 24V DC field devices without per-point fusing in the field wiring.

Specifications

Parameter	Value
Part Number	1756-OV16E
Platform	ControlLogix 1756
Output Points	16
Output Type	Sinking (NPN) transistor
Output Voltage	24V DC (10–30V)
Output Current per Point	0.5 A continuous
Short-Circuit Protection	Electronic, per point (individual)
Overload Protection	Yes, per point
Diagnostic Reporting	Per-point fault status in I/O data
Output Groups	2 × 8 points, separate output commons
Leakage Current (OFF)	1 mA max
Backplane Current (5V)	185 mA
RTB	1756-TBNH or 1756-TBS6H (36-pin)
Operating Temperature	0°C to 60°C
Standards	UL 508, CE, IEC 61131-2

Per-Point Protection — Why It Changes the Failure Mode

On a standard output module without per-point protection, a short circuit on one output typically trips the entire group of 8 or 16 — everything de-energizes until the fault is removed. The maintenance response is reactive: the machine stops, someone investigates, and the process of elimination begins to find which output caused the group trip. During that time, the other 15 perfectly functional outputs are also offline.

On the 1756-OV16E, a short circuit on output 3 trips output 3 and only output 3. The other 15 continue operating. The fault bit for output 3 is set in the module's diagnostic data immediately — the controller program can read this, identify the specific point, trigger an alarm with the point number and the associated field device name, and keep the machine running if the faulted output is not critical to the current operating sequence.

The auto-reset behavior means the protected output restores itself automatically once the fault condition clears. If the short was transient (a momentary cable pinch, a solenoid with a brief inrush condition beyond the protection threshold), the output comes back without manual intervention. For latching faults where automatic restart is not desirable, the program logic can hold the output off until an operator acknowledgment clears the fault tag.

How Diagnostics Change Maintenance Practice

The diagnostic data from the 1756-OV16E — specifically the per-point fault bits — enables a shift from reactive to proactive maintenance on output circuits. A few practical ways this is used:

Fault trending: if a particular output trips repeatedly over a week before staying faulted permanently, the fault history log shows the pattern. The maintenance team knows the solenoid coil on that output is degrading before it fails completely — they can schedule a replacement during planned downtime rather than responding to an emergency breakdown.
Cable insulation monitoring: intermittent insulation faults on field wiring often appear as transient short circuits at the output before becoming permanent. Repeated brief fault events on one point without a load change are a signal to inspect that circuit's wiring.
Commissioning verification: with all outputs enabled and no loads connected (during pre-commissioning testing), any output that immediately shows a fault indicates a wiring error — a short to ground in the field wiring before the load is even connected.

FAQ

Q: Can this module be used with PNP (sourcing) field devices?

The output type determines load connection, not the field device's output type. The 1756-OV16E is a sinking output — the load is connected between the 24V supply positive and the output terminal. PNP/NPN classification is a sensor/input consideration; any 24V DC load can be switched by a sinking output if wired correctly.

Q: What is the maximum total current the module can supply across all 16 outputs?

Each output is rated at 0.5A continuous. The two groups of 8 each have their own supply terminals, with a maximum of 4A per group (8 × 0.5A). Total maximum simultaneous current across all 16 outputs is 8A. Wire the supply terminals with conductor rated for the expected maximum simultaneous current in each group.

Q: How are fault bits accessed in the Studio 5000 program?

The fault status bits appear in the module's input data tags alongside the standard I/O data. In Studio 5000, they are accessible as structured tags under the module's input data area. The specific tag structure depends on the module's configuration mode — enable diagnostics in the module properties to activate the fault reporting tags.

Q: Is the 1756-OV16E compatible with 12V DC loads?

The output voltage range is 10–30V DC. A 12V DC load connected between a 12V supply positive and the output terminal will function — the output sinks current to 0V regardless of the supply voltage, provided the supply is within the operating range. Verify the load is powered from a 12V source, not the 24V source used for the output circuit supply terminals.
