1756-TBCH Removable Terminal Block for Industrial Control Wiring

The 1756-TBCH is a removable terminal block designed to provide secure field wiring connections for industrial I/O modules. Its robust construction simplifies installation, maintenance, and module replacement while ensuring dependable electrical connections in automation systems.

Technical Specifications

Parameter	Specification
Product Type	Removable Terminal Block
Connection Type	Screw Clamp
Mounting	Module Interface
Wiring Method	Field Wiring
Construction	Industrial Grade
Application	Control System Wiring

Installation Guide

Disconnect system power before installation.
Insert the terminal block fully into the module connector.
Tighten wiring terminals to the recommended torque.
Label field wiring for easier maintenance.
Confirm all connections before energizing the system.

Typical Applications

PLC control cabinets
Machine automation
Manufacturing equipment
Process control systems
Factory wiring upgrades
Industrial I/O installations

FAQ

Q1: What is the function of this terminal block?
A: It provides reliable field wiring connections for I/O modules.

Q2: Is it removable?
A: Yes, it allows quick installation and maintenance.

Q3: Where is it commonly used?
A: Industrial control cabinets and automation equipment.

Q4: Why should wiring be labeled?
A: It simplifies troubleshooting and future maintenance.

Q5: Should power be disconnected before installation?
A: Yes, always install with power removed.

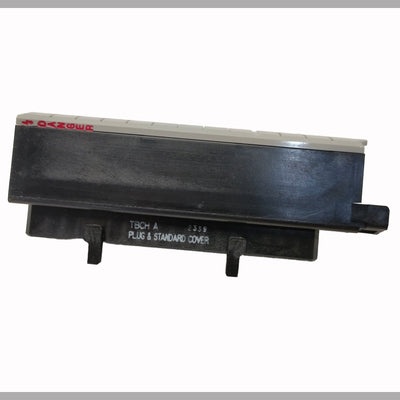

1756-TBCH New Sealed 1756TBCH 36 Pin Screw Terminal Block
