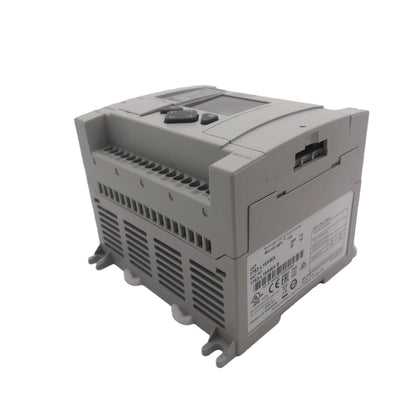

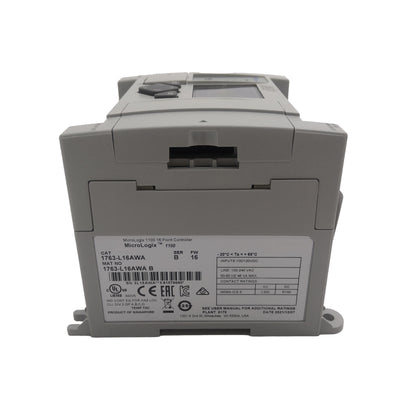

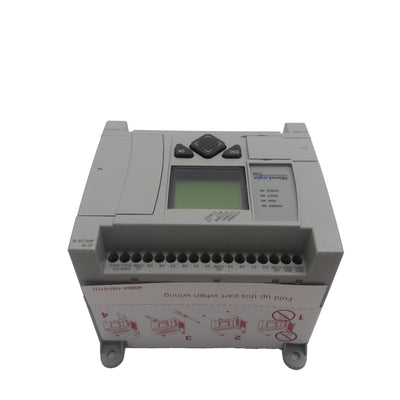

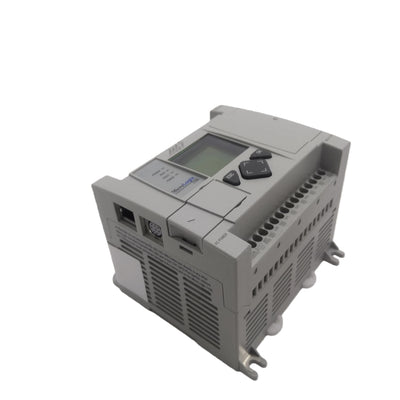

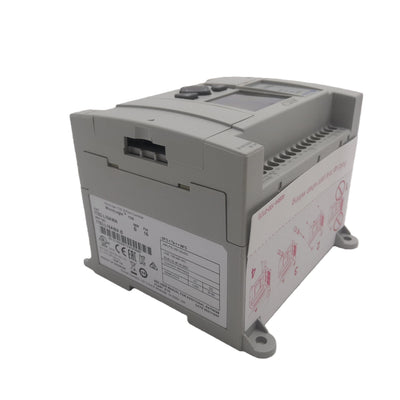

1763-L16AWA Micro PLC Controller with Integrated Digital I/O

The 1763-L16AWA is a compact programmable controller designed for small automation systems. It combines a built-in processor with integrated digital inputs and relay outputs, making it suitable for standalone machine control while reducing installation space and wiring complexity.

Technical Specifications

Key Product Data
Product Type	Micro PLC Controller
Power Supply	100–240 VAC
Digital Inputs	10
Digital Outputs	6 Relay Outputs
Programming Memory	Integrated
Communication Port	RS-232 Serial
Mounting	DIN Rail / Panel Mount
Operating Temperature	0 to 55°C

Installation Guide

Mount the controller securely on a DIN rail or panel.
Connect the AC power supply according to the wiring diagram.
Wire field input and output devices to the corresponding terminals.
Connect the programming cable to the serial communication port.
Verify wiring before applying power and downloading the application.

Typical Applications

Packaging equipment
Conveyor control
Pump automation
HVAC systems
Small manufacturing machines
Utility control panels

FAQ

Q1: Does it include built-in I/O?
Yes, digital inputs and relay outputs are integrated.

Q2: Is DIN rail mounting supported?
Yes.

Q3: What output type is provided?
Relay outputs.

Q4: Can it operate independently?
Yes, it is suitable for standalone automation.

Q5: Is it suitable for compact control cabinets?
Yes, its compact design helps save installation space.
