1764-24BWA Controller Module

The 1764-24BWA is a compact programmable controller module designed for small to mid-size automation applications. It integrates digital I/O control and processing capability into a single unit for efficient machine-level automation.

Technical Specifications

Parameter	Value
Product Type	Programmable Controller
Digital Inputs	24 channels
Power Supply	24 VDC
Mounting	Panel / DIN Rail
Communication	Serial / Industrial link
Expansion	Modular I/O support
Operating Environment	Industrial control systems

Installation Guide

Mount securely on control panel or DIN rail.
Connect power supply according to voltage rating.
Wire input channels according to schematic.
Ensure grounding for electrical stability.
Perform system check before commissioning.

Applications

Small automation machines
Conveyor systems
Packaging lines
Pump and motor control
Industrial process sequencing

FAQ

Q1: What does this module control?
A: It manages digital inputs and control logic for machines.

Q2: Is expansion possible?
A: Yes, it supports modular I/O expansion.

Q3: What power supply is required?
A: 24 VDC industrial power supply.

Q4: Where is it typically used?
A: In compact industrial automation systems and machine-level control.

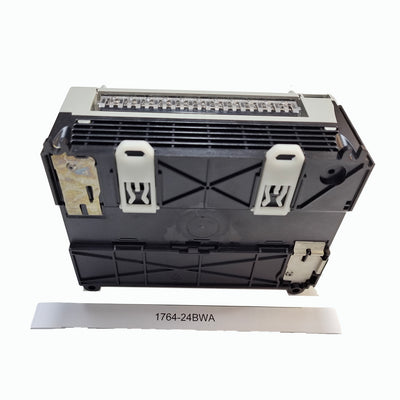

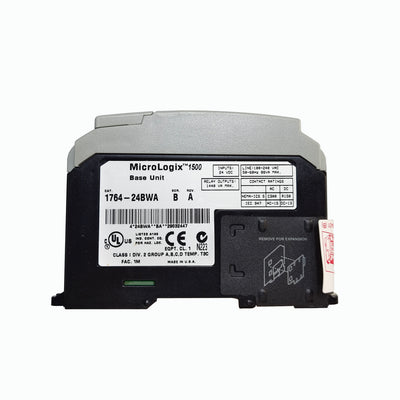

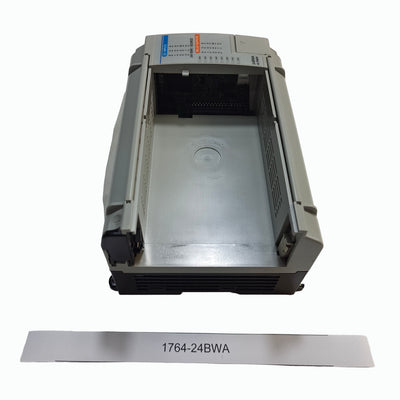

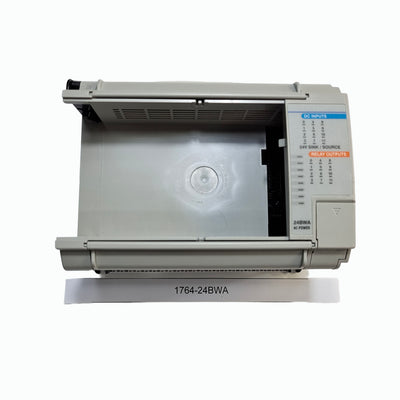

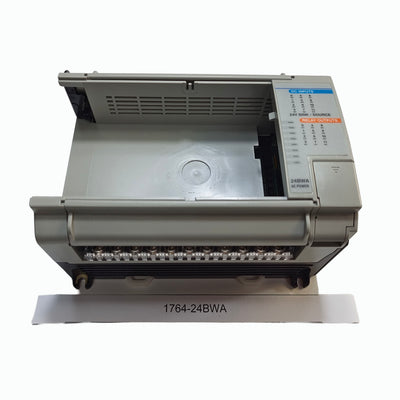

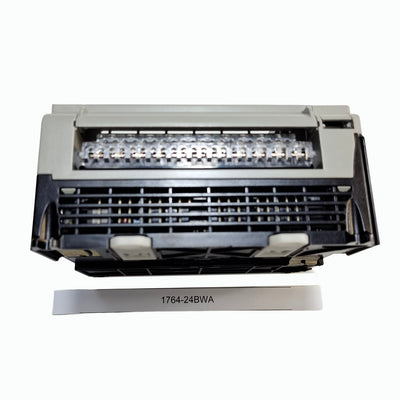

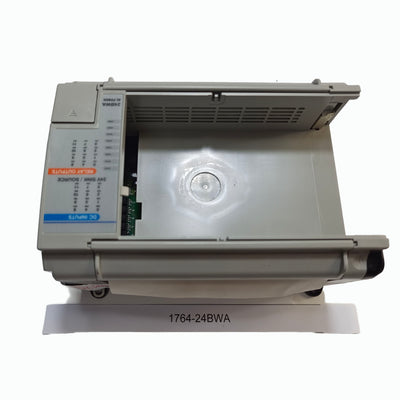

1764-24BWA New In Stock 176424BWA Micrologix 1500 Controller
