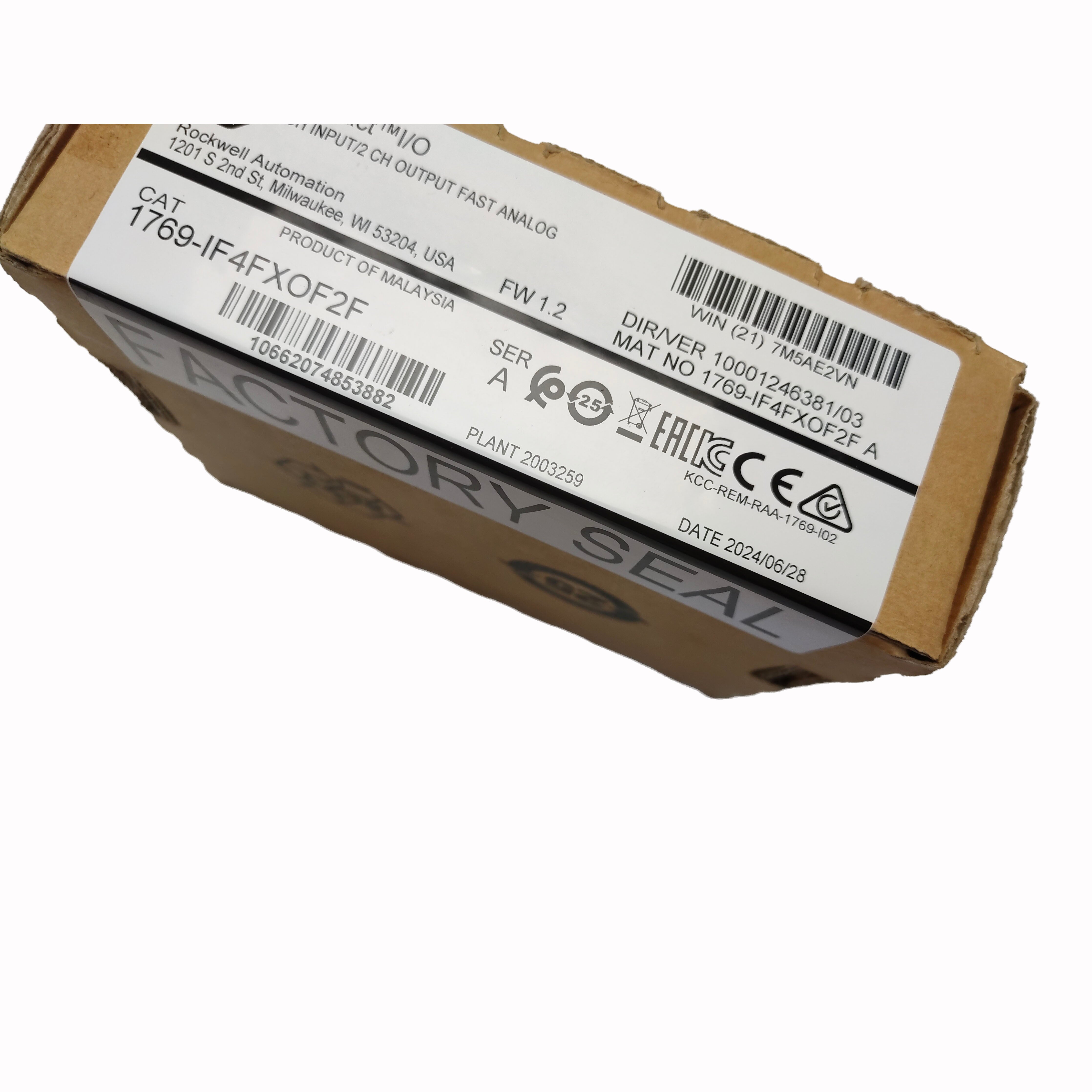

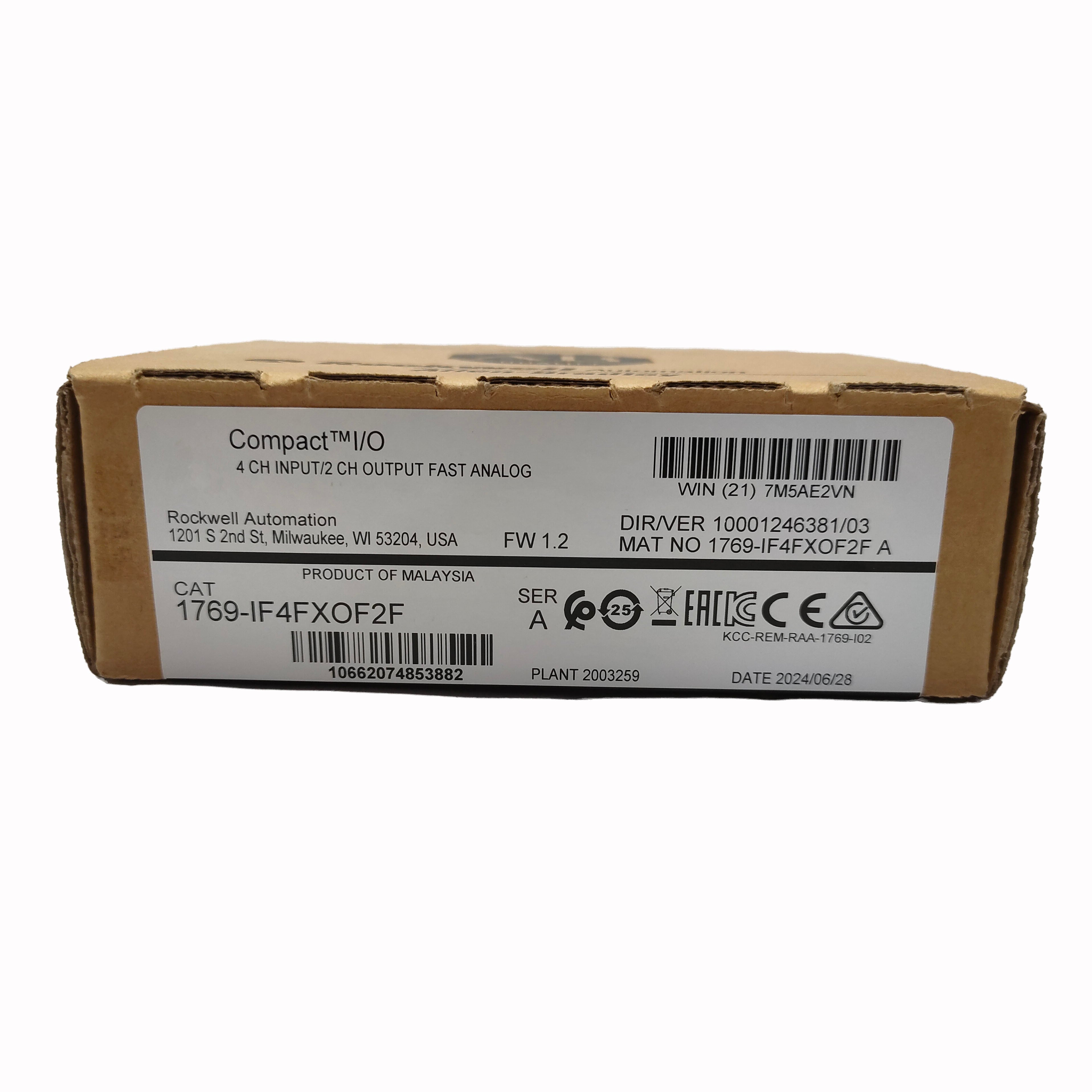

1769-IF4FXOF2F New Sealed 1769IF4FXOF2F Ser A I/O Module
PRODUCT DETAILS
1769-IF4FXOF2F Combination Analog Input and Output Module for Precision Process Control
The 1769-IF4FXOF2F is a combination analog I/O module designed for applications requiring accurate analog signal acquisition and output control. It integrates multiple analog functions into a compact module, helping simplify system design and improve control efficiency.
Product Data
| Product Data | Specification |
|---|---|
| Product Type | Analog Combination I/O Module |
| Analog Inputs | 4 Differential Inputs |
| Analog Outputs | 2 Outputs |
| Signal Type | Voltage / Current |
| Mounting | DIN Rail or Panel |
| Wiring | Removable Terminal Block |
| Application | Process Automation |
Applications
-
Process control systems
-
Water treatment equipment
-
Chemical processing
-
Industrial temperature regulation
-
Pump and valve control
-
Factory automation
Installation Guide
Install the module on the appropriate mounting rail, verify field wiring before energizing the system, keep analog wiring separated from power cables, and ensure secure terminal connections for stable signal performance.
FAQ
Q1: What functions does this module provide?
It combines analog input and analog output in one module.
Q2: Which signal types are supported?
Standard industrial voltage and current signals.
Q3: Is it suitable for process control?
Yes, it is designed for precise analog monitoring and control.
Q4: How should signal wiring be routed?
Keep analog wiring separated from high-voltage cables.
Q5: What industries commonly use this module?
Manufacturing, utilities, water treatment, and process automation.
