Product Description

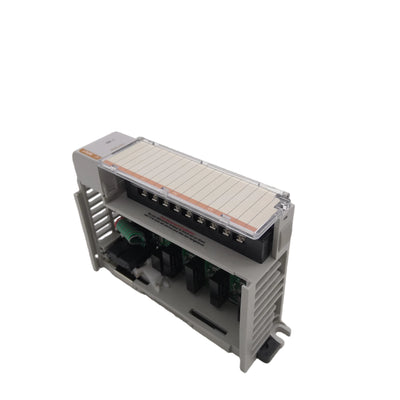

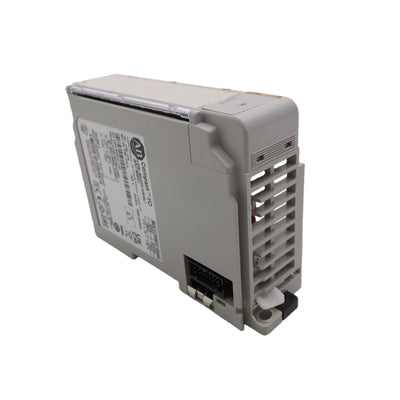

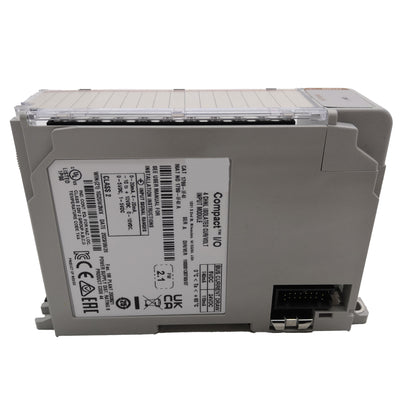

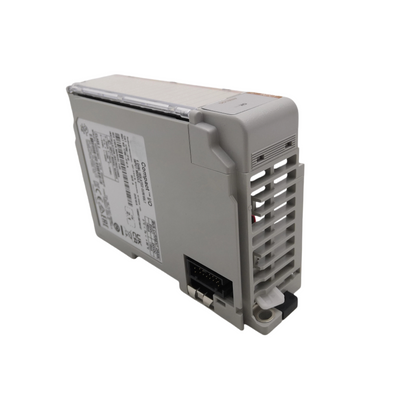

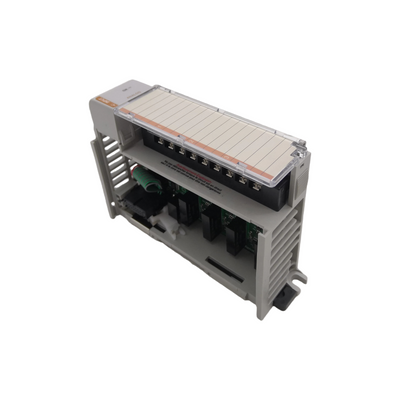

Allen-Bradley 1769-IF4I — CompactLogix 4-Channel Isolated Analog Input Module, 16-Bit Delta-Sigma, Current & Voltage

Process instrumentation rarely speaks a single language. A temperature loop sends 4–20 mA. A pressure transducer outputs 1–5V DC. A flow meter drives ±10V DC. Getting all of them into a single PLC module — without signal cross-contamination, without ground loops, without a stack of external isolators — is exactly the problem the 1769-IF4I was engineered to solve.

This is Allen-Bradley's isolated analog input module for the Compact I/O platform. Four channels, each individually and completely isolated from every other channel and from the backplane, each independently configurable for voltage or current across the full range of standard industrial signal types. A Delta-Sigma ADC converts each input to 16-bit digital data with the kind of resolution that makes ±0.5% transmitter error visible in your trend data rather than buried in quantisation noise.

Genuine Allen-Bradley / Rockwell Automation manufacture. New original, factory sealed. In stock and ready for immediate worldwide dispatch.

Technical Specifications

Parameter	Value
Catalog Number	1769-IF4I
Series	Compact I/O (1769)
Module Type	Isolated Analog Input
Input Channels	4, individually isolated
Wiring Configuration	Differential only
Converter Type	Delta-Sigma (ADC)
Resolution — Unipolar	16-bit
Resolution — Bipolar	15-bit + sign
Voltage Input Ranges	±10V DC, 0–10V DC, 0–5V DC, 1–5V DC
Voltage Full Signal Ranges	±10.5V / –0.5…+10.5V / –0.5…+5.25V / 0.5…+5.25V
Current Input Ranges	0–20 mA, 4–20 mA
Current Full Signal Ranges	0–21 mA / 3.2–21 mA
Input Impedance — Voltage	1 MΩ
Input Impedance — Current	249 Ω
Common Mode Rejection	>60 dB @ 50/60 Hz
Isolation Voltage	30V AC/30V DC continuous (Reinforced Insulation)
Bus Current Draw	140 mA @ 5.1V DC; 110 mA @ 24V DC
Max Heat Dissipation	3 W
Module Power Source	Backplane bus (5V and 24V DC)
Power Supply Distance Rating	8 modules max from 1769 power supply
Status Indicators	OK LED; Analog LED
Terminal Block	Removable terminal block (RTB) with finger-safe cover
Mounting	DIN rail or panel mount
Enclosure	Open style (no enclosure)
Operating Temperature	0–60°C (32–140°F)
Storage Temperature	–40–85°C
Humidity	5–95% non-condensing
Altitude	Up to 2000 m without derating
Pollution Degree	2
Overvoltage Category	II
Hazardous Location	Class I, Division 2, Groups A, B, C, D
Data Formats	Engineering units, percent, raw/proportional
Compatible Controllers	CompactLogix (1769), MicroLogix 1500
Configuration Software	RSLogix 5000 / Studio 5000 Logix Designer
Dimensions (H × W × D)	118 × 35 × 87 mm (4.65 × 1.38 × 3.43 in)
Weight	approx. 300 g (0.65 lb)

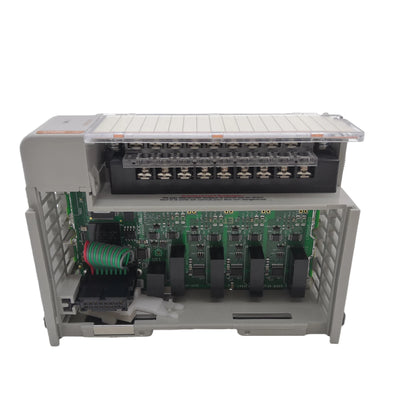

Terminal Block Pin Assignment

The 1769-IF4I uses a removable terminal block with finger-safe cover. The 18-terminal layout provides dedicated positive, negative, and isolated return terminals for each of the four channels — a direct reflection of the full per-channel isolation architecture.

Terminal	Signal	Terminal	Signal
1	N/C	10	N/C
2	Ch3+	11	Ch0+
3	N/C	12	Ch0–
4	Ch3–	13	Ch2+
5	Ch1+	14	Ch2–
6	Ch1–	15	Ch0_iRtn
7	N/C	16	N/C
8	Ch3_iRtn	17	Ch2_iRtn
9	N/C	18	Ch1_iRtn

Each iRtn terminal is the isolated return for its respective channel. Because every channel has its own isolated return that is electrically independent from all other channels, field instruments with different ground potentials, different power supply references, and even different signal types can all share a single module without interference.

Why Isolation Changes Everything in Analog Signal Acquisition

The standard 1769-IF4 and the 1769-IF4I look identical from a catalog perspective — both are four-channel analog input modules for the same Compact I/O family, both support the same voltage and current ranges. The difference lives inside, and it has practical consequences on every job site.

Non-isolated modules (1769-IF4) use a common signal return shared across all channels. All connected field devices must reference the same electrical ground potential. When the transmitters have different local grounds — for example, a flow meter powered from a separate panel, a temperature transmitter 50 metres away with its own earth reference, and a pressure transducer with a chassis ground tied to process piping — those ground potential differences appear as offset errors on the measured signal. In serious cases, the common mode voltage exceeds the module's common mode rejection capability and the readings become completely unreliable. Single-ended inputs amplify this effect further.

Isolated modules (1769-IF4I) break the shared ground path. Each channel has its own isolated return, so the ground potential of the field device's power supply has no path back through other channels. The module can tolerate common mode voltages up to 30V AC/DC continuously on each channel without signal corruption. Mixed-signal type installations — channel 0 on 4–20 mA, channel 1 on ±10V DC, channel 2 on 1–5V DC from a completely separate power source — are routine. The 60 dB common mode rejection at 50/60 Hz makes the module substantially immune to power frequency pickup on long cable runs.

The practical engineering rule: use the 1769-IF4 when all field instruments share a common ground reference and cable runs are short. Use the 1769-IF4I for any application involving long cable runs, instruments from multiple vendors with different power supplies, signals from geographically separated measurement points, or any process where electrical noise or ground potential differences are a concern. The cost difference between the two modules is insignificant compared to the cost of troubleshooting unexplained measurement drift in a running plant.

Delta-Sigma ADC: Resolution, Accuracy and Noise Performance

The Delta-Sigma converter architecture used in the 1769-IF4I delivers 16-bit resolution on unipolar ranges and 15-bit plus sign on bipolar ranges — a total of 65,536 discrete values across the full input span for unipolar signals. On a 4–20 mA loop representing 0–100 bar process pressure, each count corresponds to roughly 0.0015 bar of pressure change. On a 0–10V DC range, voltage resolution is approximately 0.15 mV per count.

Delta-Sigma converters achieve high resolution through oversampling and digital filtering rather than through the precision of a single fast conversion. The analogue input is sampled at a high rate, the bitstream is accumulated and filtered, and the result is a high-bit-count digital word that represents the average of many samples taken during the conversion window. This approach provides excellent noise rejection as an inherent property of the conversion process — random noise averages out rather than biasing the result. It also makes the converter accuracy relatively insensitive to component tolerances compared to successive-approximation or flash converters of equivalent resolution.

The practical consequence for process control applications is stable, repeatable readings even on signals with significant high-frequency noise. A 4–20 mA temperature signal with 50 Hz pickup from nearby AC wiring will read steadily on the 1769-IF4I in a way that a lower-resolution converter might not, even without additional external filtering.

Data Formats and RSLogix 5000 / Studio 5000 Configuration

Each channel of the 1769-IF4I is individually configured through RSLogix 5000 (or Studio 5000 Logix Designer for newer systems) — no hardware jumpers, no DIP switches, no physical configuration required. The module configuration is downloaded as part of the controller project.

Per-channel configurable parameters include the input signal type and range, the input filter frequency (which determines the trade-off between noise rejection and channel response speed), the data format used to present the converted value in the controller's input table, and the alarm thresholds for the over-range, under-range, and process alarm diagnostics.

Available data formats:

Engineering units — the raw ADC value is scaled to represent the actual physical measurement in the selected unit (e.g., a 4–20 mA input displays 4000–20000 in the data table, or can be further scaled by the controller ladder logic to engineering units like bar or °C)
Percent of range — the input value is expressed as a percentage of the configured full-scale range, from 0 to 10000 (representing 0.00% to 100.00%)
Raw/proportional — the unscaled 16-bit integer output of the ADC converter

For PID control loops, the engineering units or percent formats are the most practical choices. Raw/proportional data is useful for custom scaling or data archiving applications where the exact integer value from the converter is required.

Module Diagnostics and Status Indication

Two front-panel LEDs provide module-level status at a glance. The OK indicator shows normal operation (green steady), module fault (red flashing), or no power/module not configured (off). The Analog indicator reflects analog-specific status.

Beyond the physical LEDs, the 1769-IF4I provides channel-level diagnostics in the controller's input image table. Each channel reports individual status bits for:

Over-range — the input signal has exceeded the configured full-scale range
Under-range — the input signal has fallen below the configured minimum (especially useful for detecting broken 4–20 mA wire loops, which drive the input to 0 mA)
Open circuit — detected on current input channels when the loop current drops to near zero, indicating a broken wire or disconnected transmitter
Configuration error — the channel configuration contains an invalid or inconsistent setting

These diagnostics are available as boolean tags in the controller's input data assembly and can be mapped directly to alarm logic in the ladder program. A 4–20 mA transmitter with a broken wire is detected automatically through the open-circuit diagnostic, without requiring a separate discrete input or external monitoring relay.

System Positioning and Power Supply Distance Rule

Within a Compact I/O system, module position relative to the power supply is not arbitrary. The 1769-IF4I carries a power supply distance rating of 8 modules — it must not be placed more than 8 module positions away from the 1769 power supply on the local bus. This rating accounts for the backplane bus voltage drop that accumulates as current flows along the connector chain between modules. Placing power-hungry modules too far from the supply can cause the bus voltage at the far end to fall below specification, resulting in erratic module behaviour or failure to initialise.

For larger Compact I/O systems with many modules, this means planning the module order deliberately. Analog input modules, which draw their full operating power from the backplane (140 mA at 5.1V DC, 110 mA at 24V DC), should be placed in the first eight positions counting from the power supply. If the system layout requires the analog module to be positioned further away, a second 1769 power supply (1769-PA2 or equivalent) should be placed before it to reset the distance count.

Frequently Asked Questions

Q: What is the key difference between the 1769-IF4I and the 1769-IF4?

A: The fundamental difference is channel isolation. The 1769-IF4I provides complete individual isolation for each of its four channels — every channel has its own isolated return terminal electrically independent from all other channels and from the backplane. This allows mixed signal types on a single module, eliminates ground loop problems between instruments with different ground references, and provides 30V AC/DC continuous common mode tolerance. The 1769-IF4 is non-isolated, with a common signal return shared across all channels; it uses a 14-bit Delta-Sigma converter versus the 16-bit converter in the IF4I. The 1769-IF4I is the appropriate choice for any application where field instruments may have different power supplies, different ground references, or where long cable runs are involved.

Q: Can the 1769-IF4I connect to a CompactLogix 5380 or 5480 controller (1769-L3x or 1769-L1x-series hardware)?

A: Yes. The 1769-IF4I is a standard Compact I/O module and is compatible with all 1769 CompactLogix platforms, including older L23/L31/L35 controllers and current-generation CompactLogix 5370/5380/5480 systems that use the 1769 Compact I/O bus. It also works with MicroLogix 1500 when used with the 1769 expansion I/O bus on that platform. Configuration in Studio 5000 Logix Designer follows the same procedure regardless of which compatible controller generation is in use.

Q: Does the 1769-IF4I require an external power supply?

A: No external power supply is required. The module draws all its operating power from the 1769 Compact I/O backplane bus — 140 mA at 5.1V DC and 110 mA at 24V DC are supplied by the system's 1769 power supply through the bus connector. The module does not provide loop power to connected 4–20 mA transmitters; field transmitters requiring loop power (active 4–20 mA two-wire instruments) must be powered by a separate 24V DC loop supply connected at the field terminal.

Q: What cable type should be used for wiring the 1769-IF4I inputs?

A: Shielded twisted-pair cable is strongly recommended for all analog input wiring. Belden 8761 (single twisted-pair, foil shielded, 22 AWG) or equivalent is the standard specification for this application. The shield should be connected to earth ground at the module end only — grounding at both ends creates a ground loop that can introduce 50/60 Hz noise into the signal path, defeating the benefit of shielding. For voltage inputs with their 1 MΩ impedance, cable capacitance and resistive voltage dividers from shield leakage are negligible. For 249 Ω current inputs, termination impedance errors are minimal. Keep cable runs as short as practical; longer runs increase susceptibility to capacitively coupled noise even with shielding.

Q: How does the 1769-IF4I handle a 4–20 mA transmitter with a broken wire?

A: When a 4–20 mA current loop is broken (open circuit), the loop current drops to zero milliamps. The 1769-IF4I monitors each current input channel for this condition and sets a per-channel open-circuit diagnostic bit in the controller's input image table when the current falls below the detectable minimum. This diagnostic can be used directly in the ladder logic program to trigger an alarm, inhibit the affected control loop, and initiate a maintenance notification — without any additional hardware. This is one of the most practical advantages of the 4–20 mA standard over voltage signalling: a broken wire is distinguishable from a valid zero-value signal (0 mA is not a valid 4–20 mA value), so open-circuit faults are detectable in software.

Q: What data format should be selected for a PID control loop using the 1769-IF4I?

A: For standard PID applications in RSLogix 5000 or Studio 5000, the engineering units or percent of range format is recommended. Engineering units format presents the input value as a 16-bit integer proportional to the physical signal — for example, a 4–20 mA channel displays 3277 counts at 4 mA and 16383 at 20 mA — which can be scaled in the PID instruction's input scaling parameters. Percent of range format delivers 0–10000 representing 0.00%–100.00% of the configured input range, which maps directly to the PID instruction's process variable when it expects a percentage input. Raw/proportional is not recommended for live control loops as it requires an additional scaling step and can introduce rounding artefacts at the PID setpoint comparison.

Q: What is the significance of the 8-module power supply distance rating?

A: Every module in a Compact I/O system draws current from the 1769 backplane bus, and there is a resistive voltage drop across each bus connector between the power supply and the module. The 1769-IF4I's power supply distance rating of 8 modules means it must be placed within 8 module positions (counting from the power supply, not the controller) on the 1769 bus. Beyond this distance, the cumulative voltage drop on the backplane bus may reduce the bus voltage at the module below the minimum specification, causing unreliable operation. For systems that require the analog input module to be located further than 8 modules from the primary power supply, an additional 1769 power supply must be installed before the module to restart the distance count. Careful module positioning during system design avoids this constraint in most installations.
