1769-IR6 Brand New Ser A 6-Channel Input Module 1769IR6
PRODUCT DETAILS

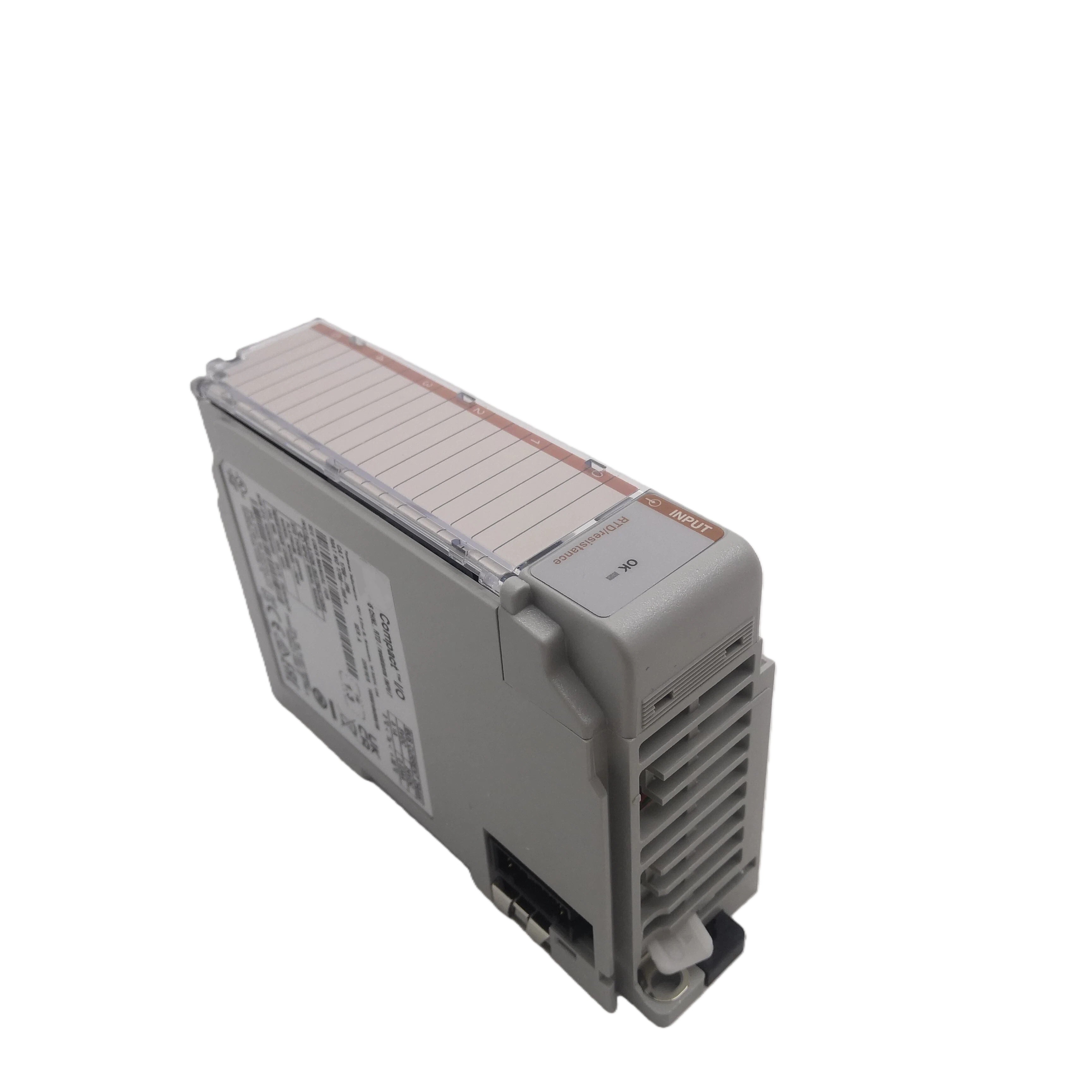

1769-IR6 RTD/Resistance Analog Input Module
The 1769-IR6 is an analog input module designed for temperature and resistance measurement in industrial automation systems. It accepts RTD sensors and resistance input signals, delivering accurate data acquisition for monitoring, process control, and equipment protection in demanding industrial environments.
Key Specifications
| Parameter | Description |
|---|---|
| Product Type | RTD/Resistance Analog Input Module |
| Input Channels | 6 |
| Input Signal | RTD and resistance |
| Supported RTD Types | Pt100, Pt1000, Ni120 and compatible RTDs |
| Signal Resolution | High-resolution analog conversion |
| Mounting Type | DIN rail or panel-mounted system |
| Isolation | Channel-to-system isolation |
| Application | Industrial temperature measurement |
Product Features
-
Supports multiple RTD sensor types for flexible temperature monitoring.
-
Six independent input channels enable efficient multi-point measurement.
-
High-resolution signal conversion improves measurement accuracy.
-
Reliable performance in industrial control and process applications.
-
Compact design simplifies installation in space-limited control cabinets.
Installation Guide
-
Install the module securely in the compatible I/O assembly.
-
Wire each RTD or resistance sensor according to the selected wiring method.
-
Verify all terminal connections before energizing the system.
-
Configure the input type and measurement parameters in the engineering software.
-
Perform a functional check to confirm accurate signal acquisition.
FAQ
Q1: What types of sensors does this module support?
A: It supports RTD sensors and resistance input devices.
Q2: How many input channels are available?
A: The module provides six independent analog input channels.
Q3: Can different RTD types be connected?
A: Yes. It supports several common RTD sensor types, including Pt100, Pt1000, and Ni120.
Q4: What is the primary application of this module?
A: It is used for industrial temperature and resistance measurement.
Q5: Is the module suitable for continuous process monitoring?
A: Yes. It is designed for stable, continuous operation in industrial automation systems.
