1784-U2DN — USB to DeviceNet Interface Adapter

The 1784-U2DN is a USB-to-DeviceNet interface adapter that allows a PC running RSNetWorx for DeviceNet or other DeviceNet configuration tools to connect directly to a DeviceNet network via a standard USB port. It replaces the older ISA and PCI-based DeviceNet interface cards, giving modern laptops and desktop PCs without expansion slots access to DeviceNet networks for commissioning, diagnostics, and parameter management tasks.

The adapter connects the PC's USB port to the DeviceNet bus — it draws bus power from the DeviceNet network (no separate supply required) and appears to the PC as a virtual DeviceNet node. From RSNetWorx, it provides the same scan list management, device parameter access, and online monitoring capability as older PCI-based interfaces.

Specifications

Parameter	Value
Part Number	1784-U2DN
PC Interface	USB 2.0 (Type A to device)
Network Interface	DeviceNet (CAN-based, ISO 11898)
Role on Network	Node — occupies one DeviceNet MAC ID
Baud Rates	125 kbps, 250 kbps, 500 kbps (auto-detect or manual)
Power Source	DeviceNet network power (11–25V DC from bus)
DeviceNet Connector	5-pin open-style (standard DeviceNet)
Node Address	Configurable (default: 62 or auto-assigned)
Compatible OS	Windows (32-bit and 64-bit; verify driver for OS version)
Compatible Software	RSNetWorx for DeviceNet, Studio 5000 (via RSLinx)
Cable Length	USB cable ≤ 5 m to PC
Operating Temperature	0°C to 50°C

How USB-to-DeviceNet Works

The adapter bridges the PC's USB stack to the DeviceNet CAN bus. The Windows driver installs a virtual DeviceNet channel that RSNetWorx and RSLinx Classic recognize as a standard DeviceNet interface. Once connected and powered from the bus, the adapter can perform all the functions a PCI card interface performs — browsing the network, reading the scan list from a scanner module, uploading and downloading device parameters, and monitoring live I/O data.

The adapter draws its operating power from the DeviceNet network power rails (V+ and V− on the 5-pin connector). The DeviceNet network must be powered before the adapter will initialize. If the network power supply is off or the network power is absent at the tap point, the adapter won't come up — a common source of confusion during troubleshooting when the network appears dead.

Installation and Driver Notes

Install the RSNetWorx for DeviceNet software and its associated drivers before connecting the adapter. The driver package installs the virtual DeviceNet channel that the adapter uses — connecting the adapter without the driver results in an unrecognized USB device.

Verify driver compatibility with the Windows version in use. 64-bit Windows versions require 64-bit signed drivers — older driver packages for 32-bit systems don't install correctly on current 64-bit Windows.
The adapter occupies one MAC ID on the DeviceNet network. The default address is typically 62. If address 62 is already in use, change the adapter's address in the driver configuration before connecting to avoid a node address conflict that can disrupt all devices on the network.
USB cable length matters — stay within 5 m. Longer USB runs introduce signal timing issues that can cause intermittent disconnects of the virtual DeviceNet channel.
Connect the adapter's DeviceNet cable to a network drop point, not to the trunk in a way that modifies the trunk termination. Use a standard T-tap or drop cable connection.

FAQ

Q: Can this adapter replace a 1784-PCD or 1784-PCIDS PCI card for RSNetWorx?

For most configuration and diagnostics tasks, yes. The USB adapter provides the same RSNetWorx functionality as PCI-based interfaces. It is not intended for high-performance real-time scanning applications — for those, a dedicated PCI or PCIe DeviceNet interface card is the appropriate tool.

Q: Can the adapter monitor a live running network without affecting operation?

Yes. Connecting RSNetWorx in browse mode reads the network state without interrupting the scanner's active scan list. Uploading the scan list or reading device parameters uses explicit messaging, which doesn't interfere with the cyclic I/O data exchange between the scanner and slave nodes.

Q: Does the adapter work on a network running at 500 kbps?

Yes. The adapter supports all three standard DeviceNet baud rates (125, 250, 500 kbps). Set the baud rate to match the network before connecting, or use auto-detect if the adapter version supports it — connecting at the wrong baud rate generates bus errors that appear as network faults.

Q: Can the 1784-U2DN be used on a network that's at the maximum of 63 nodes?

The adapter consumes one node address. If all 63 addresses (0–62) are already assigned to devices, there is no address available for the adapter. In that situation, temporarily remove a non-critical device from the network to free an address, or reconfigure a device to a higher unused address before connecting.

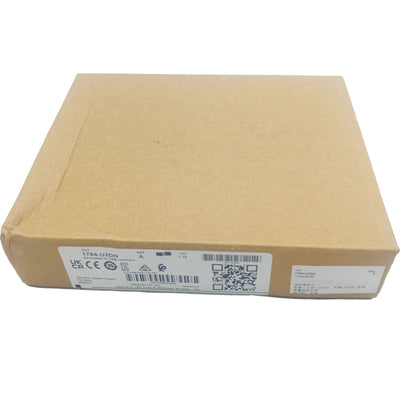

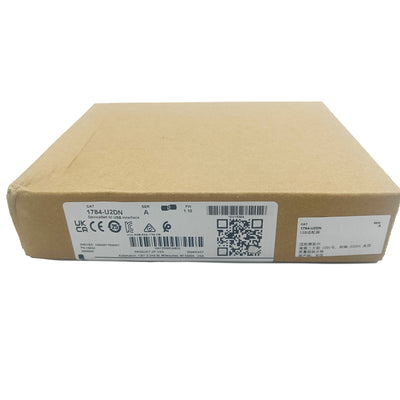

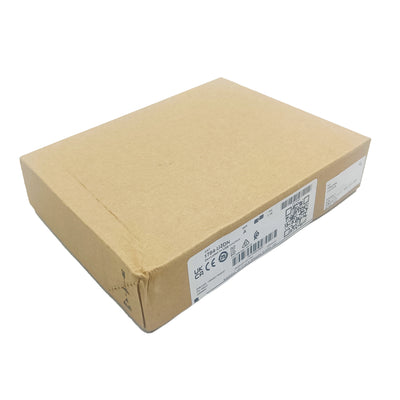

1784-U2DN New Factory Sealed 1784U2DN DeviceNet to PC USB Interface Cable
