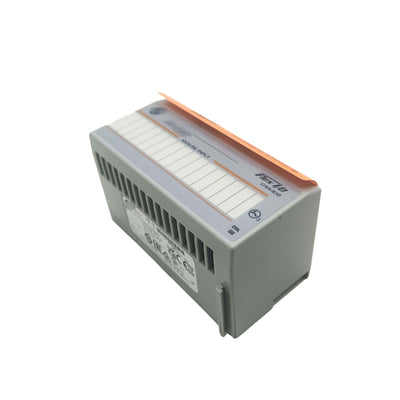

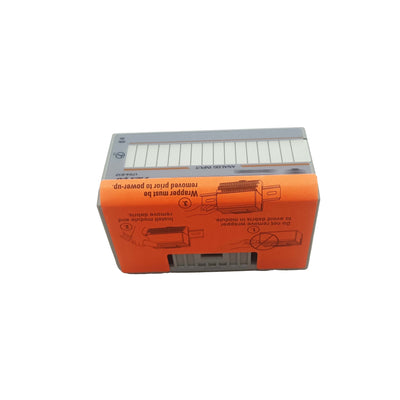

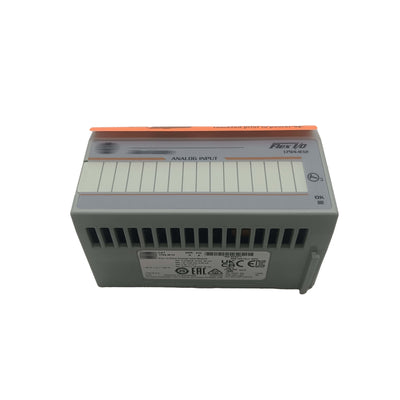

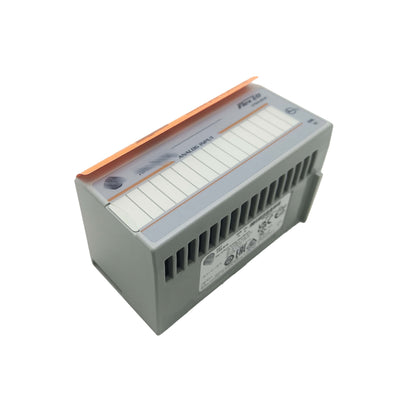

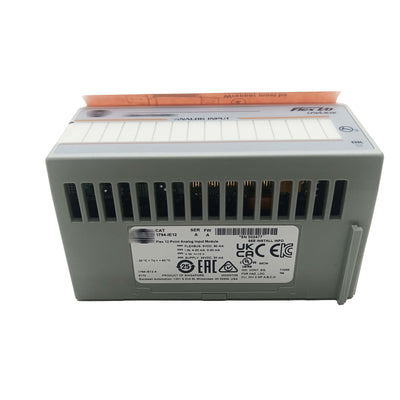

1794-IE12 — FLEX I/O 12-Channel Analog Input Module

The 1794-IE12 is a 12-channel analog input module for the 1794 FLEX I/O system. Each channel reads a voltage or current signal from a field instrument and converts it to a 16-bit digital value for the controller. Twelve channels in a single module slot keeps the analog point count high without consuming disproportionate backplane space — useful in process applications where temperature, pressure, level, and flow measurements accumulate quickly across a system.

The module is configurable per channel: voltage ranges (0–10V, ±10V) and current ranges (0–20 mA, 4–20 mA) can be mixed across the twelve inputs. A 4–20 mA temperature transmitter on channel 0 and a 0–10V level sensor on channel 5 coexist on the same module without any special arrangement. This flexibility reduces the number of different module types needed in mixed-signal installations.

Specifications

Parameter	Value
Part Number	1794-IE12
Platform	FLEX I/O (1794)
Analog Input Channels	12
Input Ranges (Voltage)	0–10V DC, ±10V DC
Input Ranges (Current)	0–20 mA, 4–20 mA
Resolution	16-bit (over full input range)
Accuracy	±0.1% of full scale @ 25°C
Input Impedance (voltage)	≥ 100 kΩ
Max Loop Resistance (current)	300 Ω
Update Rate	~10 ms per channel (all channels enabled)
Isolation	Channel-to-backplane isolated; channels share common
Backplane Current (5V)	150 mA
Field Supply	24V DC (user-supplied, for current loop transmitters)
Operating Temperature	0°C to 55°C
Standards	UL 508, CE, IEC 61131-2

Signal Range Selection

Choosing the right input range affects both accuracy and signal integrity. For process instrumentation, 4–20 mA is the most common choice — the 4 mA live-zero makes open-circuit faults immediately detectable (the signal drops below 4 mA), which a 0–20 mA or 0–10V range can't distinguish from a genuine zero reading. For sensors with voltage outputs — potentiometers, pressure transducers with amplified outputs, temperature transmitters with 0–10V outputs — the voltage modes are appropriate.

The ±10V bipolar range suits sensors that output a signed signal relative to a common reference — some displacement sensors and differential pressure transmitters output negative values for one direction of deflection. Configuring a channel in unipolar mode (0–10V) when the sensor output can go negative results in clipping at 0V and lost information below the midpoint.

Wiring and Noise Rejection

All twelve channels share a common reference — they are not individually isolated from each other. This means all field devices connected to the module must share the same ground reference. Devices on different electrical systems or with separate ground references will introduce a common-mode voltage between channels that appears as measurement error or noise. If field devices come from multiple isolated electrical systems, an isolated analog input module is needed instead.

For 4–20 mA current loops, use individually shielded twisted-pair cable per channel. Ground the shield at the panel end only. Current loops are inherently noise-resistant because they represent the signal as a current rather than a voltage — the signal is less sensitive to induced voltage noise picked up along the cable length. For voltage inputs over long runs, signal attenuation and noise pickup are more significant concerns; keep voltage-mode signal cables short or buffer the signal at the source.

The 1794-IE12 is not suitable for thermocouple or RTD direct connections. It reads millivolt-level signals from thermocouples as severely distorted values and cannot perform cold-junction compensation. Use a dedicated thermocouple or RTD input module (1794-IT8 or 1794-IR8) for temperature sensor direct wiring.

FAQ

Q: Can individual channels be configured for different ranges, or is it all-or-nothing per module?

Each channel is configured independently. Voltage and current ranges can be mixed freely across the twelve channels in the Studio 5000 module properties.

Q: How does the module report a 4–20 mA under-range condition (open circuit)?

When configured for 4–20 mA, the module sets an under-range status bit if the input drops below 3.5 mA. This bit is available in the module's input data for the controller program to use for alarm or fault logic.

Q: What FLEX I/O adapter modules are compatible?

The 1794-IE12 works with all standard 1794 adapters — EtherNet/IP (1794-AENT), DeviceNet (1794-ADN), ControlNet (1794-ACN), and others. The analog module is protocol-agnostic and communicates via the FLEX I/O backplane regardless of adapter type.

Q: Is the 24V DC field supply for current loops provided by the module?

No. The 24V loop supply must be provided externally by the user via the terminal base. The module does not generate a loop supply internally — it only reads the resulting signal current.

Q: How many analog input modules can share one FLEX I/O adapter node?

Up to eight modules per adapter node (depending on adapter type). Multiple 1794-IE12 modules can coexist on the same node, giving up to 96 analog input channels per node before addressing and backplane current budgets are considered.
